China vacuum belt continous chicken manure dryer machine factory direct sale ISO9001
| Detailed Product Description: |

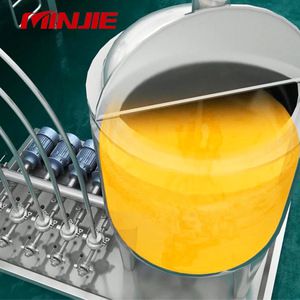

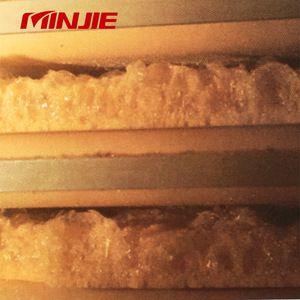

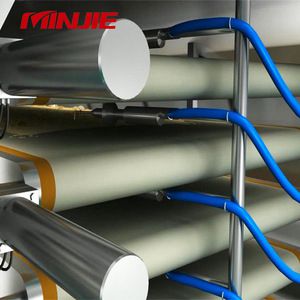

Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated. Belts move on the heating plates evenly. Steam, hot water, hot oil can be used as heating media. With the moving of the belts, the product goes through from the beginning evaporating, drying, cooling to discharging in the end. The temperature decreases through this process, and can be adjusted for different products. Special vacuum crusher is equipped at the discharge end to produce different size end product. The dry powder or granule product can be automatically packed or continue with subsequent process.
|
| Equipment Advantage: |
1.Less labor cost and energy consumption 2.Little loss of product and solvent recycling possible 3. PLC automatic control system & CIP cleaning system 4. GMP standards 5. Good solubility & excellent quality of the products 6. Continuous feed-in, dry, granulate, discharge in vacuum state 7. Completely closed system and no contamination 8. Adjustable drying temperature (30~150℃)& drying time (30~60min)
|
| APPLICATION SCOPE: |
Vacuum belt dryer (VBD) for liquid&paste is mainly used in drying many kinds of liquid or paste raw material, such as traditional & western medicines, food, biological products, chemical material, health foods, food additive etc, especially suitable for drying material with high-viscosity, easy agglomeration, or thermoplastic, thermal sensitivity, or material that can not be dried by traditional dryer. For above materials, VBD is the best choice: Pharmaceutical industry:chinese medicine extract, plant extract, egg embryo, PVPK series, fermenting liquid etc Food industry:malt extract, carbohydrate, instant beverage, tea powder, cocoa powder, corn paste etc Chemical Industry:lithium battery, emamectin benzoate etc
|

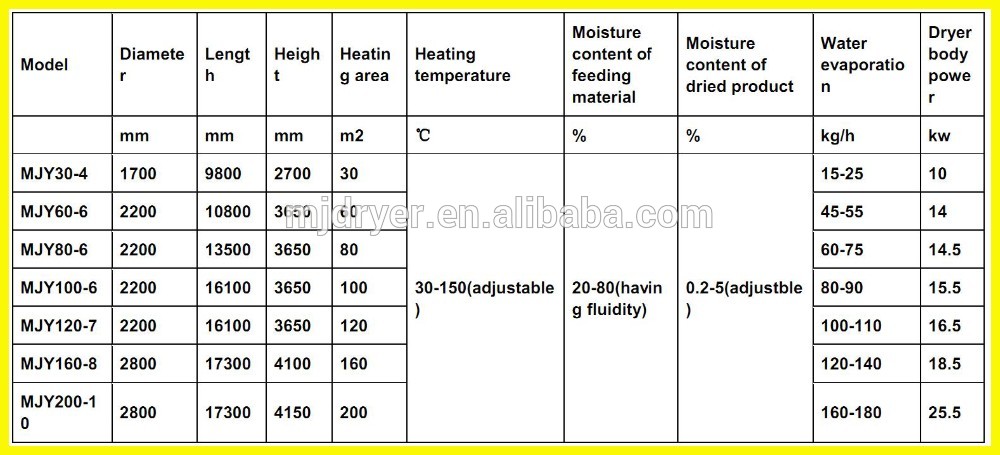

| EQUIPMENT SPECIFICATION: |
| TECHNOLOGICAL PROCESS: |
Q1: What is the working principle of vacuum belt dryer? |
A:Vacuum belt dryer is a continuous infeed and discharge vacuum drying equipment. Liquid product is conveyed into dryer body by infeed pump, evenly spread on belts by distribution device. Under high vacuum, the boiling point of the liquid is lowered; water in the liquid material is evaporated under low temperature, thus protect active ingredients in the product.
|
Q2: What are the advantages of vacuum belt dryer compared to other drying ways? |
A:Please check the following form: |
Item | Vacuum Belt Dryer | Freeze Dryer | Vacuum Oven | Spray Dryer |
Drying temperature | Low /Medium | Low | Medium/High | High |
Drying time | 30-60minutes | 20-35hours | 10-20hours | short |
Production solubility | Good | Good | Ordinaryc | Ordinaryc |
Product quality | Good | Good | Ordinaryc | Ordinaryc |
Property reservation | Good | Good | Ordinaryc | Ordinaryc |
Operation cost | Low | High | Medium | High |
Equipment investment | Medium | High | Low | Low |
Application scope | Wide | Ordinary | Wide | Low |
Continuous production | Yes | No | No | Yes |
Q3: What is the cleaning way? Whether does the machine accord with GMP standards? |
A:With CIP cleaning, vacuum belt dryer is the best choice for GMP performance.
|
Q4: What kind of products can vacuum belt dryer dry?the machine accord with GMP standards? |
A:All kinds of liquid material for vacuum belt dryer for liquid&paste |
