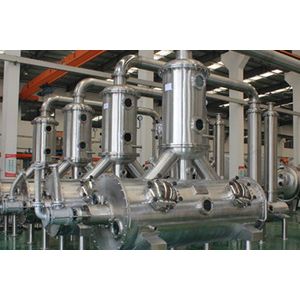

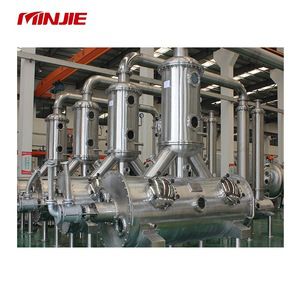

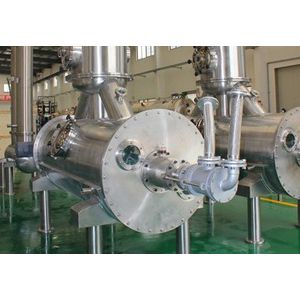

Vacuum low temperature evaporator

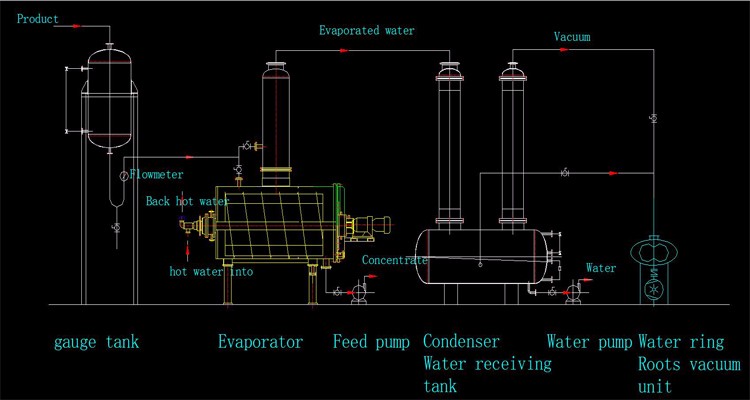

Vacuum low temperature evaporator is new concentrating equipment developed by our company. It realizes low temperature evaporation through high vacuum degree. There is a spinning roller inside the evaporator. Hot water is used to heat the bottom of the evaporator and the spinning roller. Continuous spinning of the roller increases evaporation area and speed, resulting in thin film evaporation. By continuous contact with the surface of the spinning roller, the raw thin material is heated to evaporate. From feed to discharge, the whole concentration process is continuous under vacuum state. Vacuum low temperature evaporator conquers many problems met by traditional evaporator, such as, high concentrating temperature, long concentrating time, denaturation of raw material, easy scale formation during concentration, poor fluidity after concentration and no further concentration. Because of the low evaporation temperature in our equipment, active ingredients of the raw material are kept.

APPLICATION AREA

Suitable for thin, heat-sensitive liquid material that requires low temperature(20-50℃） in pharmaceutical, food chemical industries such as: Fruit juice, milk productis, instant tea liquid, Chinese traditional medicine raw material, fermentation broth, lactic acid bacteria, protease, plant extract, biological products, etc.

EQUIPMENT ADVANTAGE

* Continuous feed and discharge under vacuum state

* Automatic, continuous , closed process

* Protection of active ingredients of raw material under low temperature

* Adjustable concentration temperature(26-50℃）

* No limitation of density, as long as with fluidity

* Online density monitor, automatic discharge of finished material

* CIP system, quick & thorough cleaing, no dead corner

* Sovents recycling
* GMP standards
