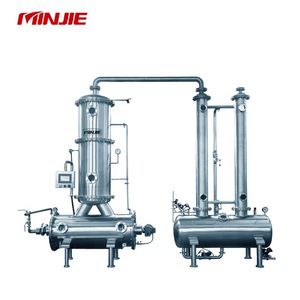

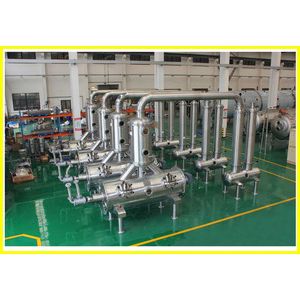

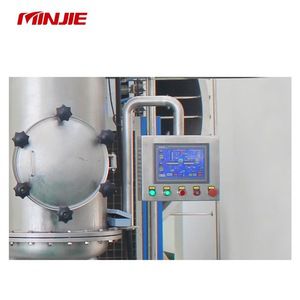

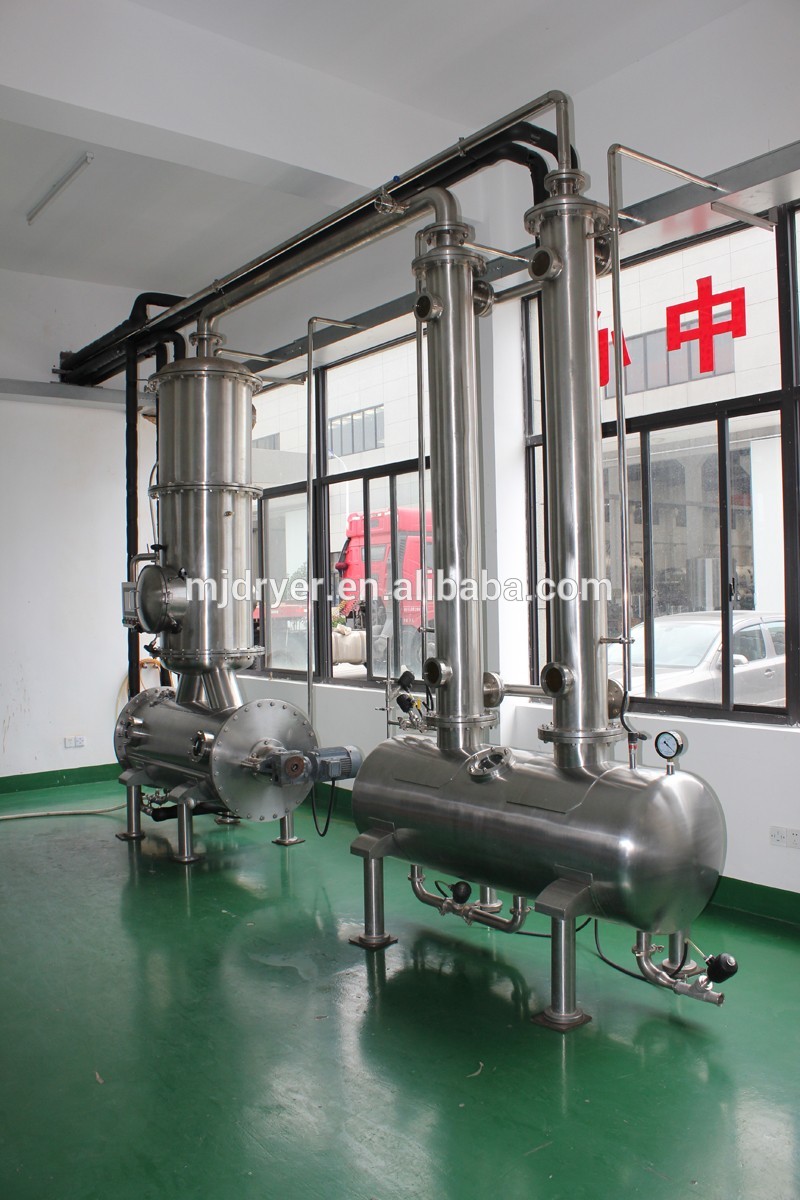

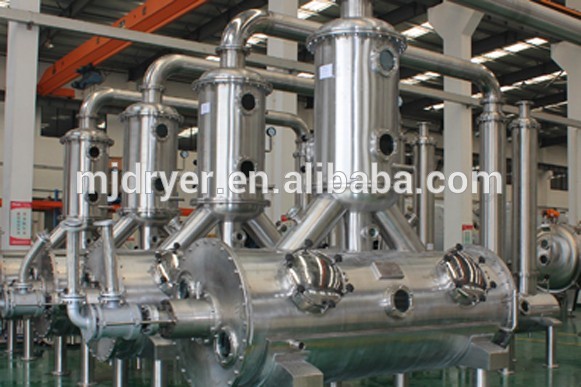

vacuum thin film evaporator be made of stainless steel, it s thin film evaporator, with automatic clean system(CIP), easy operate, high efficiency, high quality, vaccum evaporate, suitable for juice and vegetables concentrate and evaporate.It shorten raw material's heating time, evaperate quickly, effective keep material's nature activity.
Superior energy saving, compare with the other evaporators, it save 70% evaporator capacity. Evaporation process in a airproof condition, cleaning and healthy.
It be made of SS304, easy to clean,corrosiveness resistance, meet pharmaceutical GMP standard and China's relative food and healthy law. PLC operate system make the operation more easy. It's very suitable for medium and small company
Application:
vacuum low temerature evaporator suitable for the thermosensitive material, oxigen sesitive material, evaparote temperature demand below 50 C0 material, including food, pharmaceutic and chemical products, for example: all kinds of vegetable and fruit juice, milk, Chinese medicine extraction, fermentation broth, lactic acid bacteria, protease, plant extract, biological products, etc
Advantage:
1) low temperature evaporator, the evaporate temperature is between 20-50 C0
2) vacuum evaporator, the material be concentrated in a airproof condition, cleanning and healthy
3) speed evaporate, the evaporate time is shorten than the normal machine
4) automatic, relized the automatic infeed and outfeed

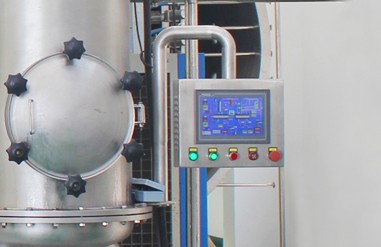

5) PLC, all the evaporate step are on the control of PLC
6) unlimited density of concerntrate
7) all body be made of SS304
8) automatic on line cleannign(CIP)
9) satisfied with GMP standard
| Model | MJ-NS-3 | |
| Evaporation capacity | kg/h | 60-100 |
| Heating area | m2 | 3 |
| Main power | kw | 3.9 |
| Weight | kg | 3500 |
| Size | m | 3.8*1*3.6 |
Vacuum degree: -0.098Mpa
Heating media: hot water
Evaporation temperature: 20-50 C0
Density before concentration: with fluidity, density is unlimited.

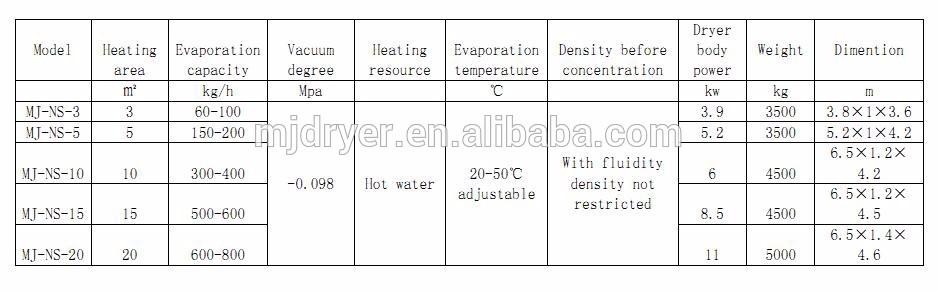

The following is whole series parameter, more detail information, pls feel free contact us, thank you!

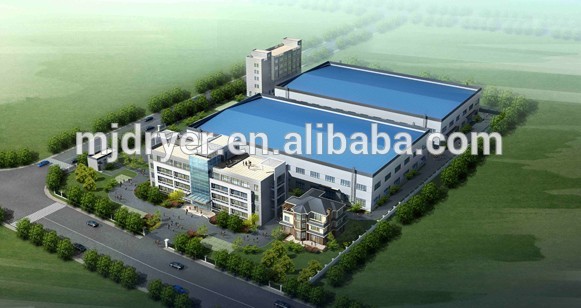

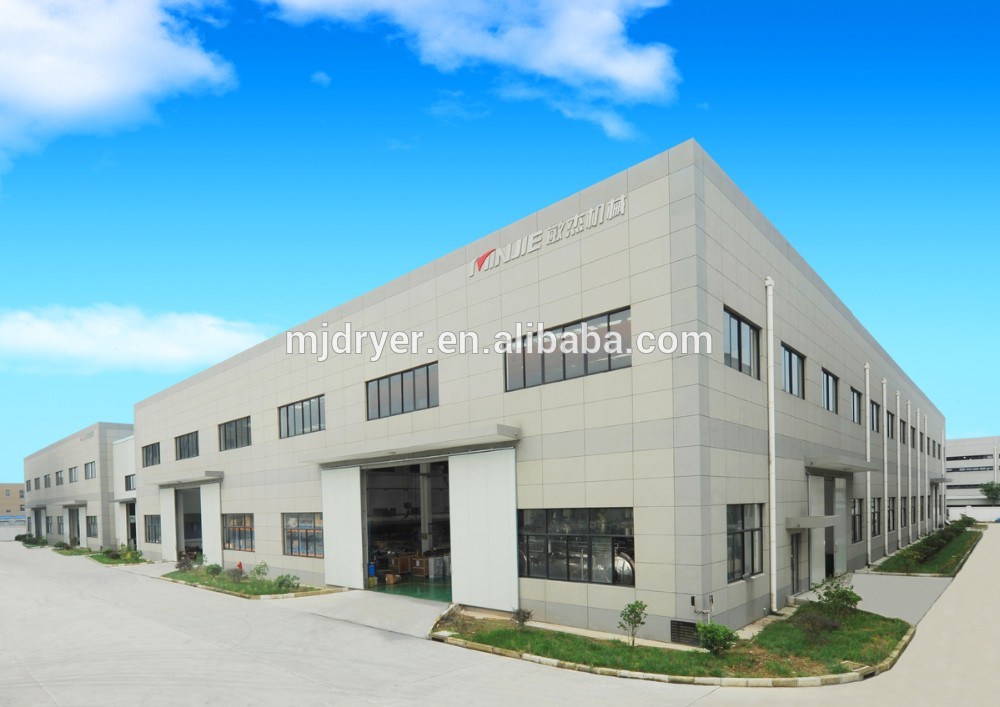

Funded in 1998, Shanghai Minjie Machinery Co., Ltd. is a company specialized in researching, manufacturing, sales of pharmaceutical, foodstuff, chemical and biotechnology machinery. Shanghai Minjie located in Qinggang Industrial Park, Fengxian District, Shanghai, China, covers 25,000㎡ area, with 22,600㎡ building area. It's total assets reach RMB 80 million. More than 150 stuff are employeed by us, including 8 senior engineers, 22 engineers and 28 senior & medium technicians in Shanghai Minjjie engages in research, manufacturing and sales of advanced drying equipment, low temperature vacuum evaporator and ambient-temperature sterilizer. In 2015, Minjie’s sales amount reached 160 million RMB. Minjie has 5 patents of invention, 16 patents of utility models. The developed vacuum belt dryer gained Shanghai High-tech Achievements certificate. Shanghai Trustworthy Service Enterprise Federation, Shanghai Science and Technology Award, and so on honors.

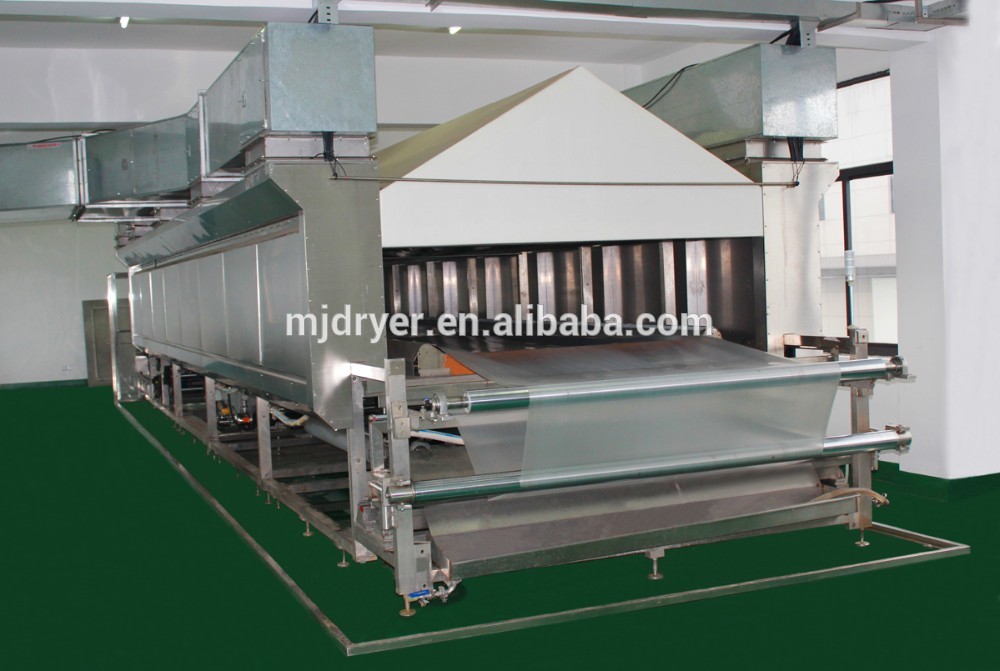

19 years history makes Minjie clearly know”dong moral things, earning conscience money” developping ideas. Client’s need is the target of our efforts and our innovation source. Listenning carefully to the clients, learning humbly advanced foreign technology, working hard to overcome technical difficulties of equipment in pharmaceutical, biology, food, health care, fine chemical and so on industries. Minjie developed equipment and technology win affirmation of domestic and foreign customers. To ensure product quality stability, Minjie has invested over 10 Million RMB on importing advanced equipment: automatic argon arc welder, automatic laser welder, automatic laser cutter, automatic polisher, CNC machine center and so on. Minjie has developed 5 series products with self-owned intellectual property rights, more than 30 models vacuum belt dryer for liquid/paste, vacuum belt dryer for powder/particle, super low temperature evaporator, ambient-temperature sterilizer, etc. Minjie has gained ISO9001 quality management system’s certification.
Honesty business concept is Minjie’s promise to clients. To ensure each client can choose suitable equipment from Minjie, we set up low temperature drying, concentration and ambient-temperature sterilization test platform and provide free test service for clients who are interested in our products. Now more than 1000 domestic companies every year come to Minjie for investigation and test. Our clients’ satisfied comments for our machine is 100%.

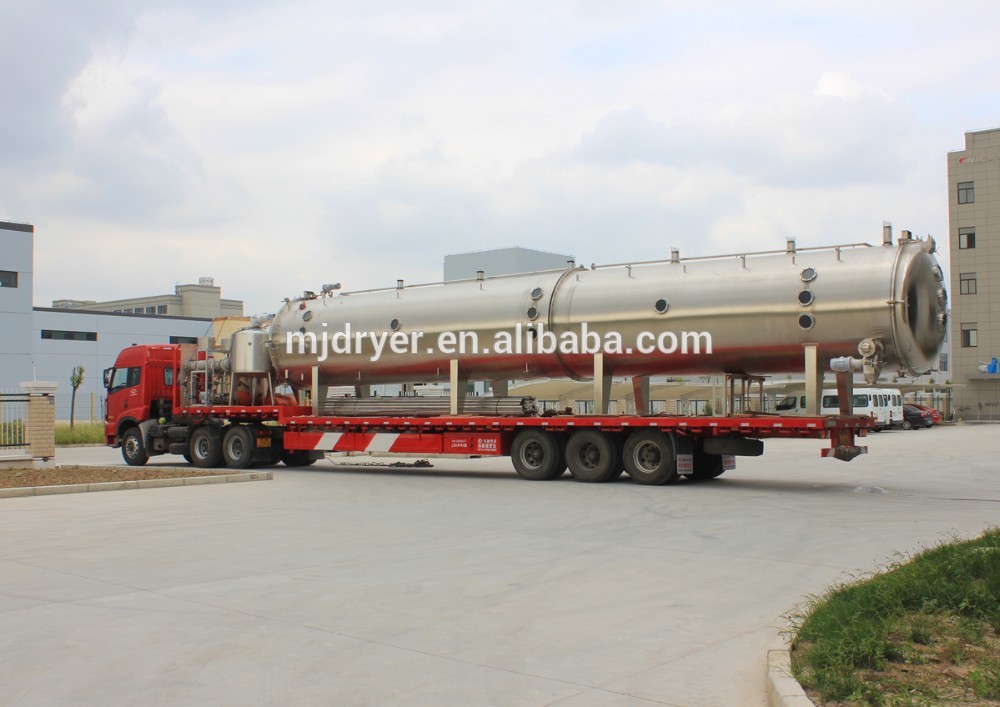

Until now, Minjie’s machine has been sold to over 20 provinces in China, over 20 countries around the world. Minjie maintains long-term cooperation with domestic and oversea well-known enterprises,such as Shanghai Pharma, Tasly Group, Conba Group, Sunflower Group, BLB Group, Quantum Hi-tech, Dupont Group from America,CM Partner from South Korea, Konimex from Indonesia. The customers trust proves that Minjie’s technology is advanced, mature and reliable. First-class products require first-class process, first-class process requires firs-class equipment. Shanghai Minjie, with advanced technology, full service security system, welcome more friends come to our company.
Surpassing today’s technology, preparing a bright tomorrow, in this high-tech developing era, Shanghai Minjie is discerning people’s choice. For Minjie’s long-term grouping strategic objectives, relying on “deepening reform,being bold and innovative, keeping developing” policy, Minjie strives to reach 500 million sales amount for next 5 years. On the constructing Minjie dream journey, Minjie people proceed with confidence and write a new chapter for enterprise development.
