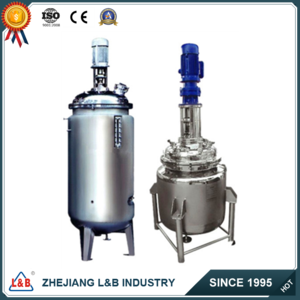

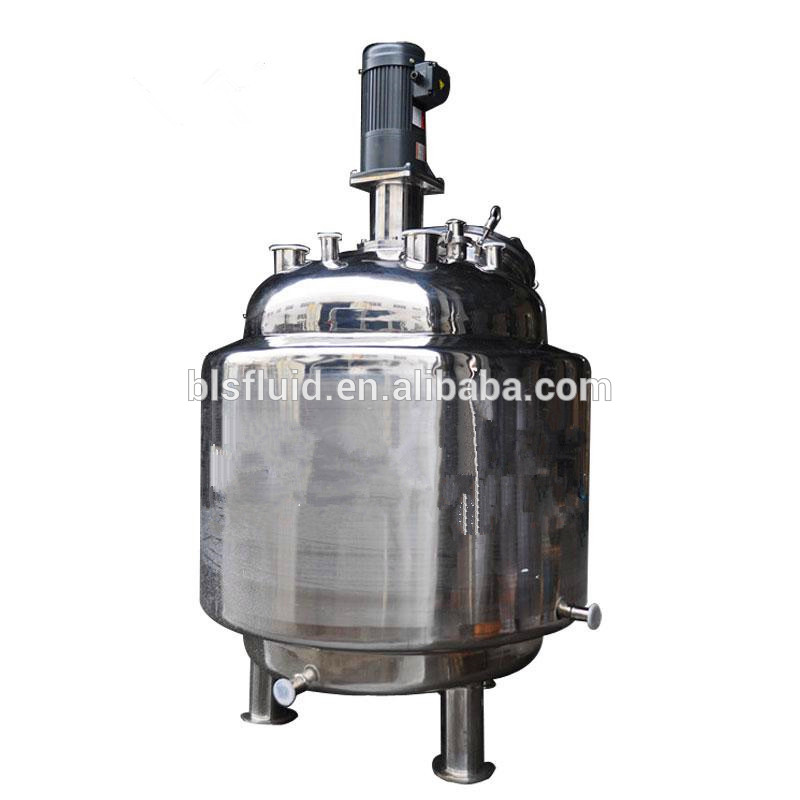

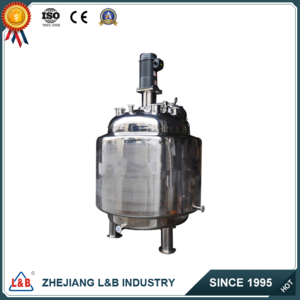

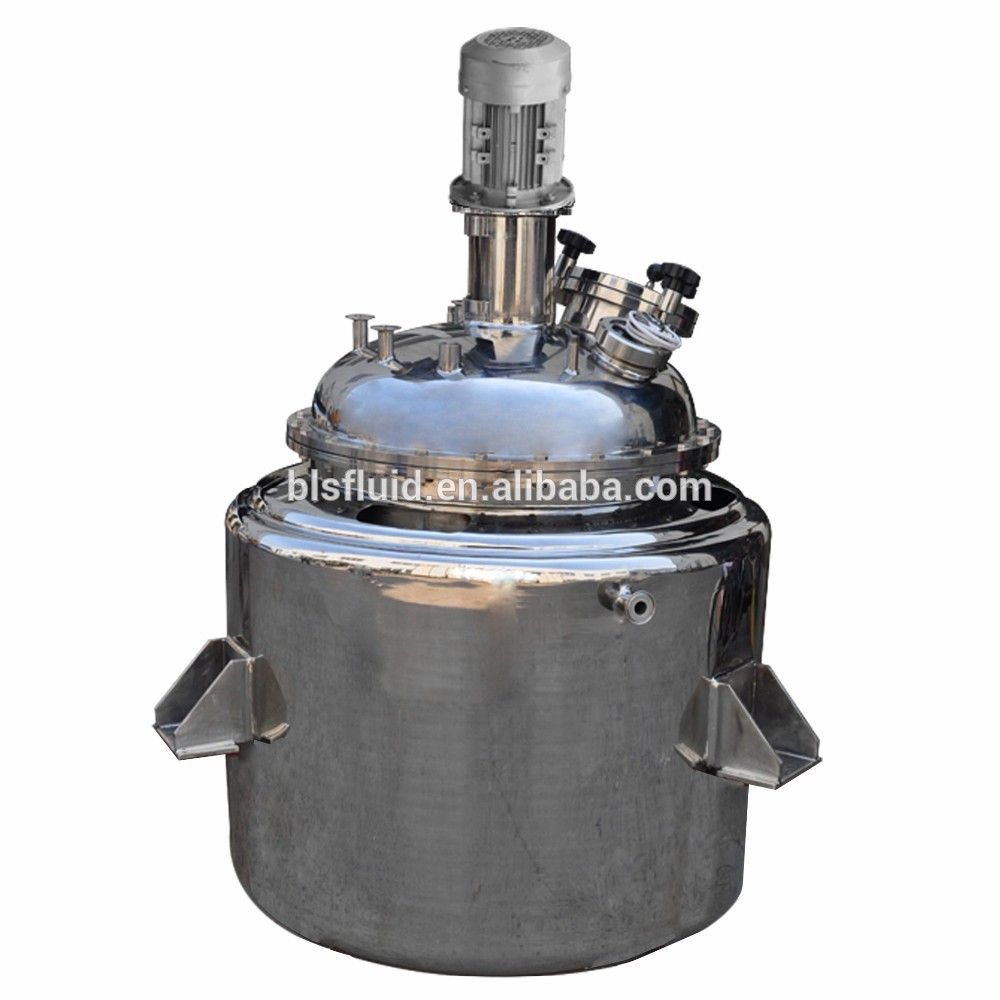

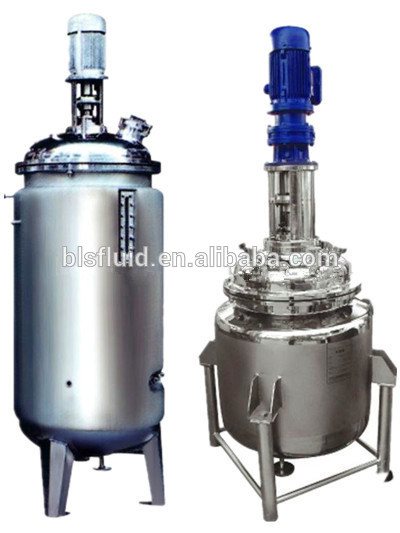

industrial stainless steel electric tank with mixer
jacketed industrial customized tabk machine

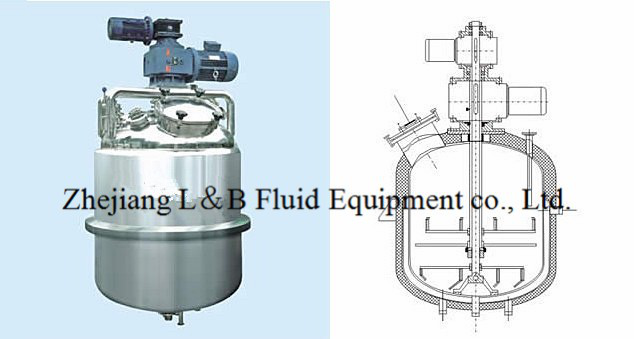

Structure characteristics:
The crystallizing tank is made of imported 316L or 304 stainless steel.
The internal wall adopts electrolytic mirror polishing or mechanical polishing.
The external wall adopts 304 completely welding structure for heat preservation.
The exterior surface adopts mirror polishing or semi-luster polishing.
The crystallizing tank can endure 121℃ high temperature sterilization.
The shaft seal adopts special sanitary mechanical seal to guarantee the material is out of pollution.
The crystallizing tank can adopt frequency conversion speed control device and the rotation speed of mixing
shaft has wide regulation range.
Configuration of machine:
v 0.2 µm ventilation hydrophobic filter
v Sanitary pressure meter
v Sanitary rapid open connector
v Temperature monitoring device
v 2 view mirrors
v Cleaning ball
v Nitrogen inlet
Specification | Diameter of internal tank (Φ mm) | Diameter of jacket (Φ mm) | Heat preservation layer (Φ mm) |
30 | 400 | 500 | 600 |
50 | 500 | 600 | 700 |
100 | 550 | 650 | 700 |
150 | 600 | 700 | 900 |
200 | 650 | 750 | 1000 |
300 | 800 | 900 | 1100 |
500 | 900 | 1000 | 1200 |
800 | 1100 | 1200 | 1300 |
1000 | 1200 | 1300 | 1400 |
1500 | 1300 | 1400 | 1500 |
2000 | 1400 | 1500 | 1600 |
2500 | 1400 | 1500 | 1700 |
3000 | 1400 | 1500 | 1800 |
3500 | 1400 | 1500 | 1900 |
4000 | 1500 | 1600 | 2000 |
5000 | 1600 | 1700 | 2100 |
6000 | 1800 | 1900 | 2200 |
8000 | 2000 | 2100 | 2300 |
3200 | 3000 | 3200 | 2400 |
Zhejiang L&B Fluid Equipment co., Ltd,
a modern enterprise which combine the ability of design, development, manufacturing, engineering,
installation,technical services, has special technology to design and exploit by CAD software and
computer and is a outstanding leader among valve fields.
We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according
to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients
(non-standard).

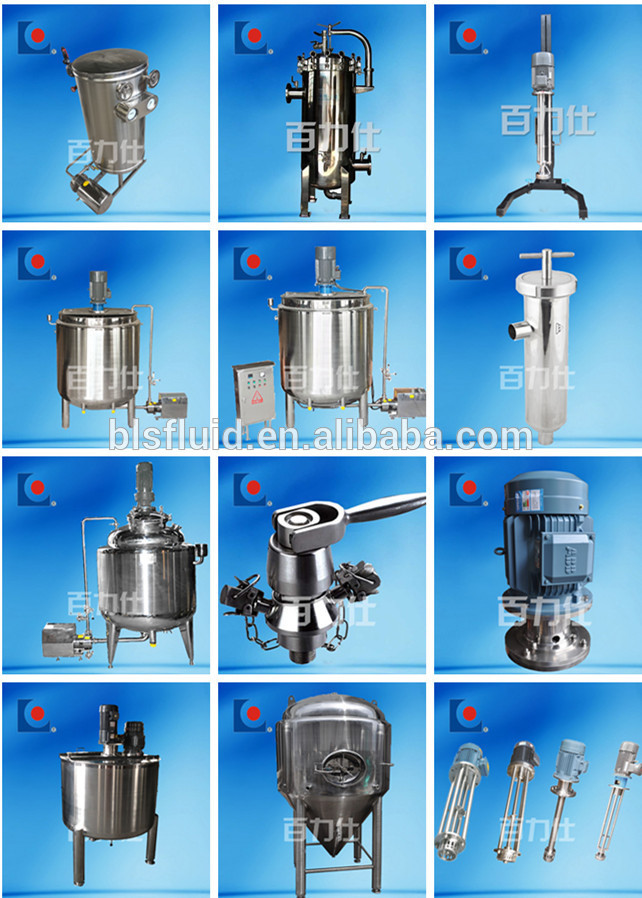

We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks
etc for many years.
We can design the products according to your special request. OEM is welcome too.
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
