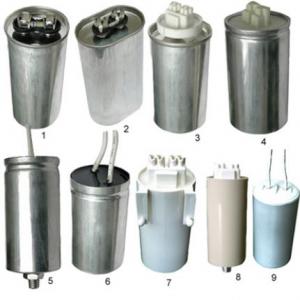

CBB60 Series AC Motor Capacitor
Product Description:
The capacitor takes heavy-edge metallized Al/Zn PP film or web-like fuse film as dielectric.
CBB60 series motor run capacitor has features of small size, light weight, small tangent in waste angle, and good self-concrescence. Applicable to startand operation with 50/60Hz. A. C single motor, specially suit for micro pump, baric pump, micro motor and so on.
Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications
Climate type: 40/70/21
Capacitance tolerance: ± 5%
Insulation Resistance: ≥ 3000S· µ F I. R
Dielectric dissipation factor: Tgδ ≤ 0.002 (50Hz~100Hz)
Application requirements:
Altitude: ≤ 2000m
Residual voltage in application: Less than 10% of rated voltage.
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current.
