Factory Manufactured Plate Aluminium Roll Bond Evaporator

Roll bond evaporator, icebox evaporator, refrigerator evaporator, water dispenser evaporatorAccording to customer's drawing or sample.Detailed as follows:Raw materialAl-plate: Finished products thickness: 1.1, 2.0mm,Raw material Al plate thickness: 1

Technical Feature

  • 100 Pieces
  • Shanghai, China
  • 10000sets Per Day
  • L/C, T/T, Western Union, Paypal
  • RoHS
  • Aluminium
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Model NO.
976 305
The Biggest Dimension That We Could Make
2300*1150mm
Tubes
1pin and 2 Pin Are Both Available
Surface
Powder Coating
Trademark
RETEK

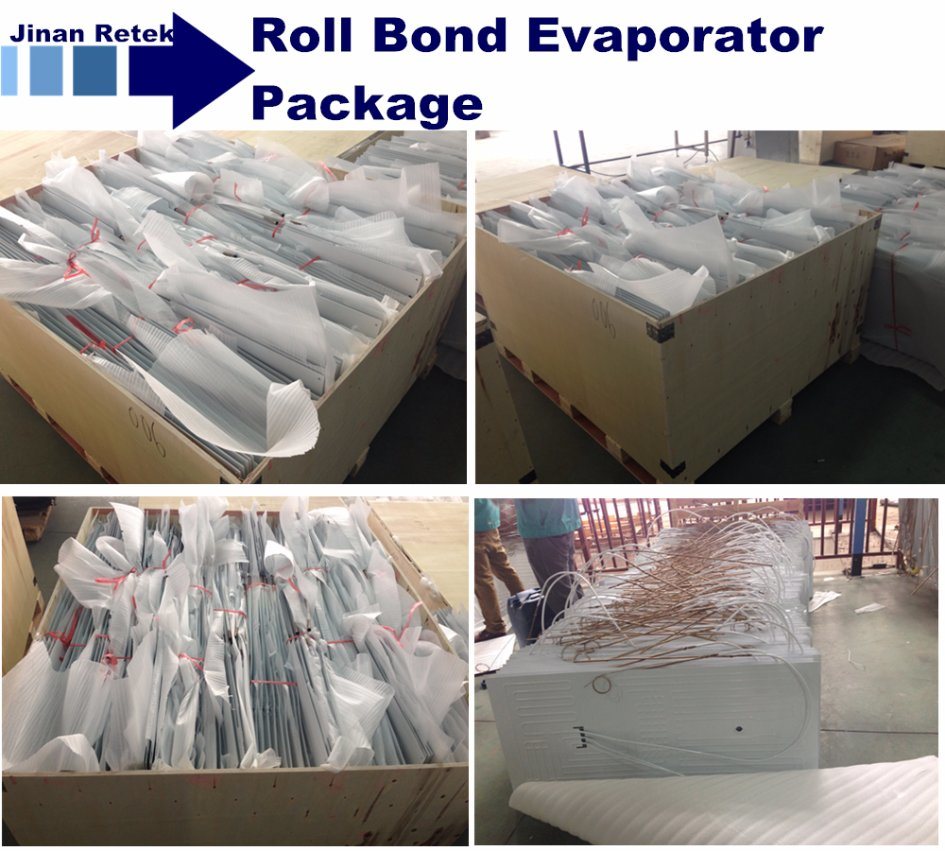

Transport Package
Carton/Wooden Case
Specification
ISO 9001
Origin
China
HS Code
84189999

DETAIL DESCRIPTION

Roll bond evaporator, icebox evaporator, refrigerator evaporator, water dispenser evaporator
According to customer's drawing or sample.

Detailed as follows:

Raw material
Al-plate: Finished products thickness: 1.1, 2.0mm,
Raw material Al plate thickness: 1.4 2.5mm

Structure
Double side rollbond evaporator,
Single side rollbond evaporator,
Part single side rollbond evaporator

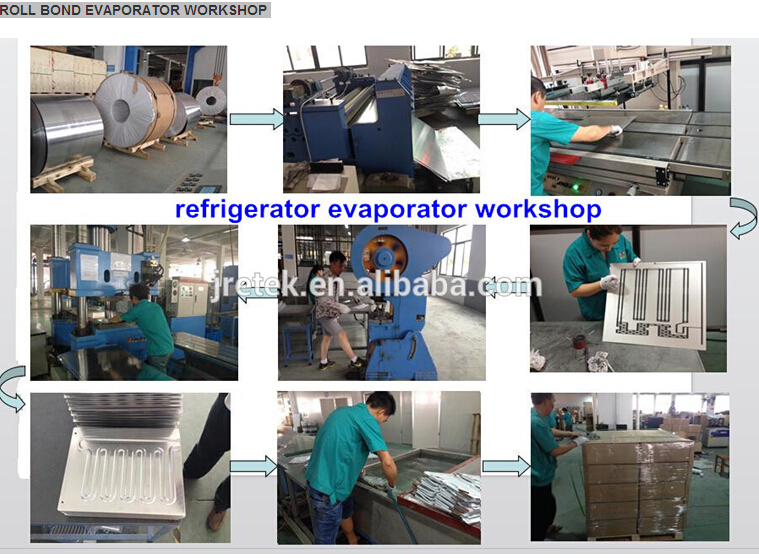

Key process
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
hot selling models123456
African market976×3051031×4481185×3051050×4651170×350 383×520
Pakistan430×320 381×991 381×1042 419×1067

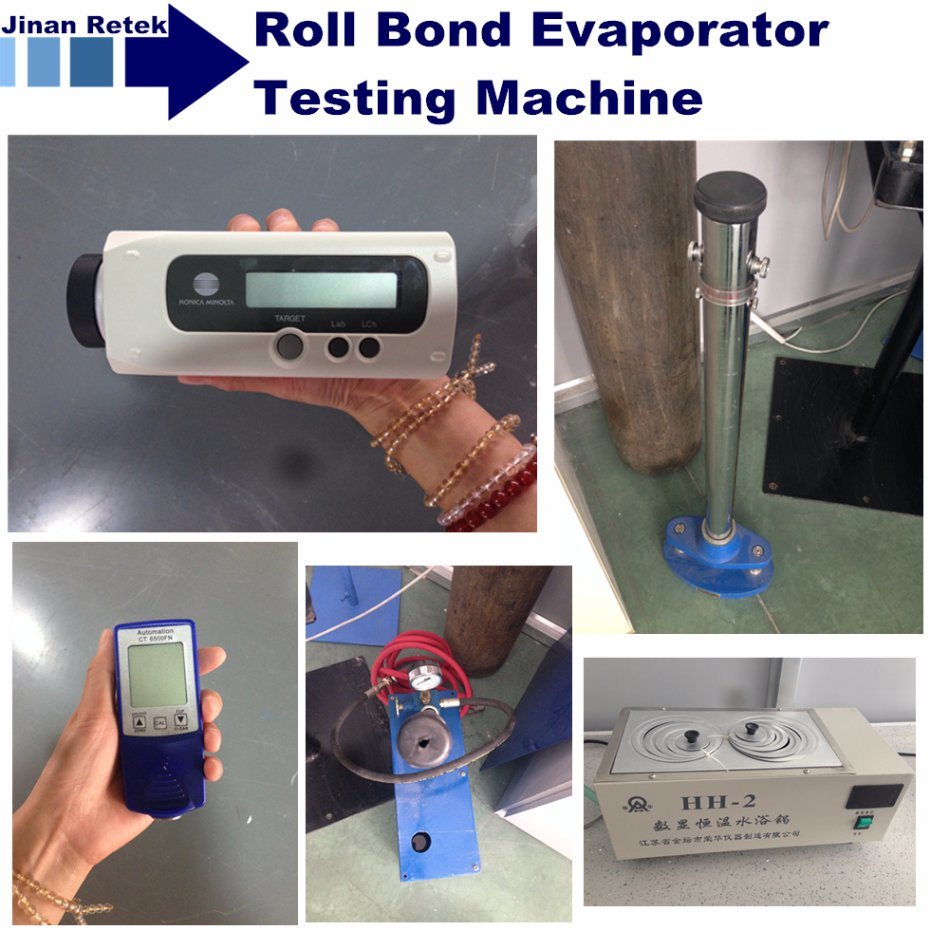

Technical Standards
R134a Cooling System Tube inside Standards Specification of Coating
 Residual moisture ≤ 5mg/100CM3 Coating thickness  40-90um
 Residual impurity ≤ 1 mg/100CM3 Hardness ≥ 2H
 Residual mineral oil ≤ 100mg/100CM3Impact of coating 50cm.kg
 Residual Chlorine ≤ 5 vloppmColor tolerance≤1.0
 Residual Paraffin ≤ 3mg/M2
 Biggiest single impurity ≤ 0.5mm

Factory Manufactured Plate Aluminium Roll Bond Evaporator
Factory Manufactured Plate Aluminium Roll Bond Evaporator

Factory Manufactured Plate Aluminium Roll Bond Evaporator
Factory Manufactured Plate Aluminium Roll Bond Evaporator
Factory Manufactured Plate Aluminium Roll Bond Evaporator
