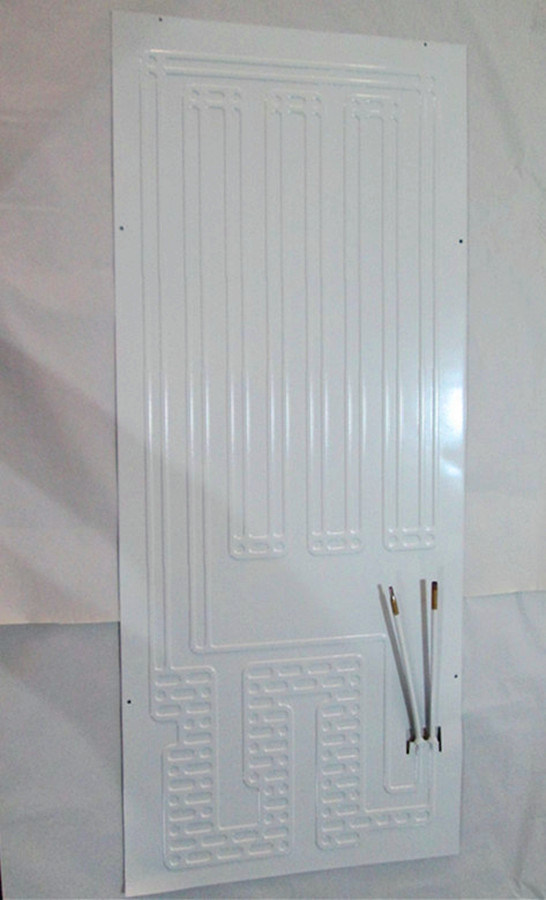

Refrigerator Freezer Fridge Parts Aluminum Plate Roll Bond Evaporator Coil

Refrigeration Freezer Parts Aluminum Plate Roll Bond Evaporator CoilRaw materialAl-plate: Finished products thickness: 1.1 2.0mm,Raw material al plate thickness: 1.4 2.5mmNow i send the detail information about Roll Bond Evaporator as follows:Raw mat

Technical Feature

Shanghai, China

10000 Sets Per Day.

L/C, T/T, D/P

Aluminium Plate

Home Refrigerator & Freezer

Evaporator

Send Standard Inquiry

Add Inquiry List

$0~50

PRIMARY PARAMETERS

Model NO.

380*350

Coating Thickness

Thickness of Coating40 90um

Hardness of Coating

>=2h

Adhesion of Coating

>=2 Grade

Residual Moisture

<=5 /100cm3

Biggest Single Impurity

0.5mm

Colour

White/Black

Trademark

Middle

Transport Package

in Standard Carton or Pallet

Specification

Rohs

Origin

China

HS Code

8418

DETAIL DESCRIPTION

Refrigeration Freezer Parts Aluminum Plate Roll Bond Evaporator Coil

Raw material
Al-plate: Finished products thickness: 1.1 2.0mm,
Raw material al plate thickness: 1.4 2.5mm
Now i send the detail information about Roll Bond Evaporator as follows:

Raw material	Al-plate: finished products thickness: 1.1 2.0mm, raw material Al plate thickness: 1.7 2.15mm
Structure	Double side rollbond evaporator, single side rollbond evaporator, part single side rollbond evaporator
Key process	Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards	1) Size: width 1150 (max), length 2100 or more (max) 2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance	1) Surface treated with powder painting to prevent the corrosion 2) Inner cleanness can meet the requirement of R134a & CFC cooling system. 3) Can satisfy the cooling capability requirements.
Performance	3.5 million sets per year (10000 sets per day)

R134a Cooling System Tube Inside standards

Residual moisture	≤5 /100cm3
Residual impurity	≤1 /100cm3
Residual mineral oil	≤100 /100cm3
Residual chlorine	≤5vloppm
Residual paraffin	≤3 /
Biggest single impurity	≤0.5mm

Specification of coating

Coating thickness	thickness of coating40 90 μ m
Hardness of coating	≥2H
Impact of coating	50cm?kg/cm impact, no crack
Adhesion of coating	≥two grade
Flexibility of coating	Around R=3D bend 180?, no crack or no fall off
Color tolerance of powder painting	E≤1.5

Best regards!
Vito
