Air Conditioning Parts Copper Tube Aluminum Fin Evaporator

Technical Feature

Shanghai, China

100000000PCS Per Year

L/C, T/T

Cabinet Air Conditioner

Air Conditioning Parts Copper Tube Aluminum Fin EV

Higher

Send Standard Inquiry

Add Inquiry List

$0~20

PRIMARY PARAMETERS

Model NO.

retek107

Mounting

Air Conditioning Parts Copper Tube Aluminum Fin EV

Lifetime

5~10 years

Certification

ISO, UL

Condition

New

Fine Space

1.2-3.5mm

Copper Tube

Smooth Tube or Inner Grooved Tube

Aluminium Foil

Hydrophilic / Bare

Fin Type

Louver/Flat/Corrugated Fin

Itme

Air Conditioning Parts Copper Tube Aluminum Fin EV

Trademark

RETEKOOL

Transport Package

Pack in Seaworthy Carton

Specification

ROHS

Origin

China

HS Code

84189910

DETAIL DESCRIPTION

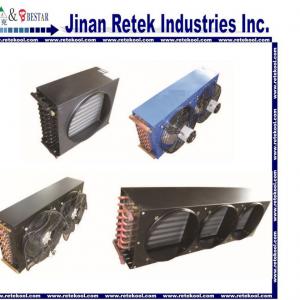

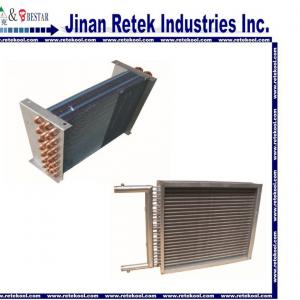

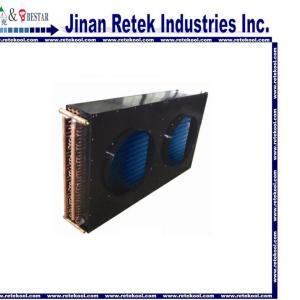

Air Conditioning Parts Copper Tube Aluminum Fin Evaporator
Air Conditioning Parts Copper Tube Aluminum Fin Evaporator

1 material: Copper, aluminum, galvanized plate, stainless steel plate

2 copper pipe: Diameter 7 mm, 7.94 mm, 9.52 mm, etc. Inner grooved or smooth tube

3 aluminium foilhydrophilic or bare

4 fin type: Louver fin, flat fin, corrugated fin

5 pitch of fins can be adjusted between 1.8~5.8mm

6 pitch of holes, and pitch of rows: 25X21.65mm and 19x12.7mm, 25.4x22mm, equilateral triangle arrangement

7 suitable for R134a, R22, R404a, R407c refrigerant and so on

8 different alternative fan available: Micro fan, shaded pole or outer rotor fan motor

9 no less than3.0Mpa air pressure)nitrogen) leak test

10 widely used ini refrigerator, qir conditioner, cold room, display case, ice chest, water dispenser and other refrigeration industry

11 we can offer customized service as well

We can supply aluminum fin evaporator coil according to your drawings or samples.
Our aluminum copper tube evaportor are being supplied to Russia, Ukraine, Korea, Japan, Pakistan, India, Malaysia, Indonesia, Sri Lanka, Bangladesh, Saudi arabia, Lebanon, Syria, Turkey, Italy, Britain, Spain, Portugal, USA, Chile, Peru, Argentina, Brazil...For many years.

If you need pls feel free to contact me.

We can manufacture according to our drawings.

copper tube diameter	holds and rows pitch	fin space	holds array	fin surface	fin edge type	defrost heater
Φ15.88mm	50×50mm	4-10mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ15.88mm	38Χ33mm	2.5-4mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ12.7mm	31.75Χ27.5mm	3-9mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	25Χ21.65mm	1.5-6mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	31.75Χ27.5mm	2.5-7.5mm	equilateral triangle	sin-wave&corrugated	flat+wave	with
Φ9.52mm	25χ21.65mm	1.5-2.5mm	equilateral triangle	louver	flat	without
Φ7.94mm	25χ21.65mm	1.5-3.5mm	equilateral triangle	flat	flat+wave	without
Φ7.0mm	21×12.7mm	1.3-1.8mm	equilateral triangle	louver	flat	without
