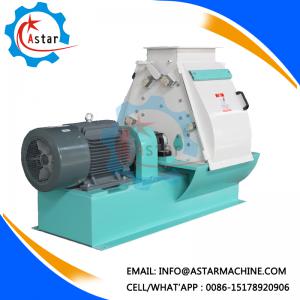

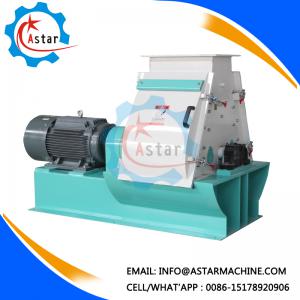

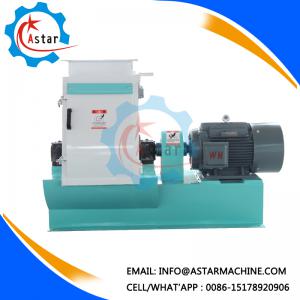

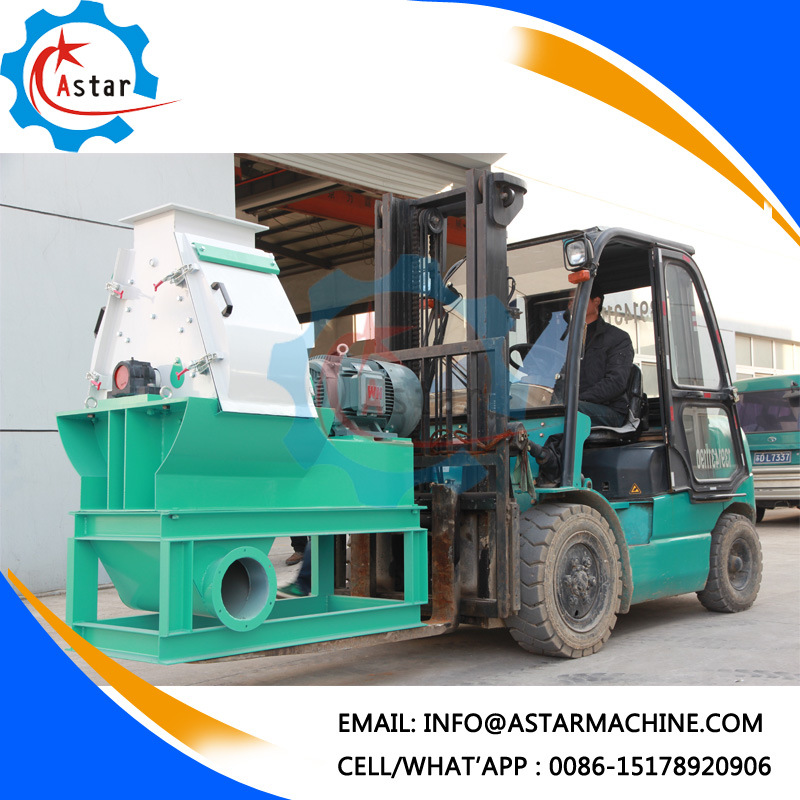

Soybean Cereals Wheat Grain Grinding Mill Machine
1. All Our Hammer Mill Model:
2. Soybean Cereals Wheat Grain Grinding Mill Machine :
Main products charactaristics :
(1) It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
(2) The design of overall base is high in structural strength and beautiful in appearance.
(3) Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
(4) Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
(5) The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
(6) Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
(7) The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
3. Soybean Cereals Wheat Grain Grinding Mill Machine Technical Parameters :
Any more information you need Soybean Cereals Wheat Grain Grinding Mill Machine , please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906
1. All Our Hammer Mill Model:
| Name | Model | Power(KW) | Capacity(T/H) |
Hammer Mill | AST-ZW36A | 22 | 1-3 |
| AST-ZW40A | 37 | 3-5 | |
| AST-ZW29C | 55 | 6 | |
| AST-ZW29C | 75 | 8 | |
| AST-ZW38C | 90 | 10 | |
| AST-ZW38C | 110 | 12 | |
| AST-ZW50C | 132 | 16 | |
| AST-ZW60C | 160 | 18 | |
| AST-ZW80C | 185 | 20 | |
| AST-ZW80C | 200 | 25 | |
| AST-ZW100C | 220 | 28 | |
| AST-ZW100C | 250 | 32 | |
Hammer Mill | AST-ZW60B | 55 | 2 |
| AST-ZW60B | 75 | 3.5 | |
| AST-ZW80B | 90 | 5 | |
| AST-ZW80B | 110 | 7 | |
| AST-ZW100B | 132 | 9 | |
| AST-ZW120B | 160 | 15 |
2. Soybean Cereals Wheat Grain Grinding Mill Machine :
Main products charactaristics :
(1) It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
(2) The design of overall base is high in structural strength and beautiful in appearance.
(3) Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
(4) Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
(5) The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
(6) Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
(7) The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
3. Soybean Cereals Wheat Grain Grinding Mill Machine Technical Parameters :
| Model specification | AST-ZW36A | AST-ZW40A |
| Rotor diameter ( mm) | 560 | 560 |
| Pulverizing room width (mm) | 360 | 400 |
| Spindle speed ( RPM) | 2980 | 2980 |
| Hammer Linear speed ( RPM) | 87 | 87 |
| Hammers quantity ( PCS) | 48 | 56 |
| Main power( kw) | 22 | 37 |
| Normal Air Suction volume(cubic meters/minute) | 25 | 45 |
| Output (t/h) | 3-5 | 5-7 |
Any more information you need Soybean Cereals Wheat Grain Grinding Mill Machine , please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906
