1. This Ginger Flake Ginger Powder Processing Line Can deal all kinds of roots vegetables , such as ginger, potato, sweet potato and so on.

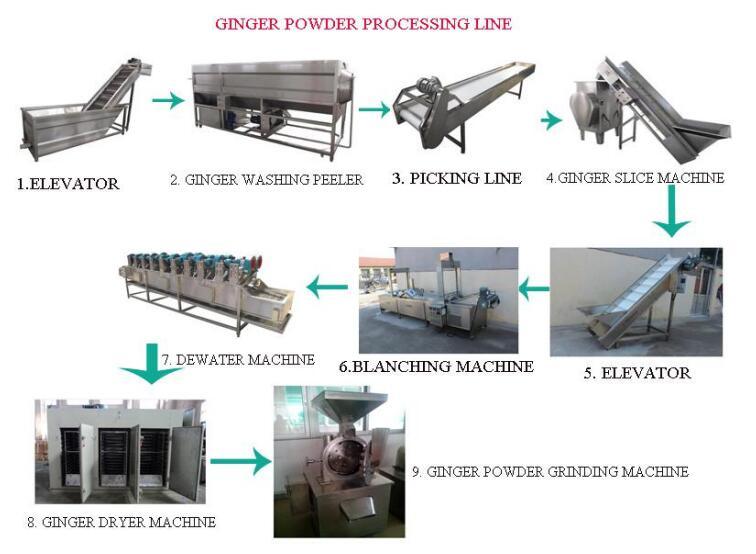

2. Ginger Flake Ginger Powder Processing Line List :
3. Ginger Flake Ginger Powder Processing Line Details :




1. Elevator
Dimension:4000x1050x2500mm
Power:0.37kw
Voltage :380v

Advantage: materials used for lifting and conveying, artificial materials can be easily fall into the hopper, through continuous conveyor belt, even will ascend to the next working procedure, material adopts 304 stainless steel mesh belt conveyor, hopper is equipped with a heavy stone device, the material on the sediment discharge outlet of immersion precipitation and through, easier to clean peeled.

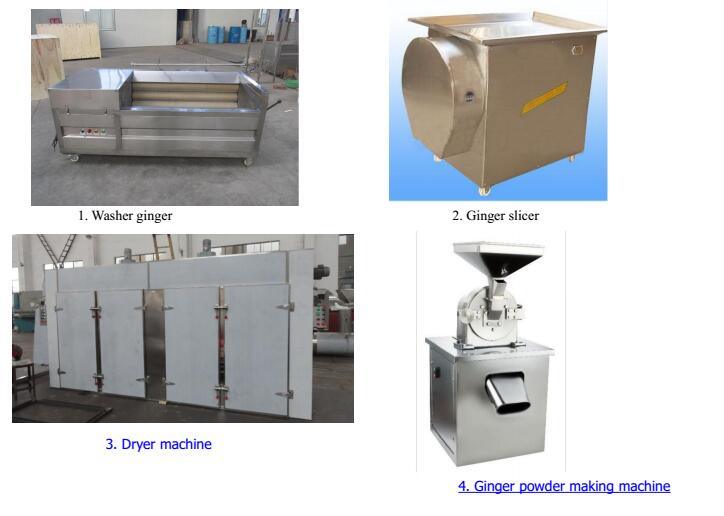

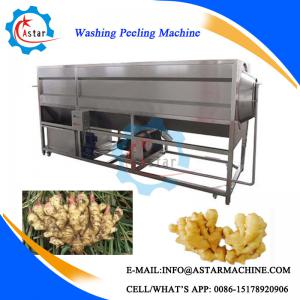

2. Drum Washing Peeling Machine:
Dimension:3000*1300*1650mm
Power :3.75kw
Voltage :380v

Advantage: drum cleaning peeling machine is widely used in all kinds of ginger root crops of fruit and vegetable washing, peeling, large volume, high efficiency, low energy consumption, the fuselage are all stainless steel, fine workmanship, beautiful modelling, the design of advanced technology content high, can rotate automatically discharging, simple and easy not rust, cleaned clean sanitation.

3.Selecting Line:
Dimension:4000x740x1100mm
Materials :stainless steel + food grade PVC
Power:0.37kw
Voltage:380v

Description :Using the mesh belt transmission to the next procedure at the same time picking a peel defect or incomplete material, picking, convenient, save time and effort and continuous operation.

4. Cutting Machine :
Dimension :2000x1020x1600mm
Power :2.57kw
Voltage :380v

Description: fruit and vegetable slicing machine is easy to operate, high output, cut out the slice thickness uniformity, smooth and can adjust the thickness, no broken. Can cut ginger, garlic, potatoes, taro pills, tablets, mountain bamboo shoots and other solid vegetable processing, is advanced multi-function slice processing equipment

5.Conveyor :
Dimension :2500x740x1400mm
Power :0.37kw
Voltage :380v

Description : using the mesh belt transmission to the next procedure at the same time, you can pick out the defect or peeling incomplete materials, picking, convenient, save time and effort and continuous operation

6. Blanching Machine :
Dimension :5000*1300*1400mm
Mesh width :600mm
Power :81.75kw
Voltage :380v

Introduction: equipment has a bubble generator, the materials become state, effectively remove material surface impurities, debris from the overflow tank overflow, sediment discharge outlet, in order to achieve the purpose of cleaning. Clean thoroughly, energy saving, water saving, equipment is stable and reliable, etc

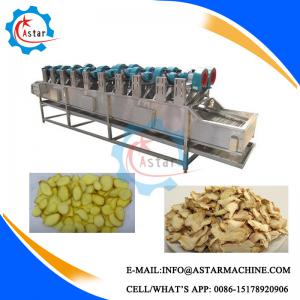

7.Air Dryer ( two line airfan)

Dimension :5000*1200*1600mm
Mesh width :800mm
Power :11.25kw
Voltage :380v
Description : ginger by repeated to flip through the mesh belt transmission, realize many facets of the ginger slice the uniformity of the wind, the high-pressure wind will surface water through the fan blow dry, high effectively, and easy drying ginger. More convenient to next step processing.




Any more information you need Ginger Flake Ginger Powder Processing Line , please feel free to contact with us.
