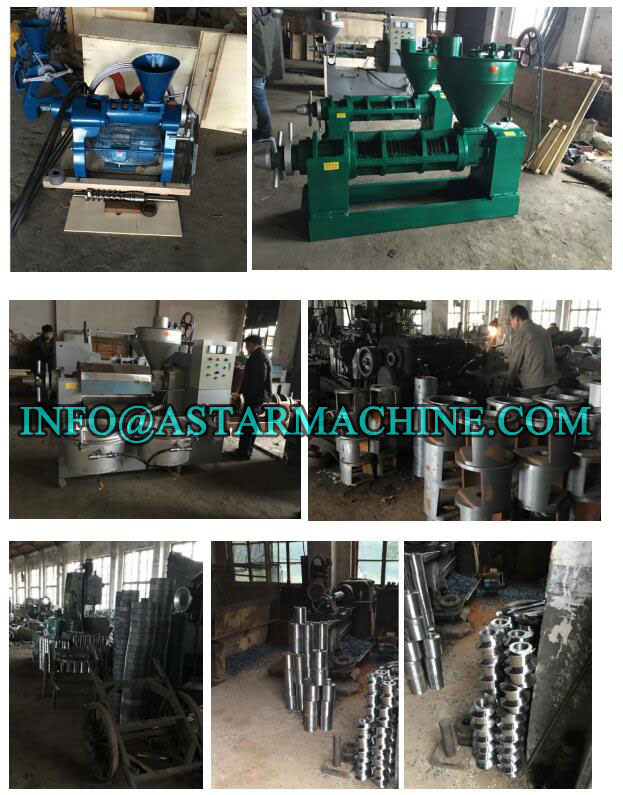

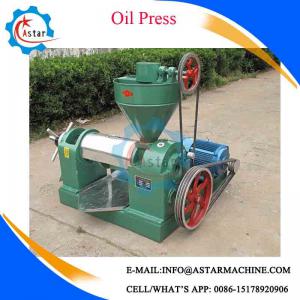

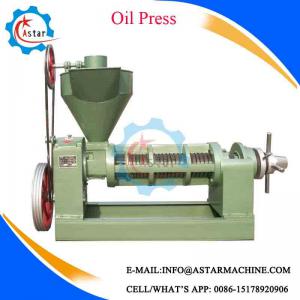

Screw Type Rice Bran Soybean Oil Press
Screw Type Rice Bran Soybean Oil Press Detailed Specification:
Our screw type oil press machine is multifunctional, which can be applied to many kinds of common oil crops such as the ricino, coconut, almond, hemp seeds, canola,walnut, copra, palm kernels, rapeseed, coconut, cotton seeds, sesame, Neem, boaba, soybeans, flaxseed, peanuts, sunflower seeds etc.
Screw Type Rice Bran Soybean Oil Press Specification & Price:
Screw Type Rice Bran Soybean Oil Press Advantage Of Oil Press :

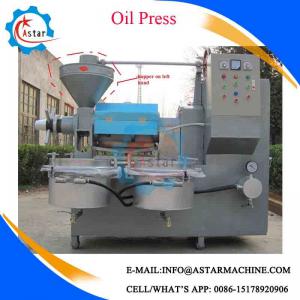

Oil press has multiple functions, including vacuum filtration system, automatic heating device .(for the full-automatic one)Before pressing, some parts of the oil press such as the press chamber,press screw will be pre-heated.The oil press is matched with one controlling cabinet box forcontrolling all working of the machine.(for the full-automatic one)Labour saving and electricity saving,low noise, high oil yield.It can be used for both cold press and hot press with portability and durablity, especially suitable for hot pressing.Wide suitability and capability of continuous operation.Wide application Such oil press can apply to more than 20 kinds of oil crops such as the coconuts,sunflower, soybean,cotton seeds , tee seeds, rice bran, flaxseeds,sesame, peanuts, rape,etc.
Screw Type Rice Bran Soybean Oil Press Machine Specification :
Screw Type Rice Bran Soybean Oil Press Working Principle :
When the raw materials have been sent to the hopper of oil pressand then been moved forward by the rotating pressing screw for pressing. Under the high-pressure condition in the chamber, friction between material andscrew, chamber will be created, which also creates friction and relative movement amongmaterial particles.On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence.When rotating, it not only pushes particles to move forward,but also turns them outwards as well. Meanwhile,particles adjacent the scew will rotate along with screw's rotating, causing every particle inside the chamber to possessdifferent speed. Therefore, relative movement among particle creates heat which is necessary during manufacturing becasue of helping protein change property,damage colloid,increase plasticity, decrease oil's elasticity, resulting in high oil productivity.
Any more information you need Screw Type Rice Bran Soybean Oil Press, please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile/ :0086-15178920906
Screw Type Rice Bran Soybean Oil Press Detailed Specification:
Our screw type oil press machine is multifunctional, which can be applied to many kinds of common oil crops such as the ricino, coconut, almond, hemp seeds, canola,walnut, copra, palm kernels, rapeseed, coconut, cotton seeds, sesame, Neem, boaba, soybeans, flaxseed, peanuts, sunflower seeds etc.

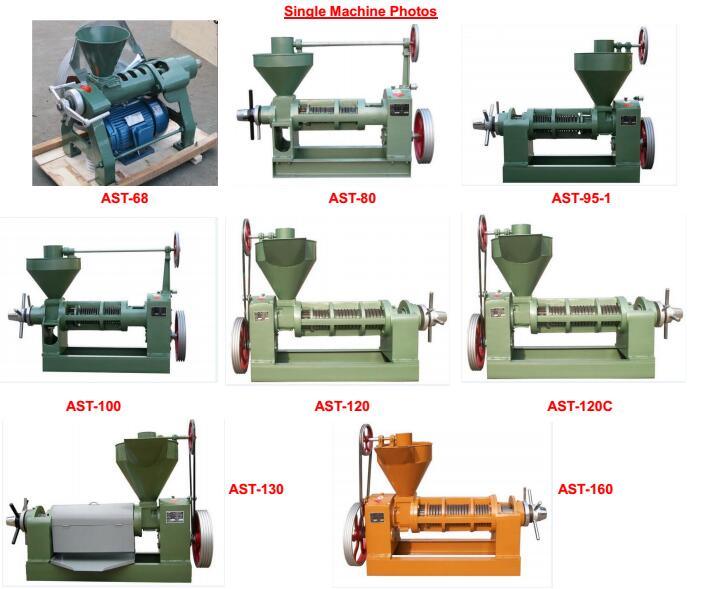

Screw Type Rice Bran Soybean Oil Press Specification & Price:
| Model | Capacity (ton/day) | Power (KW) | Packing size( mm) | Gross Weight (KG) |
| AST-68 | 1 | 5.5 | 880x480x660 | 160 |
| AST-80 | 2~3 | 5.5 | 1510x440x695 | 370 |
| AST-95-1 | 3~5 | 7.5 | 1920x620x770 | 700 |
| AST-100 | 3~5 | 7.5 | 1920x650x770 | 710 |
| AST-120 | 4~6 | 11 | 2060x630x790 | 720 |
| AST-120C | 6~8 | 15 | 2100x700x800 | 750 |
| AST-130 | 9~12 | 18.5 | 2300x700x770 | 850 |
| AST-160 | 15~20 | 22 | 2500x700x850 | 980 |
Screw Type Rice Bran Soybean Oil Press Advantage Of Oil Press :
Oil press has multiple functions, including vacuum filtration system, automatic heating device .(for the full-automatic one)Before pressing, some parts of the oil press such as the press chamber,press screw will be pre-heated.The oil press is matched with one controlling cabinet box forcontrolling all working of the machine.(for the full-automatic one)Labour saving and electricity saving,low noise, high oil yield.It can be used for both cold press and hot press with portability and durablity, especially suitable for hot pressing.Wide suitability and capability of continuous operation.Wide application Such oil press can apply to more than 20 kinds of oil crops such as the coconuts,sunflower, soybean,cotton seeds , tee seeds, rice bran, flaxseeds,sesame, peanuts, rape,etc.

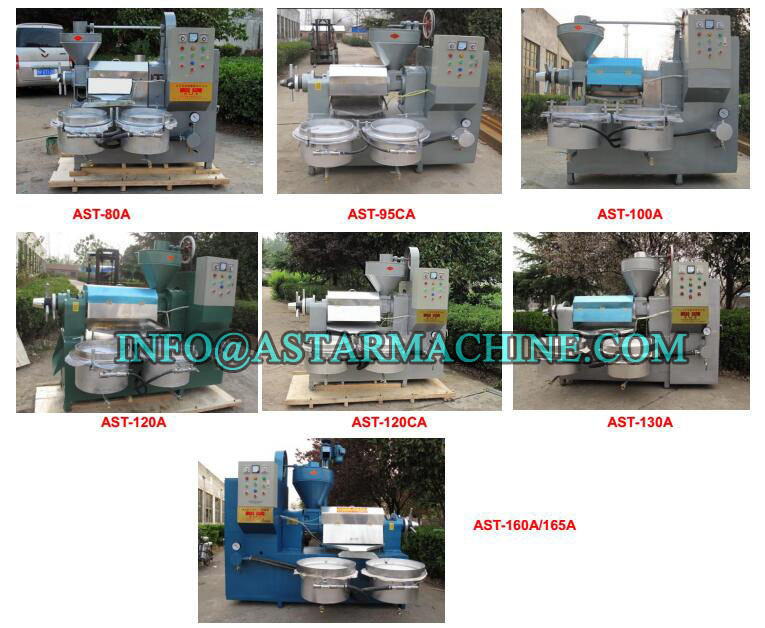

Screw Type Rice Bran Soybean Oil Press Machine Specification :
| Model | Capacity ( t/day) | Power(KW) | Outside Size(mm) | Weight(kg) |
| AST-80A | 2.5~3 | 5.5 | 1760*1050*1850 | 600 |
| AST-95CA | 3~5 | 7.5 | 2050*1050*1850 | 940 |
| AST-100A | 3~5 | 7.5 | 2050*1050*1850 | 940 |
| AST-120A | 4~7 | 11 | 2220*1050*1850 | 1200 |
| AST-120CA | 6~8 | 15 | 2340*1050*1850 | 1300 |
| AST-130A | 9~12 | 18.5 | 2450*1100*1950 | 1500 |
| AST-165A | 15~20 | 22 | 2600*1200*1950 | 1680 |
Screw Type Rice Bran Soybean Oil Press Working Principle :
When the raw materials have been sent to the hopper of oil pressand then been moved forward by the rotating pressing screw for pressing. Under the high-pressure condition in the chamber, friction between material andscrew, chamber will be created, which also creates friction and relative movement amongmaterial particles.On the other hand, root diameter of the pressing screw caries larger from one end to the other, hence.When rotating, it not only pushes particles to move forward,but also turns them outwards as well. Meanwhile,particles adjacent the scew will rotate along with screw's rotating, causing every particle inside the chamber to possessdifferent speed. Therefore, relative movement among particle creates heat which is necessary during manufacturing becasue of helping protein change property,damage colloid,increase plasticity, decrease oil's elasticity, resulting in high oil productivity.
Any more information you need Screw Type Rice Bran Soybean Oil Press, please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile/ :0086-15178920906
