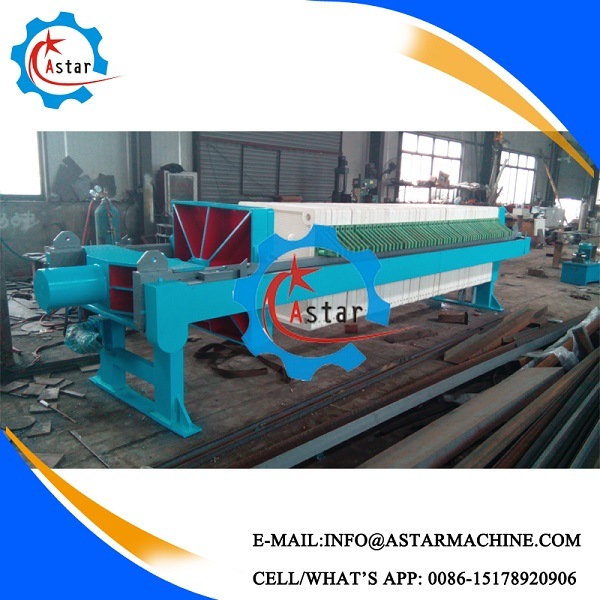

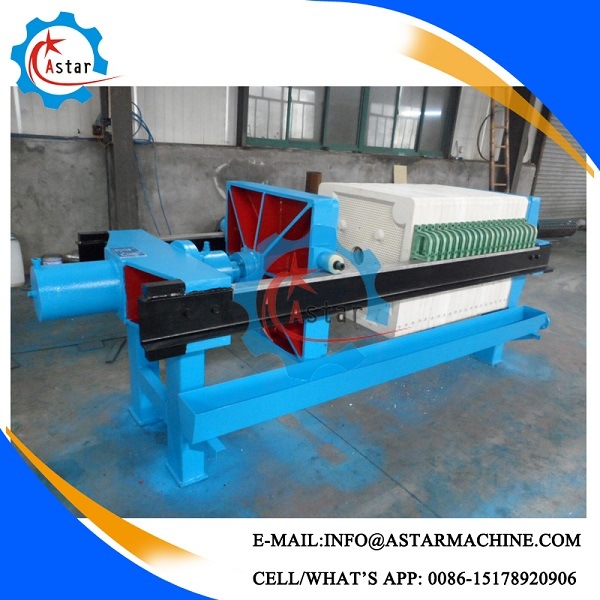

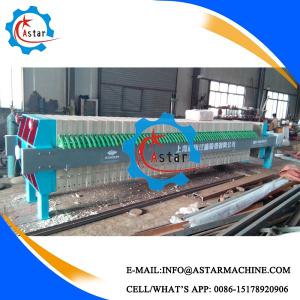

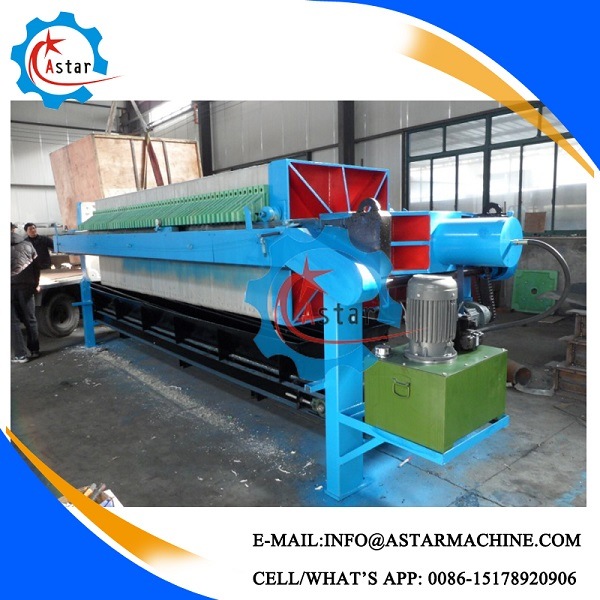

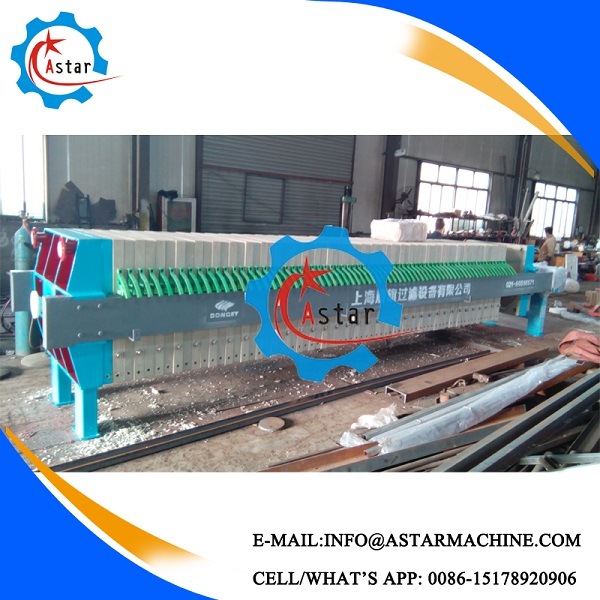

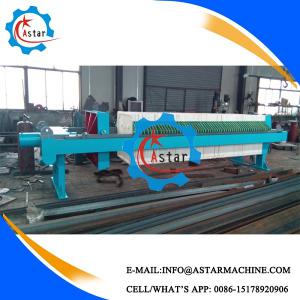

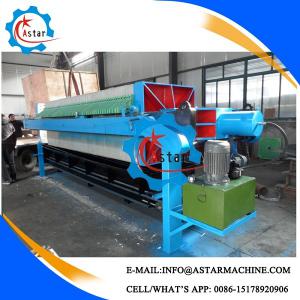

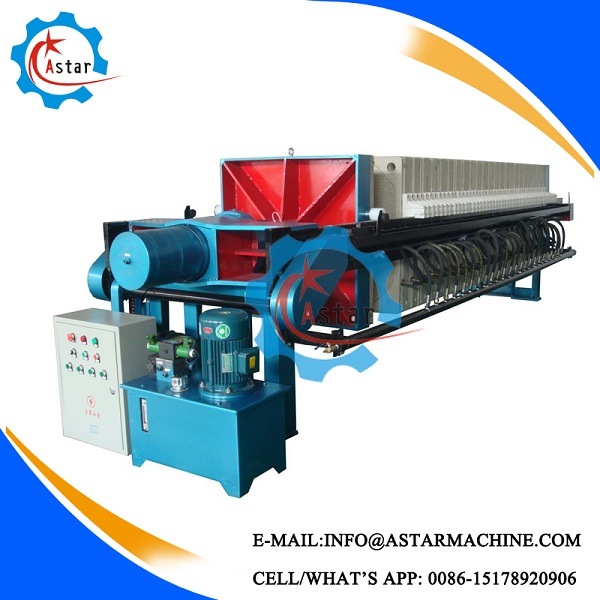

Plate Filter Sewage Press Machine Procuct Overview:
As one kind of intermittent solid-liquid separation equipment, BY series frame sludge filter is provided with the filter chamber consisting of filter plate and filter frame in order. The feed liquid is sent to the filter chambers under the pressure of feeding pump. The solids and liquid are separated by the filter media. It is widely used for the sewage treatment of the industries such as chemical engineering, dye, petroleum, ceramics, pharmacy, sugar-making, food, starch, maltose, paint, metallurgy, etc. with the excellent separation effect, broad scope of application, simple operation and less investment. It is advantageous over other similar devices in terms of the separation of sticky and fine materials.
20 Square 630 Model Sewage Filter
Any more information you need Plate Filter Sewage Press Machine , please feel free to contact with us.
Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile: 0086-15178920906
As one kind of intermittent solid-liquid separation equipment, BY series frame sludge filter is provided with the filter chamber consisting of filter plate and filter frame in order. The feed liquid is sent to the filter chambers under the pressure of feeding pump. The solids and liquid are separated by the filter media. It is widely used for the sewage treatment of the industries such as chemical engineering, dye, petroleum, ceramics, pharmacy, sugar-making, food, starch, maltose, paint, metallurgy, etc. with the excellent separation effect, broad scope of application, simple operation and less investment. It is advantageous over other similar devices in terms of the separation of sticky and fine materials.
20 Square 630 Model Sewage Filter
| Name | Press Filter | |
| Model | XMY20/630-30UB | |
| Specification : | ||
| 1 | Filter area m2 | 20 |
| 2 | filter chamber volume L | 297 |
| 3 | Filter plate form | Van filter plate |
| 4 | Filter plate size ( outer diameter) mm | 700*700 |
| 5 | Filter plate materials | Reinforced pp |
| 6 | Filter plate number | 24 pcs |
| 7 | Filter pressure MPa | 0.6 |
| 8 | Filter Temperature ºC | ≤80 |
| 9 | Whether the filter cake be wash or not | Can be wash |
| 10 | Feeding way | Middle |
| 11 | Hydraulic dimension (mm) | 580×450×700 |
| 12 | Hydraulic station foundation size ( mm) | 580×450 |
| 13 | Conveyor power kw | no |
| 14 | fluid way | Free flow |
| 15 | Compaction and pressure maintaining mode | The hydraulic pressure automatic pressure maintaining |
| 16 | Compaction pressure( MPa) | 18-20 |
| 17 | Frame Materials | High quality carbon steel corrosion |
| 18 | Discharging plate method | By manual |
| 19 | Filter cloth type | polypropylene 750B |
| 20 | Machine Dimension | 2940*900*1100 |
| 21 | Foundation ( mm) | See installation drawing |
| 22 | Weight kg | 1900 |
| 23 | Hydraulic Power( kw) | 2.2 |
| 24 | Electric control cabinet size( mm) | 600×500×200 |
| 25 | Electric control cabinet weight( kg) | 20 |
