Product Name: LW Decanter Centrifuge
Client Field:
Properties and uses:
Operating principle
Main Characteristics
Special Allocation
Following allocation can be possible to meet customers' demand
Client Field:
- Industrial and municipal wastewater treatment
- Oil & gas drilling mud/fluid control
- Washing, classification and dewatering of amylum and starch
- Mycelium separation from zymotic fluid and antibiotic
- Dewatering of soybean and wheat protein
- Dewatering of fish power and fish meat
- Dewatering of grains
- Clarification and extraction of fruit juice
- Clarification and purification for animal and vegetable oil
- Production and extraction of olive oil, palm oil, avocado oil
- Separation and purification for coal tar
- Grading of kalin and graphite
- Etc.
Properties and uses:
LW decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging.
Operating principle

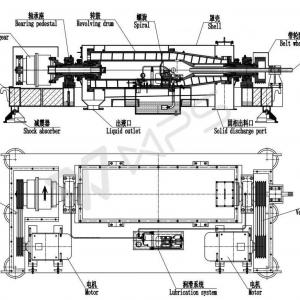

Separation takes place in a horizontal bowl equipped with a scroll conveyor. The process material is fed into the bowl through a stationary inlet tube and is smoothly accelerated in the accelerate chamber. Centrifuge forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but a different speed, thus moving the solids towards the conical of the bowl
Main Characteristics
- Continuous working, spiral discharging, high capacity
- Compact structure and easy maintenance
- Wide applicability for chemical, oil, foodstuff, pharmacy industries and green industry in which solid-liquid separation is required
- Suitable for various products, capable for separating wide-ranging solid phase grains (0.005-2mm), especially when separating solid phase has different size grains.
Special Allocation
Following allocation can be possible to meet customers' demand
- Frequency conversion plus PLC controlling system
- Protection system for vibration and temperature rising
- Feeding speed control
| Item | Models | |||||
| LW250 | LW300 | LW350 | LW400 | LW450 | LW530 | |
| Drum Diameter (mm) | 250 | 300 | 350 | 400 | 450 | 530 |
| Drum length (mm) | 1000 | 1140 | 1400 | 1200 | 1800 | 2280 |
| L/D Ratio | 4 | 3.8 | 4 | 3 | 4 | 4.3 |
| Rated rotating speed (r/m) | 4500 | 4000 | 4000 | 3000 | 3000 | 2800 |
| Separation factor (ω²r/g) | 2835 | 2688 | 3100 | 2016 | 2268 | 2327 |
| Productivity (m³/h) | 0.5-3 | 1-12 | 3-12 | 3-15 | 6-20 | 6-30 |
| Motor Power (kw) | 5.5 | 7.5 | 15 | 22 | 30 | 37-55 |
| Overall dimension (LxWxH) | 2065x1374x650 | 2200x1425x670 | 3365x920x1170 | 2530x1980x940 | 3100x1800x1200 | 4400x1790x1125 |
| Weight (kg) | 1000 | 1700 | 2250 | 2000 | 3200 | 4200 |
