Name: PAUT Automatic  top-suspeneded scraper bottom discharge centrifuge


Standard Manufacturing features:

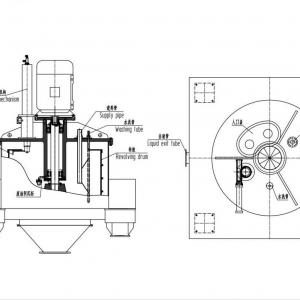

structure: The housing is equipped with the feeding pipe, washing pipe, sight glass, exhaust port, manhole, and lighting hole. The closed structure, drum,housing and cover are made by stainless steel. The machine base ( flat) is coated by stainless steel. The interior and exterior surfaces of drum and housing, and the exposed parts are all subjected to polishing mirror treatment.

Major features:

1.Platform base with liquid damping shock absorption: platform base structure could lower the center of gravity and stabilize the machine making operation convenient. Applying the liquid damping technique improves performance of shock absorption in centrifuge, and also making installation and repairs convenient.

2.adopts PLC control, program setting, unattened automatic operation, and whole self monitor of feeding, primary filtering, washing, fine filtering and discharging.

3.Variaale frequency speed control, stable starting, adjustable separation coefficient.

4. The motor adopts top mounted direct coupling type, avoiding friction and dust brough by driving;

5.High capacity, high output, and enhanced production efficienty;

6.Dynamic braking, non-touch braking mode, no friction and dust pollution;

7. Fully closed structure, the seal is made of sillicone rubber or fluorine rubber. The centrifuge cavity is provided with nitrogen protection to meet the requirements of sealing and anti-explostion;

8.Reasonable sturctue design. The CIP cleaning system( spraying system) ensures the requirments for cleanliness and conforms to the GMP standard;

9.The hydraulic action system which is clean and sanitary can be adopted;

10. The optional gas-assisted scraper ensures no residual material in the drum after discharging;

11. Safety protection: rotation speed detection, over-vibration protection, open case protection, moter overloaded protection and overheat protection, scraper turning and lifting machinery electric dual-control, linked to locking of scraper and drum.
