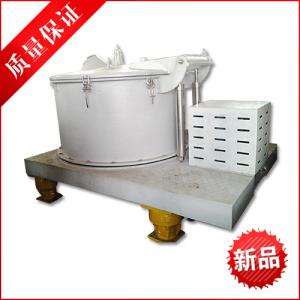

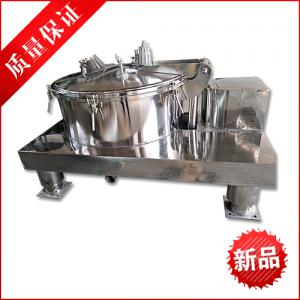

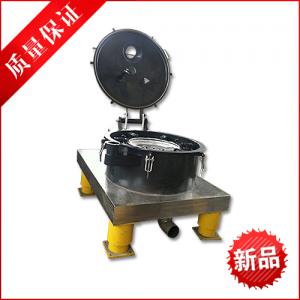

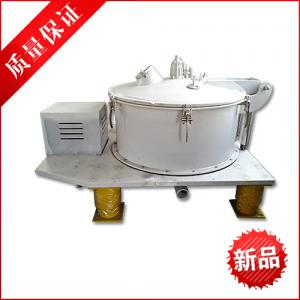

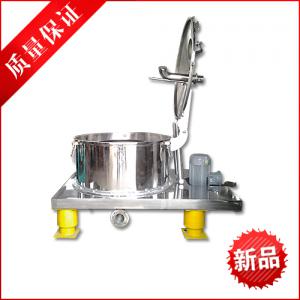

Name:PSB top discharge centrifuge
Other Names:manual top discharge centrifuge
Selling point:simple structure, convenient operation, anti-explosion, clean environment, wide range of application
Simple Instruction:
Properties and uses:
Product Parameter:
Other Names:manual top discharge centrifuge
Selling point:simple structure, convenient operation, anti-explosion, clean environment, wide range of application
Simple Instruction:
- Vertical top discharge (direct coupling explosion-proof) filtering centrifuge
- Simple structure,convenient operation, anti-explosion, clean environment,etc.
- Suitable for separation of suspensions containing solid particles more than 0.01mm
- Widely applied in chemical industry, pharmacy, good, national defense and other industries.
- Widely suitable for separation of materials with strict anti-explosion requirements and high cleanliness requirements
Properties and uses:
- It can be used to separate the fine grains of micron size, to dehydrate the large articles, as well as to apart all kinds suspension that was difficult to separate. The grains are discharged manually and will not be broken at random.
- With the GMP Norm and the requirement of environmental protecting. Started up stable under frequency conversion control system, the motor drives the revolving drum through a transmission system to give the drum a fast and circumaxile revolve, thus a centrifugal force field is generated. The revolving speed of feeding, cleaning and solid-liquid separating can be adjusted in a certain speed range; under the effect of centrifugal force, the material is evenly distributed on the drum to take off the liquid, Drilling through the gap between the solid phase material and filter net, the liquid phase is thrown into the empty chamer of the shell through the drum wall hole, and then discharged while the solid phase remains in the drum.
- Novelty structure, convenient operation and maintenance.
- Adopts whole sealing structure to meet the requirements of GMP Norm and environment protection.
- Adopts with big cover structure, convenient to discharge the material and thoroughly was the space between the shell and drum.
- The lid is quipped with a mechanical balancer, it is less labor cost and needs no energy.
- No dead angle exists and completely transited smoothly, an optional washing effect can be achieved with a CIP cleaning system
- Grains can be well preserved
- Cleaning and spraying system
- Nitrogen protection system
- RF admittance material process control
- PLC program control
- Hydraulic action system
- Gas auxiliary scraper
- No basic form(equipped with vibration isolation chassis +vibration damper).
- The corresponding stainless steel(SUS304,321,316L,or titanium) is adopted according to anticorrosive requirements for users' materials to be separated.
Product Parameter:
| Item | Models | |||||
| PSB600 | PSB800 | PSB1000 | PSB1200 | PSB1250 | PSB1500 | |
| Drum Diameter (mm) | 600 | 800 | 1000 | 1200 | 1250 | 1500 |
| Drum volume (L) | 40 | 100 | 155 | 270 | 310 | 600 |
| Loading limit(kg) | 70 | 140 | 200 | 385 | 420 | 800 |
| Drum speed(r/min) | 1500 | 1200 | 1000 | 960 | 960 | 600-850 |
| Separation factor | 755 | 645 | 560 | 620 | 645 | 302-605 |
| Motor power(kw) | 3 | 5.5 | 7.5 | 15 | 18.5 | 22-30 |
| Overall Weight | 1100 | 1300 | 2000 | 3000 | 3200 | 4500 |
| Physical size(mm) | 1300X1050X1150 | 1550X1200X1300 | 1750X1250X1300 | 2100X1600X1500 | 2100X1600X1500 | 2600X2200X1800 |
