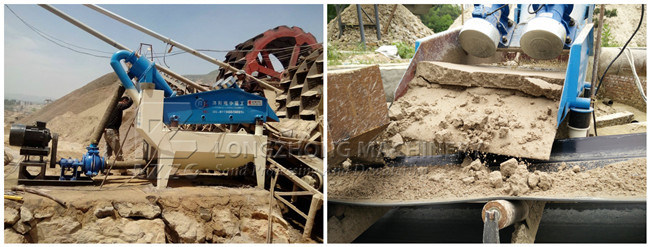

LZ patent sand recycle system is designed on the base of absorbing world advanced technology and combining with the domestic applications of sand making industrial. It is widely used in rock crushing and washing plant, crushed sand or natural sand washing plant, mineral tailing processing site, etc.
LZ series fine sand recycle equipment has absorbed foreign advanced technology and its design combined with sand field actual situation, it prossess the international advanced level and is widely used in mud purification, artificial sand production line, hydropower station and sand aggregate system, glass raw material processing system and coarse slime recovery, and fine mterial recovery.

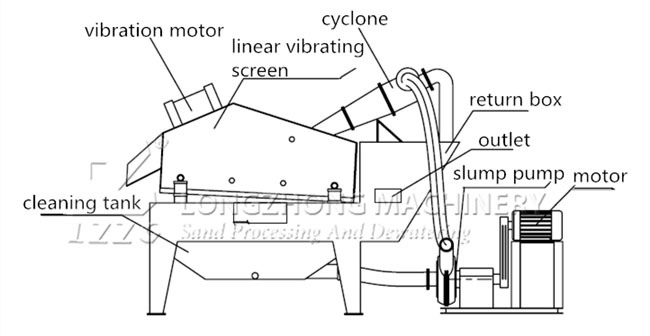

Through rubber pipes sand water mixture is extracted from cleaning tank into slurry pump. The fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The o.16-3mm fine sand and water are efficiently separated through the vibration screen. The waste water will flow back to the return box, through weld chute or pipes flowing to a setting pond.Tech specifications
Model | Pump | Whirlcone (mm) | Sieve dehydration | Productivity (m³/h) | Weight (kg) | ||
Power(kw) | Material | Material | Power(kw) | ||||
LZ250 | 7.5-11 | Cr26 | 250 | PU | 2x0.55 | 30-80 | 2050 |
LZ300 | 11-15 | Cr26 | 300 | PU | 2x0.75 | 40-100 | 2200 |
LZ350 | 15-18.5 | Cr26 | 350 | PU | 2x0.75 | 70-130 | 2555 |
LZ550 | 18.5-22 | Cr26 | 550 | PU | 2x1.1 | 100-220 | 3250 |
LZ650 | 18.5-30 | Cr26 | 650 | PU | 2x1.1 | 120-272 | 3945 |
LZ750 | 37-55 | Cr26 | 750 | PU | 2x1.5 | 180-350 | 4900 |
LZ900 | 55-65 | Cr26 | 900 | PU | 2x2.2 | 250-500 | 5650 |
LZ1200 | 60-74 | Cr26 | 1200 | PU | 2x2.2 | 500-650 | 6750 |
