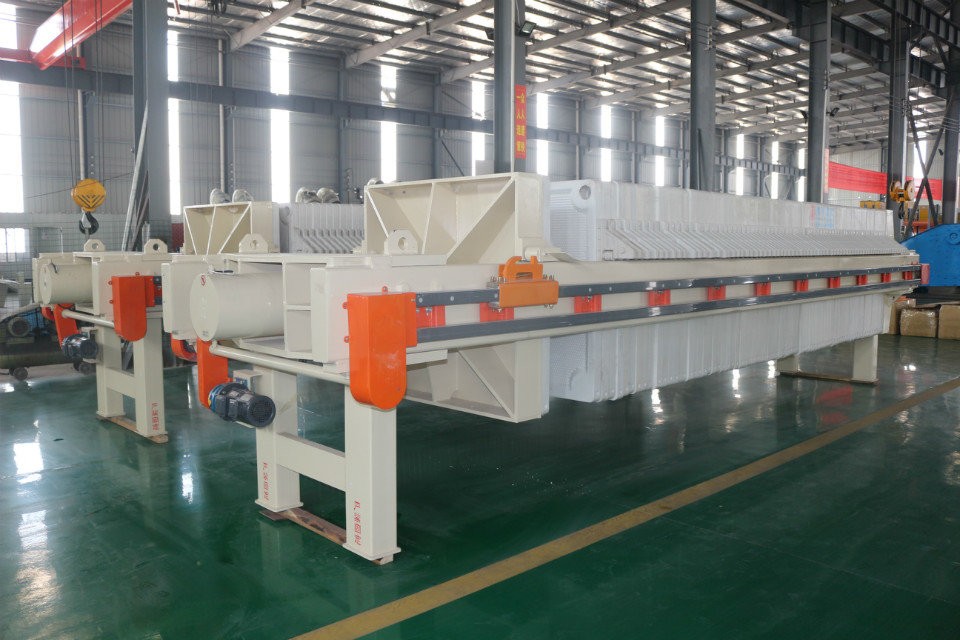

2018 Filter Press Water Purification Mineral Slurry Dewatering Machine
Brief Introduction:
Filter press is supplied for a wide application in municipal & industrial industries. After processed by the filter press, the mud will be mud cake and the humidity is around 20%.
Working Principle:
The mixture flows through the filter medium (filter cloth), the solid stays on the filter cloth, and gradually piles up on the filter cloth to form the filter cake. The filtrate part penetrate the cloth, become clear water.
Tech specifications
| Model | Filter Area(²) | Filter Chamber Volume(L) | Capacity(t/h) | Weight(kg) | Dimension(mm) |
| YL50 | 50 | 748 | 1-1.5 | 3456 | 4110*1400*1230 |
| YL80 | 80 | 1210 | 1-2 | 5082 | 5120*1500*1400 |
| YL100 | 100 | 1475 | 2-4 | 6628 | 5020*1800*1600 |
| YL150 | 150 | 2063 | 3-5 | 10455 | 5990*1800*1600 |
| YL200 | 200 | 2896 | 4-5 | 13504 | 7360*1800*1600 |
| YL250 | 250 | 3650 | 6-8 | 16227 | 8600*1800*1600 |
Main Features:
Less associated devices
Filter press only use a hydraulic oil cylinder to provide enough pressure when other types of filter press have to be equipped with water tanks, air compressors, water pumps, compression pumps, air storage tanks and other necessary devices.
Machine Parts

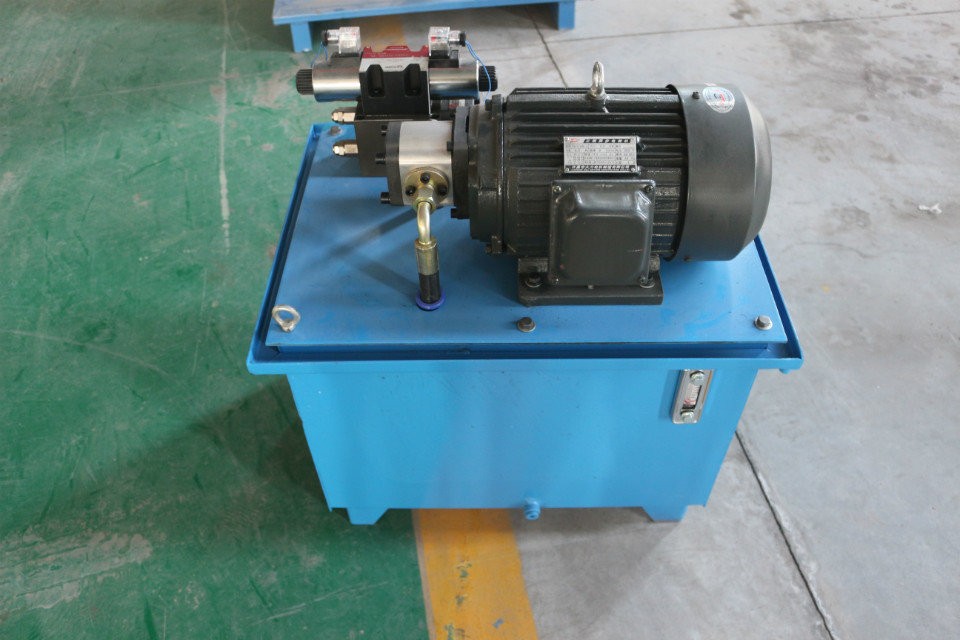

Name: The Hydraulic Pressure Stands
We use a hydraulic oil cylinder to provide enough pressure, which is of less associated devices, and of stable performance.
Main Features
Name: Filter Plates
We use custom made high quality filter plates to prolong the lifespan, and keep stable performance for the machine.
Machine Parts

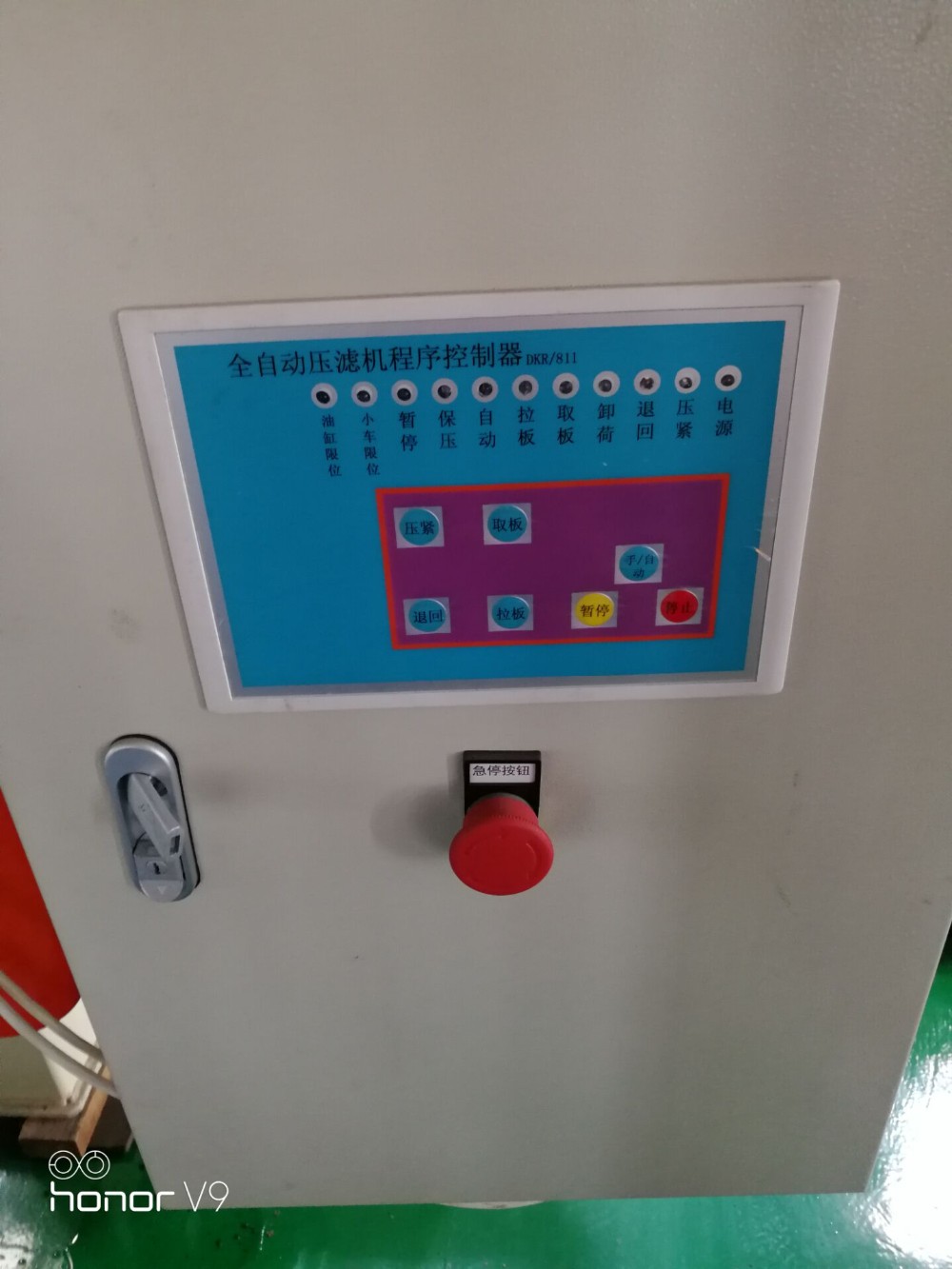

Name: Electric Controller
With the electric controller, the machine can working automatically, and save much worker handling time.
Main Features
Name: Slurry Pump
The pump has two impellers which can make the lift to be 60m, which can provide large pressure to the machine.
| Packaging | |
| Size | 4044 (L) * 1350 (W) * 785 (D) |
| Weight | 3.8t |
| Packaging Details | The normal package is plastic cloth for main machine and wooden for parts.The wooden box will be fumigated, can also pack it according to customers special request. |

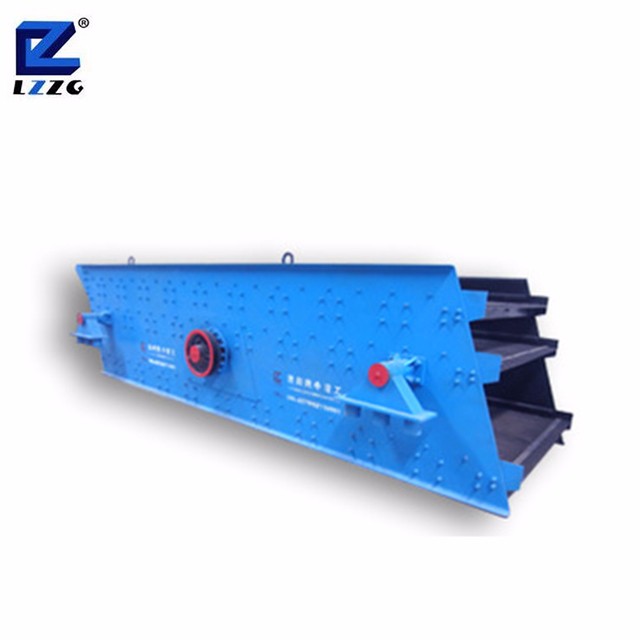

Circle Vibrating Screen
91.8% Response Rate

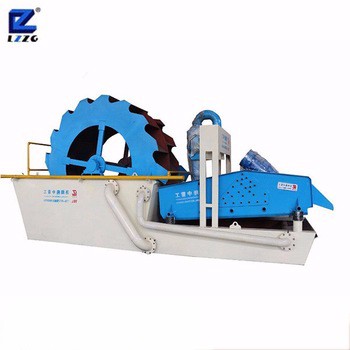

Sand Washing and Dewatering Machine
91.8% Response Rate

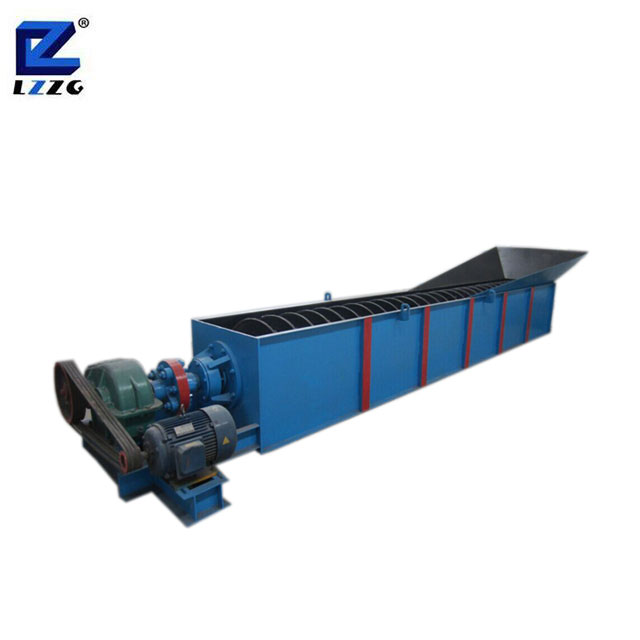

Spiral Sand Washing Machine
