Introduction
At present, it is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on. It enjoys high popularity in domestic and foreign mining market and LZZG is the best and professional industrial sand washer supplier in China.

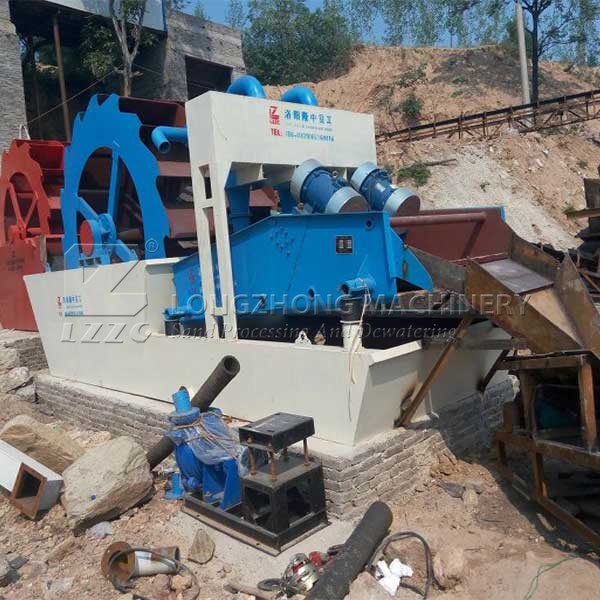

LZ sand washing & recycling machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. it is used for doing washing, classification and decontaminates works in the metallurgy, building materials, water and electricity industries. It can process the fine-grained and coarse-grained materials, and is especially suitable for the construction and road sand.
Working principle
*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves , sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
*Dewatering: coarse sand (3-10mm) and fine sand(0.16-3mm) are fed onto polyurethane vibrating screen for dewatering.
Features
1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3. Heavy duty conveying paddles
4. Fabricated with heavy duty tubs
5. Oversize bearings and gears
6. Thick-walled shafts
7. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
8. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
9. Continuous grinding and abrading log washer paddles
Tech specifications
Contant us
Why not try our professional service?
1. Product quality : Adopt the Luozhou bearing, 235 high quality carbon steel or high manganese, fuselage seamless steel pipe and elbow connection, welding technology leading.

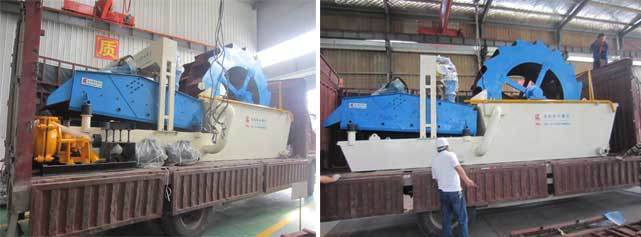

2. Product packaging and delivery: the package conforms to the moisture, rain, rust, corrosion and shock, the logo is clear. The goods will arrived at the scene safely in time,strictly enforce the terms of the contract agreed by the parties.
3. Technical training services: buyer's relevant personnel can correctly understand the working principle of the equipment and grasp the operation, check, maintenance and repair of the equipment.
4. High quality, efficient technical services within 24 hours.
5.Simple structure,and easy maintain,so you can choose the right machine to achieve the biggest profit
FAQ
1. Quality control
All the equipment offered by LZZG are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. LZZG Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
2. Way of payment
LZZG offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
3. Delivery time
Normal delivery time within 7-10 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).
5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
6. Installation
LZZG has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.
7. Equipment warranty
Equipment from LZZG with 12 months warranty, can be extended to 24 months as request.
At present, it is widely used for cleaning materials in the following industries: quarry, minerals, building materials, transportation, chemical industry, water conservation and hydropower, cement mixture station and so on. It enjoys high popularity in domestic and foreign mining market and LZZG is the best and professional industrial sand washer supplier in China.
LZ sand washing & recycling machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. it is used for doing washing, classification and decontaminates works in the metallurgy, building materials, water and electricity industries. It can process the fine-grained and coarse-grained materials, and is especially suitable for the construction and road sand.
Working principle
*Washing: The bucket is driven by the motor through the reducer and rotates in circle. There are many sand storage web grooves and bucket screen for sand storage and primary dewatering. When the bucket moves , sand can be put out by sand storage web groove after being cleaned in the cleaning tank and primary dewatered on the bucket screen.
*Recycling: Flowing slurry water is extracted by slurry pump, fine sand is collected by the centrifugal force of the cyclone, then fed to the polyurethane screen from the apex spray. The 0.16-3mm fine sand and water are efficiently separated through the vibration screen.
*Dewatering: coarse sand (3-10mm) and fine sand(0.16-3mm) are fed onto polyurethane vibrating screen for dewatering.
Features
1.Higher sand quality, lower moisture content.
2.Recycled fine size 0.16-3mm sand, lower mud content.
3. Heavy duty conveying paddles
4. Fabricated with heavy duty tubs
5. Oversize bearings and gears
6. Thick-walled shafts
7. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox
8. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears
9. Continuous grinding and abrading log washer paddles
Tech specifications
| Model | Power (kw) | Specs (mm) | Feed size (mm) | SandProduction(t/h) | Water(m³/h) | Weight(t) | Overall Dimension (LxWxH)(mm) |
| LZ26-35 | 23.5 | 350 | ≤10 | 30-50 | 50-80 | 6.18 | 5900×2000×2650 |
| LZ26-55 | 27 | 550 | ≤10 | 40-60 | 60-130 | 6.68 | 6300×2000×2650 |
| LZ30-60 | 37.9 | 650 | ≤10 | 80-130 | 70-150 | 9.3 | 7500×2500×3000 |
| LZ30-65 | 56.4 | 750 | ≤10 | 100-120 | 150-200 | 9.95 | 7500×2500×3000 |
Contant us
| Tell | 0086-379-65160016 |
| Website | http://www.lzzgchina.com / http://www.lzzgcrusher.com |
| Address | Zhongqiao Real Estate Building, Nanchang Road, Jianxi District, Luoyang, China |
Why not try our professional service?
1. Product quality : Adopt the Luozhou bearing, 235 high quality carbon steel or high manganese, fuselage seamless steel pipe and elbow connection, welding technology leading.
2. Product packaging and delivery: the package conforms to the moisture, rain, rust, corrosion and shock, the logo is clear. The goods will arrived at the scene safely in time,strictly enforce the terms of the contract agreed by the parties.
3. Technical training services: buyer's relevant personnel can correctly understand the working principle of the equipment and grasp the operation, check, maintenance and repair of the equipment.
4. High quality, efficient technical services within 24 hours.
5.Simple structure,and easy maintain,so you can choose the right machine to achieve the biggest profit
FAQ
1. Quality control
All the equipment offered by LZZG are produced by China national standard drawings, nonstandard equipment will be produced by the drawings confirmed by clients. LZZG Machinery strictly follows ISO 9001: 2008 Quality management system. Most equipment will be test for at least 8 hours in the factory before delivery. There is record in computer for each equipment, spares can be easily confirmed when it is necessary.
2. Way of payment
LZZG offers various ways of payment, T/T, against copy of B/L, L/C, D/A, D/P, West union, etc. All can be negotiated.
3. Delivery time
Normal delivery time within 7-10 working days, complete production line or larger equipment may take longer. Exact delivery shall be confirmed when place the order.
4. Trade terms
Typically EXW, FOB, CIF, CFR, DAF follows International Rules for the Interpretation of Trade Terms 2010(INCOTERMS 2010).
5. Shipping lines
Priority rule based on clients' request, and freight cost, service, shipping date, date of arrival shall be considered.
6. Installation
LZZG has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians' round way air tickets, salary(shall be confirmed before leaving), food and lodging, most importantly to guarantee the technicians' safety.
7. Equipment warranty
Equipment from LZZG with 12 months warranty, can be extended to 24 months as request.
