Dic Type/Pin Rod Bead Mill Pigment

Horizontal Sand Mill (EZW)/Latex Paint Making Machine/bead mill pigmentFeatures:1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span2, dynamic fence booms discharge solve problems of slow di

Technical Feature

  • Shanghai, China
  • 200-3000L/H
  • L/C, T/T, D/P, Western Union, Paypal
  • Disc Grinder
  • Hydraulic
  • Disc Bead Mill
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~800

PRIMARY PARAMETERS

Working Style
High-speed universal
Disc Diameter
230mm
Variable Speed
With Variable Speed
Materials
Stainless Steel or Pure Zirconia
Application Industry
Dye, Dyestuff, Dyeware, Offset Printing Ink
Grinding Medium
Pure Zirconia
Trademark
ELE
Transport Package
Wooden Case
Specification
EZW-5------EZW-100
Origin
Shanghai, China
HS Code
879820090

DETAIL DESCRIPTION

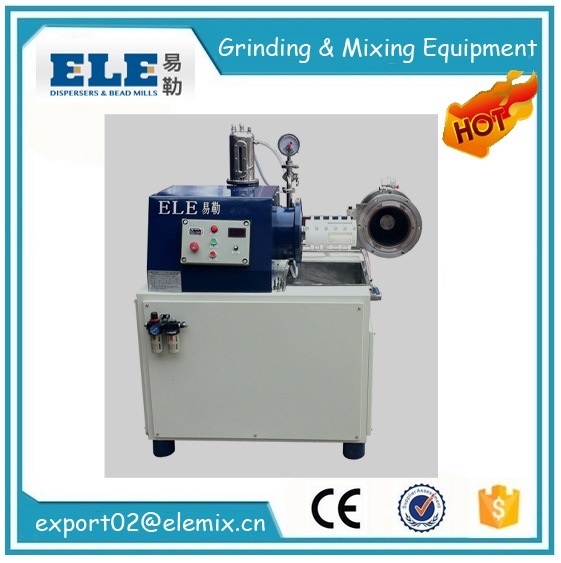

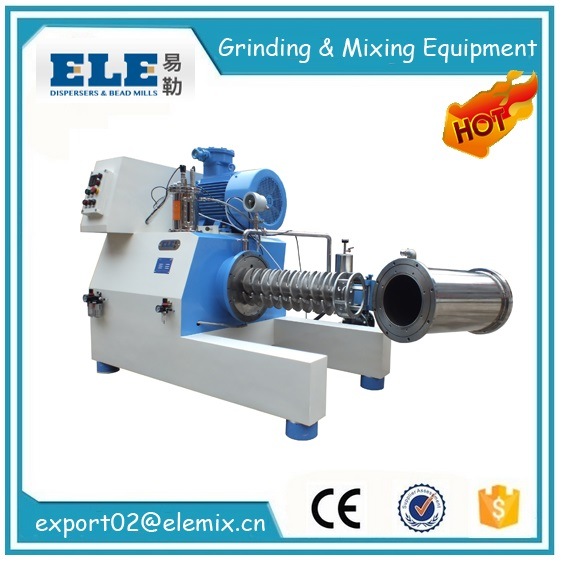

Horizontal Sand Mill (EZW)/Latex Paint Making Machine/bead mill pigment

Features:
1, high abrasive resistance materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life span
2, dynamic fence booms discharge solve problems of slow discharge and grinding medium getting stuck
3, German BURGMANN double end-face mechanical seal can bear more than 10bar pressure
4, screw structure inside cooling jacket increase cooling area and improve cooling efficiency
5, grinding beads small to 0.2mm guarantee superfine grinding/milling
5, meet demands of continuous production

6, especially suitable for high viscosity, high solid-content, superfine grinding/milling
7, inner & outer double pins improve high wet grinding/milling efficiency
8, ex-proof (optional)
9, precise control system & fault alarming
10, kinds of feeding pumps to different processing requirements (e. G. Pneumatic diaphragm pump)
11, low power consumption

Specifications
ModelChamber
Volume
(ml)		Power
(kw)		Speed
(rpm)		Capacity
(L/H)		Dimension
L*W*H
(mm)		Weight
(kg)
EDW-557.5  1440  2001300*1050*450  650
EDW-151518.5  1440  5001600*1450*650  1200
EDW-2020  22  1260  8001600*1450*650  1350
EDW-3030  37  1260  12001650*1550*750  1700
EDW-4040  45  980  15001750*1650*850  2100
EDW-5050  55  980  20001900*1850*850  2300
EDW-100100  110  860  30002300*2150*950  380
