Ink milling machine horizontal pin type bead mill for mixing with CE certificate

PRIMARY PARAMETERS

Condition

New

Mixer Type

Stator

Product Type

Ink

Application

Liquid with Suspended Solids

Additional Capabilities

Milling

Place of Origin

Shanghai, China (Mainland)

Brand Name

ELE

Model Number

EDW

Max. Loading Capacity

100L

Voltage

Customized

Power(W)

4kw-110kw

Dimension(L*W*H)

Referring

Certification

Warranty

1 Year

After-sales Service Provided

Engineers available to service machinery overseas

Guarantee

12 Months

type

Horizental Pin Type

Material

Harden alloy, Silion Carbide, Zirconia according to paint color

Function

High efficiency nano grade grinding

Bead size

0.8-1.2mm; 0.6-0.8mm, 0.3-0.5mm, 0.2-0.4mm, 0.1mm

Chamber Volume

1L, 5L, 10L, 15L, 30L, 50L, 100L, 150L

Output Cpacity

5-3000L/Hour

Feed & Discharge type

Continuous feeding and discharge material

Ink Application

Top grade wood paint, car paint, Interior wall paint

Discharge type

Large area tubular centrifugal separator

DETAIL DESCRIPTION

Ink milling machine horizontal pin type bead mill for mixing with CE certificate

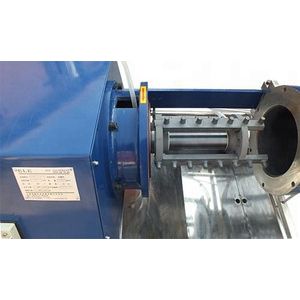

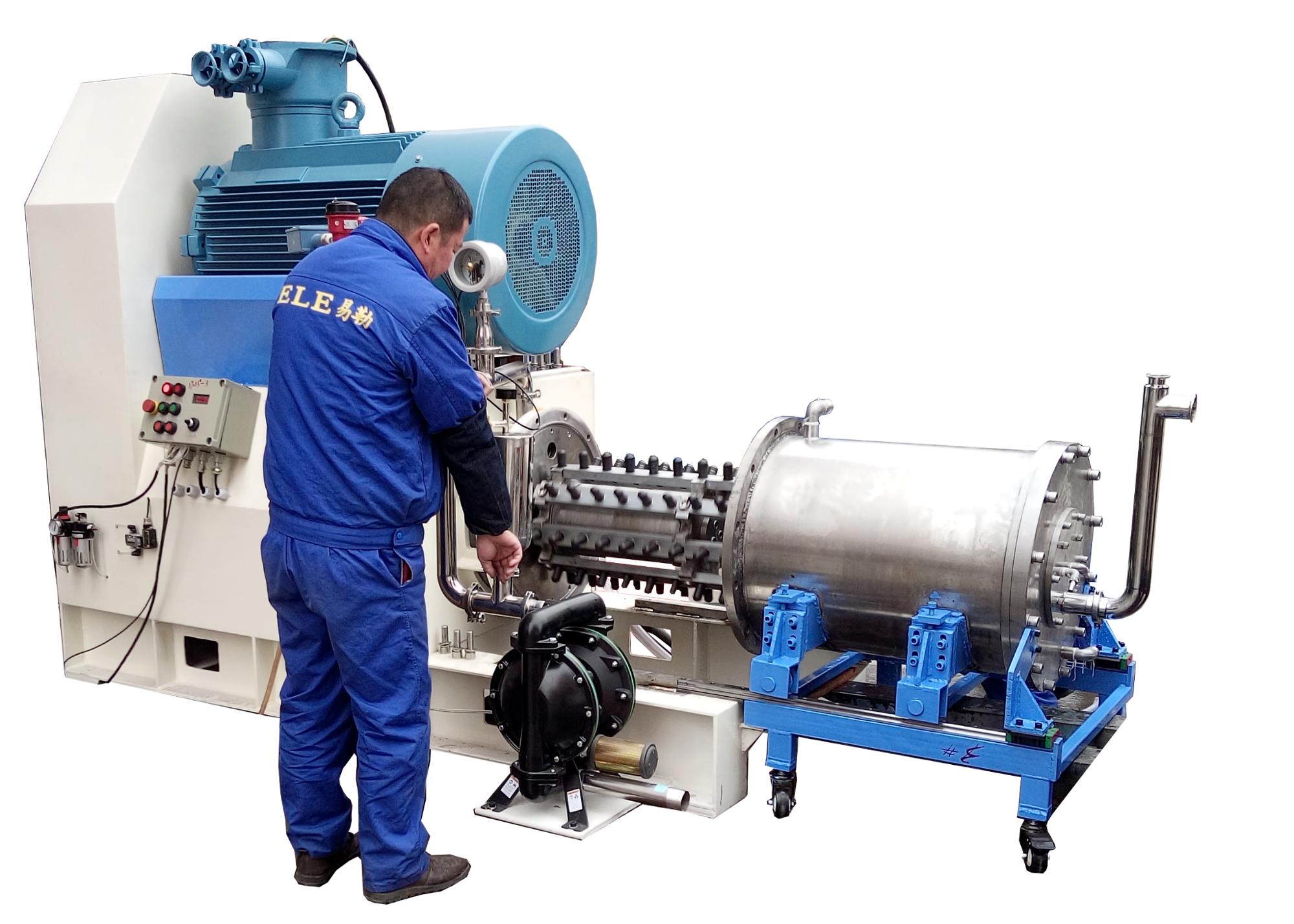

EDW-100 100L Pin type Harden Alloy Horizental Bead Mill for paint, coating, ink...

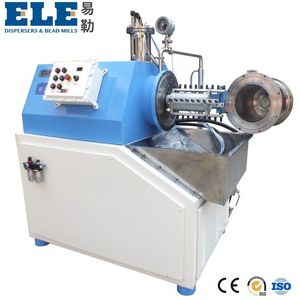

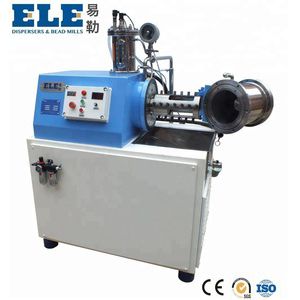

EDW-5 5L Pin type Ceramic horizental bead mill for pait, coating, ink...

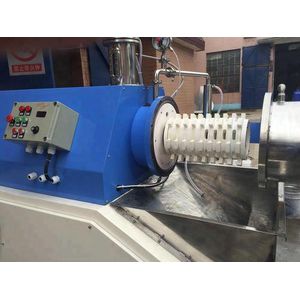

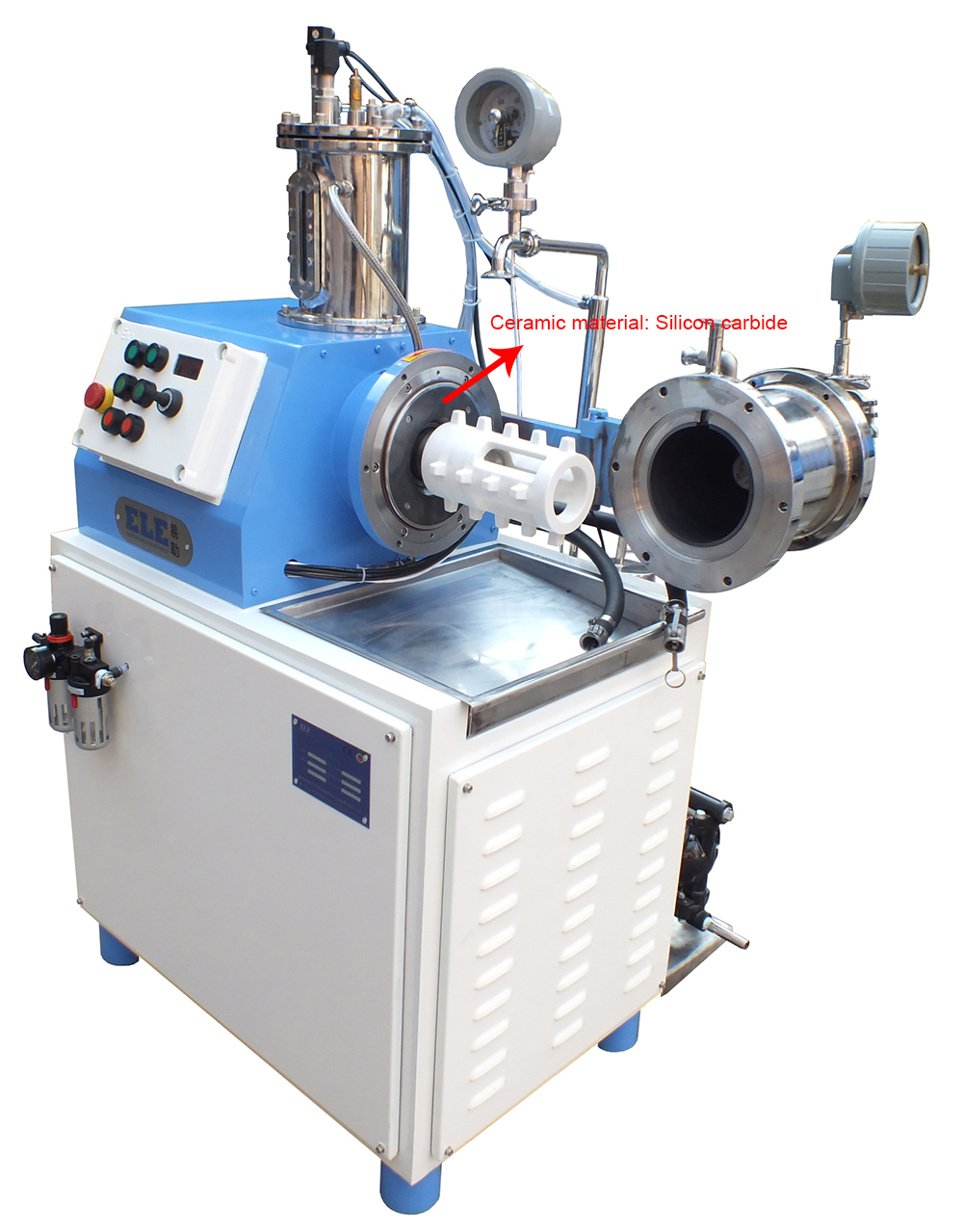

CERAMIC MATERIAL HORIZONTAL BEAD MILL has NO METALLIC CONTAMINATION to material, which is fit for light color ink.

1. Introduction for horizontal sand mill/one of main equipment for paint prodution line

EDW bead mill series are ELE’s patents, they adopt the most advandced L/D ratio, double mechanical seal, scientific cooling systems and advanced material discharge method, etc. ELE is always a leader in grinding and dispersing technology over years, and ELE mills are widely used in dye and pigment, paint and coating, electronics, ink, pesticide SC/EC, Chemical, food and cosmetics industries etc.

Application:

2. Features

1) Suitable for material with high solid powder and liquid, high refining requirements .

2) Compact body design, carbon steel frame, stainless steel machine parts, excellent painting effect.

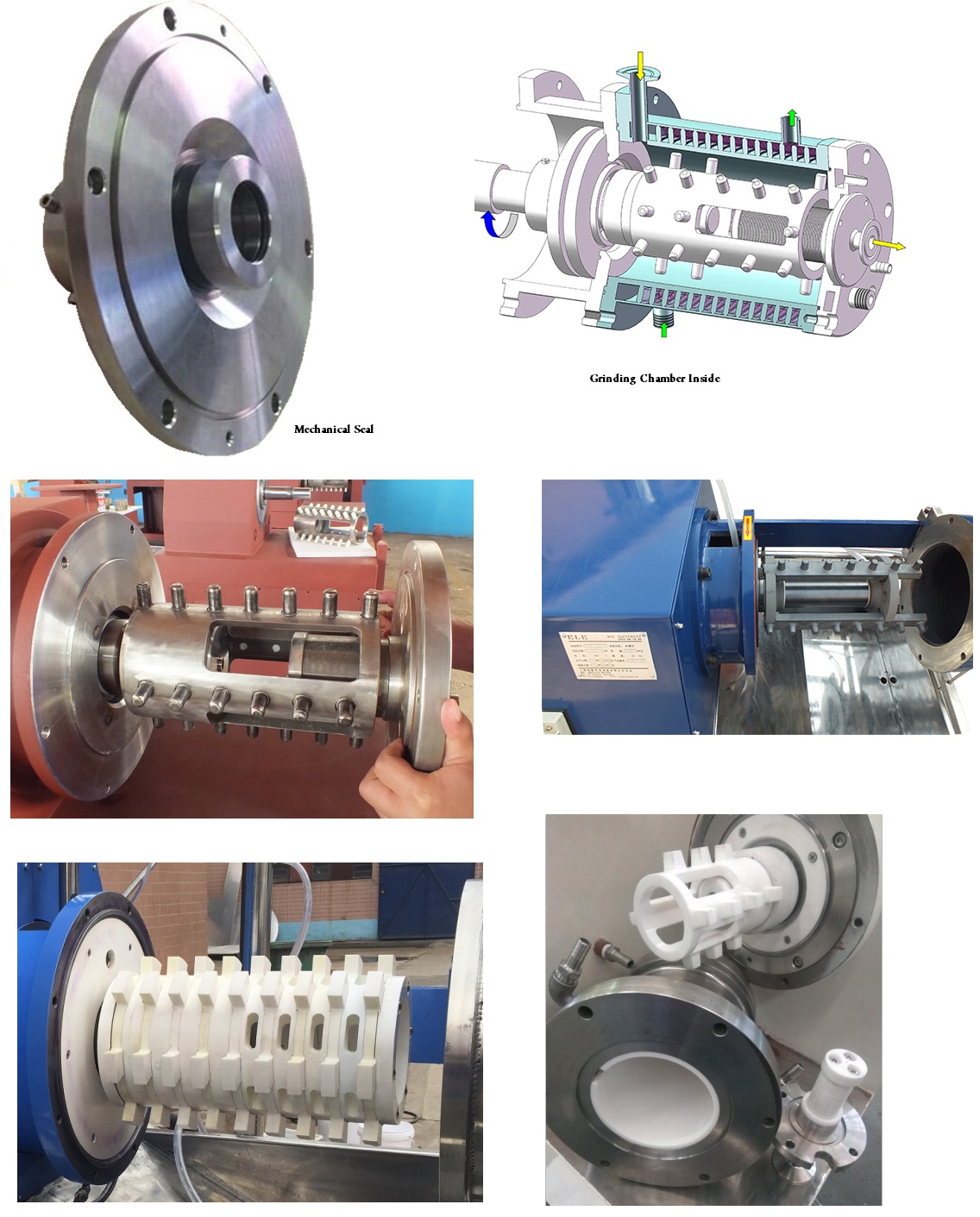

3) Advandecd imported double mechanical seal, which ensures the long life of shaft seal and good sealing effect .

4) The grinding barrel and shaft adopts forced water circulation and the mechanical seal adopts oil cooling system, which ensure the best cooling effect.

5) EDW series grinding mills adopt unique large area tubular reseau separator, precise separation & smooth discharge solve the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding medium, and the smallest discharging sieve could be 0.05.

6) The whole grinding barrel and shaft and beads adopt high-strength alloy steel, zirconia, silicon carbide, etc, which ensures the long life and reduce metallic pollution.

7) ELE has button control and PLC control for your choose, We also has explosion-proof type for special working environment.

3. Technical specification

Model	Cavity volumn(L)	Power (KW)	Rotation speed (rmp)	Capacity (L/H)
EDW-5	5	11	1500	30-200
EDW-10	10	30	1200	50-300
EDW-15	15	37	1000-1500	100-500
EDW-30	30	55	700-1200	200-1000
EDW-50	50	75	500-800	500-2000
EDW-100	100	110	400-700	1000-3000
Note: we can do special design according to customers’need.

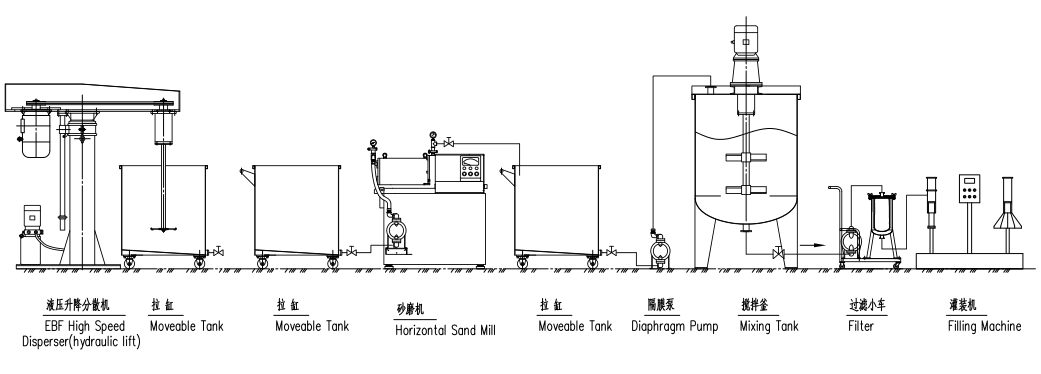

4. Ink Production Line Drawing

5. Our Service

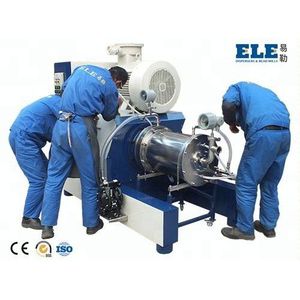

6. Engineer Commissioning overseas

7. Our Factory

7. Free Laboratory Service

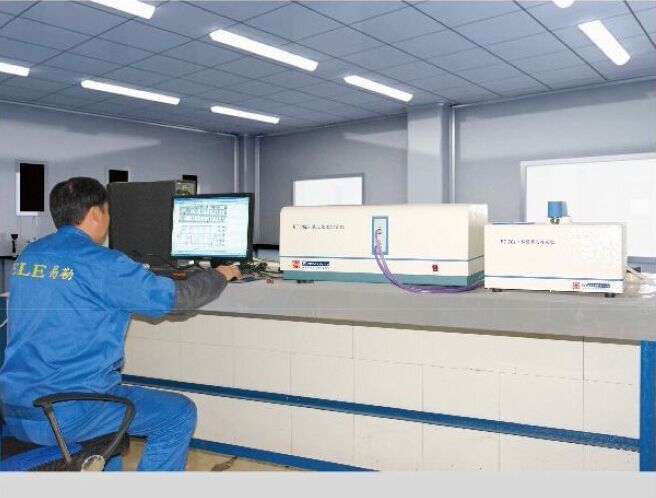

1. Customer Material Sample Received - 2. Grinding material - 3. Particle Size Test- 4. Send Test Report - 5. Send Finished Material

8. Customer Visit Us & Visit Customer

9. Our Exhibitions

10. Our Certificate

11. Package and Shipping

12. Product Range

Ink is a liquid or paste that contains pigments or dyes and is used to color a surface to produce an image, text, or design. Ink is used for drawing or writing with a pen, brush, or quill. Thicker inks, in paste form, are used extensively in letterpress and lithographic printing.

Ink can be a complex medium, composed of solvents, pigments, dyes, resins, lubricants, solubilizers, surfactants, particulate matter, fluorescents, and other materials. The components of inks serve many purposes; the ink's carrier, colorants, and other additives affect the flow and thickness of the ink and its dry appearance.

Main equipment concerned for ink production plant

1.Material disperser machine,can achieve pre-dispersing,mixing,high speed dispersing,coatings mixing,color mixing,and it is with good suitability for high viscous and thixotropic material,especially for mass production.mixer can crash,disperse,homogenize,blend and through toothed disc up and down high speed rotating,it realizes function of high speed violent crashing,hit,shearing,dispersing to quickly blend,dissolve,disperse and refine.It is a high efficient equipment for solid-liquid mixing,dispersing,dissolving.

2. For very high viscosity material may need three-roller mill machine.

3.Horizontal sand mill,a high efficienct wet super fineness grinding machine in coatings,dyes,paint,ink,medicine,photographic film,pesticides,paper making and cosmetics etc non metallic mineral field.By structure,horizontal sand mill can divide into pin rod type,disc type and double cone type.

4.Ink mixer,one machine with leaf agitator on the shaft rotating inside round shell or slot,mixing several raw material to form mixture and suitable viscous product.It is widely used in coatings,ink,pigment,and binder etc chemical products.

5.For ink reacting vessel,agitator can be paddle,frame,anchor,etc.normally it is low speed mixing.It can heat,customize pressured.

6.Ink filling machine,is mainly for a small fractional product.By production automation,it can divide into semi-automatic and fully automatic filling machine production line. By material filled,it can divide into ex-proof filling machine and common type filling machine.

All kinds of ink production line design and manufacturing such as water-based ink,UV ink,screen printing ink,print ink,seiko ink and offset printing ink are within our business range.We also provide whole plant construction services.
