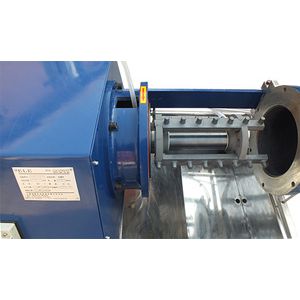

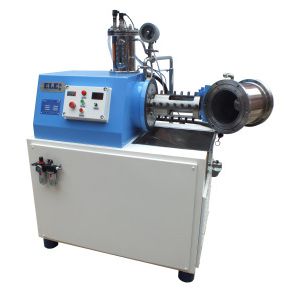

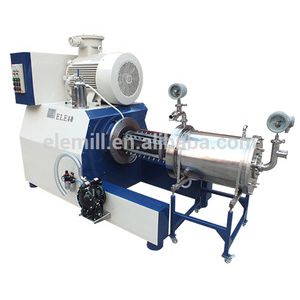

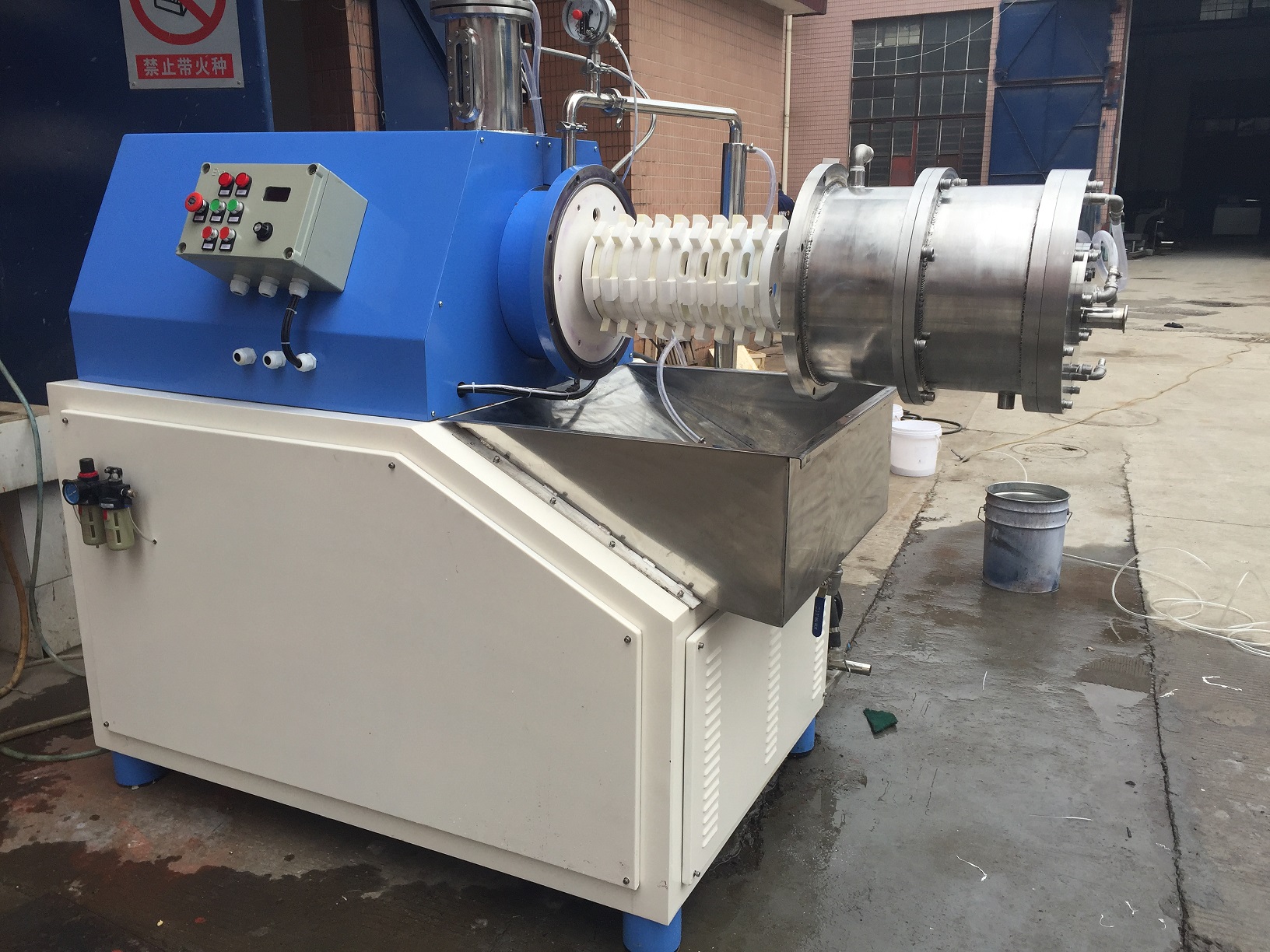

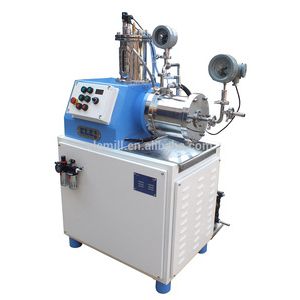

horizontal pin mill
Product details
| Capacity | 30~1200L/h |
| Material | Harden Alloy Steel |
| Machine Type | Pin type Bead Mills |
| Application | Pigment, ink, paint |
| Product Keywords | horizontal pin mill |
Features:
Full ceramic structure or Harden Alloy Steel, high wearing resistance, no contaminations
Multiple cooling system , powerful cooling efficiency
Efficient separation system, not block or break beads, discharging more smoothly and more quickly
High energy intensive output, even smaller grinding fineness
With excellent length and diameter ratio, narrower particle size distribution
Quality assurance:

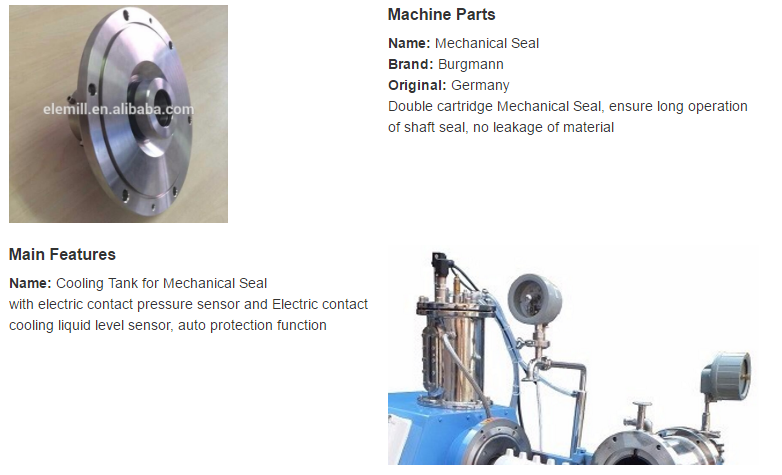

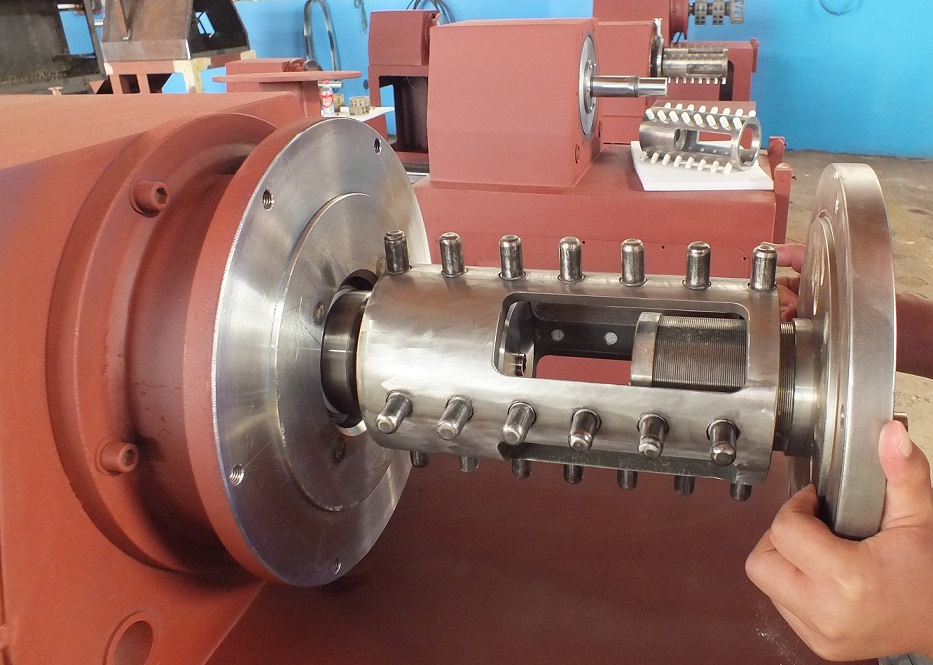

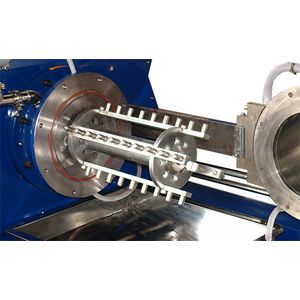

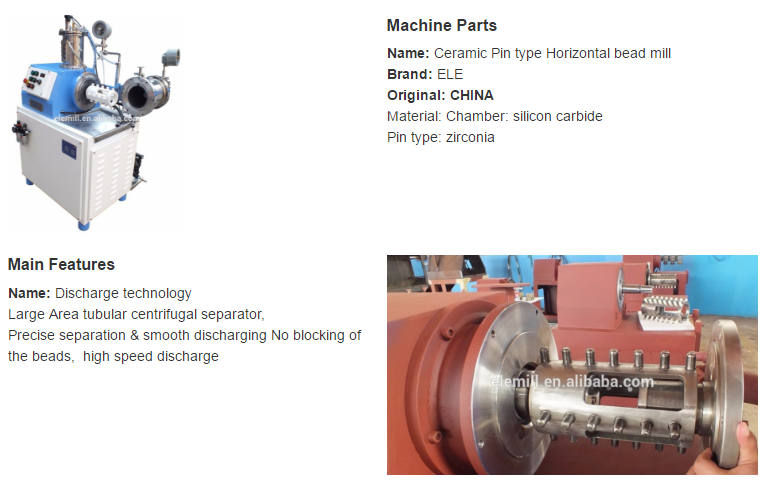

The rotor material: high wearing resistant steel/ceramic zirconia/silicon carbide/polyurethane, etc Chamber material: high wearing resistant steel/ceramic zirconia/silicon carbide/polyurethane , etc Sealing way: cartridge double mechanical seal, dedicated to bead mill, specially designed for materials with small granule .Whole unit, convenient to install and use, no need professionals to change it Discharging sieve specifications: large area of tubular reseau, 0.05/0.1/0.3/0.5 mm optional Instrument: electric contact pressure gauge & electric contact temperature gauge (with temperature protection, automatic stop over limit). Feeding pump: pneumatic diaphragm pump, screw pump or gear pump Grinding medium: pure zirconia beads with more than 95% zirconium content, beads size 0.1~1.0mm Electrical control system: explosion-proof/non explosion-proof configuration optional, with site operation panel (touch screen/frequency infinitely adjustable-speed optional)
| Model | Chamber volume(L) | Power(KW) | Speed(rpm) | Output(L/h) | Dimension(mm) | Weight(Kg) |
| EDW-5 | 5 | 11 | 1500 | 30-200 | 1300x1050x450 | 650 |
| EDW-10 | 10 | 22 | 1200 | 50-300 | 1600x1450x650 | 980 |
| EDW-15 | 15 | 37 | 1000-1200 | 100-500 | 1600x1450x650 | 1200 |
| EDW-30 | 30 | 55 | 700-1200 | 200-1000 | 1650x1550x750 | 1700 |
| EDW-50 | 50 | 75 | 500-800 | 500-2000 | 1900x1850x850 | 2300 |
| EDW-100 | 100 | 110 | 400-700 | 1000-3000 | 2300x2150x950 | 3800 |

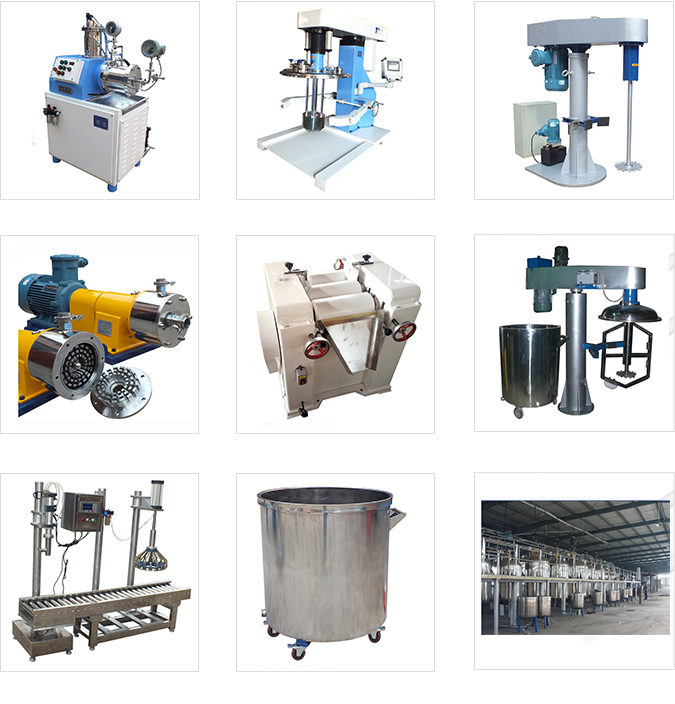

Shanghai ELE Mechanical & Electrical Equipment Co., Ltd. founded in 1996.We specialize in bead mill, Mixing equipment with good quality and best service.
PACKAGE:
Standard wooden package
DELIVERY TIME:
25-30 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

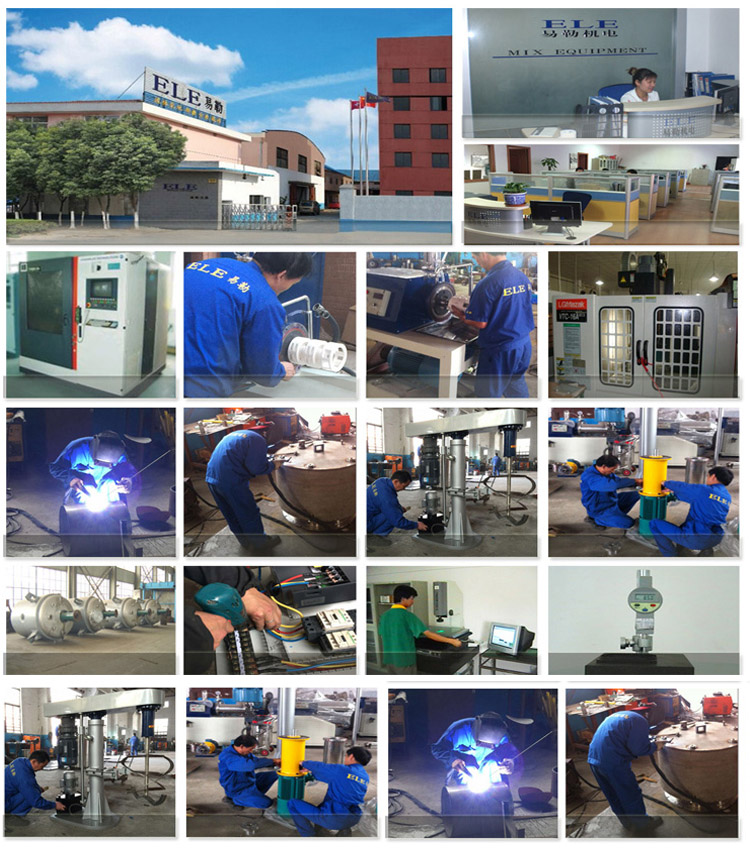

WHY CHOOSE US
Production
The type is the world’s top wet grinding machine, designed and developed for ultrafine grinding materials of high cleanliness and without metal contamination.
Technology
ELE bead mill adapt Swiss RUT process standards and CNC machining production.
Equipment
Most advanced design of length to diameter ratio, high energy concentration realize large flow ultrafine grinding
Service
ELE has the international first-class service system
