Ceramic Pin Type Bead Mill

1. Introduction

    EDW pin type bead mill series are ELE's patented products. We adopted the most advandced lenght/diameter ratio, double-end mechanical seal, scientific multiple cooling systems and advanced material discharge method. ELE has always been a leader in grinding and dispersing technology over years, and ELE mills are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries.

2. Features

1) Suitable for material with high viscosity, high solid content and high fineness requirements .

2) Compact body design, carbon steel frame, stainless steel machine parts, excellent painting effect.

3) Advandced cartridge double-end mechanical seal, which ensures the long life of shaft seal and good sealing effect.

4) There are seperate cooling systems for the grinding chamber and chamber cover and mechanic seal.

5) EDW series grinding mills have unique large area tubular mesh grid separator, and the precise separation & smooth discharge solved the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding media, and the smallest discharging sieve could be 0.05mm.

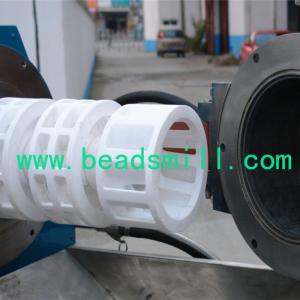

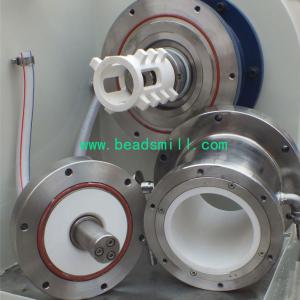

6) The whole inner grinding chamber and shaft and pins are made of ceramics ( zirconia or silicon carbide, which ensures long life and reduce metallic contamination). Another option is high wear resistant high chromium alloy steel.

7) Both on site control panel and seperate control cabinet are available. Inverter is available for this model. We also has explosion-proof type as an option.

3. Technical specification

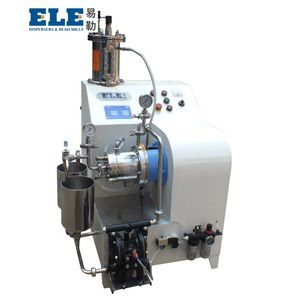

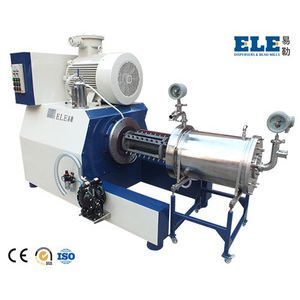

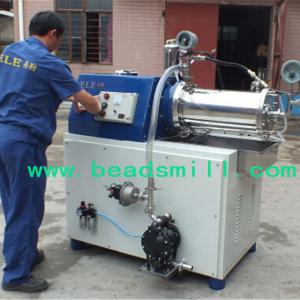

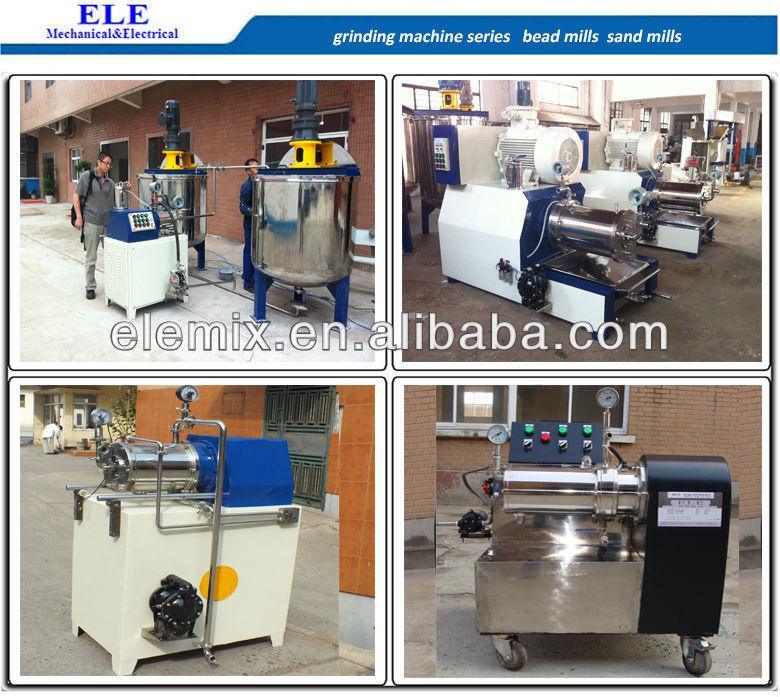

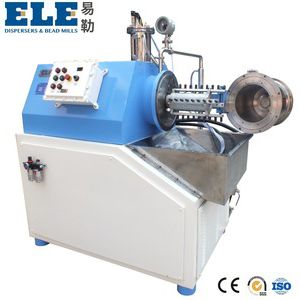

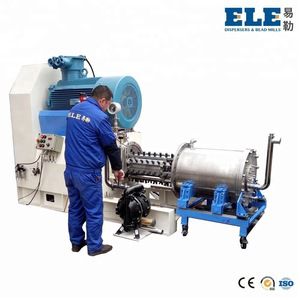

 4. Machines display
