Pin Type Horizontal Bead Mill

 EDW pin type horizontal bead mill 1. Introduction     EDW pin type bead mill series are ELE's patented products. We adopted the most advandced lenght/diameter ratio, double-end mechanical seal, scientific multiple cooling systems and advance

Technical Feature

  • Shanghai, China
  • Plywood Case
  • L/C, T/T
  • Bead Mill
  • Grinding
  • Liquid with Suspended Solids, Viscous Fluid
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$15~80

PRIMARY PARAMETERS

Model NO.
EDW
Additional Capabilities
Mixing
Operating type
Cyclical and Continuous
Condition
New
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Grinding Medium
Zirconia Beads
Contact Material
High Chromium Alloy
Trademark
ELE
Origin
Shanghai, China
HS Code
8479820090

DETAIL DESCRIPTION



EDW pin type horizontal bead mill



1. Introduction



    EDW pin type bead mill series are ELE's patented products. We adopted the most advandced lenght/diameter ratio, double-end mechanical seal, scientific multiple cooling systems and advanced material discharge method. ELE has always been a leader in grinding and dispersing technology over years, and ELE mills are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries.


Pin Type Horizontal Bead Mill



2. Features



1) Suitable for material with high viscosity, high solid content and high fineness requirements .



2) Compact body design, carbon steel frame, stainless steel machine parts, excellent painting effect.



3) Advandced cartridge double-end mechanical seal, which ensures the long life of shaft seal and good sealing effect.



4) There are seperate cooling systems for the grinding chamber and chamber cover and mechanic seal



5) EDW series grinding mills have unique large area tubular mesh grid separator, and the precise separation & smooth discharge solved the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding media, and the smallest discharging sieve could be 0.05mm.

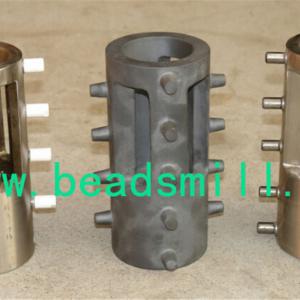

6) The whole inner grinding chamber and shaft and pins are made of high wear resistant alloy steel. Other options are zirconia, silicon carbide, etc, which ensures the long life and reduce metallic pollution.



7) Both on site control panel and seperate control cabinet are available. Inverter is available for this model. We also has explosion-proof type as an option.



3. Technical specification



Model

Chamber
volumn(L)

Power
(KW)

Speed
(rmp)

Capacity
(L/H)

Dimensions
(mm)

Weight
(kg)

EDW-5

5

7.5-11

1500

30-200

1300*1050*450

650

EDW-10

10

15-30

1200

50-300

1600*1450*650

1200

EDW-15

15

30-37

1000-1500

100-500

1600*1450*650

1350

EDW-30

30

37-45

700-1200

200-1000

1650*1550*750

1700

EDW-50

50

55-75

500-800

500-2000

1900*1850*850

2300

EDW-100

100

90-110

400-700

1000-3000

2300*2150*950

3800

Note: we can do special design according to customers' needs.

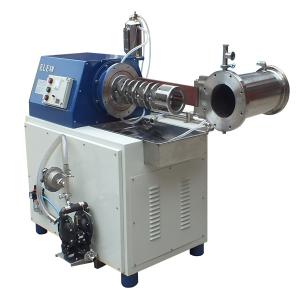

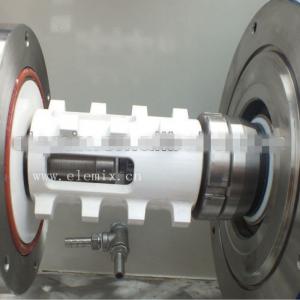

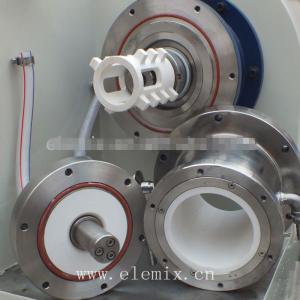

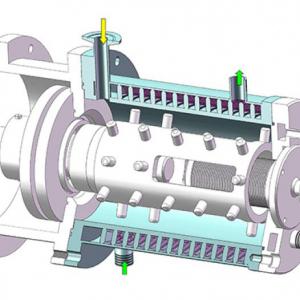

 4. Machines display




Pin Type Horizontal Bead Mill
