Name: Pharmaceutical/Chemical/Biological Storage Tank
Usage:
It is applied to store purified water or other liquid in pharmacy, biology, microbiology, chemistry, and fermentation industries.
Technical Parameters of Pharmaceutical/Chemical/Biological Storage Tank:
1.Material adopts SS316L or 304,
2. Surface finish: inside surface roughness is Ra0.28~0.4μm by mechanical polish or electropolish, outside surface roughness is Ra0.6-0.8μm by satin finish.

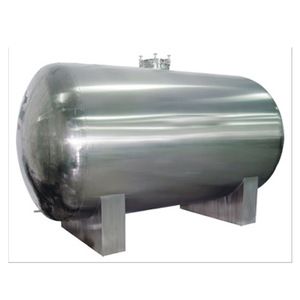

3..Form: vertical or horizontal.
4. working pressure can be normal pressure or with pressure. if with pressure, please let us know the working and design pressure inside tank and inside jacket.

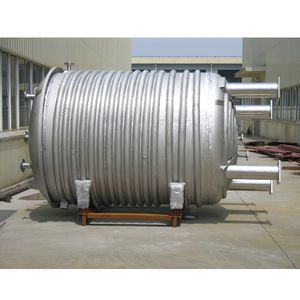

5. can be single layer, or with jacket or insualation. we make according to client detail requirment.

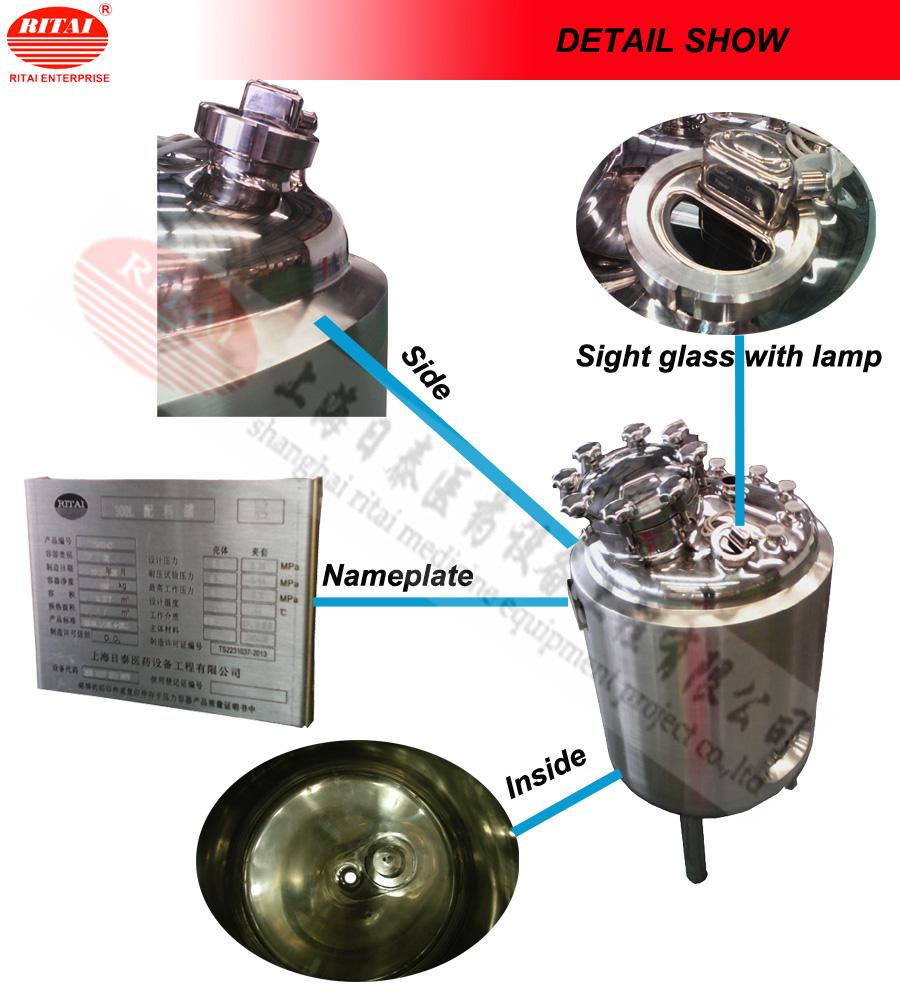

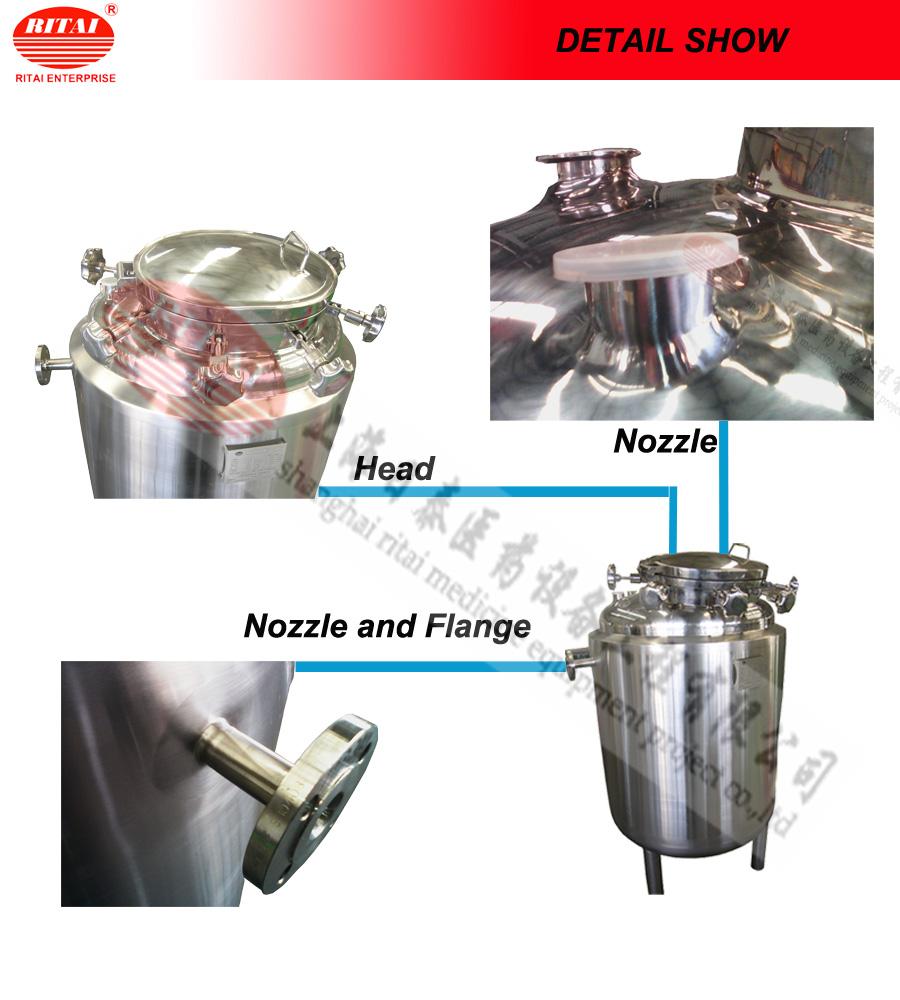

6.Components: vent filter, manhole, cleaning ball, liquid level gauge, and control system or according to clients specific requirement.
7.Specification: 100L-20000L.
8. normal pressure according to JB7431.
Pressure vessels can be made according to ASME VIII DIV1, PED 97/23/EC, GB150-2011 (it depends on client requirement with different cost.)
Packaging: plywood case
Shipping: by sea or by air

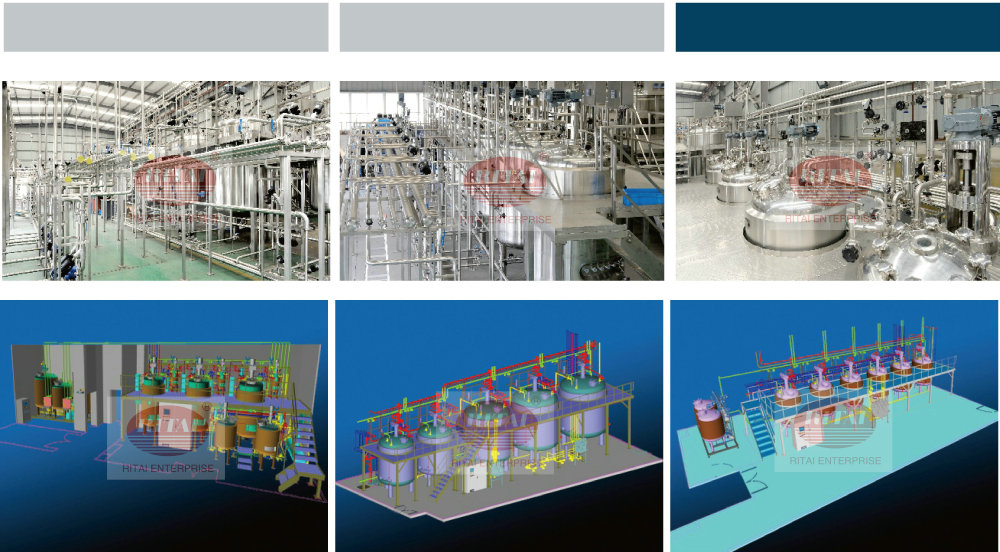

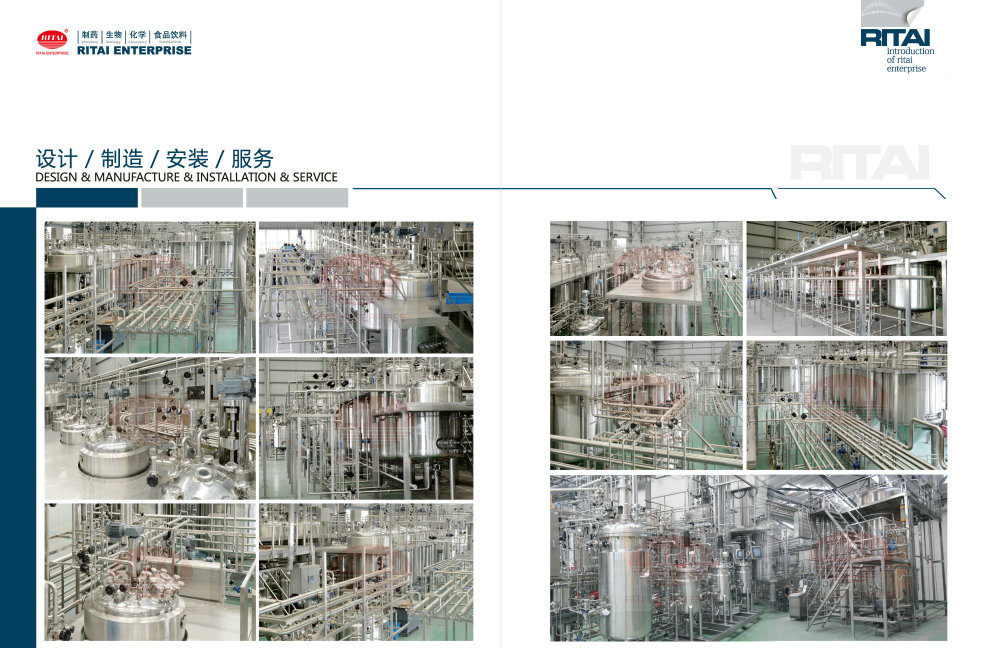

We offer design, customization, manufacture, and maintenance services, etc.
Shanghai Ritai is qualified to manufacture and design pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
