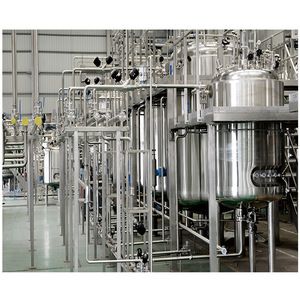

Name: Industrial Microbiology Fermentation/Biological Fermenters with Seed Tank
Technical Parameters of Industrial Microbiology Fermentation/Biological Fermenters with Seed Tank :
Capcity: 5L-20000L
Pressure: 0.1Mpa-0.6Mpa
Rotate speed: 50-200/400rpm for all scale
Material: Contacting part is made by SS316L, other parts are made by SS304
Agitator type: Mechanical agitator
Surface finish:
Inside surface Ra0.28μm - 0.4μm by mechanical polishi or electro polish
Outside surface Ra0.6μm - 0.8μm by satin finish
Features: Fermentor is simens' PLC control system, and this system adopts simens'human-machine interface(HMI) and PID control, which can measure and automatically control parameters of temperature, rpm, pH, DO, feed, foam and etc. It possesses functions of digital setting, quick validation, data display, data storage, data print, password management and so on. It has commucation connection which can communicate with computer.

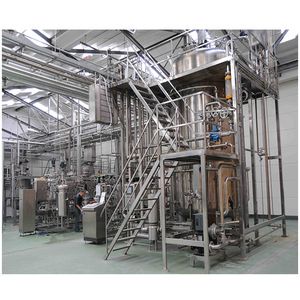

Struction: From lab scale to pilot scale, floor stand ,two different fermentors vessel with one control system
Range:
This series of products suit for various kinds of microbiology fermentation test, such as bacteria culture, vaccine, fungi, enzyme, environment, agriculture, pharmacy, and microbiology, etc. Equipment has the following features: Excellent stability and convenient operation. Users can choose appropriate configuration according to the fermentation process.
| Control parts for fermentor | ||
| No. | Parameter name | Technical indicator |
| 1 | PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision ± 0.01 pH, control precision ± 0.01 pH; 4. It has auto alarm function. 5.pH sensor and signal transmission line. . |
| 2 | DO control | 1.On-line check and measure, DO and rotate speed gang control; 2.Range 0-100% or 0-200%, precision ± 1%; 3. It has auto alarm function; 4. DO sensor and signal transmission line.. |
| 3 | Foam control | 1.Automatically control and automatically alarm; 2.Eletrode check, peristaltic pump automatically add defoamer. |
| 4 | Feed control | 1.Maunally control; 2.Automatically add according to fixed max. height . |
| 5 | Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150 degree, control range 15-45 degree,control precision ± 0.5degree 4.Pt 100 Ω temp. Sensor |
| 6 | Rotate speed | 1.Fully automatic control settings, With automatic alarm function 2.Speed range, please checking the drawing, precision ± 1% 3.It is mechanical agitator, turbine type, vertical impeller 4.Speed:50-200/400rpm |
| 7 | Sterilization | Manually control Automatic control(optional) |
| 8 | Pressure | Checking by pressure gauge, manually control, range 0-0.4Mpa. automatic control (optional) |
| 9 | Air flow | Display on the rotormeter. automatic adjust(optional) |
| Remarks: the table is only for reference, if client have difference requirement on the control points, we can also make according to client requirement. |
We offer design, customization, manufacture, installation, and maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
