Ritai is a professional manufacturer for all kinds of stainless steel tanks, such as mixing tank, reactor, storage tank, fermentor, bioreactor and CIP.
Ritai is one of the biggest manufacturers of stainless steel tanks in China.

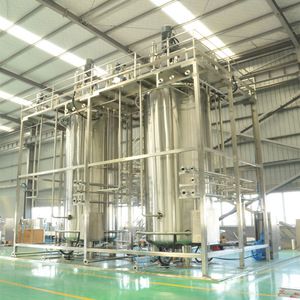

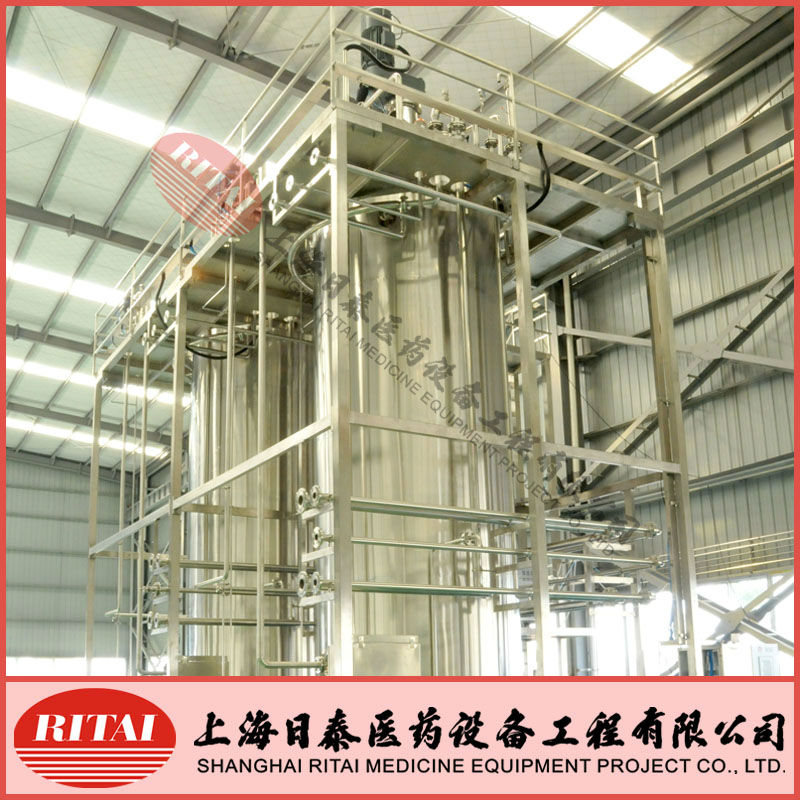

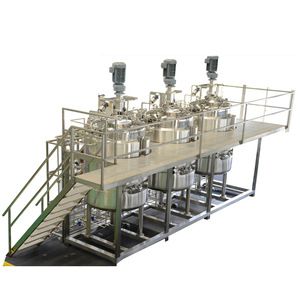

Name: Stainless Steel Tank (Skid Module)
Application:
It is used for mixing all kinds of liquid products in pharmacy, food, chemistry, and biology field.
we have different kinds of agitators
bottom magnetic agitator with propeller impeller, speed from 50-400rpm or 50·800rpm. This kind of agitator is mixing thin
viscosity, such as eye drop, injection, CIP liquid, water, etc...
top mechancial agitator with propeller impeller, speed at fix 71rpm or adjustable 20-200rpm or special requirement. This kind
of agitator is mixing syrup, injection, blood, oral liquid, culture media, etc....
top mechanical agitator with anchor or frame impeller, speed is from 10-70rpm. it is mixing higher viscosity , such as sediment
or viscosity oral liquid, etc....
top emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....
Bottom emusification homogenizer, speed max 2900rpm for small vessel, 1480rpm for bigger tank. this kind of agitator is mixing most high viscosity , such as suspension, oil, fat emulsification , etc....
one tank can install one agitator, if client need, one tank can install two agitator together.
Technical description of stainless steel tank (skid module)
Specification: 10L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel or multilayers vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components can be equipped as requests:
standard components: manhole or handhole, sight glass, cleaning ball
optional components:
vent filter with Pall cartridge or china brand cartridge
temp. gauge, display on the gauge directly on the vessel
temp sensor pt100, digital display on the control cabinet by instrument
temp sensor with control for heating and cooling
level gauge with digital display on the control cabinet by instrument
load cell
valves
Manufacture standard for pressure vessels: ASME with U stamp, PED 97/23/EC with CE mark, GB150-2011
Working volume | Inner diameter | Outer diameter | Vessel height | Total volume |
30L | 400mm | 500mm | 400mm | 44L |
50L | 400mm | 500mm | 600mm | 69L |
100L | 500mm | 600mm | 650mm | 130L |
200L | 600mm | 700mm | 1000mm | 250L |
300L | 700mm | 800mm | 1250mm | 370L |
500L | 900mm | 1050mm | 1150mm | 650L |
1000L | 1100mm | 1250mm | 1480mm | 1260L |
1500L | 1200mm | 1350nmm | 1700mm | 1780L |
2000L | 1300mm | 1500mm | 1980mm | 2200L |
3000L | 1500mm | 1700mm | 2150mm | 3400L |
4000L | 1600mm | 1750mm | 2630mm | 4000L |
8000L | 1900mm | 2100mm | 3200mm | 8300L |
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement. |
We offer design, customization, manufacture, installation, and maintenance services, etc.
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
Frequently Asked Questions:
1. Where are your production locations?
1.1 No.39, Xinjin Road, Qingpu District, Shanghai, 201712, China
1.2. No.3766, Qingzhao Road, Qingpu District, Shanghai, 201712, China
2. List of your manufacturing machinery:
Cutting machine, rolling machine, polishing machine, welding machine, detecting machine, etc.
3. How is the machinery servied and maintained?
By professional engineer
4. Is measuring and inspection equipment continuously calibrated?
Yes
