Product Description

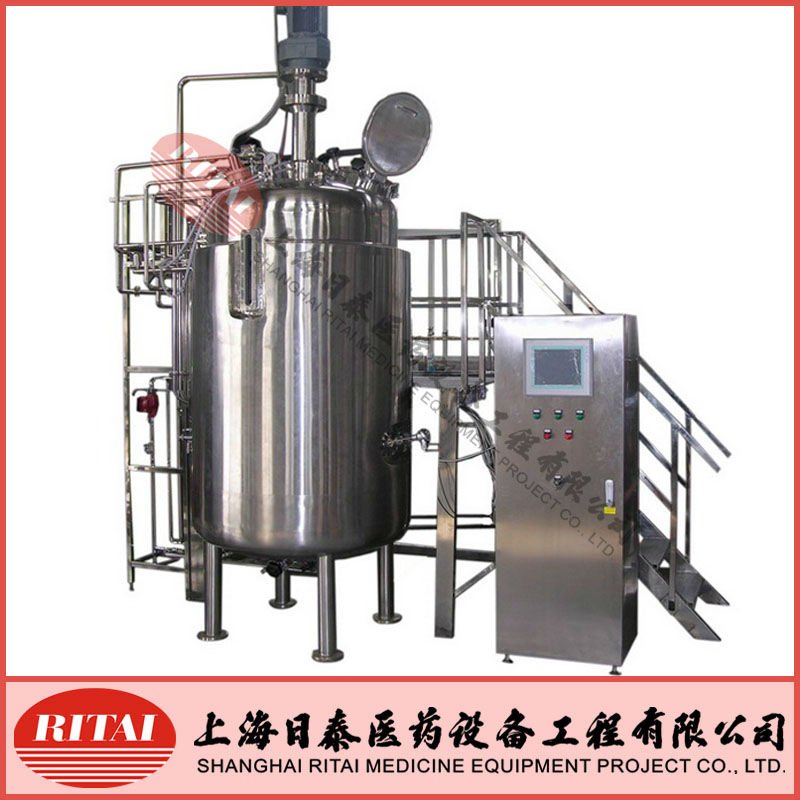

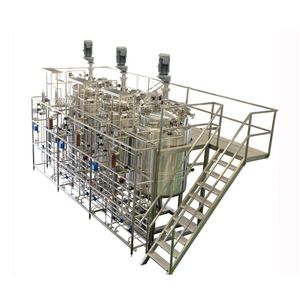

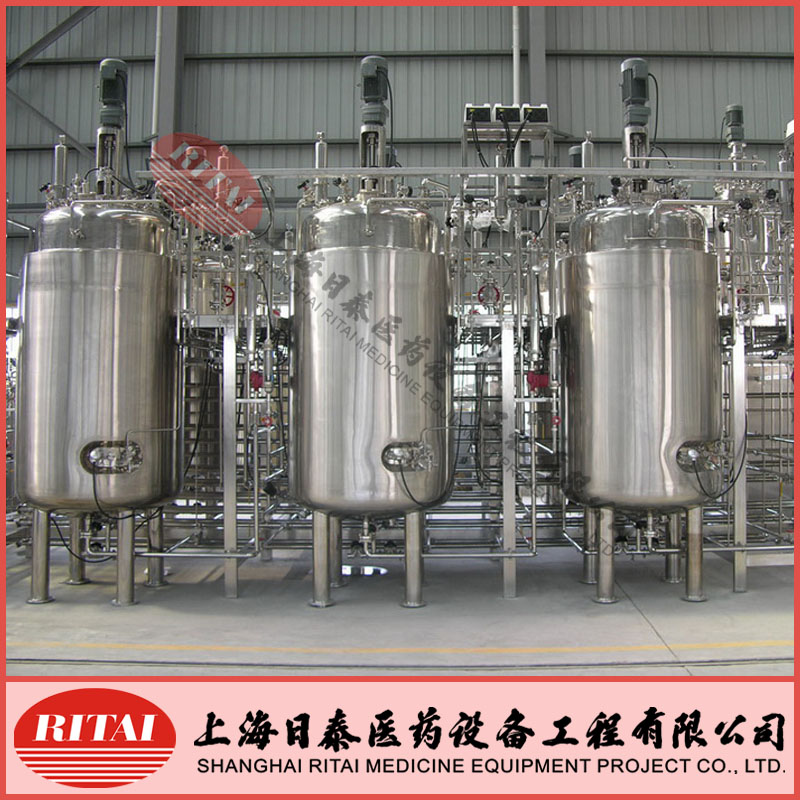

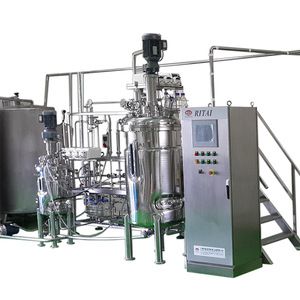

Name: 1000L~20000L Industrial Fermenter / Fermentor
Model: RTY-MS
Features:
1.SIP fermentors can be sterilized easily by sterilizable -in -place.
2.Large 10.4" colourful simens touchscreen simplifier enteringsetpoints and provides displays of parameter.
3.advanced software to make it easy for operation and understanding.
4.Stainless steel vessel, piping and control cabinet has long life.
5.Excellent stability and convenient to operate.
6.Modular design provide system flexibility.
7.Small footprint to minimize space requirement
2.Large 10.4" colourful simens touchscreen simplifier enteringsetpoints and provides displays of parameter.
3.advanced software to make it easy for operation and understanding.
4.Stainless steel vessel, piping and control cabinet has long life.
5.Excellent stability and convenient to operate.
6.Modular design provide system flexibility.
7.Small footprint to minimize space requirement
8.Opening piping frame with plenty of space between valves and piping,make it easy for operation and maintenance.
Application:
Ritai offers SIP fermentors for microbial culture applications. It is an ideal system for the production of bacterium,
yeast, enzyme, and fungi, etc in aerobic and anaerobic cultures.This series of products suits for various kinds of
microbiology lab, pilot and industrial scale fermentation. Users can choose appropriate models according to their
detailed requirements.

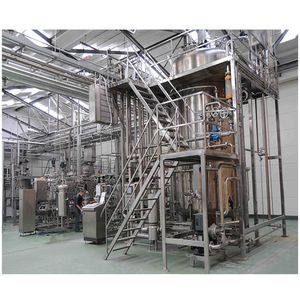

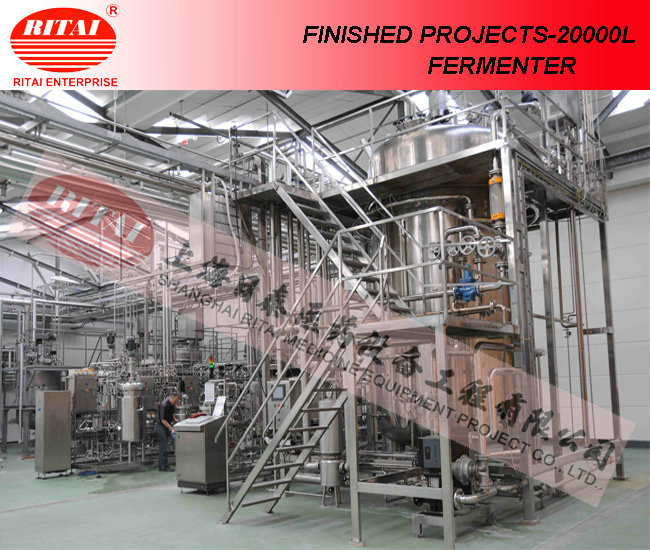

Industrial scale: 1000L,1500L, 2500L, 3000L, 4000L, 5000L, 6000L, 7000L, 8000L, 9000L,10000L…20000L
Special products can be made according to special requirements.
Description:
| Model | RTY-MS |
| Working volume | 1000L~20000L |
| Filling volume | 65-80% |
| Material | Wetted parts are SS316L, and others is SS304. |
| Surface finish | inside surface is 0.28-0.4μm by mechanical polishing, ( passivation or electro-polish are optional ) outside surface is 0.4-0.8μm by satin finish. |
| Pressure | Working pressure inside vessel:0.2mpa Design pressure inside vessel: 0.25mpa Working pressure inside jacket:0.3mpa Design pressure inside jacket: 0.35mpa Pressure can be also designed according to client’s detail requirement. |
| Agitation | 1.Fermentor use SEW decelerator 2.top mechanical agitator with two layer six blade impeller, one layer defoamer and four baffles. 3.mechanical seal (single or double mechanical seal) 4.speed range: 50-400rpm (it depends on the size of the vessel) |
| Equips of vessel | 1.using alcohol flame inoculation 2.sterile sampling vale and bottom valve 3.PH, DO, temp. sensor on lower side, side glass, top with foam and level probe, and 12v sight glass with lamp, etc. |
| Construction | Floor-type One fermentor vessel with one control system (Siemens PLC and HMI) |
| Operating panel | Chinese and English version |
| Main components and controls of system | |
| PH | 1.On-line check and measure, and digitization fully automatic control; 2.PH, acid and base gang control. Peristaltic pump automatically adjust to feed acid and base; 3.Control range 2-12pH, measure precision±0.01 pH, control precision±0.1 pH; 4.It has auto alarm function. 5.pH sensor and signal transmission line, Mettler toledo |
| DO | 1.On-line check and measure, cascade with rpm; digital display. 2.Range 0-100% or 0-200%, precision ±1%; 3.It has auto alarm function; 4.DO sensor and signal transmission line, Mettler toledo |
| Foam control | 1.Automatically control and automatically alarm; 2. Stainless steel electrode check, peristaltic pump automatically add defoamer. |
| Feed control | 1. Automatically control and automatically alarm; 2.Stainless steel electrode check, peristaltic pump automatically feeding |
| Temp. control | 1.PID fully digitization signal processing, digitization control settings 2.Circulating water automatically control temperature 3.Measure range 0-150°C, control range 15-45°C,control precision±0.2°C 4.Pt 100Ωtemp. Sensor 5.System with electrical heater to control the temp inside vessel 6.Water pump circulation 7.Solenoid valve to control |
| Rotate speed | 1. Automatically control , with auto alarm function 2. Siemens frequency converter to adjust the speed. |
| Pressure | 1 Manually adjusting with pressure gauge and manual valve (standard system) 2. Automatically adjusting with pressure transmitter and PID valve and pneumatic valves (optional) |
| Air flow | 1.Manually adjusting with rotor meter and manual valve (standard system) 2.Automatically adjusting with mass-flow meter and pneumatic valves (optional) 3.Air in filter , tail gas filter , with PALL cartridge, precision 0.2μm |
| Sterilization | 1.it can be SIP by connecting with steam 2.Manually control with manual valve (standard one) 3.Automatic control with pneumatic valves (optional) |
| Control | Siemens PLC, and Siemens 10.4” LCD touch screen(HMI) and RITAI program |
| PC | 1.PC with Kingview software for recording function (optional) 2.PC with Siemens remote control and Kingview recording function (optional) 3.printer (optional) |

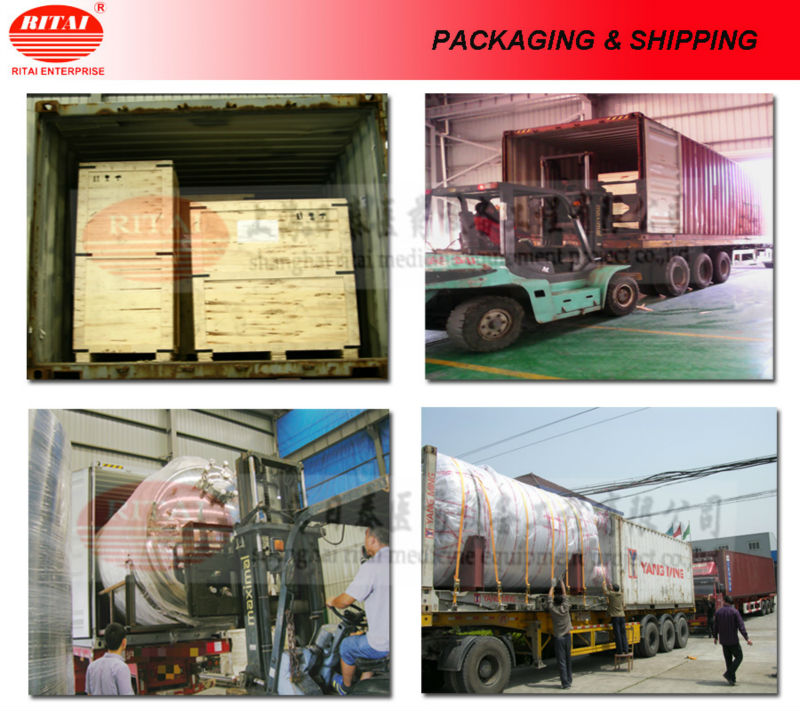

Packaging & Shipping
Shipping: by sea or by air
Our Services

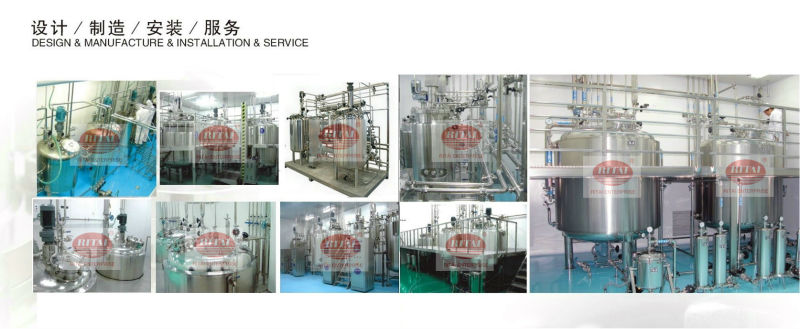

We offer design, customization, manufacture, and maintenance services, etc.
Company Information
Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.
Shanghai Ritai is qualified to design and manufacture pressure vessels with the cerfiticates of ASME, PED 97/23/EC, NB, and ISO 9001:2008.
FAQ
Frequently Asked Questions:

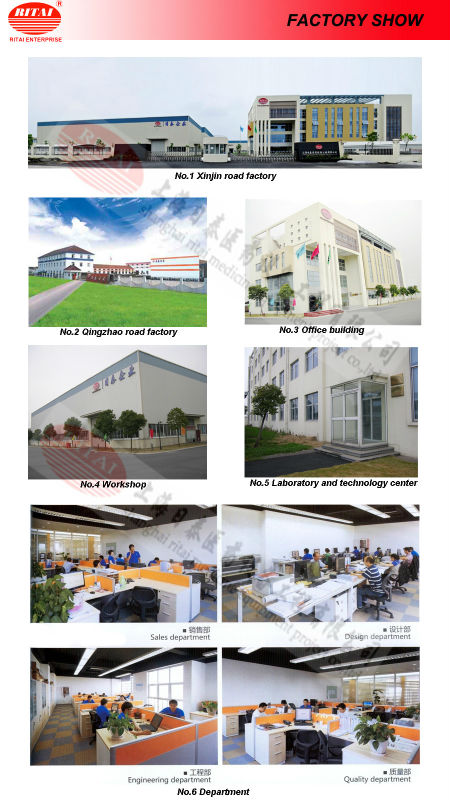

1. Where are your production locations?
1.1 No.39, Xinjin Road, Qingpu District, Shanghai, 201712, China
1.2. No.3766,Qingzhao Road,Qingpu District, Shanghai,201712,China
2. List of your manufacturing machinery:
Cutting machine, rolling machine, polishing machine, welding machine, detecting machine, etc.
3. How is the machinery servied and maintained?
By professional engineer
4. Is measuring and inspection equipment continuously calibrated?
Yes
