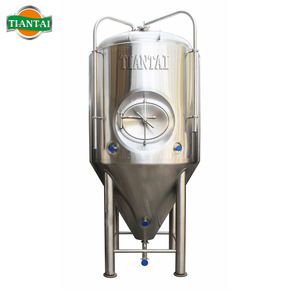

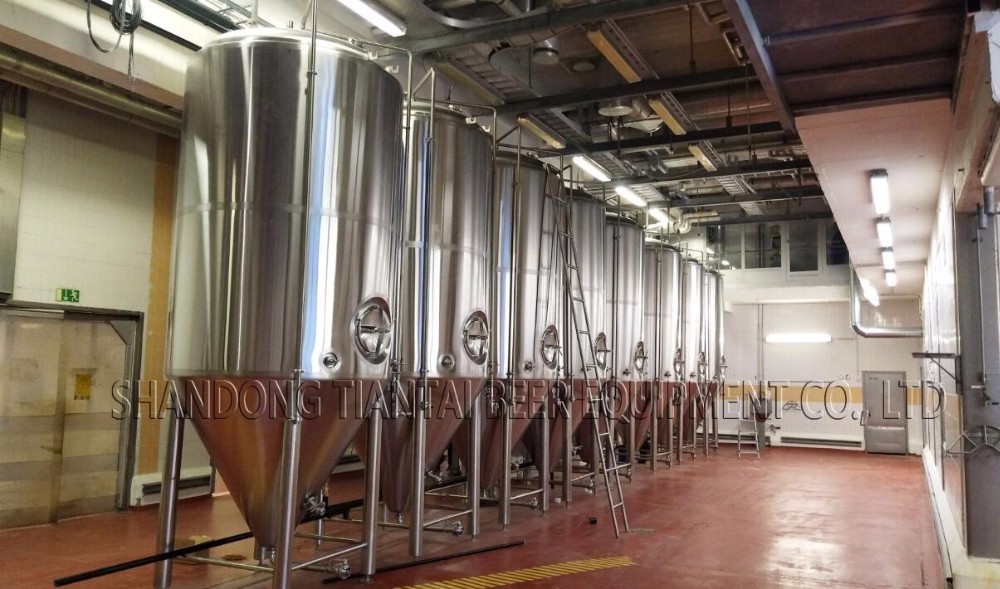

Stainless steel fermentation tank(beer fermenter) are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel), primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is the process during which the yeast transforms the wort into beer. Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.
Tiantai 1000l stainless steel fermentation tanks(fermenter) can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as overpressure and under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc.
The design of fermentation tank is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.
| Specification of 1000L fermenter | |
| Function | Wort fermentation and maturation |
| Capacity | 1000L workable space and 25%(Minimum) head space |
| Dimension | D1210mm x H2550mm |
| Shape | Dished head and 60 degree cone bottom |
| Exterion Shell | SUS304 full welded; TH=3mm |
| Insulation | High density Polyurethane foam; TH=80mm |

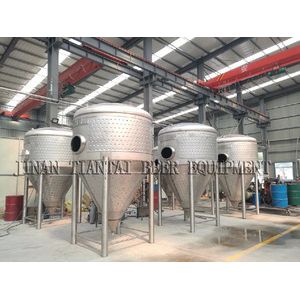

| Glycol Jacket | Dimpled plate on cone and side |
| Safty Valve(Pressure) | Meischanical safe valve PVRV 2 bar on CIP arm |
| Sample Valve | Full sanitary metallic sealed sampling valve |
| Leg | 4pcs SUS304 heavy duty legs with leveling pad and legs support |
| Optional configuration | Carbonation port; Level tube; Bung valve |
| Fermenter Cooling Process | |
| 1.Glycol jacket. | Equipped around the interior shell of the fermenter. |
| 2.Themowell. | Showing the temperature inside the fermenter tank |
| 3.Solenoid valve. | Euipped on the glycol piping |
| 4.Controlling system | Master controller or separated fermenting controller |
Detailed cooling process
A.Please set a suitable temperature on the control panel according to the beer you will brew.
B.When the temperature inside the tank is higher than the temperature you set, the control panel will convey the signal to solenoid valve.
C.The solenoid valve will be opened automatically.
D. The glycol water will flow into the glycol jacket to cool down the temperature.
E. When the temperature has been cooled and is lower than the temperature you set, the control panel will convey the signal to solenoid valve. Then the valve will be closed automatically.

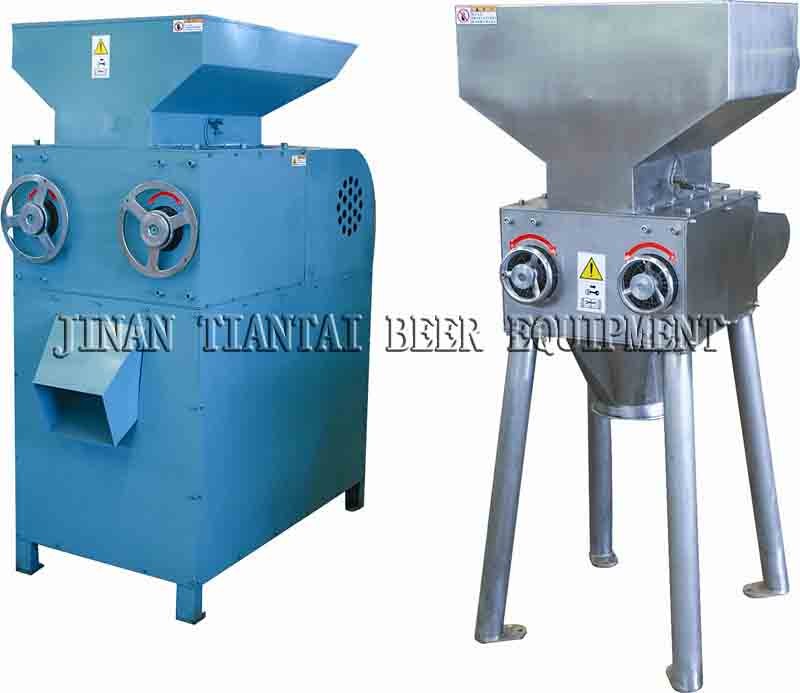

Grain miller
Function: Grain crushing
Output: 300~500kg/hr
Crushing Particle Size: Adjustable
Cover and frame carbon steel
(stainless steel for optional)

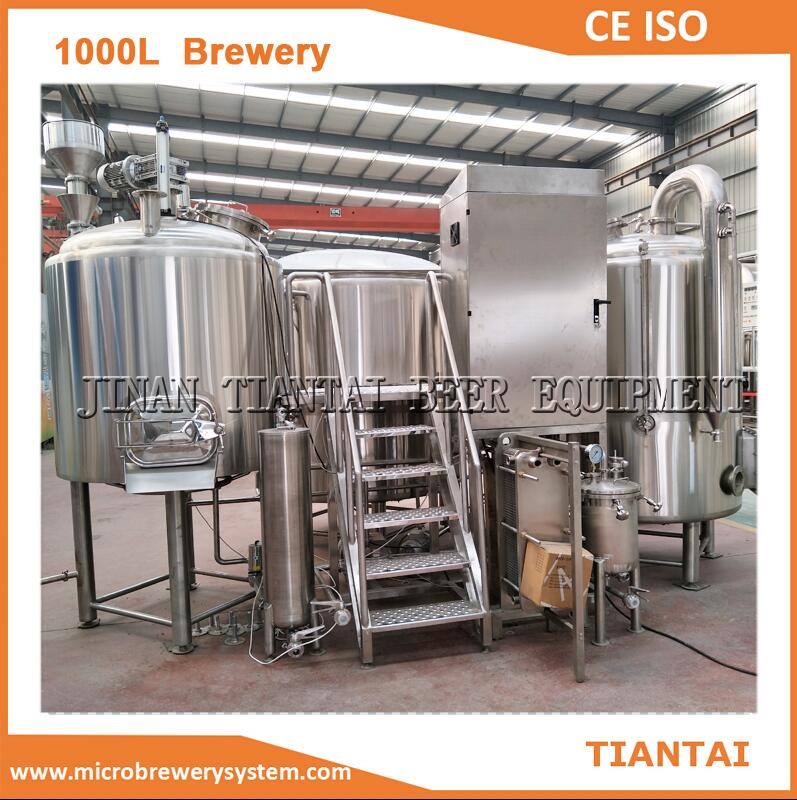

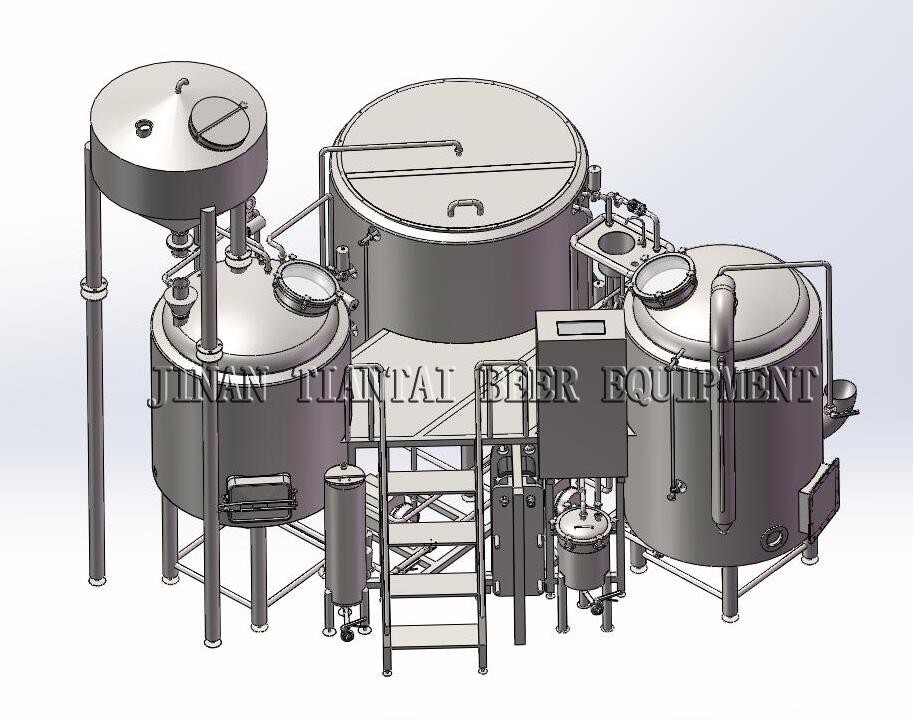

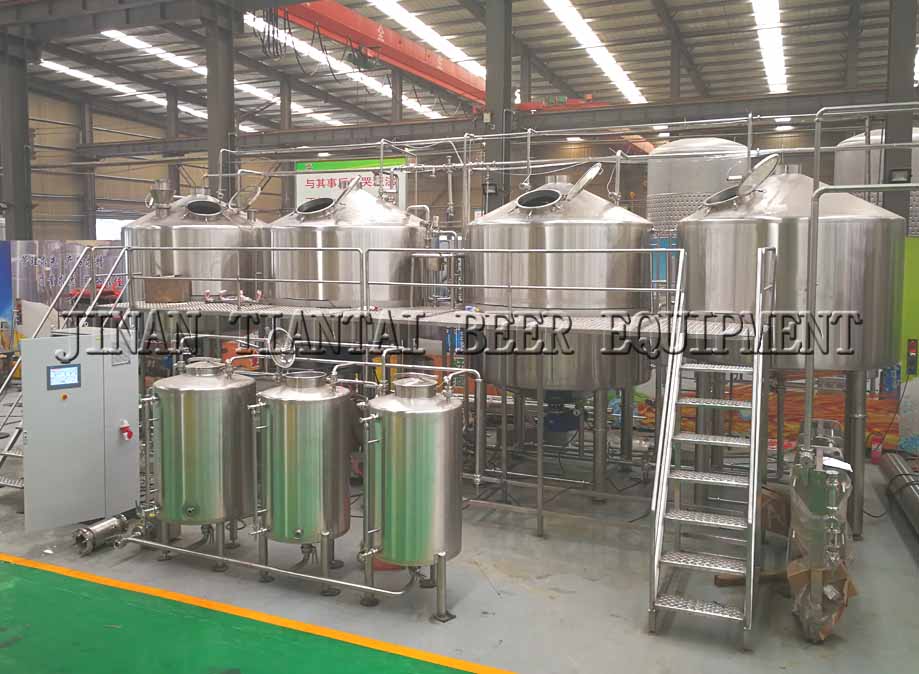

Capacity: 1000L
Structure: Two vessel
Mash/Lauter tun+kettle/whirlpool tun+hot liquor tun
Hesting: Steam heating
Customized: Yes.

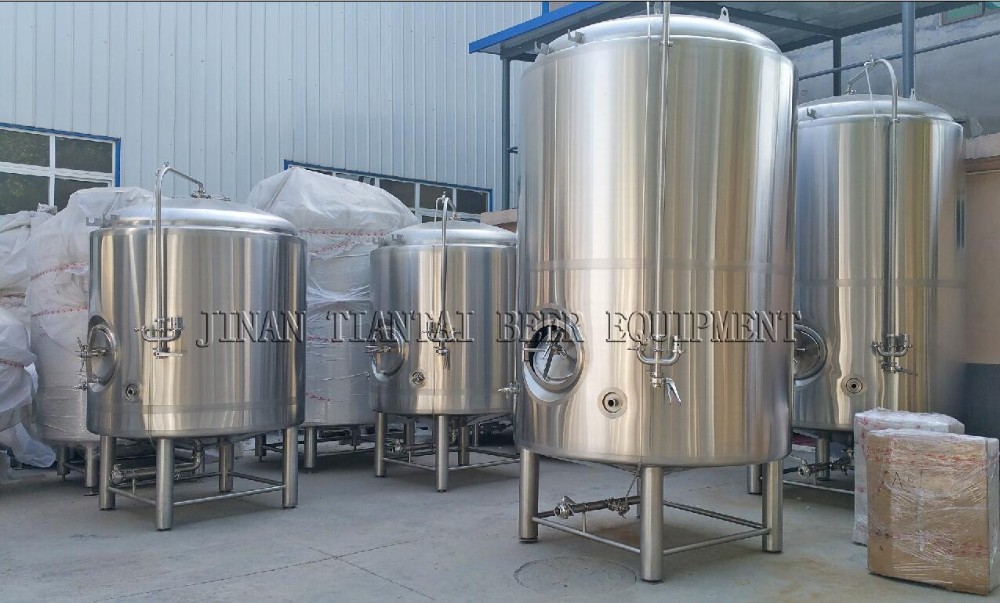

Bright Beer Tank
Capacity: 1000L with 20% headspace
Function:Maturation or serving

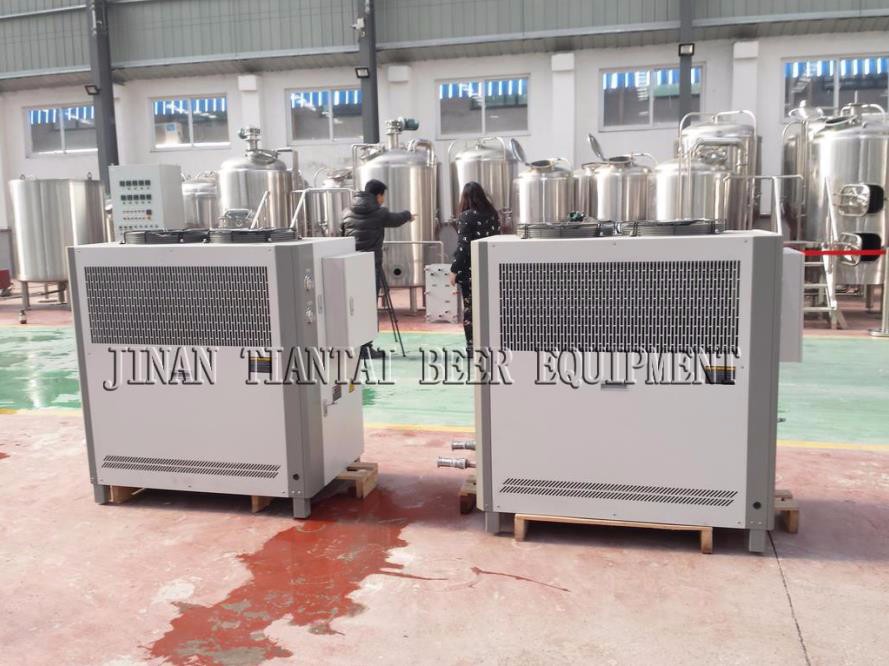

Cooling system
Function: Cooling wort and beer
Parts: Glycol water tun+chiller+pump
Chiller quantity: 2sets

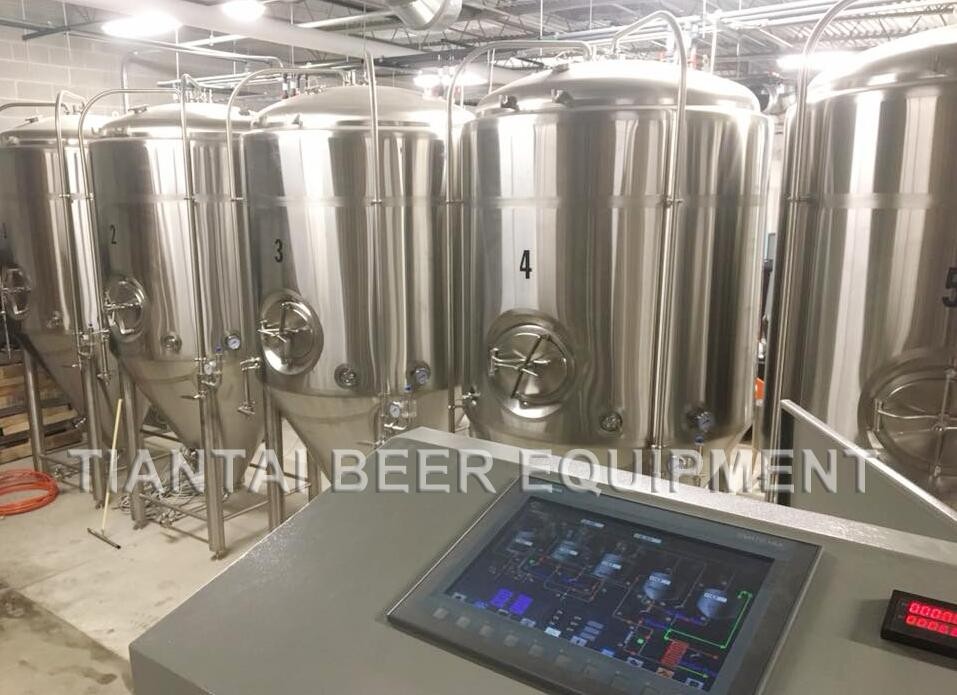

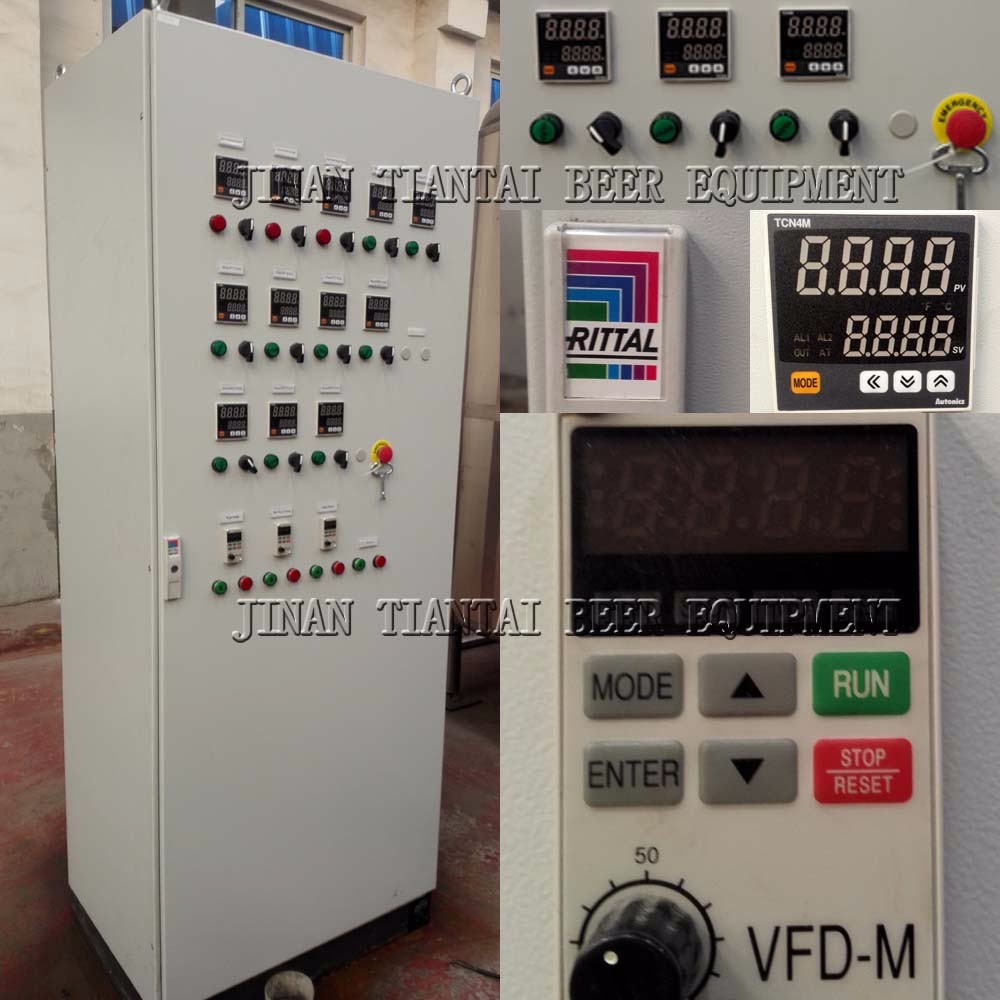

Controller system
Function: Control whole brewing and fermenting process.
Style: Compact controller
or separated brewhouse controller and fermenting controller

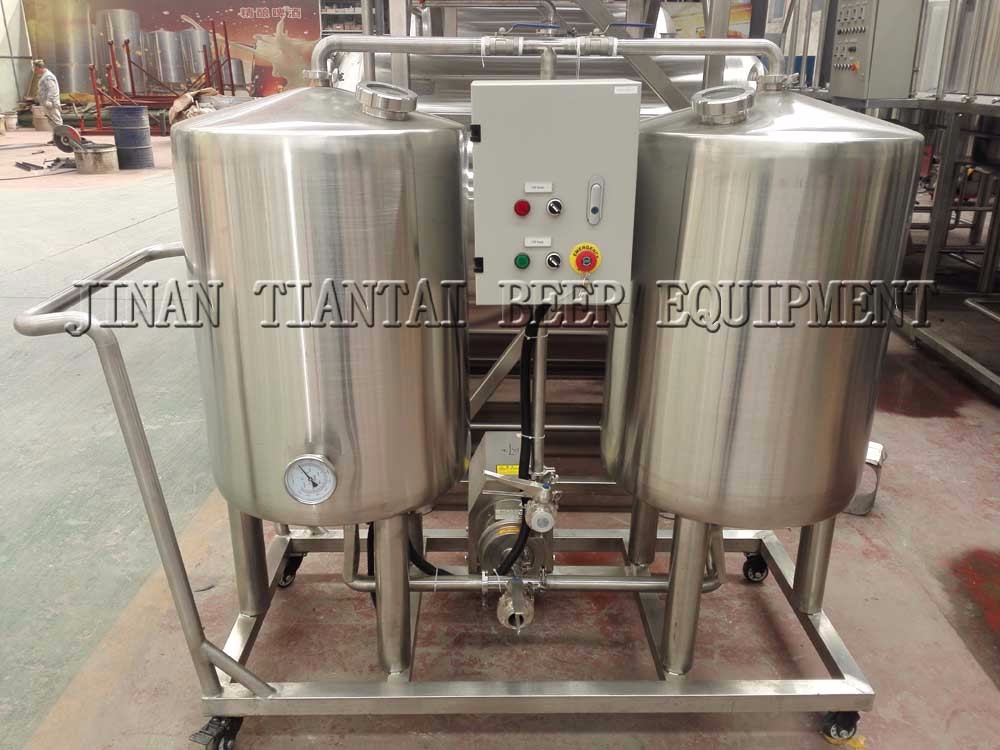

CIP
Function: Cleaning.
Capacity: 100L.
Parts: caustic tank+sterilization tank
Independent controller: Optional
Our 1000l beer fermenter has passed the CE certificate for low pressure, machine as well as the pressure equipment.
And our equipment also pass the ISO to ensure the quality
We will provide the container loading drawing to confirm the container quantity needed
and consult the freight.

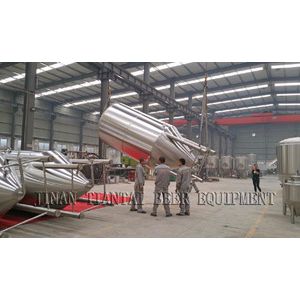

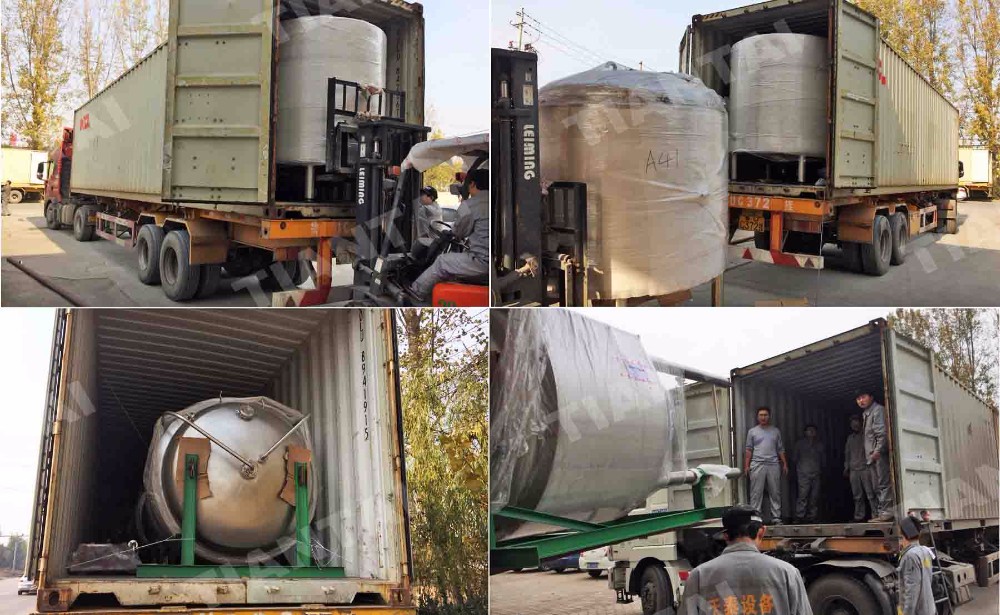

The delivery pictures of every equipment will be took to make sure everything will be shipped to you.
| Packaging Details: | Wooden/Veneer case for LCL;Plastic film wrapped and iron frame fixing for FCL |
| Delivery Detail: | 55-85 working days after confirming the down payment |
| Services | Free |
| Professional consultation service in any time | √ |
| The special customization for brewery based on your idea | √ |
| Technical diagram including tank structure drawing will be provided | √ |

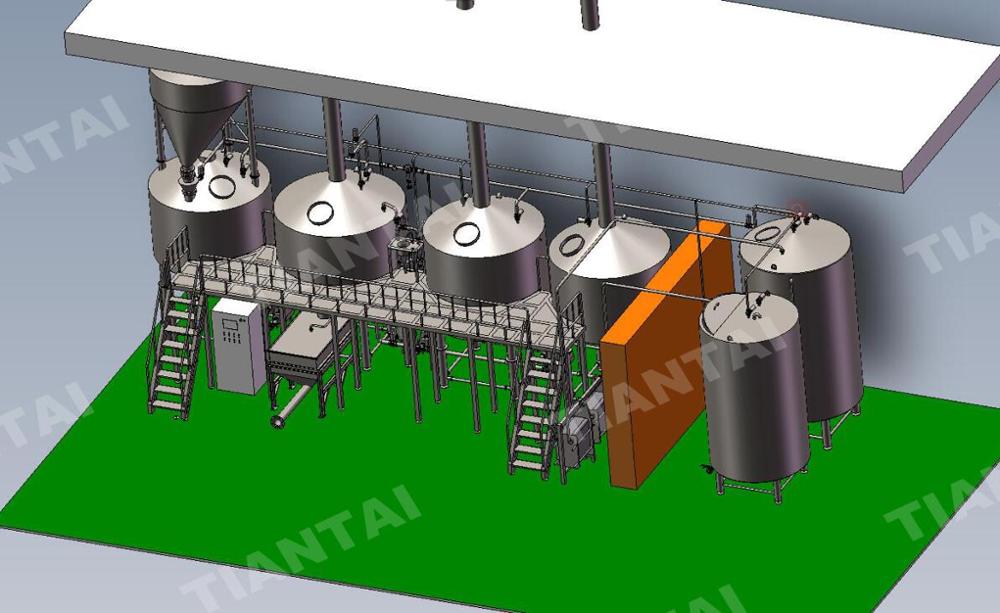

| Visual 3D drawing for brewhouse and fermenter | √ |
| Brewery installation design | √ |
| Help to source auxiliary equipment | √ |
