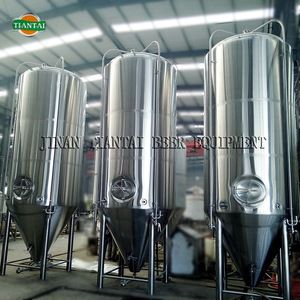

10000L cooling jacket conical fermenter

primary fermentor or unitanks as they are used both for fermenting and lagering.

Technical Feature

  • Fermenting Equipment, Fermenting Equipment, milling, brewing, fermentation, filtration, fill
  • New
  • Shandong, China (Mainland)
  • Tiantai/TBE or OEM
  • 10000L
  • Alcohol
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$120~4

PRIMARY PARAMETERS

Processing
Fermenting Equipment, Fermenting Equipment, milling, brewing, fermentation, filtration, fill
Condition
New
Place of Origin
Shandong, China (Mainland)
Brand Name
Tiantai/TBE or OEM
Model Number
10000L
Processing Types
Alcohol
Voltage
3phase/380(220,400,415,440)v/50 (60)Hz
Power(W)
15-70Kw depends on size
Dimension(L*W*H)
depends on capacity
Weight
Various in different models
Certification
CE ISO
Warranty
3 years from commissioning
After-sales Service Provided
Engineers available to service machinery overseas
Appearance
Stainless steel or Red Copper clading
Thickness of Tanks
3mm for interior shell/2mm for exterior shell
Color Available
Mirror SUS, Luxury red copper
Heating
Electric/Steam/Direct fired
Heat Insulation
Polyurethane or Rockwool with Thickness=80mm
Inner Polishing Precision
0.4 Micrometer
Volume Design
Properly according to the capacity request
Controlling System
Temperature, Pressure auto control
Application
conical fermenter

DETAIL DESCRIPTION

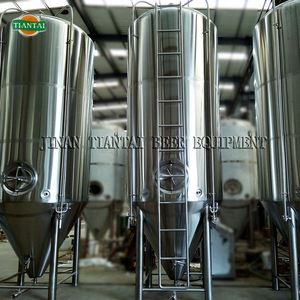

10000L cooling jacket conical fermenter

Product Description

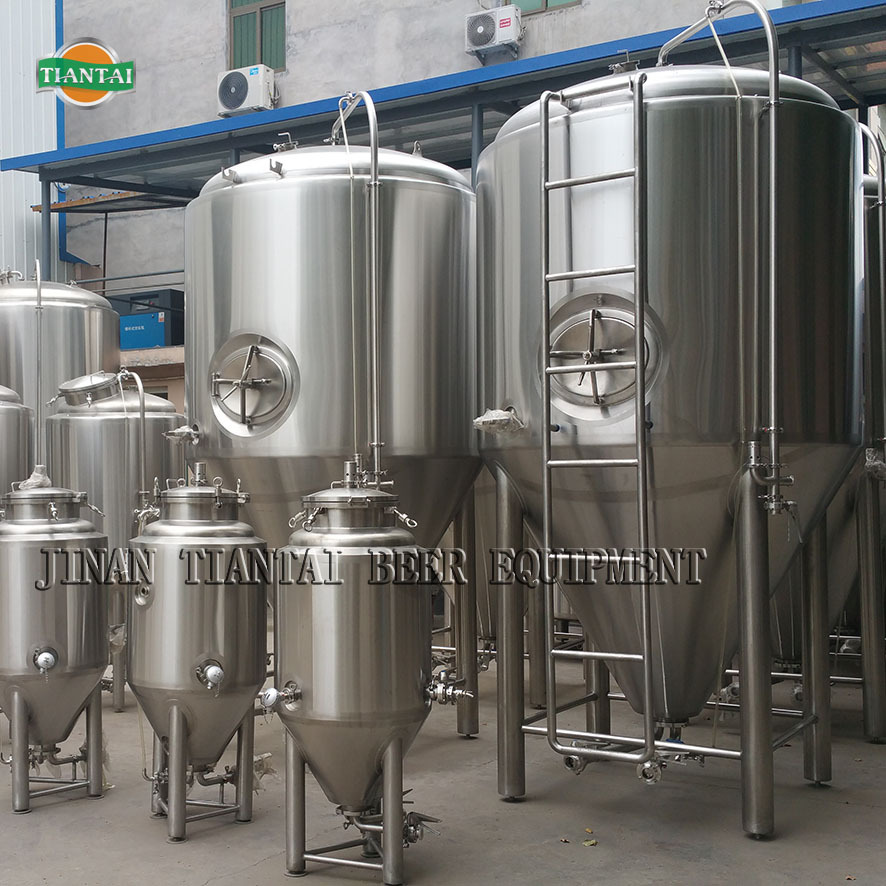

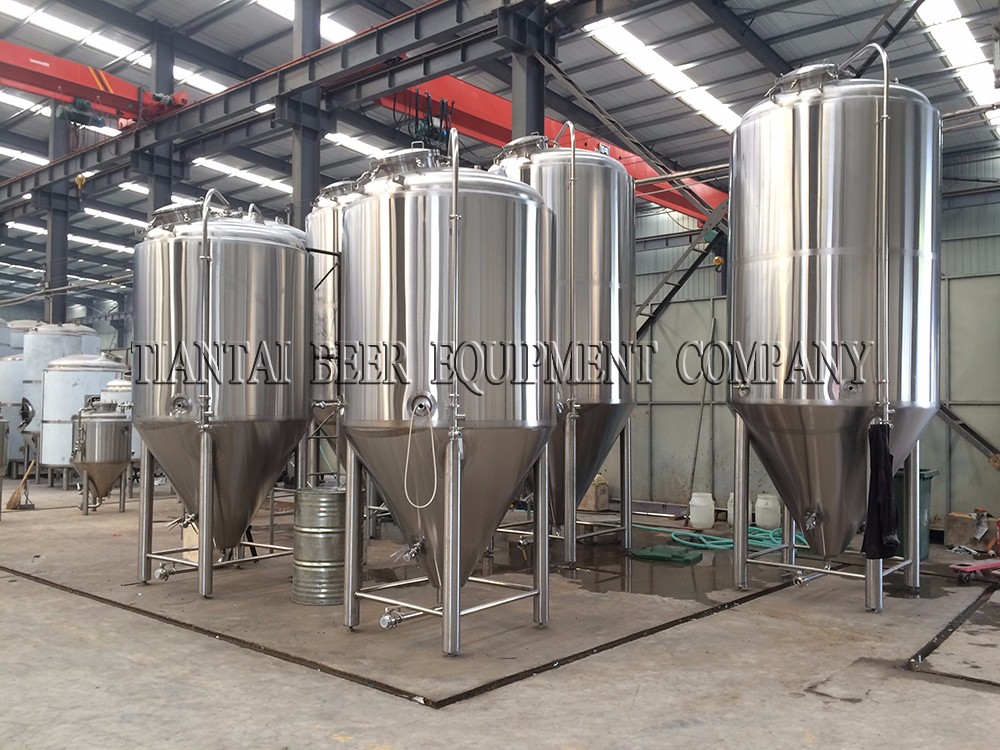

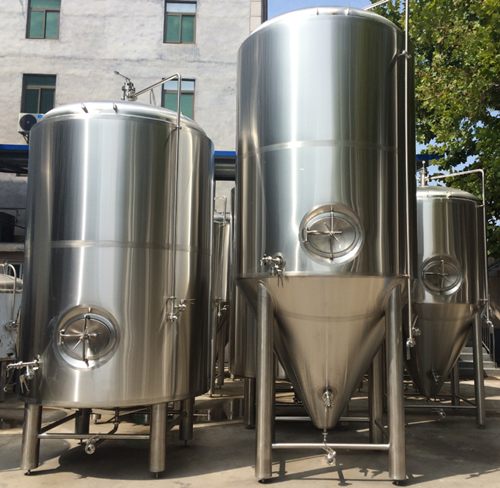

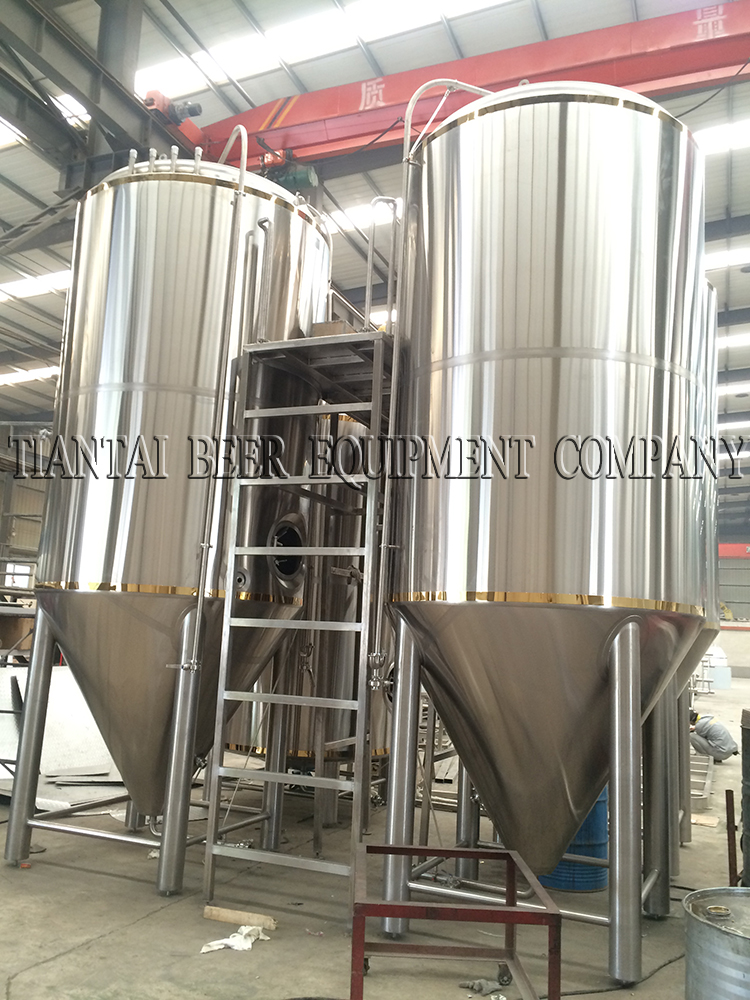

1. Introduction of conical fermenter

Fermenters are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel),

primary fermentor or unitanks as they are used both for fermenting and lagering.

Fermenting is the process during which the yeast transforms the wort into beer.

Lagerings takes place after fermenting and is the time given to the beer to stabilize and age after fermenting.

TBE stainless steel fermenters can be individually temperature controlled through glycol jackets and

are mostly equipped with accessories such as overpressure and under pressure valve,

CIP cleaning jet, sanitary sample valve, manhole,etc

The design of TBE fermenters is based on our vast beer knowledge and especially the conical fermenter

bottom and the fact that we combine fermentation and maturation in the same vessel is very important.

When calculating your fermenting and lagering capacity and configuration sufficient time for fermenting

and lagering to produce quality beers must be taken into consideration.





2. Specification of  fermenter

Fermentation Tank Series

Volume in US Gallon

Diameter

Height

1HL Fermentation Tank

26US Gallon

620mm

1600mm

2HL Fermentation Tank

53US Gallon

820mm

1800mm

3HL Fermentation Tank

79US Gallon

960mm

1900mm

4HL Fermentation Tank

106US Gallon

960mm

2100mm

5HL Fermentation Tank

132US Gallon

1010mm

2100mm

6HL Fermentation Tank

159US Gallon

1060mm

2150mm

8HL Fermentation Tank

211US Gallon

1060mm

2550mm

10HL Fermentation Tank

264US Gallon

1210mm

2550mm

12HL Fermentation Tank

317US Gallon

1360mm

2550mm

15HL Fermentation Tank

396US Gallon

1560mm

2620mm

20HL Fermentation Tank

528US Gallon

1560mm

3100mm

25HL Fermentation Tank

660US Gallon

1560mm

3450mm

30HL Fermentation Tank

793US Gallon

1760mm

3500mm

35HL Fermentation Tank

925US Gallon

1760mm

3750mm

40HL Fermentation Tank

1057US Gallon

1760mm

4050mm

50HL Fermentation Tank

1321US Gallon

1760mm

4540mm

60HL Fermentation Tank

1585US Gallon

1960mm

4700mm

70HL Fermentation Tank

1849US Gallon

1960mm

5200mm

100HL Fermentation Tank

2642US Gallon

2250mm

5700mm

150HL Fermentation Tank

3963US Gallon

2250mm

7550mm



3. Configuration of 10000L conical fermenter

Capacity: 10000L(+25% Headspace minimum)

Others:100-20000L

Material:SUS304

Pressure :Atmospheric

Accessories: butterfly valve

Interior Finish: Overall polishing to 0.4~0.6 μm without dead corner

Inltet and outlet

Four layer

Thickness:2MM for exterior shell, 80mm rock wood for insulations ,steam jacket , 3mm for interior jacket

Mirror polished

Dished head

60 degree cone conical bottom

Tri clamp discharge arm with butterfly valve

CIP arm with 360° coverage CIP spraying ball

4pcs completely SUS304 heavy duty legs with leveling pad and legs support



Packaging & Shipping

4.Packaging and Shipping

üWooden/Veneer case for LCL
üPlastic film wrapped and iron frame fixing for FCL
Our Services

5. Our service

ü Free consultation service before, during, and after sales.
ü Project planning and design services.
ü Free debugging instruction of equipment until everything is functional.
ü

 Management of equipments' long distance shipping from seller's factory

 to named port or station  by  buyer.

ü Training of equipment maintenance and operating personally.
ü New production techniques.
ü

 Provide 36 months complete warrantee for main parts and

 life-time maintenance service;

 The seller is responsible for the nature damage of the machinery

 in the warranty period except for man-made damage;

 All spare parts and wearing parts are attached with the machinery for free.

Certifications

6. Certification

Two CE certifications:

Tiantai have two CE certifications, one is Related to Ce Directives: 2014/68/E Pressure Equipment ,

the other one is Related to CE directives: 2006/42/EC machinery and 2014/35/EU low voltage CE Certification.

ISO certification:

Tiantai have passes ISO certificated, we operate 5S management, Seiri, Seiton, Seiso, Seiketsu, Shitsuke,

to pursue higher quality of tanks.

Manufacture license of special equipment Certification:

This special license can allow us to manufacture for some special pressure equipment.

Customers

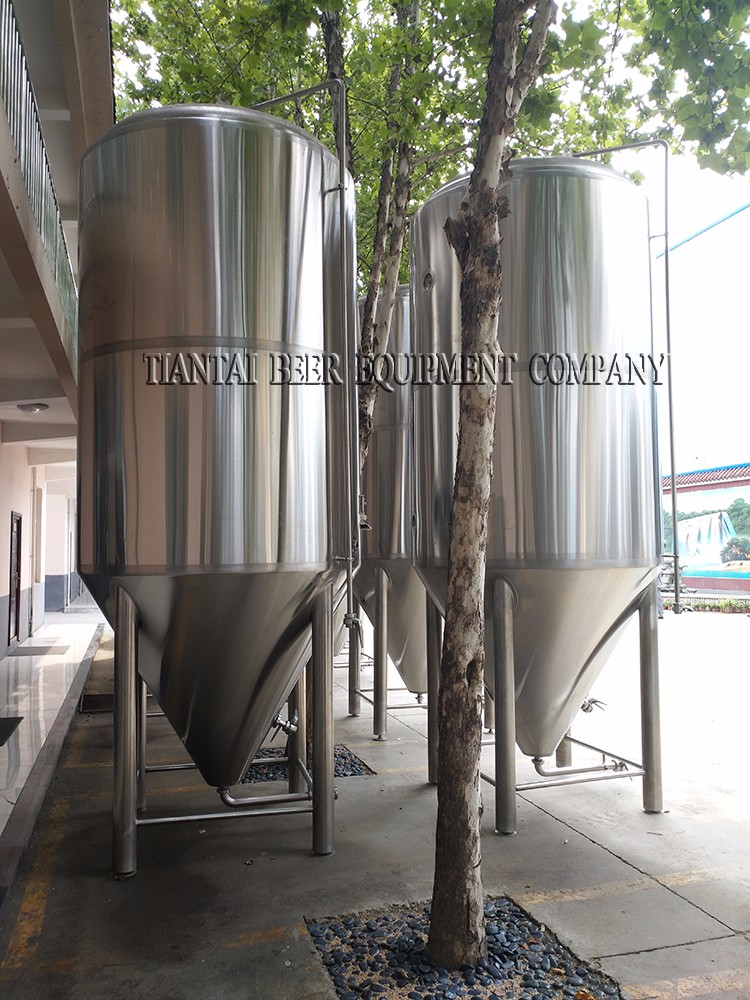

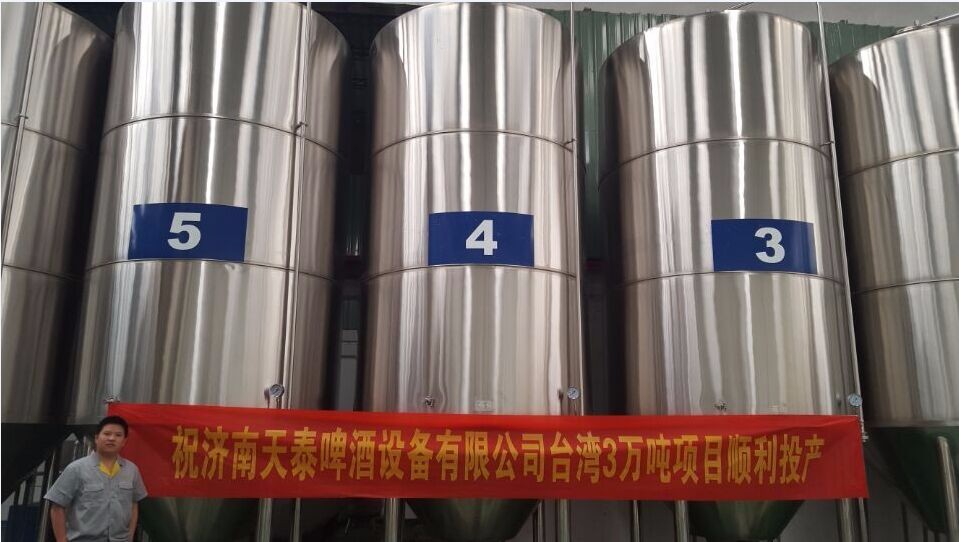

 7. Brewery cases around the world
