Fermenters are also called CCT’s (Cylindrical Conical Tanks), FV’s (Fermentation Vessel),
primary fermentor or unitanks as they are used both for fermenting and lagering.Fermenting is
the process during which the yeast transforms the wort into beer. Lagerings takes place after
fermenting and is the time given to the beer to stabilize and age after fermenting.

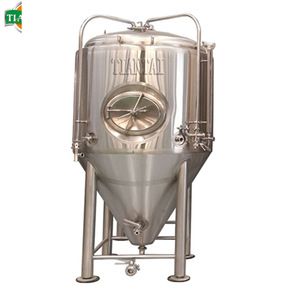

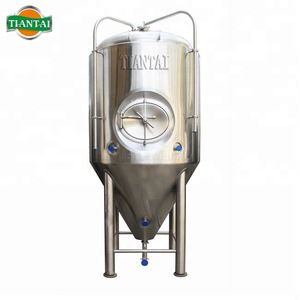

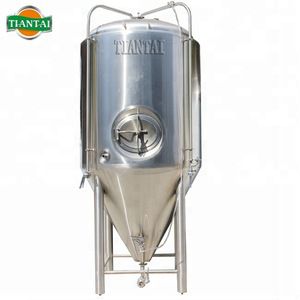

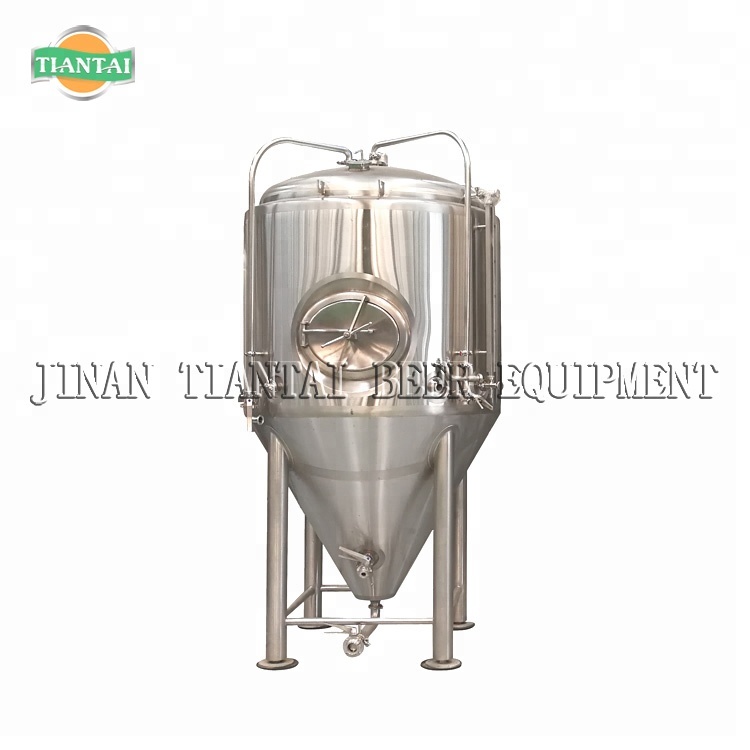

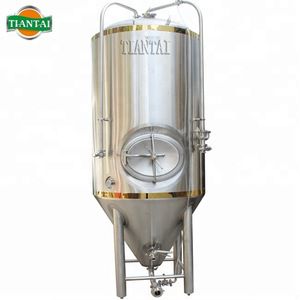

TBE stainless steel fermenters can be individually temperature controlled through glycol jackets
and are mostly equipped with accessories such as overpressure and under pressure valve,
CIP cleaning jet, sanitary sample valve, manhole,etc.The design of TBE fermenters is based on
our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine
fermentation and maturation in the same vessel is very important. When calculating your fermenting
and lagering capacity and configuration sufficient time for fermenting and lagering to produce
quality beers must be taken into consideration.
Fermentation Tank Series | Volume in US Gallon | Diameter | Height |
1HL Fermentation Tank | 26US Gallon | 620mm | 1600mm |
2HL Fermentation Tank | 53US Gallon | 820mm | 1800mm |
3HL Fermentation Tank | 79US Gallon | 960mm | 1900mm |
4HL Fermentation Tank | 106US Gallon | 960mm | 2100mm |
5HL Fermentation Tank | 132US Gallon | 1010mm | 2100mm |
6HL Fermentation Tank | 159US Gallon | 1060mm | 2150mm |
8HL Fermentation Tank | 211US Gallon | 1060mm | 2550mm |
10HL Fermentation Tank | 264US Gallon | 1210mm | 2550mm |
12HL Fermentation Tank | 317US Gallon | 1360mm | 2550mm |
15HL Fermentation Tank | 396US Gallon | 1560mm | 2620mm |
20HL Fermentation Tank | 528US Gallon | 1560mm | 3100mm |
25HL Fermentation Tank | 660US Gallon | 1560mm | 3450mm |
30HL Fermentation Tank | 793US Gallon | 1760mm | 3500mm |
35HL Fermentation Tank | 925US Gallon | 1760mm | 3750mm |
40HL Fermentation Tank | 1057US Gallon | 1760mm | 4050mm |
50HL Fermentation Tank | 1321US Gallon | 1760mm | 4540mm |
60HL Fermentation Tank | 1585US Gallon | 1960mm | 4700mm |
70HL Fermentation Tank | 1849US Gallon | 1960mm | 5200mm |
100HL Fermentation Tank | 2642US Gallon | 2250mm | 5700mm |
150HL Fermentation Tank | 3963US Gallon | 2250mm | 7550mm |
Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8, hygiene surface
60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
25% headspace, unless a different volume is requested
Top manway or side manway door
Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Fully welded exterior shell
Non welding CIP arm and rotating 360 degree reach spray ball
Solenoid relief valve, pressure relief valve (safe valve) are standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not included)
Ladder hooks is available for special request
Dry hop ports and/or hop bag hooks in any fermenter of any size for special request
If you are would like to change, add, remove or modify any part of the tanks, we can
accommodate that. Specific fitting sizes, changes and locations will be set during the design
process after a deposit is taken.
