200L-1000L Best Fermenter For Craft Beer
Looking to expand, or get into the craft brewing business?
Then check out us.

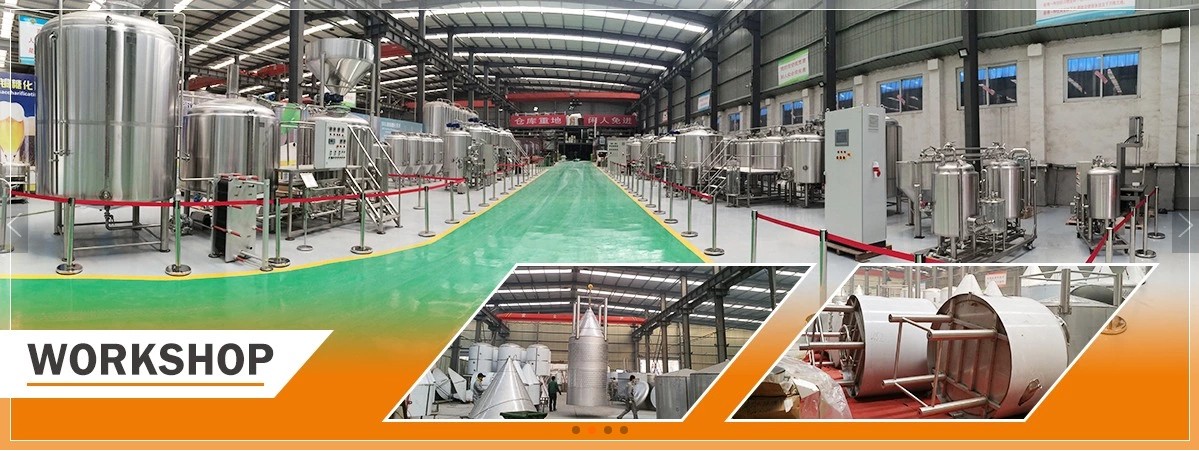

Our doors are always open so you can take a tour of our manufacturing
facilities and meet the people who make TIANTAI an industry leader in craft
brewing equipment!
After viewing the manufacturing facilities, we would be pleased to show you
our equipment in operation at a brewery located our factory.
1.Descriptions Of our company
Shandong Tiantai Beer Equipment Co.,Ltd is a professional manufacturer of 100L/batch-10000L/batch
beer equipment .
We are specialized in professional design,manufacture,installation and commissioning of various beer brewing equipment and supporting facilities, which includes miller, auger, brewhouse, fermenter, filter,
bright beer tank, glycol water tank, chiller, control panel, CIP for small and mediumsized brewery,
hotel, bar, restaurant and so on.
In the past years, We have offered many breweries to USA,Canada, Europe, Japan, Australia, Korea
Russia, and South east Asia, South American etc.
What is more, we have a deep foundation of cooperating with many of domestic and foreign companies
and research institutions, which help us to cultivate and to attract a number of outstanding technical
engineers, production workers,and to laid a solid foundation for the development of enterprises.
OK, Friends, if you are interested in our 200L brewery lab equipment system, please contact us freely
to get detailed configuration and price list.
Looking forward to talking with you.
2.Best Fermenter

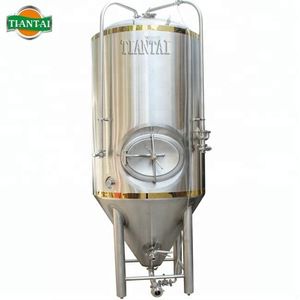

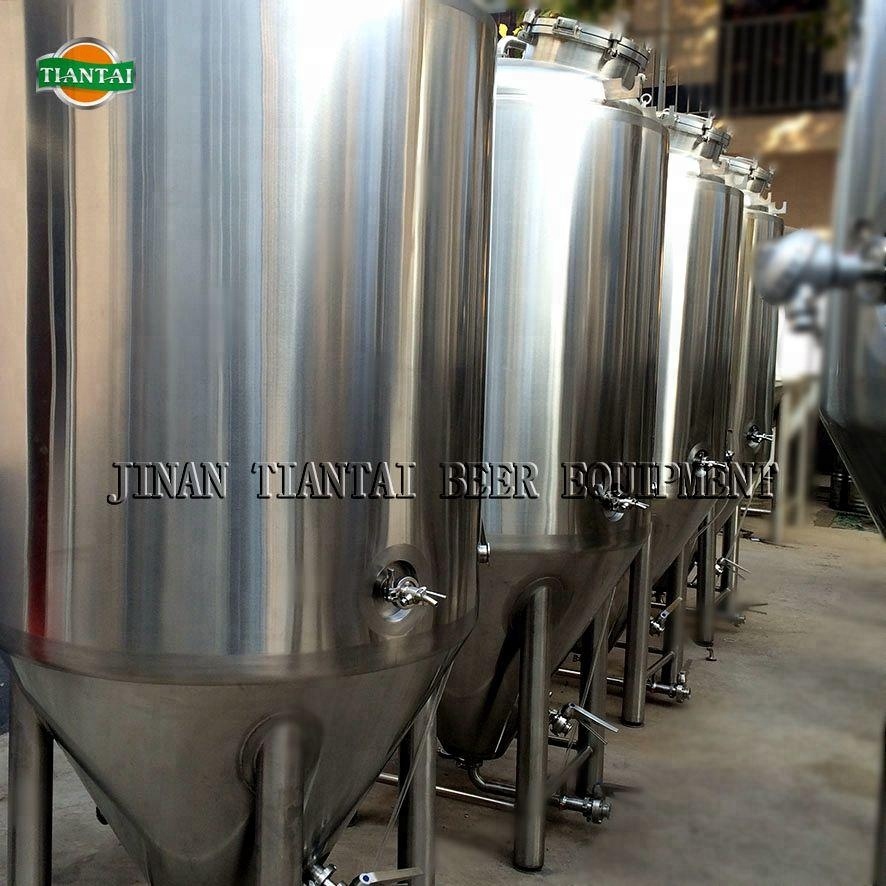

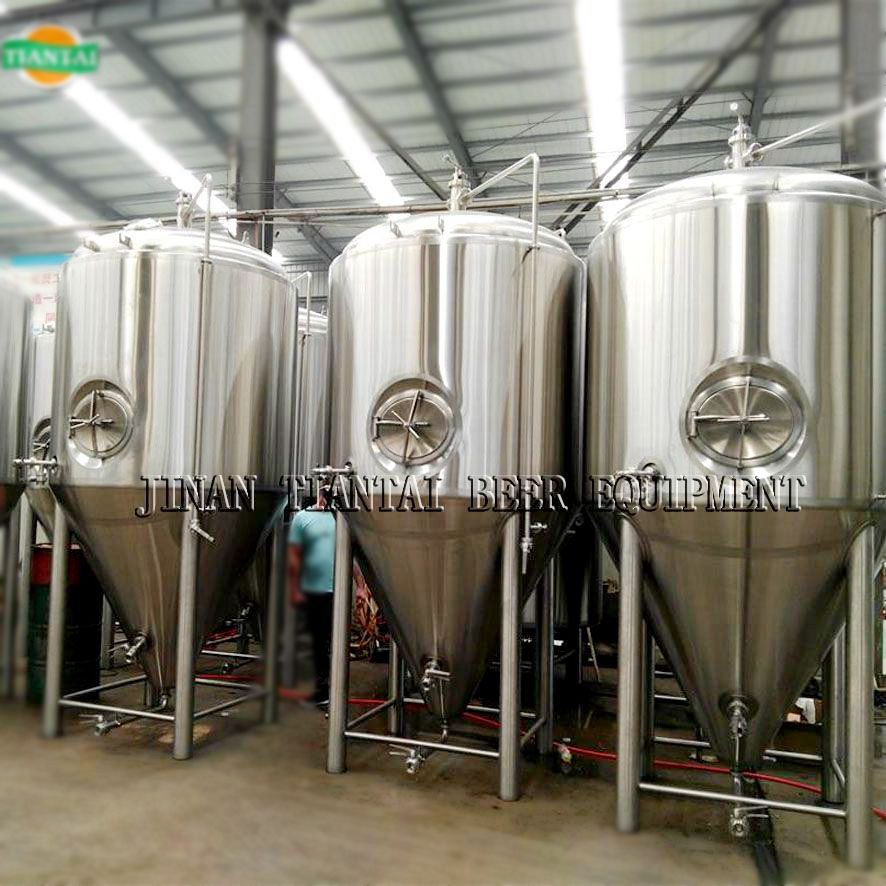

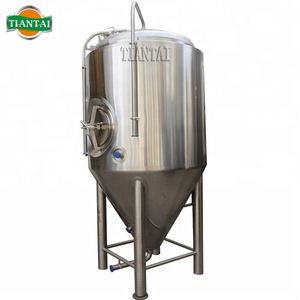

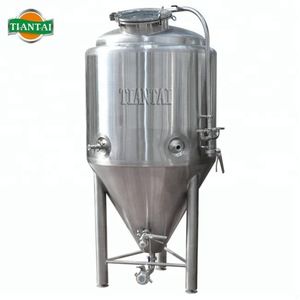

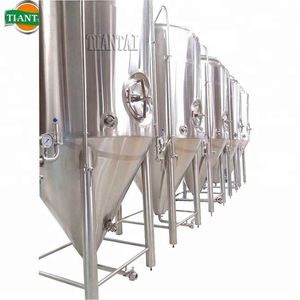

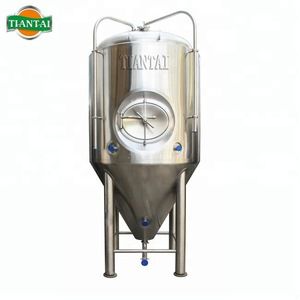

TBE stainless steel fermenters can be individually temperature controlled through glycol jackets
and are mostly equipped with accessories such as overpressure and
under pressure valve, CIP cleaning jet, sanitary sample valve, manhole,etc.
The design of TBE fermenters is based on our vast beer knowledge and especially the conical
fermenter bottom and the fact that we combine fermentation and maturation in the same vessel
is very important.
When calculating your fermenting and lagering capacity and configuration sufficient time for
fermenting and lagering to produce quality beers must be taken into consideration.
Best Fermenter Series | Volume in US Gallon | Diameter | Height |
1HL Best Fermenter | 26US Gallon | 620mm | 1600mm |
2HL Best Fermenter | 53US Gallon | 820mm | 1800mm |
3HL Best Fermenter | 79US Gallon | 960mm | 1900mm |
4HL Best Fermenter | 106US Gallon | 960mm | 2100mm |
5HL Best Fermenter | 132US Gallon | 1010mm | 2100mm |
6HL Best Fermenter | 159US Gallon | 1060mm | 2150mm |
8HL Best Fermenter | 211US Gallon | 1060mm | 2550mm |
10HL Best Fermenter | 264US Gallon | 1210mm | 2550mm |
Pressure: Design pressure 45 psi (3bar); working pressure 15psi (1bar)
Legs: 4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel Fully welded, thickness 3mm,
Exterior shell: 304 stainless steel Fully welded, thickness 2mm
Polish: Interior and exterior finish bright polish to 0.6~0.8, hygiene surface
Angles: 60 degree cone bottom, other angles can be specified during the design process
headspace: 25% headspace, unless a different volume is requested
manway: Top manway or side manway door
Dual zone: in sidewall and cone dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation: thickness 80mm for cooling jacket on side and bottom
Cleaning: Non welding CIP arm and rotating 360 degree reach spray ball
Others:
Solenoid relief valve, pressure relief valve (safe valve) are standard
Pressure gauge
Temperature sensor well
Sanitary sample valve and port
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.
Carbonation port is available for special request (stone not included)
Ladder hooks is available for special request
Dry hop ports and/or hop bag hooks in any fermenter of any size for special request
If you are would like to change, add, remove or modify any part of the tanks, we can
accommodate that. Specific fitting sizes, changes and locations will be set during the
design process after a deposit is taken.
Also, as a professional manufacturer of beer equipment, we are now working with
many customers in Europe such as UK, France, Italy etc.. Our quality meet
ISO, CE, TUV, SGS, standard and price is quite competitive for your market.
5. our Services
Pre-Sales Service
1).Some clients are new in this field, they also no have ideas about how to confirm the
configuration list, since we have experience, we can give some suggestions and also other
clients for reference,
then they will know what they will need exactly.
2).We also have the process video for the brewing equipment, if the client do not know the
process, the video will be sent.
3).We will give the layout according to the client’s floor plan or their requirements.3D layout
also can be provided. This can help the client to get a better understanding about the project.
4).We will give the detailed diagram of the tanks, this can help the client to know whether this
is what they need and also can modify them before placing the order.
After-Sales Service
1).1 years warranty
2).Inner and outer of the tanks have been mirror polish
3).The materials of the tanks can be SUS304 Stainless
Steel with higher quality and affordable price
4).The capacity can be 50L---Customized per batch
5).Professional engineers going abroad to assist you setup the brewhouse
