Stainless Steel 25 Gallon Conical Fermenter
The process of beer production
Milling:
Here, malt is grinded and malt husks are cracked. It makes mashing faster and makes filtration of mashing easier.
Mashing:
Mashing is the process of mixing milled malt and water, then heat this mixture. Mashing allows the enzymes in the malt to break down the starch in the grains into sugars. Mashing involves pauses at certain temperature(notably 45-62-73℃ or 113-144-163℉). Mashing takes place in mash kettle.
Lautering:
Lautering is the separation of grains and liquid. The bottom of lautering kettle has thin slits to hold back the solids and allow liquids to pass through. The mash itself functions as a sand filter to capture mash debris and proteins through recirculation. Grain washing also takes place in the lautering tank. After the wort runs-off, trickling water will goes through the grain to extract sugars.
Boiling:
After lautering, the wort will be boiled with hops ( and other flavouring if needed). Average boiling time ranges from 45 to 90 minutes, depending on its intensity, the hop addition schedule and water volume.
Whirlpool:
At the end of the boil, solid particles in the hopped wort are separated from whirlpool tank. Then wort will be cooled when runs into the fermentation tank through the plate heat exchanger.
Fermentation:
It takes place in fermentation tank. Sugar in wort will be transformed into ethyl alcohol by respiratory action of yeast. At same time, some other chemical and physical reaction happens too. Wort turns into beer gradually under these reactions.
After fermentation, we can drink beer directly or put beer into BBT via filtering equipment.
These processes are finished in several tanks. Tank quality can be customized

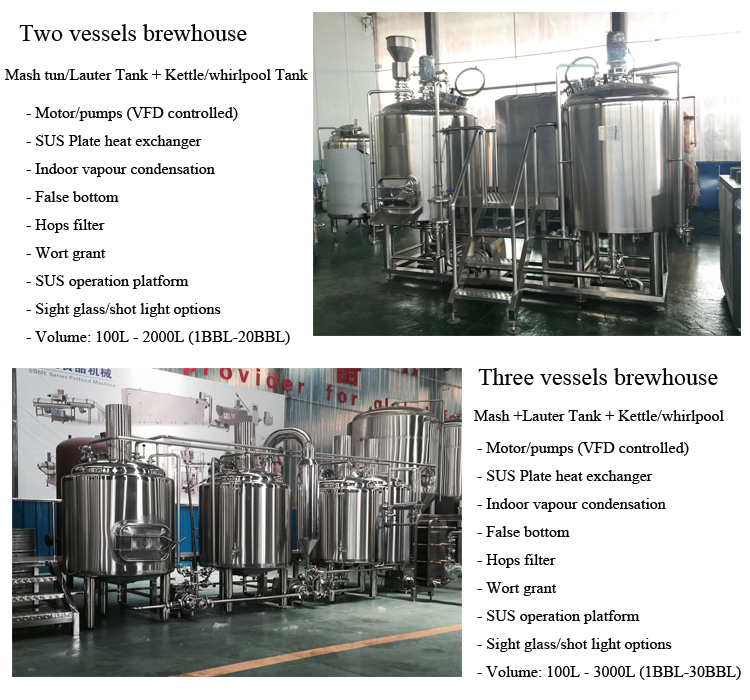

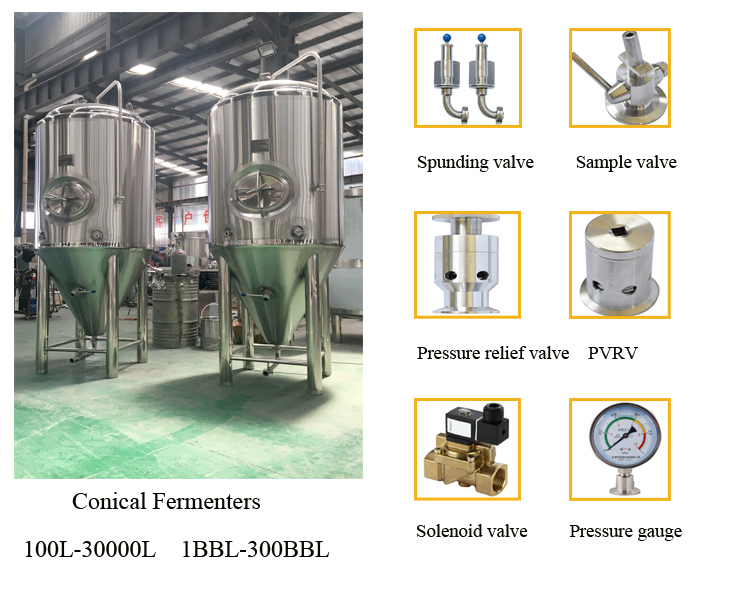

Fermenter& brewhouse mainly ranges

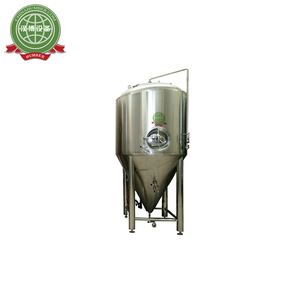

Technical parameters of Stainless Steel 25 Gallon Conical Fermenter
| Fermenter tank/unitank details | 1.The traditional design of the fermenter's cylinder and cone is double-jackets, the seal head is single-jacket, based on the original design, we have developed the energy-saving equipment with double jackets seal head, favored by constomers.
2.Material: Inner thickness 2.5-4.0mm, External thickness 1.5-2.5mm
3. Insulation: Polyurethane/rockwool-thickness: 80mm-120mm.
4. Cooling way: Ice water belt or dimple jacket
5. Fermenters are 60°conical design
6. Design pressure is 0.3MPa; Working pressure is 0.15Mpa.
7. With dry hops port on the top of the tank
8. Fermenters with racking arm
9. Top manway or side manway design |
shipping & packing of conical fermenter
1. LCL/FCL(20GP, 40GP, 40Hq)
2. Packed with plastic film in fumigation free wooden case or fixed with iron frame
3. Up to export standard, suitable for delivery
4.Customer's requirements avilable
Services of Humber brewing
Professional R&D engineer team/excellent export department:
-Customized capacity&configurations proposal list

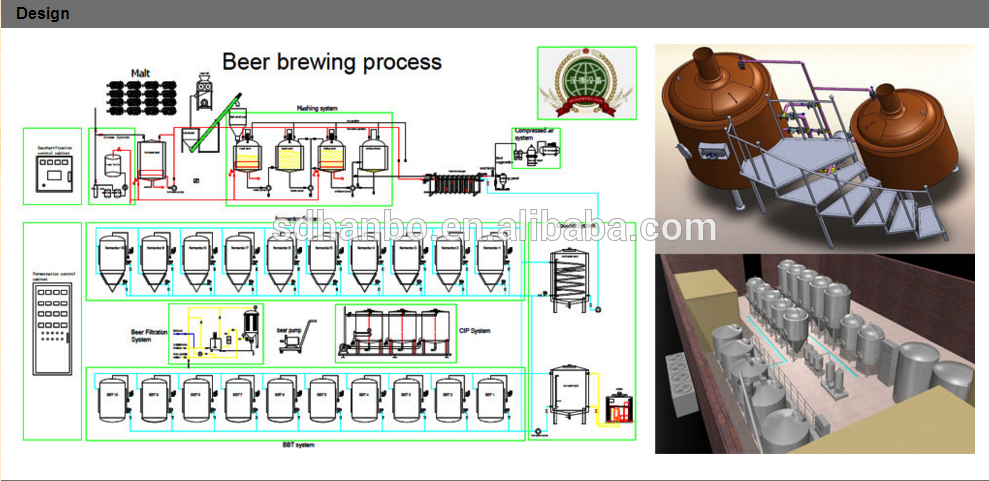

-CAD/3D layout drawings
-Technical drawings of the equipment
-Engineer going abroad for installation, debugging and technical training
-Main guarantee for three years, life long service

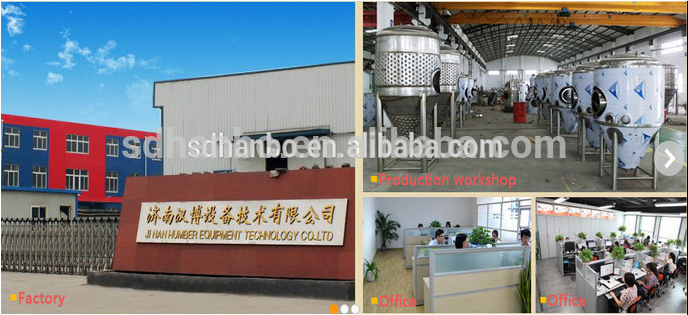

Factory and office
Why choose us?
1.Professional manufacturer. Design specifically for you.3D & CAD drawing can be offered.
2. Products are 100% tested.
3. Engineer & training available.
4. 30 days delivery time.
5. 5 years warranty.
6. 7*24 hours service.
7. L/C is available.
