300L micro brewery for sale / 300L brewhouse with conical fermentation tank
Jinan Humber Equipment Technology Co., Ltd. is one of professional beer brewery equipment manufacturer in China with years of experience in exporting and producing. All our products had been certified by CE/ISO/PED, you can spend very little money to achieve your brewing dream, Because we are industry and trade together, have their own factory.So Low prices, high quality. Our products include all kinds of large, medium, micro and mini beer brewery equipment, range from 50L to5000L, beer main and accessories, raw material for beer, beer canning vending machine, beer dispenser equipment etc, One-stop serve ,warmly welcome all the guests to visit !
Item | Introduction | Remark | |

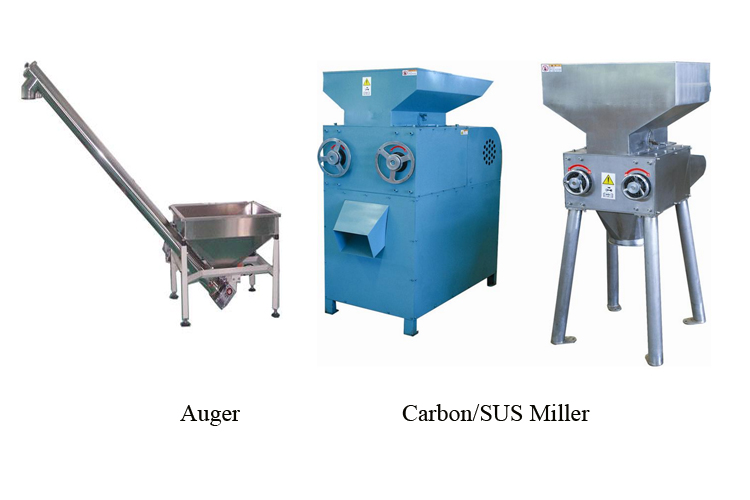

01 | Grain miller | Crushing ability:150-200kg/h Application: Used for grain mill Material:SUS304 and carbon steel With Double rollers, the distance can be adjustment; New design, reduce malt residue automatically
| Necessary |

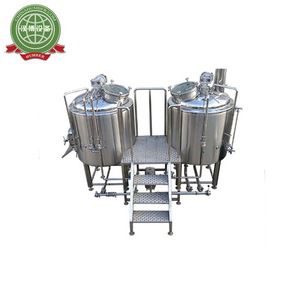

1.)The effective volume for the Mash tun/lauter tank is 300L, and total volume is about 375L, the dimensions is about DIA960 X2200MM.( The effective volume for brew kettle/whirlpool tank is 300L, and the total volume is about 430L, the dimensions is about DIA960x2200MM).

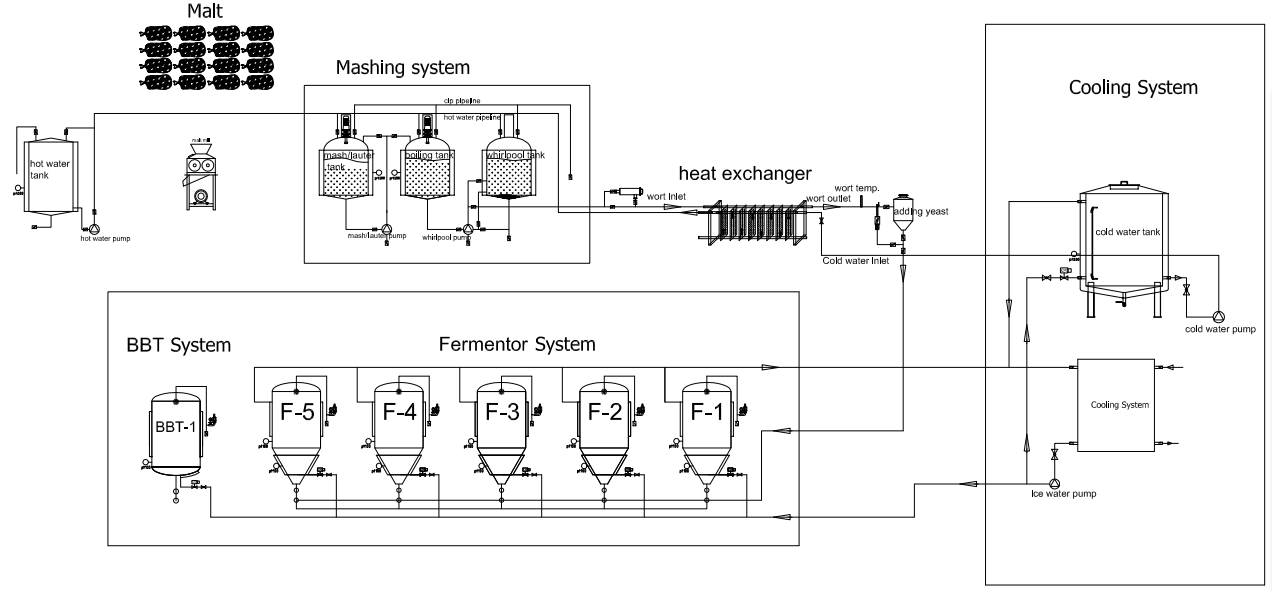

2.)Function: Use for malt mashing, wort filtration, boiling, and whirlpool.
3.)Component: Mash/Lauter tank, Kettle/Whirlpool tank, working platform, motor, pump, manhole, yeast adding tank,and so on. It is the second part of 500L beer brewery machine.
4.)Heating method: Electric heating, Of course, if you need the steam heating or direct fire, we can also offer it for you.
5.)Control method: PLC/PID controller cabinet can be equipped in brewhouse.
6.)Material: SUS304.

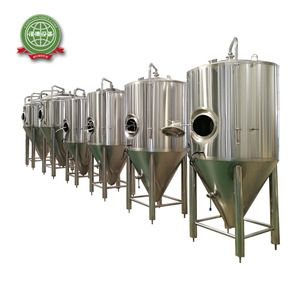

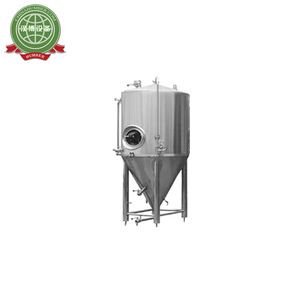

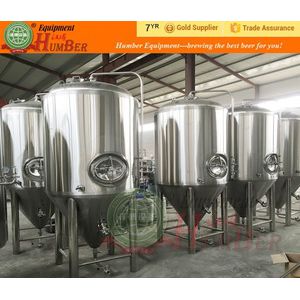

1.)The effective volume is 300L, and the total volume is 375L (20% head space)
The dimensions is DIA860X2200MM.
2.)Glycol jacket: Dimpled plate on cone side, and The cooling media: glycol water or alcohol water.
3.)Function: Use for keep wort fermentation or maturation.
4.)Component: It is consisted of Shadowless manhole, Mechnical relief valve, Aseptic valve, Pressure gage, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
5.)Cooling method: dimple plate or glycol cooling jacket around tank.
6.)Cooling media: glycol water or alcohol water.
Item | Introduction | |
01 | Capacity | 50L |
02 | Function | Cleaning all the tanks when it finishing brewing |
03 | Structure | Alkali/disinfectant tank/pump. |
04 | Material | Stainless steel 304/316 |
Item | Introduction | ||

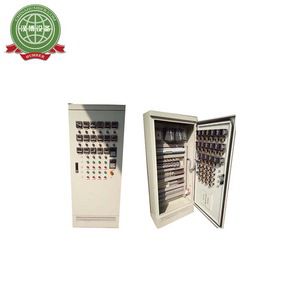

01 | PID digital display, | Material | Stainless steel or Spraying plastics; |
Show and control all the tank's temperature, motors and pumps show on/off. | |||
03 | Electric parts |
Packaging&Shipping:
1. All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
2. All accessories and spare parts will be packaged with separate box.
3. After loaded into containers, all equipments will be well fixed to the containers.
Shipping container: FCL(20'GP, 40'GP, 40'HQ).
5.Transportation mode: ocean, railway or air transportation.
1. Free of charge the consultation service before, during, and after sales .
Your questions would be replied within 24 hours by our sales team.
2.There are professional engineers and technicians in our company, so we can customize the equipment, and we can provide beer production technology and brewing formula, equipment design, installation and debugging, and personnel training service;
3.Providing 3D and CAD layout drawing within 5working days after get buyer’s building plan.
4. Provide 5years complete warrantee for tanks body and life-time maintenance service; All of the accessories and auxuliaries facilities are guaranteed for one year; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage. All spare parts and wearing parts are included with the brewery for free.
1. Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
2. Q: Where is your factory located?
A: Our factory is located in Erhuang East Road, Licheng District, Jinan, Shandong, China, 2 hours to Beijing.
3. Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm.
4: Q: How long the warranty will be?
A: 5 years warranty for the main beer brewery equipment, 1 year for the accessories and auxiliaries.
5. Q: How about the installation? And what if the machine goes down
A: Yes, we will do that. There are two optionsa. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.b. On-line service will be provided. If still under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on you side.
