Why choose DYE ?
· Short lead time: For home distiler,we can arrange to shipment within 7~15days.and thecommercial distilling equipment will be delivered within 60 days after the deposit is received.
· Pipe welding: using automatic pipe welding machine, reduce dead corner of pipes.
· Ferrule treatment: adopting cold-drawing technique, makes sure of dimensional accuracy and surface quality. The surface of nozzles will be smooth, and it will avoid sharp edges.
·Best Service. From the time customer release the order till customer get the products, we will provide on-time service, and willing to solve any problem at the first time.
·Garantee:The products has two year Warranty from the time when the customer received the tanks.
If any items you are interested,Warmly welcome you feel free to contact me.

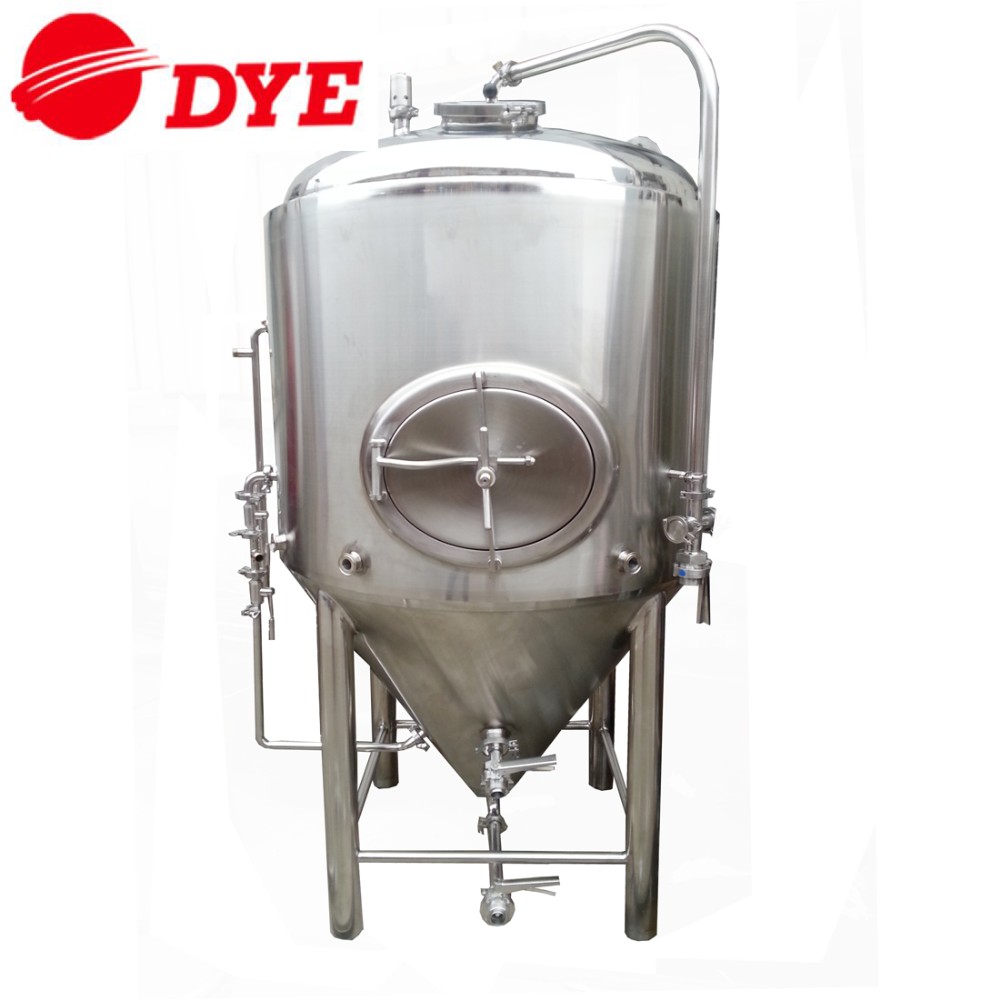

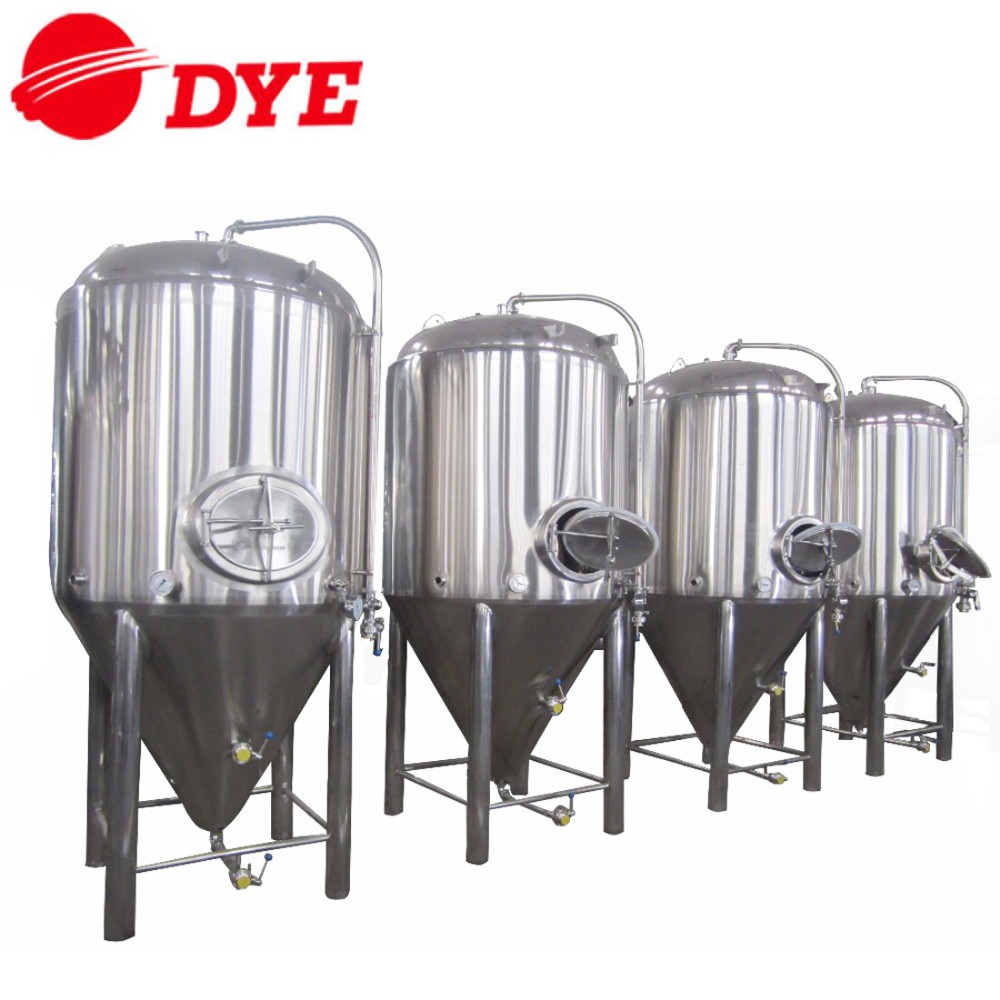

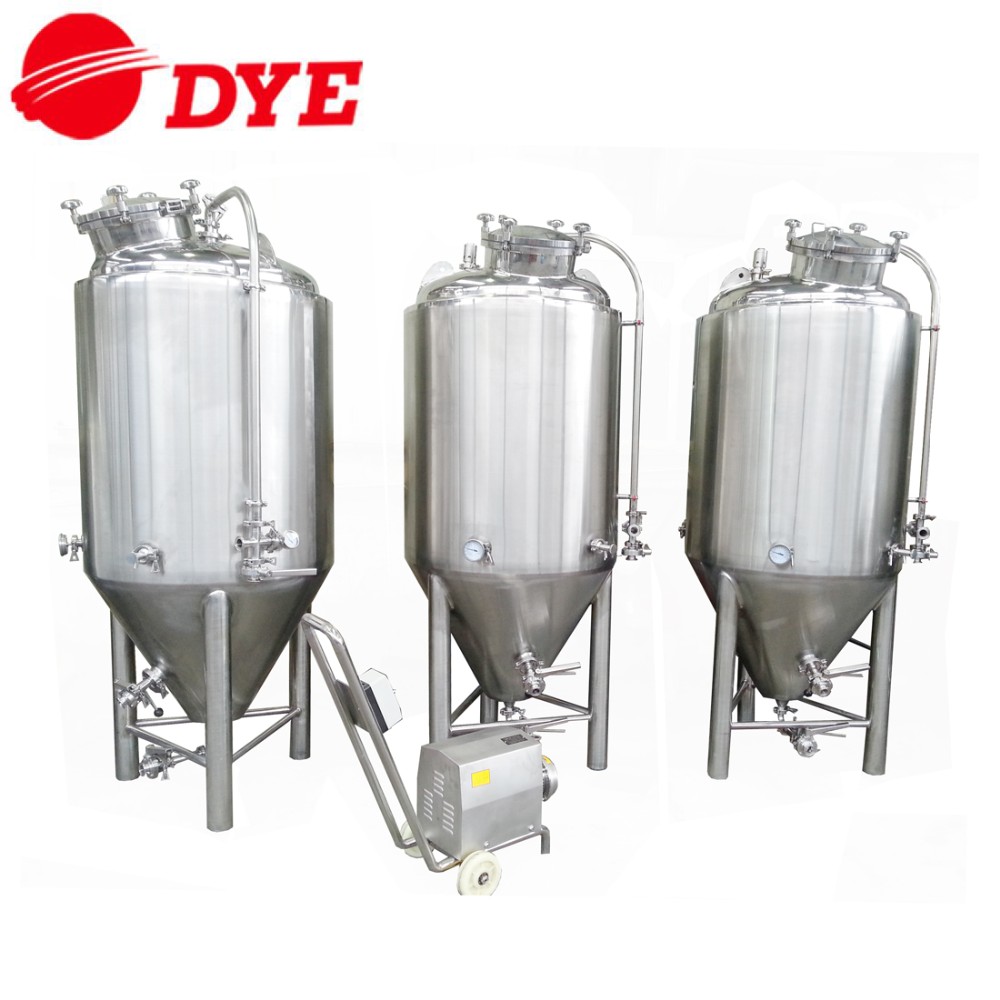

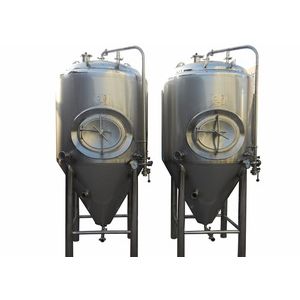

After many years of experience in tank production and istallation,DYE can design fermentation tank and bright beer tanks with different volume,diameter or height and cooling jackets according to customers' requirements.
Our tanks can be widely used in teh fields of fermentation such as beer,fruit wine and Kvass.With a reasonable layout of fermentation pipeline and the latest process operation,it is simple and convenient to operate.And there is no hygienic dead corner.
Main Features
1) All tank are made of 304 stainless steel
2) Adopting advanced world famous brand components in electric parts and operation parts.
3) Fermentation pressure controlled by pressure gauge automatically
4) The tanks are welded by TIG welding
5)The tank will be polished 3 times
6)Each tank will be tested by water and air
Structure
1）Design pressure 45 psi (3bar); working pressure 15psi (1bar)
2）Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8, hygiene surface
3）60 degree cone bottom, other angles can be specified during the design process
Combined drain extensions and beer port in cone are standard
4）25% headspace, unless a different volume is requested
5）Top manway or side manway door
6）Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet
7）Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
8）Fully welded exterior shell
9）Non welding CIP arm and rotating 360 degree reach spray ball
10）1.5" pressure relief valve (safe valve) are standard
11）3/4"Pressure gauge
12）1/2"Temperature sensor well
13）1" Sanitary sample valve and port
14) 4 stainless steel legs with leveling footpads
15）All clamps and gaskets to attach all accessories
16)Tank complete with piping, fittings, sanitary valves and all parts.
17)Carbonation port is available for special request (stone not included)
18)Ladder hooks is available for special request
19)Dry hop ports and/or hop bag hooks in any fermenter of any size for special request

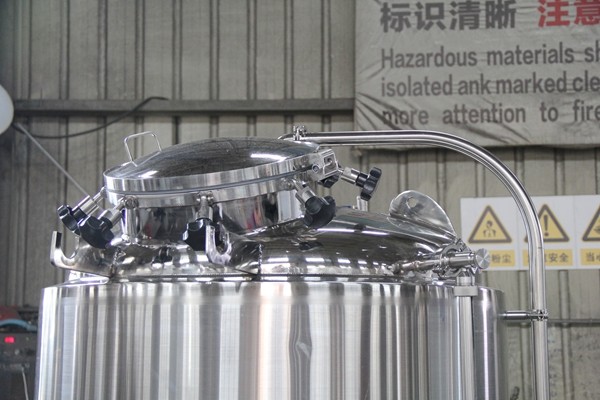

Top manhole
Original: China
1.Domestic famous brand manhole.
2.easy open
3.pressure durable
Side manhole
Original: China
1.Domestic famous brand manhole.
2.easy open
3.pressure durable

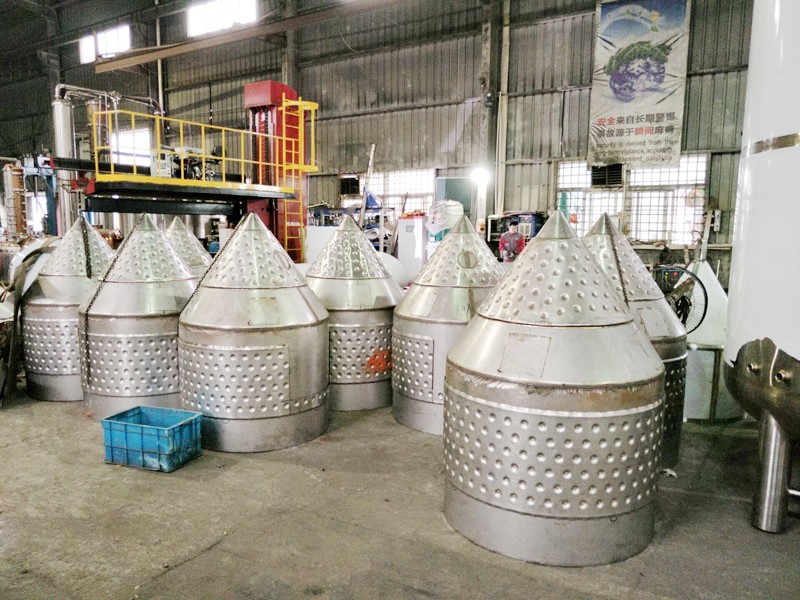

Dimple plate glycol jacket
2 or 3 zone dimple plates with high efficency of cooling .
the cooling dimple can be controled seperated by control cabinet.

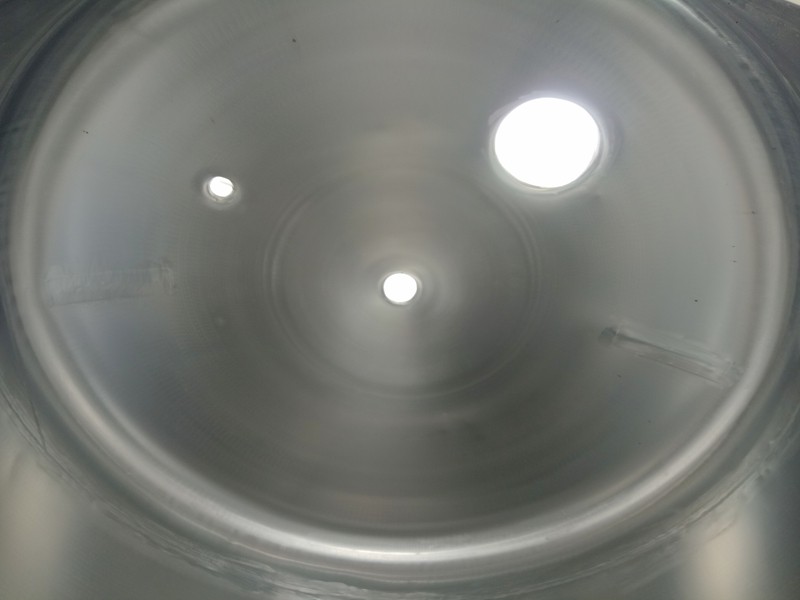

Inside top polish
with acid cleaning and passivation

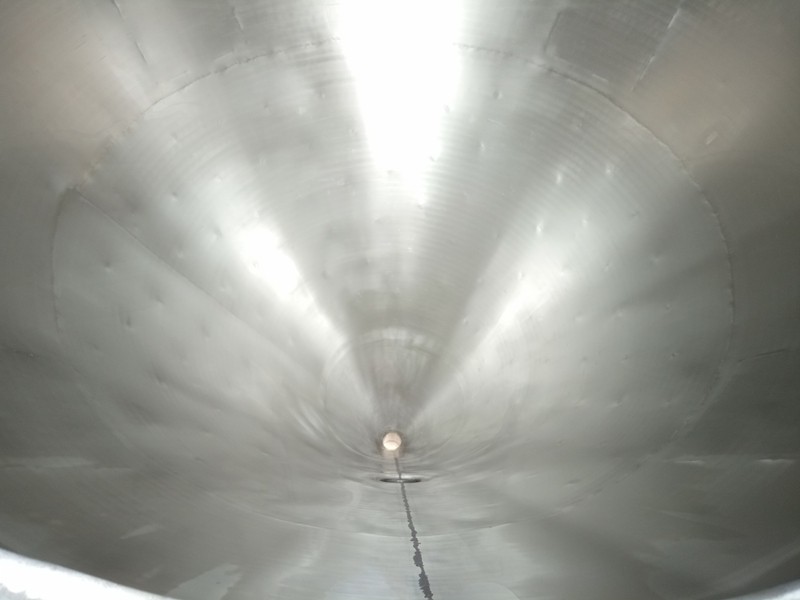

inside cone polish
with acid cleaning and passivation

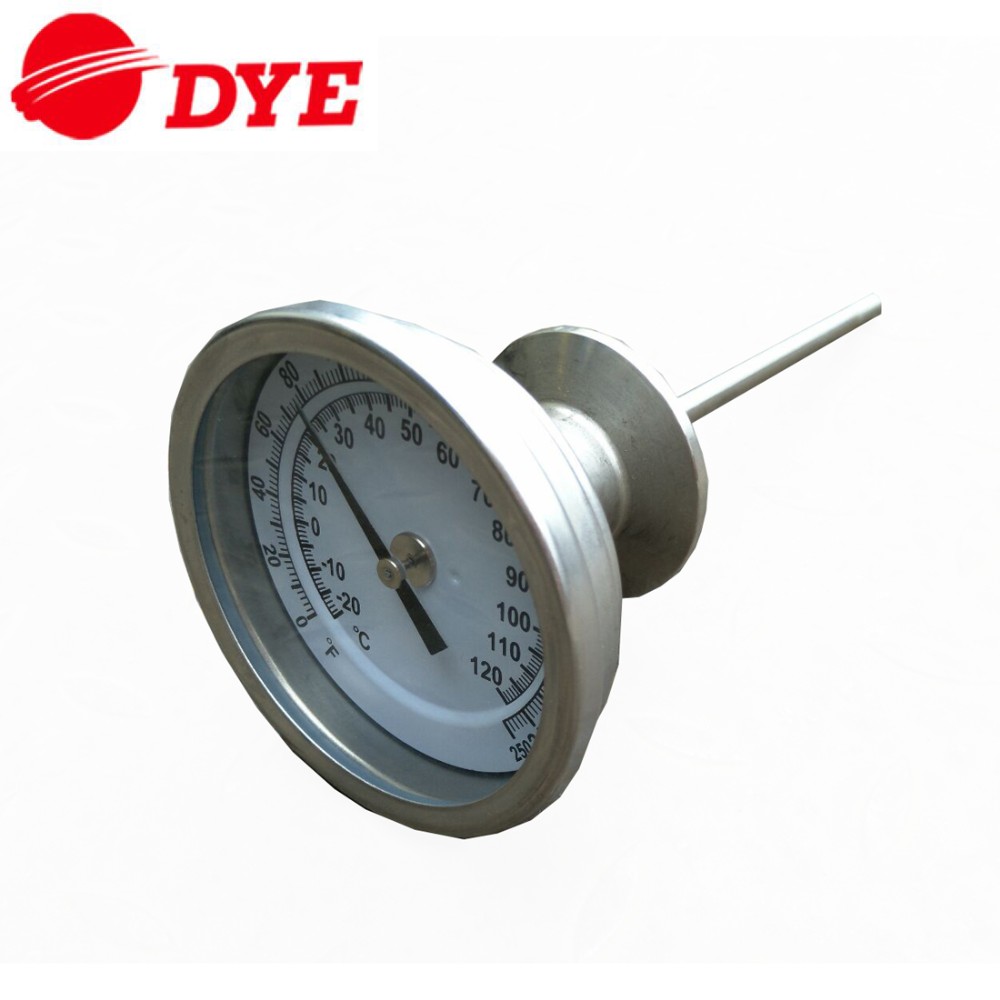

Thermometer
1/2" Tri-clamp connection thermometer is easy to installation and with double scale celsius and Fahrenhite.

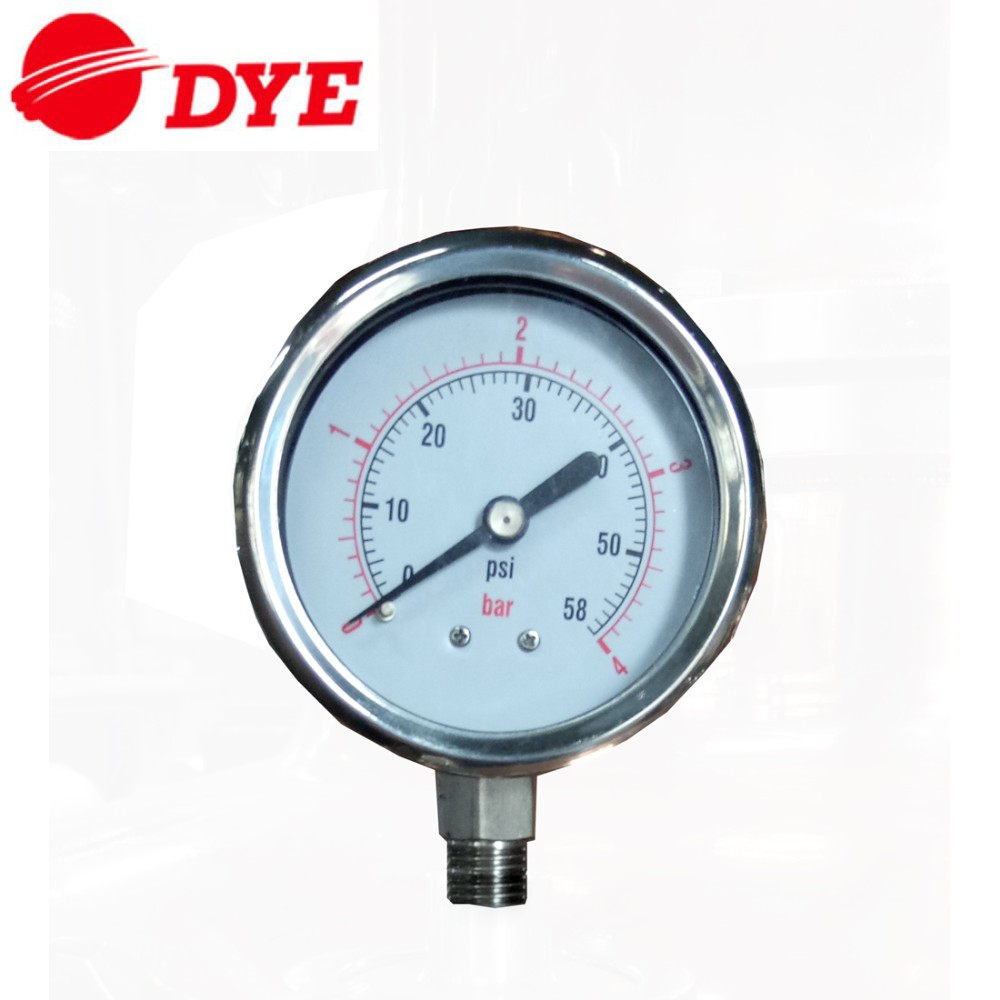

Pressure gauge
3/4" with double scale bar and psi.

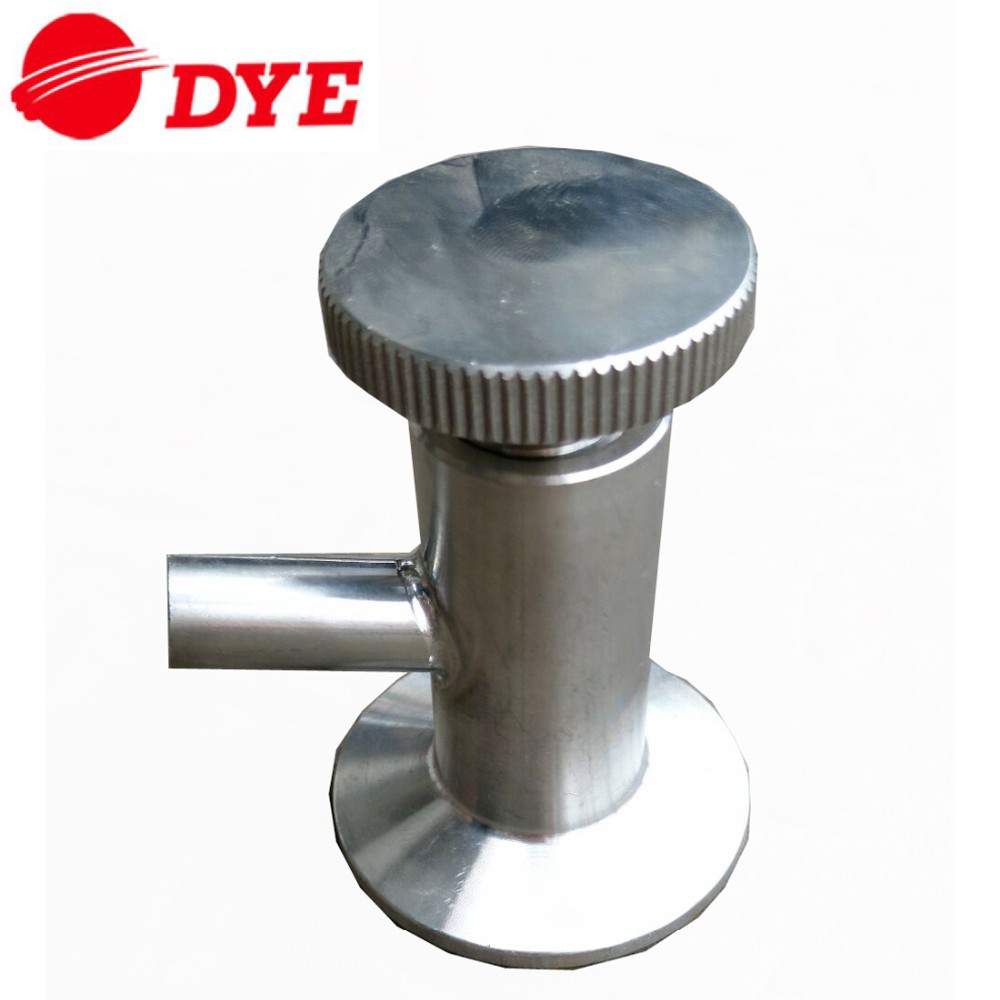

Sample valve
1" saitary standard made of stainless steel 304

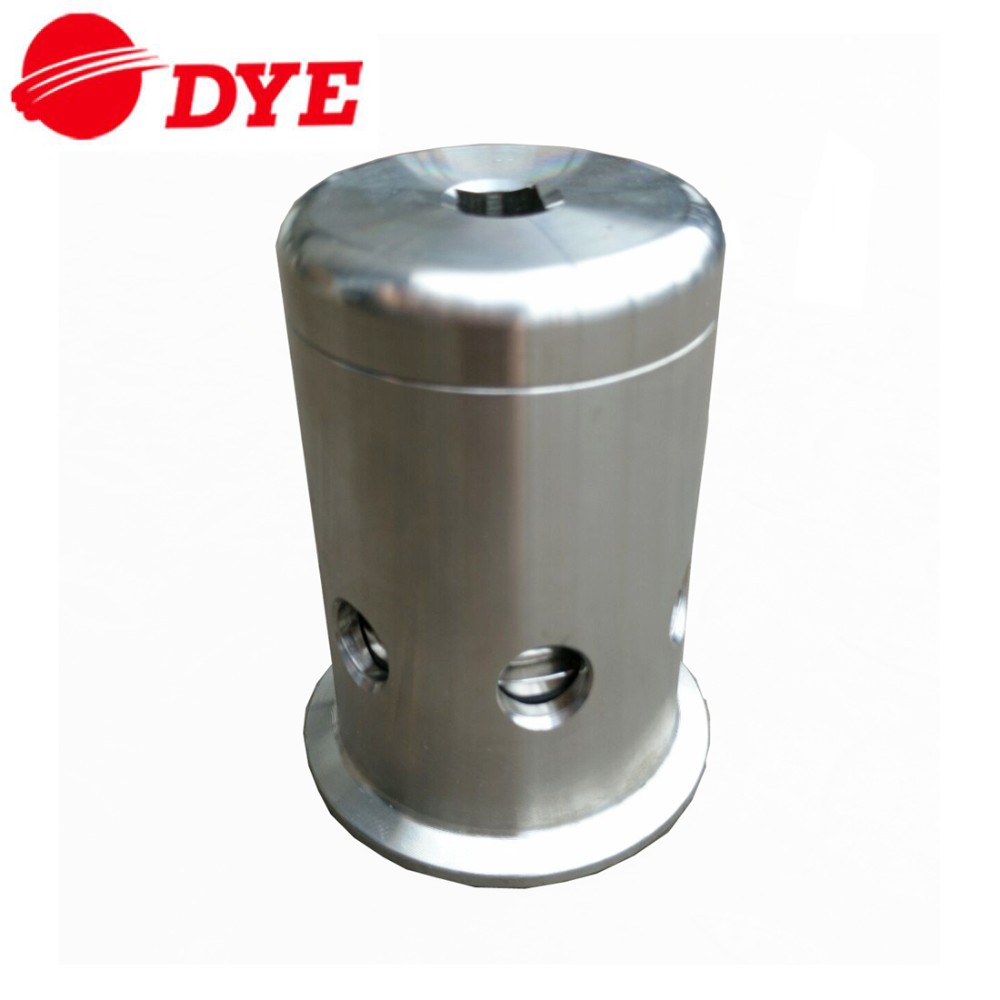

Safety valve
1.5"Tri-clamp connection with 1bar/15psi

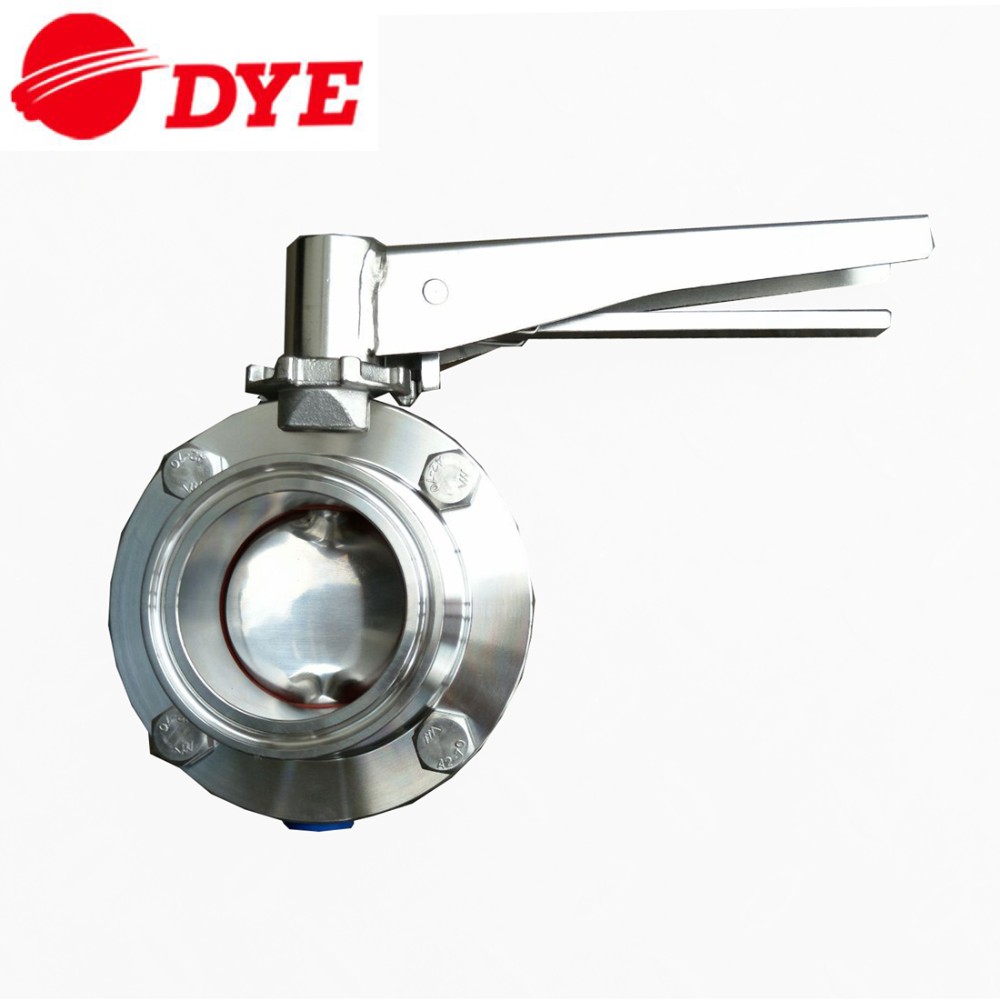

Butterfly valve
1.25/1.5/2" tri-clamp connection

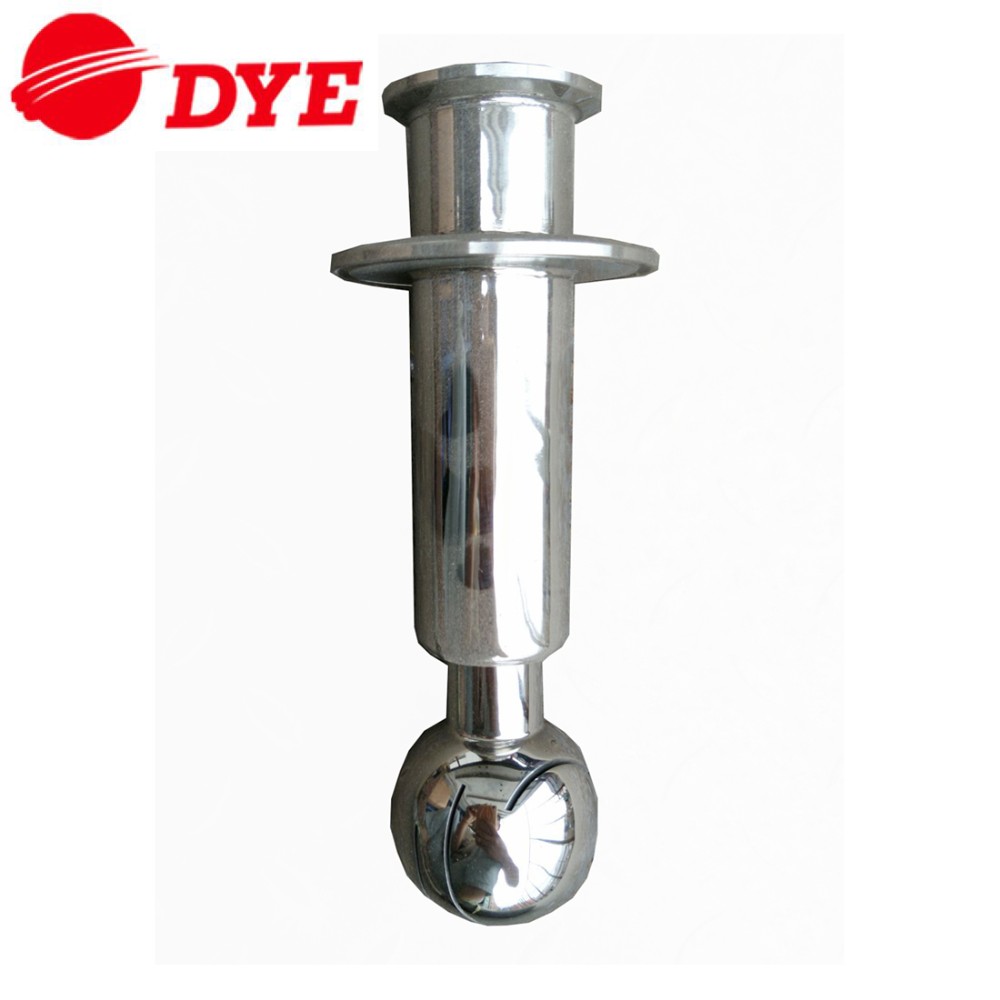

CIP ball
1.25/1.5" 360 degree rotation
The flexibility in delivery time
For home distiller,normaly, the delivery time is 15days, if you need hurry,we can also supply it with 7~10 days, which with same good quality.

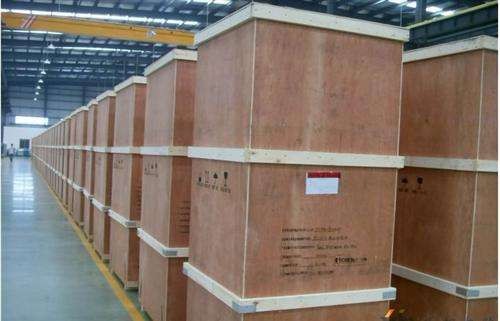

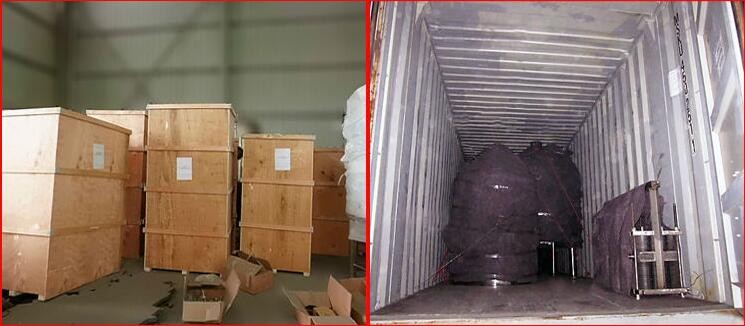

Package
By LCL(less than a container)
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
By FCL(20/40/45 feet container)
If all goods you order can fit in one container, we will use pre film for packing, then put into container to fixed.
Contact me dear
seamie zheng
skype: seamie zheng
WeChat:13676713208
China
