50L German Style Refrigerated Alcohol fermenter or fermentor

PRIMARY PARAMETERS

Processing

Fermenting Equipment

Condition

New

Place of Origin

Zhejiang, China (Mainland)

Brand Name

DYE

Model Number

PJFJ-005

Processing Types

Grain

Voltage

380V/3PH/50HZ or according

Power(W)

380V/3PH/50HZ or according

Dimension(L*W*H)

according to the volume

Weight

100KG-2300KG

Certification

CE ISO9001 UL SGS PED

Warranty

3 Years

After-sales Service Provided

Engineers available to service machinery overseas

insulation

50mm/80mm/100mm

Insulation Materials

PU Foma Insulation

material

SUS304/SUS316L/red copper

CIP Cleaning Ball

Tri-clamp 63/76/89

Conical Degree

60 degree to 90 degree

Surface Roughness of Inner Shell

Rau22640.4u03bcm

Surface Roughness of Outter Head

Mirror polished,Matt polished or Satin Finished

Head Type

DHA/DHB

LOGO Nameplate

Laser engraving

Jacket Inlet/Outlet

Female screw/Male screw

DETAIL DESCRIPTION

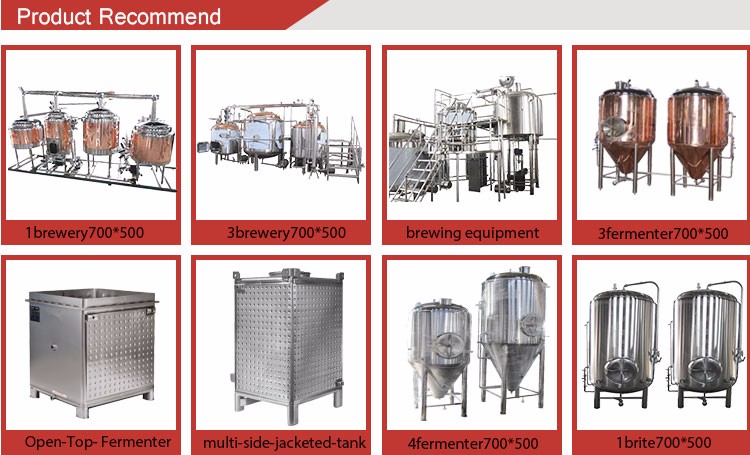

Product Recommend

Fermenter:

· Short lead time: the equipment will be delivered within 60 days after the deposit is received.
· Pipe welding: using automatic pipe welding machine, reduce dead corner of pipes.
· Ferrule treatment: adopting cold-drawing technique, makes sure of dimensional accuracy and surface quality. The surface of nozzles will be smooth, and it will avoid sharp edges.
·Best Service. From the time customer release the order till customer get the products, we will provide on-time service, and willing to solve any problem at the first time.
·The products has two year Warranty from the time when the customer received the tanks.

If any items you are interested,Warmly welcome you feel free to contact us.

Product Description

Main Technical Parameters	FV-2BBL	FV-7BBL	FV-10BBL	FV-15BBL	FV-20BBL	FV-25BBL	FV-30BBL	FV-40BBL	FV-50BBL	FV-60BBL	FV-90BBL	FV-120BBL
Working Volume(BBL)	2	7	10	15	20	25	30	40	50	60	90	120
Material	All Stainless Steel SUS304
Inner Tank Diameter(mm)	650	1000	1100	1300	1450	1500	1600	1750	1900	2150	2150	2100
Cylindrical Height (mm)	600	900	1100	1100	1220	1500	1500	1700	1830	1600	2440	4000
Outer Diameter	The diameter of inner cylinder+The thickness of insulation*2
Reference Height (mm)	1750	2400	2700	3000	3250	3500	3550	3950	4150	4000	4700	6700
Conical Degree	60º to 90º
Surface Roughness of Inner Shell	Ra≤0.22μm
Surface Roughness of Outter Head
Head Type	DHA/DHB
Jacket Type	Dimple jacket, high cooling efficiency. Dimple jacket thicness: 1.5mm, Welding hole diameter:12mm, centre distance between each hole is 80mm.Jacket height is 15mm.
Cooling Area(m²)	1	2	3	4	5	6	7	9	11	13	16	19
Insulation Materials	PU Foma Insulation
Insulation Thickness(mm)	50/80/100
Cladding Shell	2B Plate,Mirror polished,Matt polished or Satin Finished,cladding shell thickness is 2mm
Manway	Top manway	DN300,DN350,DN400,DN500,DN600 are available
Side-manway	ellipse manway:580X480,530X430,500X400 are available
Adjustable Feet	3 or 4,Round legs, height adjustable
Racking Arm Outlet	Tri-clamp Φ51/Φ63/Φ76/Φ89(rotating part),360°rotating, easily operating
CIP Cleaning Piping	Tri-clamp Φ32/Φ38/Φ51, Using arc direct transition, no weld, more health, but also reduce the resistance of pipeline, improve cleaning efficiency
Lifting Ears	According with HG/T 21574-2008
Level Gauge	Sanitary hose connected to cleaning pipe and bottom outlet
CIP Cleaning Ball	Tri-clamp Φ63/Φ76/Φ89, The quick clamp connection, disassembly, 360° omnibearing cleaning, installed in the top of the device
Inlet/Outlet	Tri-clamp Φ25/Φ32/Φ38/Φ51/Φ63, Also can choose the bottom two deep pot of different height of outlet, clamp connections
Safty Valve	Tri-clamp Φ51
Yeast Inlet	Tri-clamp Φ76/Φ89/Φ102/Φ133/Φ159
Thermometer	M12X1.5(digital display)/M27X2 or Tri-clamp Φ32
Pressure Gauge	M20X1.5/ Tri-clamp Φ32
Sample Valve	Tri-clamp Φ25
Carbonate Stone	Tri-clamp Φ51/Φ63/Φ76/Φ89
Vent Hole	Tri-clamp Φ25/Φ32/Φ38/Φ51
Jacket Inlet/Outlet	Female screw/Male screw
LOGO Nameplate	Laser engraving
Accorssies	Themometer,thermo-well,sampling valve,pressure gauge,pressure/vaccum relief valve, 3* butterfly valves,C02 port,PVRV,beer level indicator.
Notes	It can be made according to customers'special requirements.

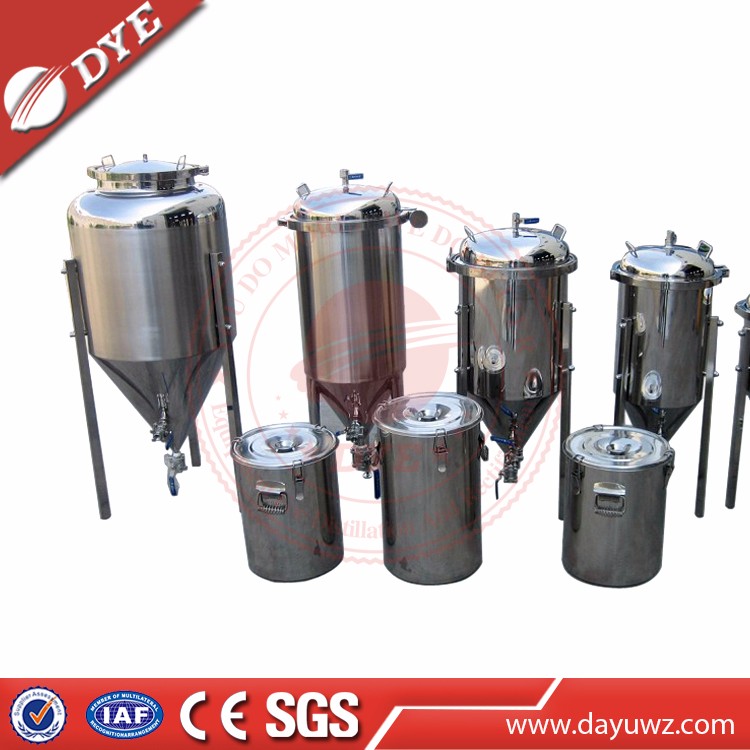

Detailed Images
