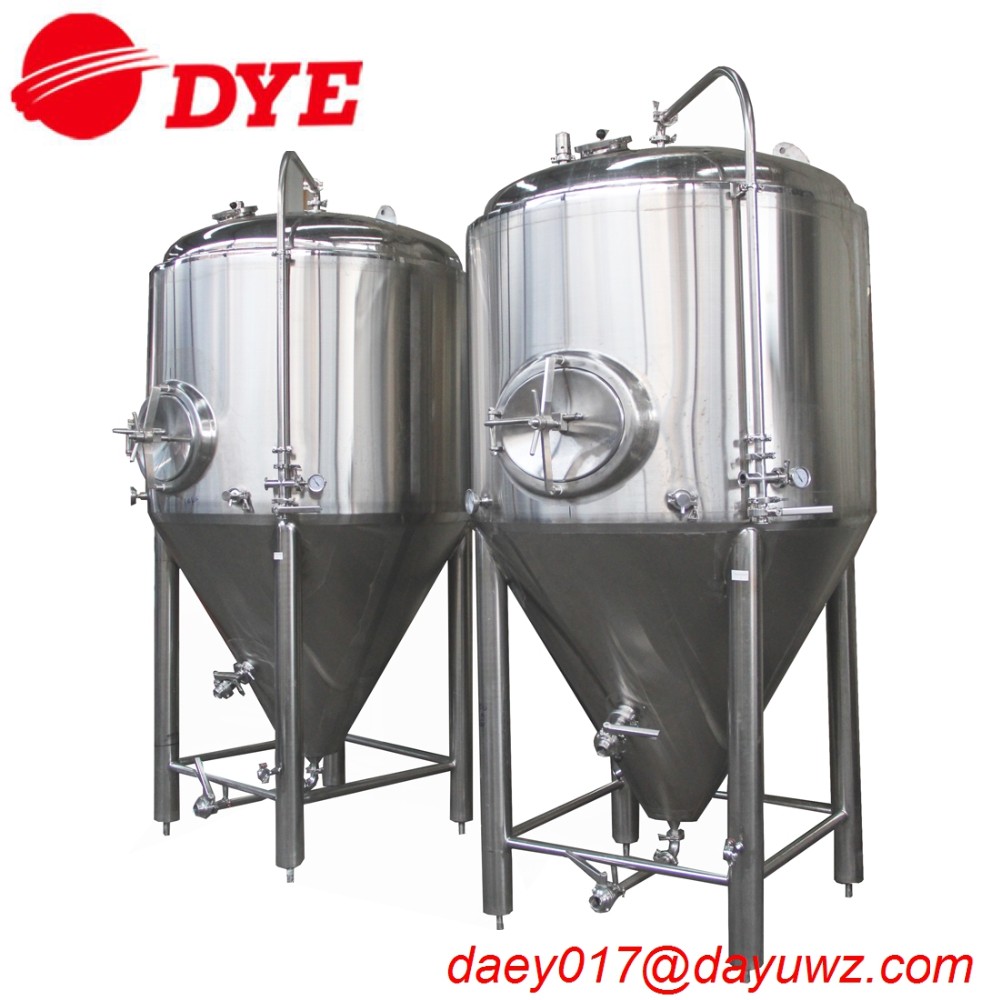

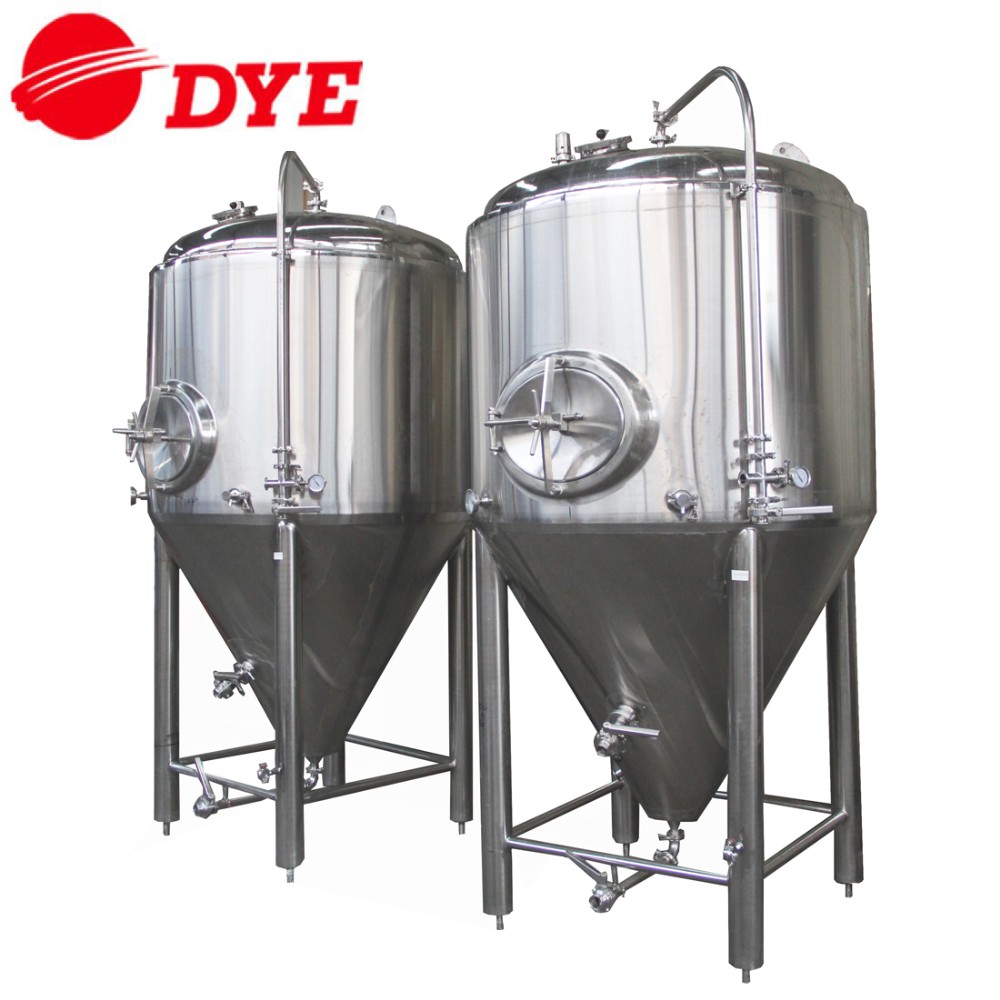

Beer Fermenter / Fermentation Tank
Our range of Jacketed Conical Fermentation Tanks (Beer Fermenters) are available from 1 Barrel to 100 Barrels. The conical fermentation tanks have a dish top with cylindrical body. The 60 Degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast. All tanks are food grade stainless steel 304 with a 3 mm thickness for 3BBL-70BBL, while larger tanks have a 4 mm thickness. The cooling system is a dimple jacket tested to 6 bar with working pressure of 5 bar and the tanks are insulated with high density polyurethane. All tanks are designed for up to 15 PSI (internal pressure) and tested at 30 PSI. The inside of the tanks are polished to Ra>.22um and the outside is a brushed / Satin finish. Unlike most other tanks, ours come with full Worksafe approval.
Special orders may be placed along with custom features to your specifications.

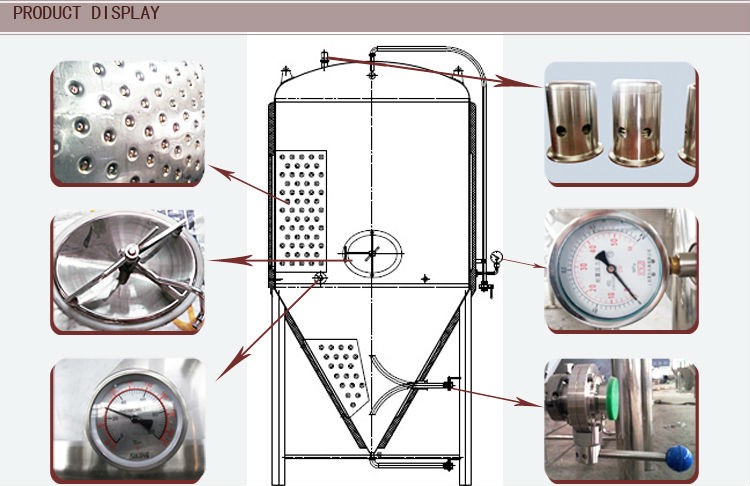

Features include：
– 25% Head Space above the working volume;
– 100% Stainless Steel 304 Construction;
– Shadowless Manway

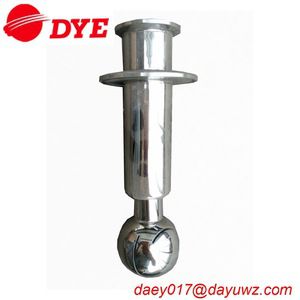

– Spray Ball with CIP Line
– 1″ Rotating Racking Arm with 1 1/2″ TC Butterfly Valve

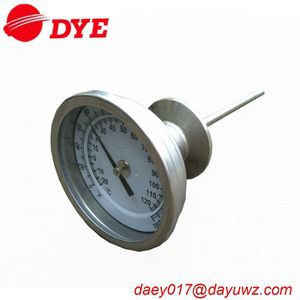

– Thermometer with Thermowell

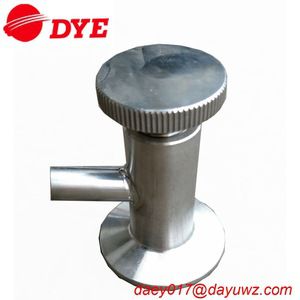

– Sample Valve
– 3mm Thick s/s
– 60 Degree Conical Bottom
– 2 extra 1 1/2″ ferules on top for accessories

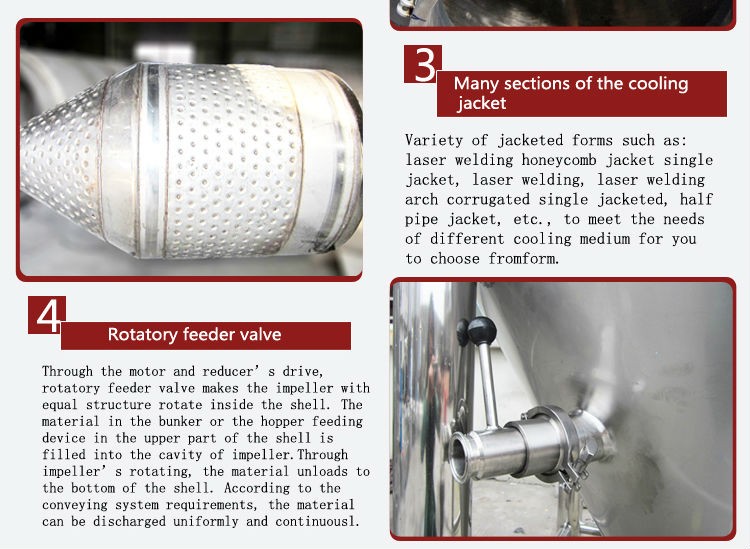

– Dimple Jacketed, Insulated.
Optional Features:

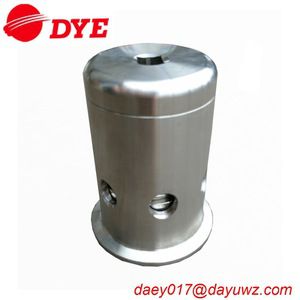

– Pressure Relief/Vacuum Valve Available
– Carbon Stone Available
– Extra Ferules installed per ferule 1″ thru 3″ sizes
– Sight Level Glass with 2 valves Installed;
– Oval Manway 430mm x 330mm (550mm x 430mm) with Seal on side;
Why choose us?
2. Enhance the reliability of product’s quality;
3. Decrease the total cost of the product effectively;
4. Improve research personnel’s ability of creative design;
5. Gain more leading technologies about product development and increase the competitive advantage of products.

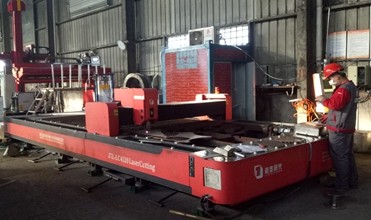

Laser cutting machine
Applicable for: sheet metal processing, chassis and electrical cabinets, elevator manufacturing, food machine machinery, environmental protection equipment, aerospace, machinery manufacturing, shipbuilding industry, oil pipe, agricultural machinery, bridge building, construction machinery and so on.

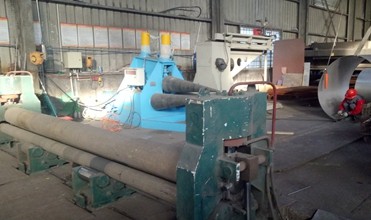

Rolling plate machine

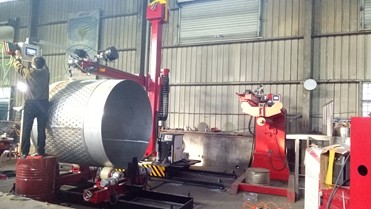

automatic welding machine
Suitable for welding longitudinal seams of 0.4mm-12mm wall thickness tank and plates;
Suitable for TIG, MIG/MAG, PAW PLASMA+TIG welding process;
Suitable for various materials, such as carbon steel, stainless steel, titanium alloy and aluminum alloy etc.;
Optional to choose standard or cutomized mechanism according to work piece size.
Automatic pipe welding machine
Original: Germany orbitalum brand
It can welding pipe without dead corner.

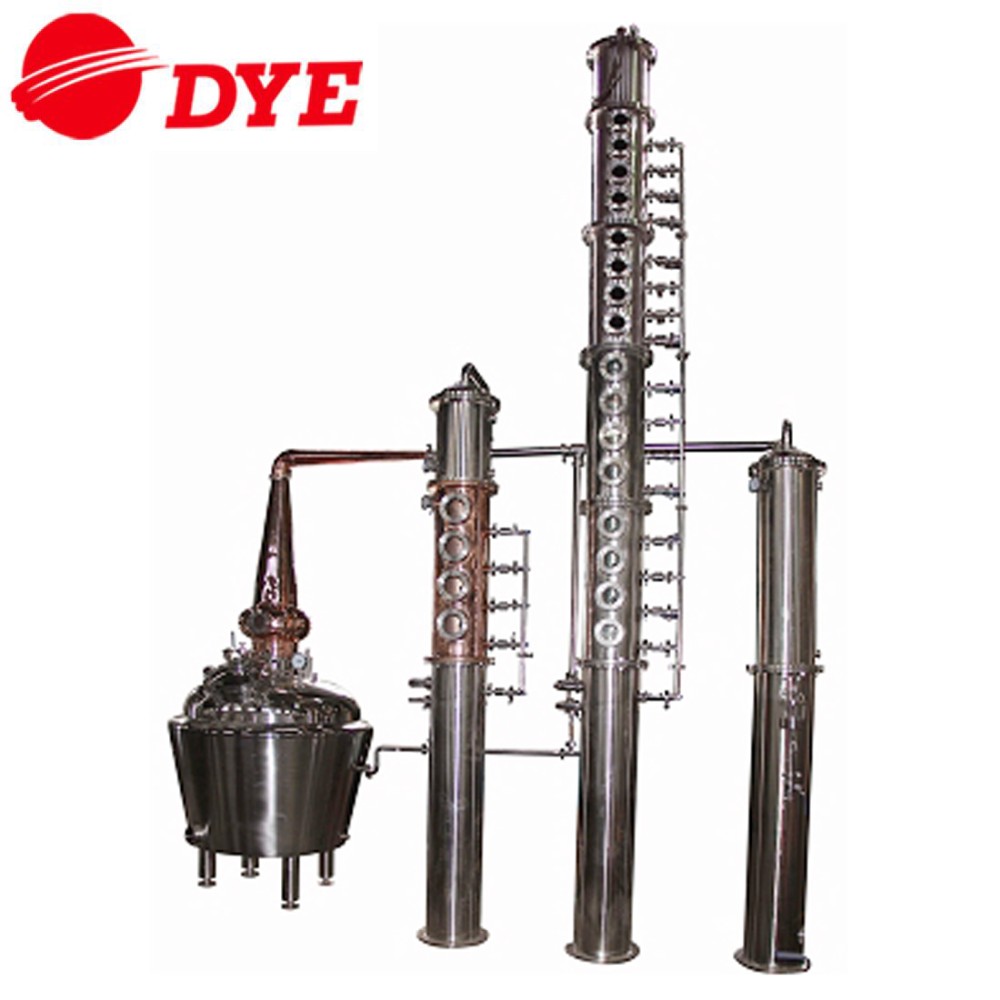

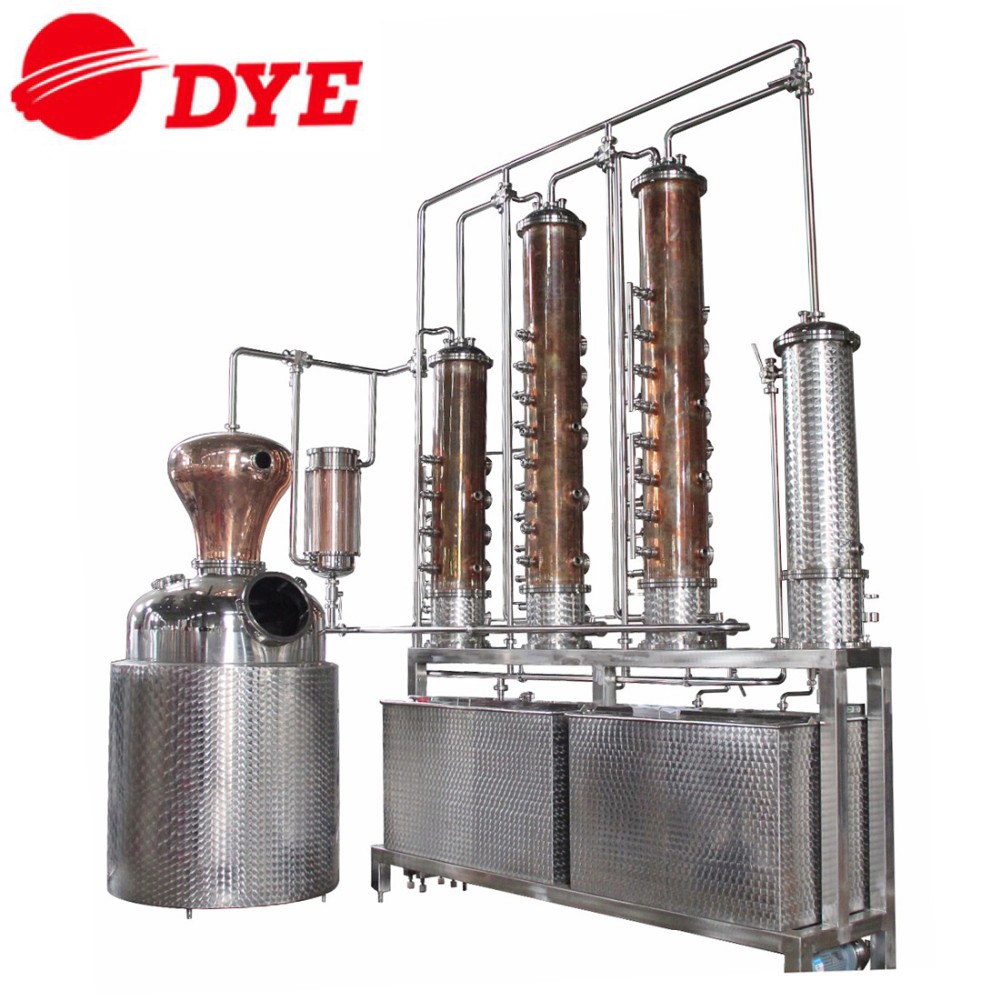

We can also supply mash/lauter tun, fermenter and spirit storange tank etc.

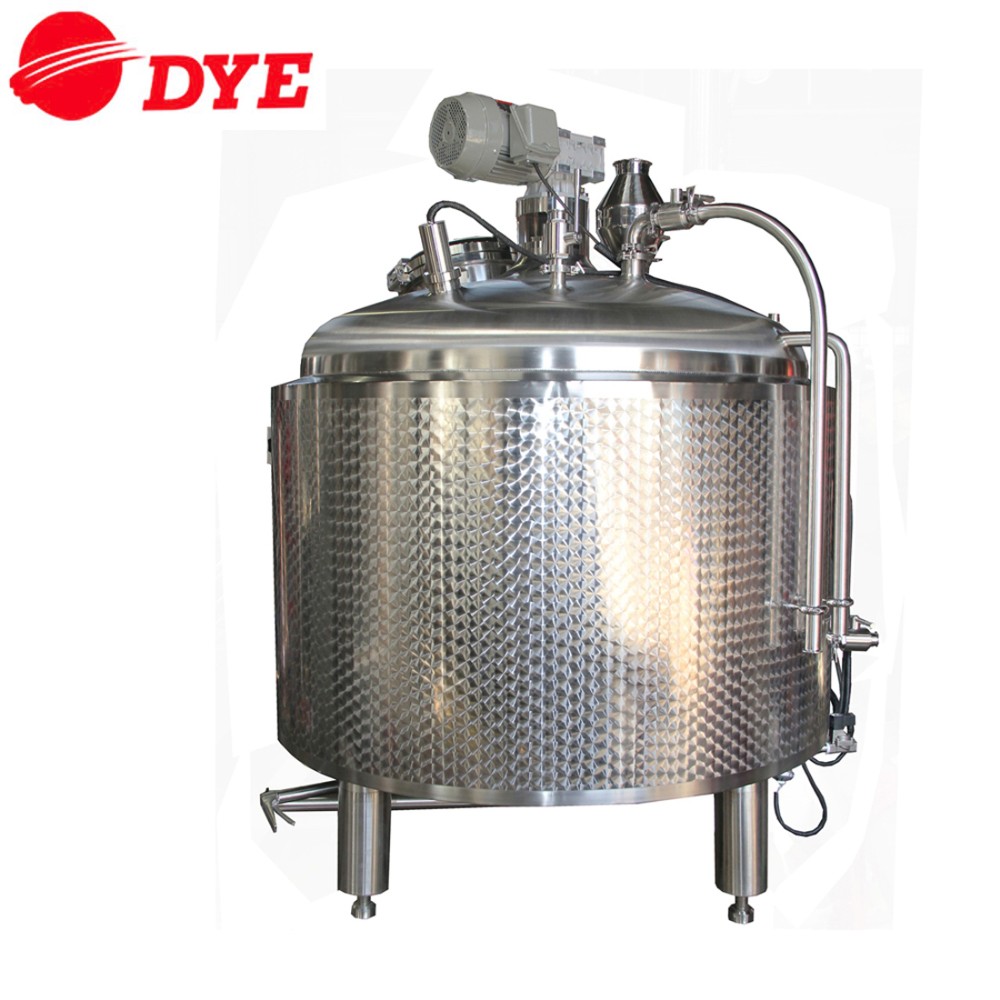

Mash lauter tun
with false bottom.It be used to convert barley grain starches to sugar.
Fermenter
Fermentation of the wash

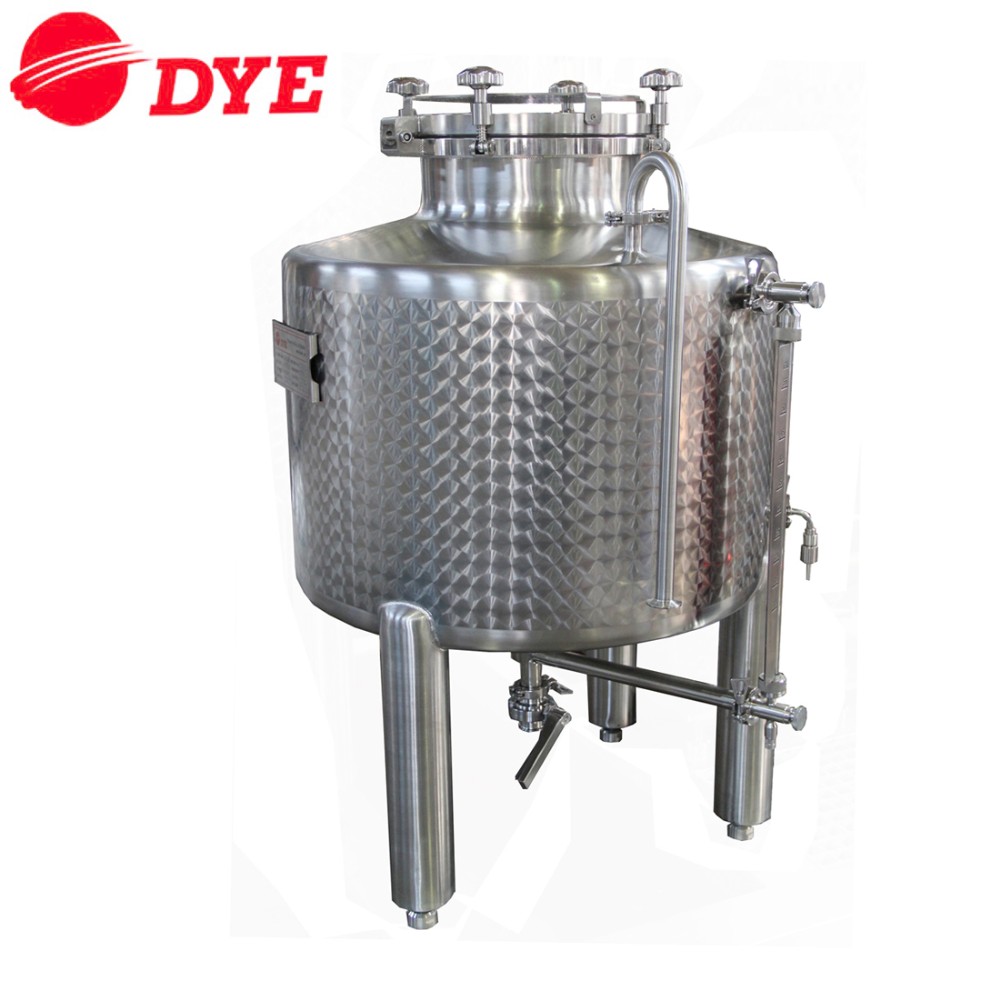

Spirit storage tank
Collection of spirits
Thickness test

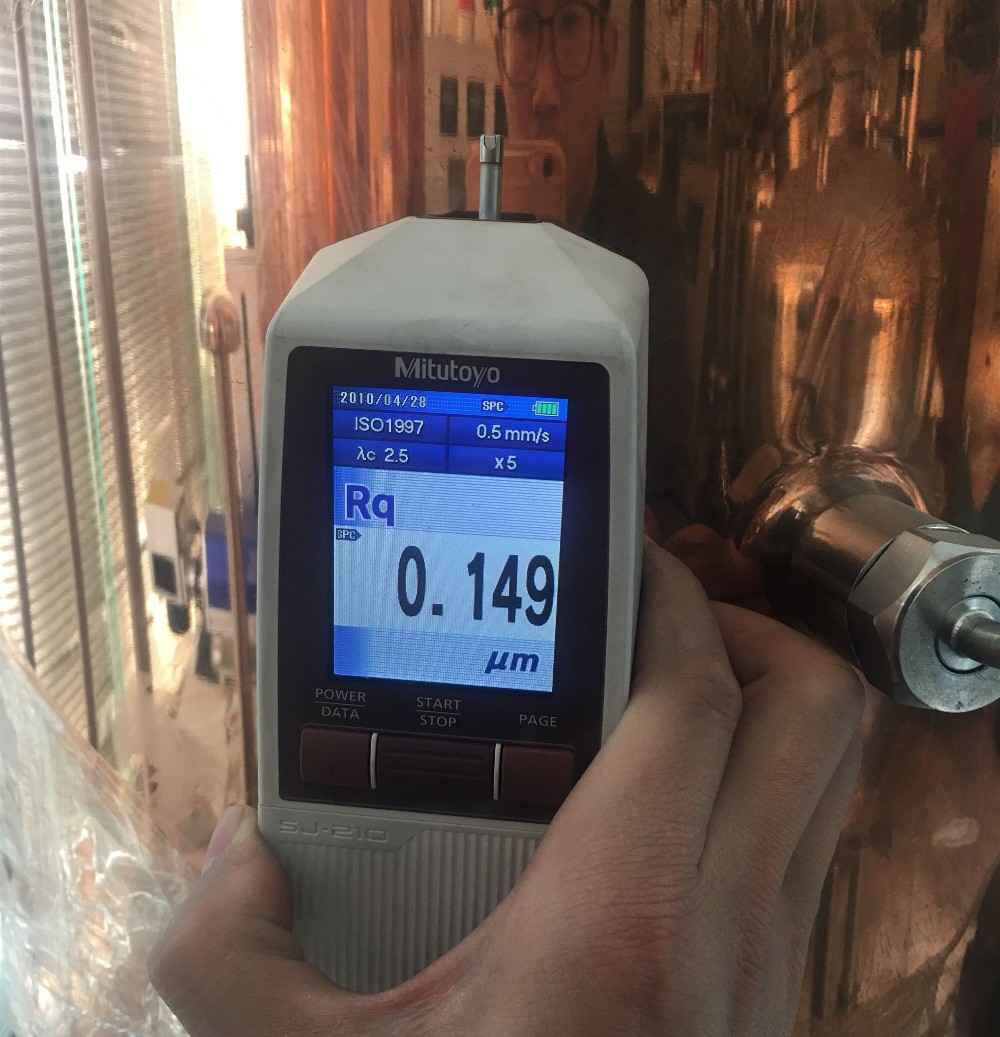

surface finish test
Material test
ISO

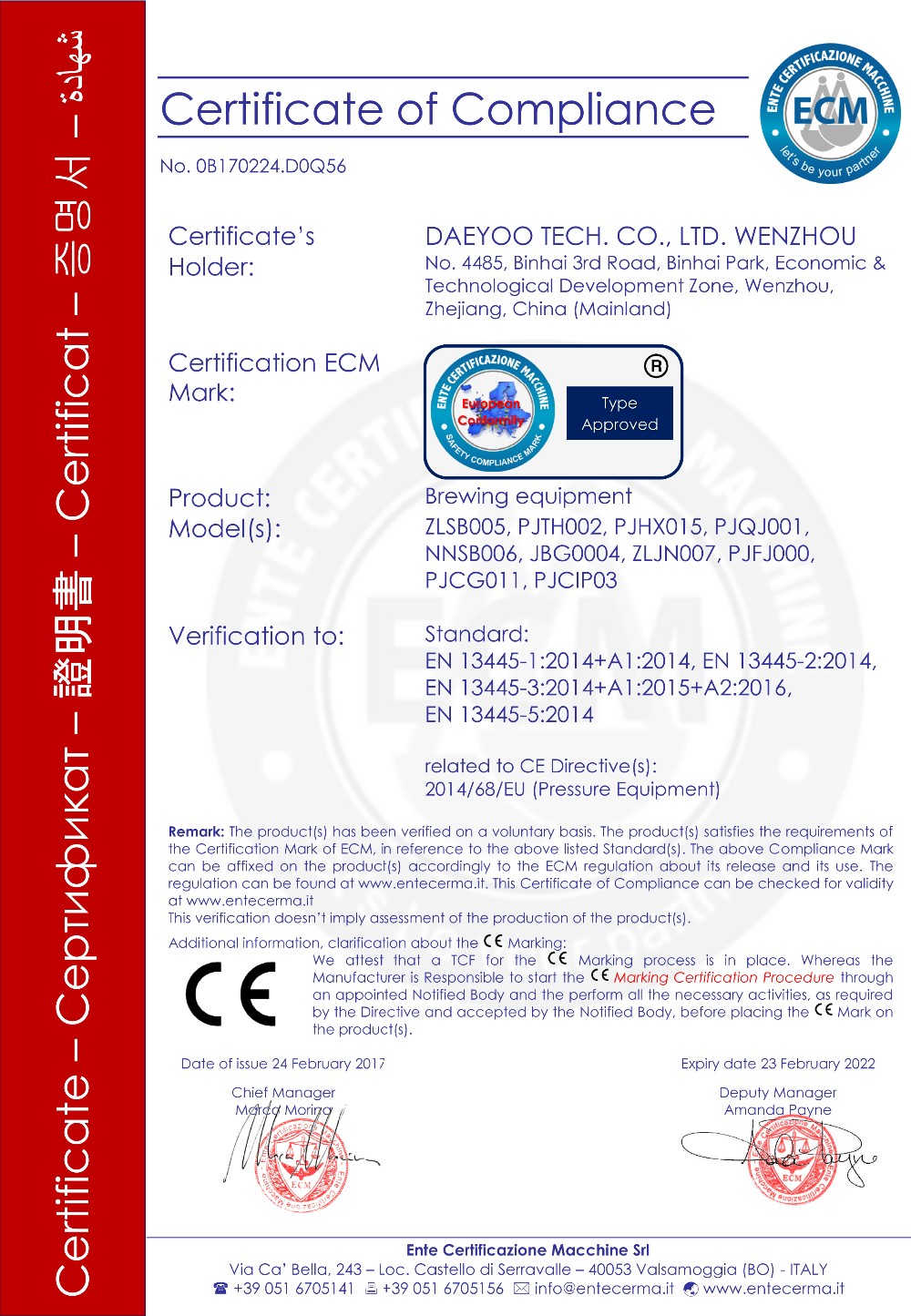

CE
TUV
Our customer
Pre-Sales Service
1. Free of making offers, craft and technical guidance.
2. We can provide company's qualification certification and the drawings.
3. We can also make customized products according to customer's needs.
After-Sales Service
1. We provide long-term after-sale service.
2. Owing to the quotation of our equipment is FOB price which excluded charges of door-to-door service. Thus, if necessary, we can appoint our technician to debug the machine with air ticket, visa, accommodation and labor cost provided by your party. Or you can send your technician to our company to learn techniques.
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
