 | Fermenter: · Short lead time: the equipment will be delivered within 60 days after the deposit is received.
If any items you are interested,Warmly welcome you feel free to contact us. |
| Main Technical Parameters | FV-2BBL | FV-7BBL | FV-10BBL | FV-15BBL | FV-20BBL | FV-25BBL | FV-30BBL | FV-40BBL | FV-50BBL | FV-60BBL | FV-90BBL | FV-120BBL |
| Working Volume(BBL) | 2 | 7 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 90 | 120 |
| Material | All Stainless Steel SUS304 | |||||||||||
| Inner Tank Diameter(mm) | 650 | 1000 | 1100 | 1300 | 1450 | 1500 | 1600 | 1750 | 1900 | 2150 | 2150 | 2100 |
| Cylindrical Height (mm) | 600 | 900 | 1100 | 1100 | 1220 | 1500 | 1500 | 1700 | 1830 | 1600 | 2440 | 4000 |
| Outer Diameter | The diameter of inner cylinder+The thickness of insulation*2 | |||||||||||
| Reference Height (mm) | 1750 | 2400 | 2700 | 3000 | 3250 | 3500 | 3550 | 3950 | 4150 | 4000 | 4700 | 6700 |
| Conical Degree | 60º to 90º | |||||||||||
| Surface Roughness of Inner Shell | Ra≤0.22μm | |||||||||||
| Surface Roughness of Outter Head | ||||||||||||
| Head Type | DHA/DHB | |||||||||||
| Jacket Type | Dimple jacket, high cooling efficiency. Dimple jacket thicness: 1.5mm, Welding hole diameter:12mm, centre distance between each hole is 80mm.Jacket height is 15mm. | |||||||||||
| Cooling Area(m²) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 9 | 11 | 13 | 16 | 19 |
| Insulation Materials | PU Foma Insulation | |||||||||||
| Insulation Thickness(mm) | 50/80/100 | |||||||||||
| Cladding Shell | 2B Plate,Mirror polished,Matt polished or Satin Finished,cladding shell thickness is 2mm | |||||||||||
| Manway | Top manway | DN300,DN350,DN400,DN500,DN600 are available | ||||||||||
| Side-manway | ellipse manway:580X480,530X430,500X400 are available | |||||||||||
| Adjustable Feet | 3 or 4,Round legs, height adjustable | |||||||||||
| Racking Arm Outlet | Tri-clamp Φ51/Φ63/Φ76/Φ89(rotating part),360°rotating, easily operating | |||||||||||
| CIP Cleaning Piping | Tri-clamp Φ32/Φ38/Φ51, Using arc direct transition, no weld, more health, but also reduce the resistance of pipeline, improve cleaning efficiency | |||||||||||
| Lifting Ears | According with HG/T 21574-2008 | |||||||||||
| Level Gauge | Sanitary hose connected to cleaning pipe and bottom outlet | |||||||||||
| CIP Cleaning Ball | Tri-clamp Φ63/Φ76/Φ89, The quick clamp connection, disassembly, 360° omnibearing cleaning, installed in the top of the device | |||||||||||
| Inlet/Outlet | Tri-clamp Φ25/Φ32/Φ38/Φ51/Φ63, Also can choose the bottom two deep pot of different height of outlet, clamp connections | |||||||||||
| Safty Valve | Tri-clamp Φ51 | |||||||||||
| Yeast Inlet | Tri-clamp Φ76/Φ89/Φ102/Φ133/Φ159 | |||||||||||
| Thermometer | M12X1.5(digital display)/M27X2 or Tri-clamp Φ32 | |||||||||||
| Pressure Gauge | M20X1.5/ Tri-clamp Φ32 | |||||||||||
| Sample Valve | Tri-clamp Φ25 | |||||||||||
| Carbonate Stone | Tri-clamp Φ51/Φ63/Φ76/Φ89 | |||||||||||
| Vent Hole | Tri-clamp Φ25/Φ32/Φ38/Φ51 | |||||||||||
| Jacket Inlet/Outlet | Female screw/Male screw | |||||||||||
| LOGO Nameplate | Laser engraving | |||||||||||
| Accorssies | Themometer,thermo-well,sampling valve,pressure gauge,pressure/vaccum relief valve, 3* butterfly valves,C02 port,PVRV,beer level indicator. | |||||||||||
| Notes | It can be made according to customers'special requirements. |
 | ||
| APPROVED CAERTAIFICATION | SALES NETWORK | WHY CHOOSE US? |
CE, PED (TUV NORD) UL ( TUV NORD) ISO9001 (2008 ) SGS | USA, UK, Canada, Russia, Australia, New Zealand, South Africa, Sweden, Spain, France etc. | Advanced Facility, Adequate Capacity High Quality Product Excellent & Satisfatory Services |
DAEYOO TECH. CO.,LTD WENZHOU / DYE, have professional designer and technicians to provide technical assistance.
Nomatter your distillery and brewery is a large, existing operation or a start-up in this Industry,
we can do equipment according customer's request.
Choose us and get more benefits
Deliver innovative products in the market at a faster pace.
Enhance the reliability of product's quality.
Decrease the total cost of the product effectively;
Improv research personnel's ability of creative design;
Gain more leading technologies about product and increase the competitive advantage of products.

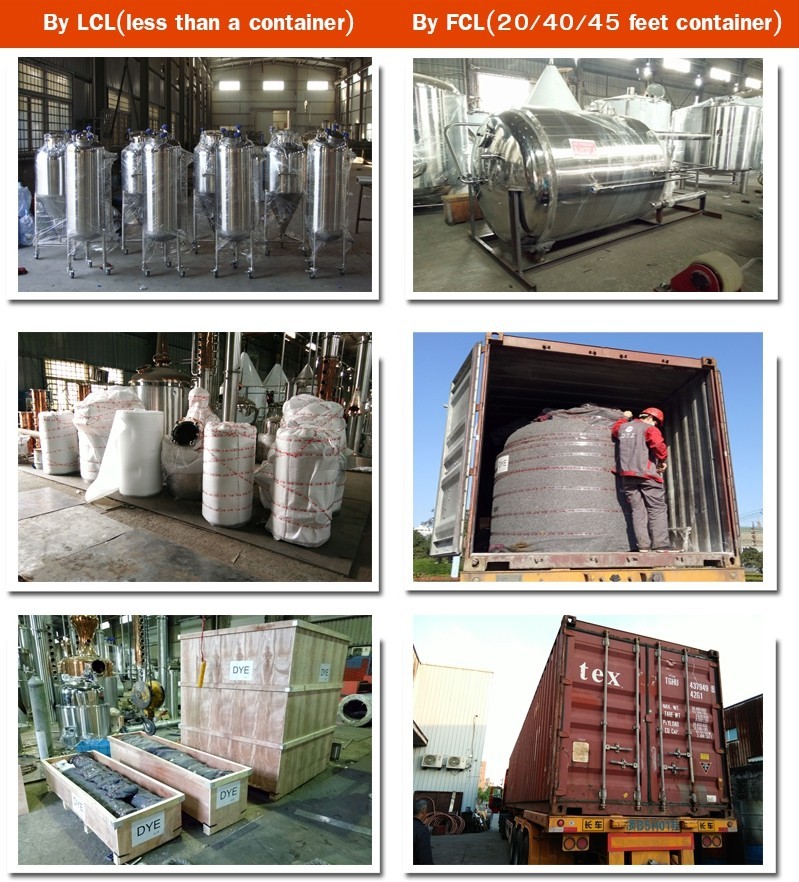

After finished your order, we will arrange to shipment.
LCL/ Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
FCL/ Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
FREQUENTLY ASKED QUESTIONS
How can customer visiting our factory?
We are in Wenzhou city,Zhejiang Pr.China.which is very near to Shanghai.From Shanghai,China to our city, it will take 1 hour by air, and 4 hours by fast train.
The name of airport is Wenzhou Longwan International Airport.
The name of fast train station is Wenzhou Nan train station.
And our factory is very close to airport only 15 minutes by car. and 1 hour by car from fast train station.
How about payment?
All the payment will be received by our company bank account. And the transaction is monitored by UnionPay. Also, alipay and O/A is acceptable.
How can customer know the processes of order?
We will take photo or video during manufacturing every two weeks to make customer clear about the order.when goods is finished,we will take more detailed photos or video for inspect.you can also come to our factory to inspect by yourself.
How to control quality?
All material we use has material certification.
Any piece of brewing and distilling equipment goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
