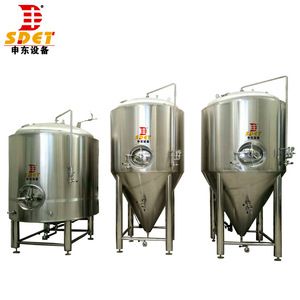

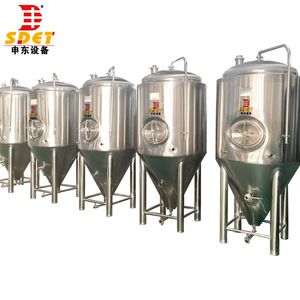

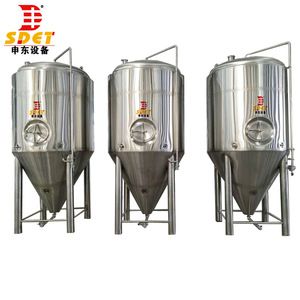

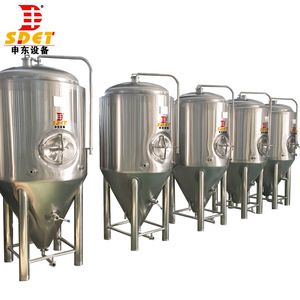

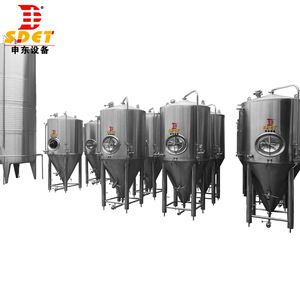

Micro brewery side shadowless manway jacket conical beer fermenter
Micro beer brewing equipment description
Beer fermenter is custom-built to fit each brewer’s individual needs. Our staff works with you on everything from defining your optimal brewery layout, to designing the setup and size of your brewhouse and tanks. Custom-piping? No Problem. Low ceiling or cramped quarters, there’s a design solution for that. Most importantly, every conical beer fermenter is built with 304 Stainless Steel, so they are durable. Further, every jacket conical beer fermenter goes through a comprehensive quality control inspection before it leaves our factory, where everything, including the inside of the piping, is inspected.
Fermenting System
Function: Use for cool wort fermentation or maturation.
Component: It is consisted of manhole, Mechnical relief valve,Sample valve, Pressure gage, Rotate racking arm, Butterfly valve, and so on. Side shadowless manway jacket conical beer fermenter are the indispensable part of beer brewing system.
Types: 50L-10000L, and even bigger capacity.
Cooling method: dimple plate or glycol cooling jacket around tank both top and bottom.
Design pressure is 0.3MPa; Working pressure is 0.15MPa.( Our standard design, MPa can be customized)
Complete PPR pipeline link with glycol water tank and fermenting tank for cooling.
Details of Beer Fermenter
1. Side shadowless manway jacket conical beer fermenter material, we adopt high quality food grade material , many brands of accessories like pump , miller, refrigerated group for your choice.
2. The interior polish presion can reach to 0.2-0.4 um
3. High quality Insulation material: PU or rock wool.
4. 100% TIG welded joints, make the beer brewing equipment can be used for a long time.
5. The manhole is stainless steel/shadowless manhole, durable and beautiful.
Features of bright beer tank

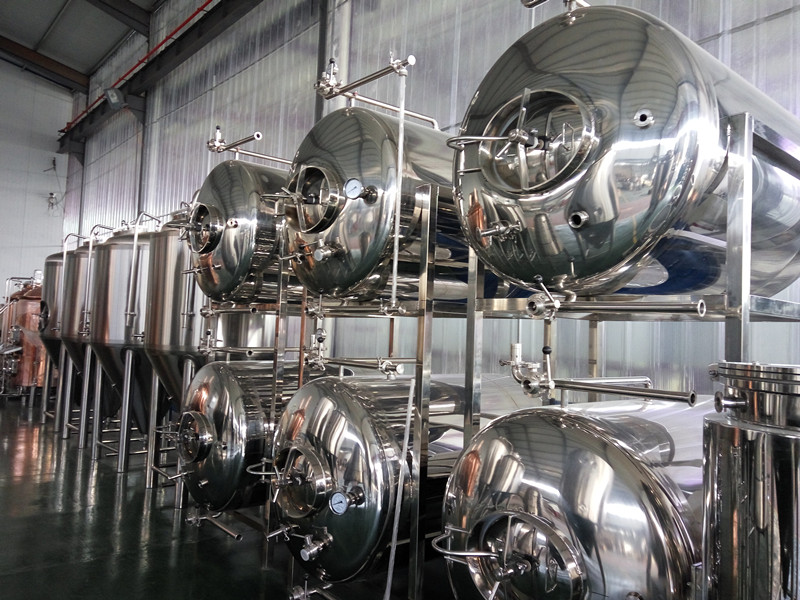

Can also make horizontal tank if space restriction
Thickness of outer:2.5mm
Thickness of inner:3.0mm
Insulation material PU with 80mm
Dry hops adding port on the top
Top/side shadowless manhole
360-degree comprehensive rotary cleaning ball
With water-seal valve(relief valve) and pressure gauge on the CIP pipe
Safety valve on the top
Sanitary sample valve for sampling the the beer
150-degree conical bottom
Stainless steel legs with adjusting bolts
Fitted Level gauge if needed
Fitted carbonation stone
More Equipment for your reference
Except the micro brewery side shadowless manway jacket conical beer fermenter, we still make:
Home beer brewing equipment:50L~200L mini brewery, for home brewery fan, mini brasserie
Stainless steel beer brewing equipment: 100L~5000L, 5BBL~30BBL, 1hl~50hl or even larger
Jacket conical beer fermenter/Unitanks:50L~10000L
Bright beer tanks/Serving tanks/Conditioning tanks: 50L~10000L
Beer selling: Beer selling tanks, beer machine, bar used beer tap/tower
Bottling: manual/semi-auto bottle filling, bottle rinser, bottle washing, capping machine
Kegging: stainless steel beer kegs, dispensers, single-head keg filling&Washing,
double head keg filling&Washing
1. With more than 40 years brewing experiences, we are more professional.
2. As manufacturer of jacket beer fermenter with our own factory, the price is more competitive.

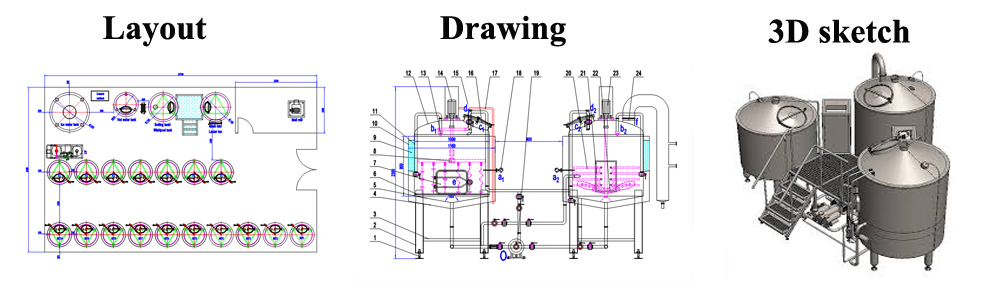

3. 3D & CAD drawing, design and maintenance according the conical beer fermenter for free.
4. CE/PED/ISO certificated stainless steel tank is 100% tested.
5. Engineers available to service installation and training overseas for free.
6. The main conical beer fermenter has 5 years warranty, auxiliary engine and accessory have 1 year warranty.
7. 7*24 hours service.
8.Term of payment : T/T, trade insurance and L/C is available.
Q1 Can your brewery system make both lager and ale?
A1 Yes. Our brewery system can do this.
Q2 How to do temperature control?
A2 The PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
Insulation keep the temperature.
Q3 Is it possible to supply installation in my country?
A3 Yes, our engineers can go to your place and teach your person installation and brewing.
Q4 Are you manufacturer or trade company?
A4 We are the manufacturer
Q5 What certificate do you have?
A5 We have ISO9001, CE, PED certificate. CSA, SGS and other certificate if needed, we can also customize for you.
Q6 What’s the welding and polishing quality?
A6 All the welding is full 100% TIG(argon arc welding), single face welding, double face forming. All inner polishing is mirror polishing.
Q7 Do you offer complete/Turnkey brewing system?
A7 Yes, we can supply you the complete beer brewing system, you just prepare the water, malt, hops, and yeast etc.
Q8 How long is your warranty for beer brewing tanks?
A8 5 years. We will offer free service and free spare parts if any problems happens naturally within warranty.
Ship micro brewery beer fermenter by LCL or FCL
Packed jacket beer fermenter with plastic film or bubble film
Fix conical beer fermenter with iron frame for big tank, lay down in the container
Fumigation free wooden case for stainless steel tank by LCL
Plastic film wrapped and iron frame fixing for FCL or as your require
Delivering from Qingdao port within 30-45 days after the deposit. Customers can choose letting us deliver directly to the pointed place, or arrange shipping in person.
Regard to our company
Shandong Shendong Equipment Technology Co., Ltd was established in 2011, located in Jinan city, Shandong Province, China. We are the global leader in designing, manufacturing and supplying beer fermenter. We support craft brewers with high quality, innovative conical beer fermenter and personal service. Our company has passed the ISO9001:2000 international quality management system certification, CE/PED certificate, DI, DII Pressure Vessel Certificate, 15 patents. Our company offer turnkey project, prefect after-sale service system, make you nothing to do but not optimal. Warmly welcome all distinguished guests coming!
Our Exhibition
SDET company attended many exhibtions each year, in 2016, we attended Craft Brewer Conference(CBC) in USA, China Brew China Beverage in Shanghai and several exhibitions in domestic. In the 11-15th September, 2017, we attended drinktec 2017 in Munich, Germany,
We will show more micro brewery side shadowless manway jacket conical beer fermenter in the future exhibition.

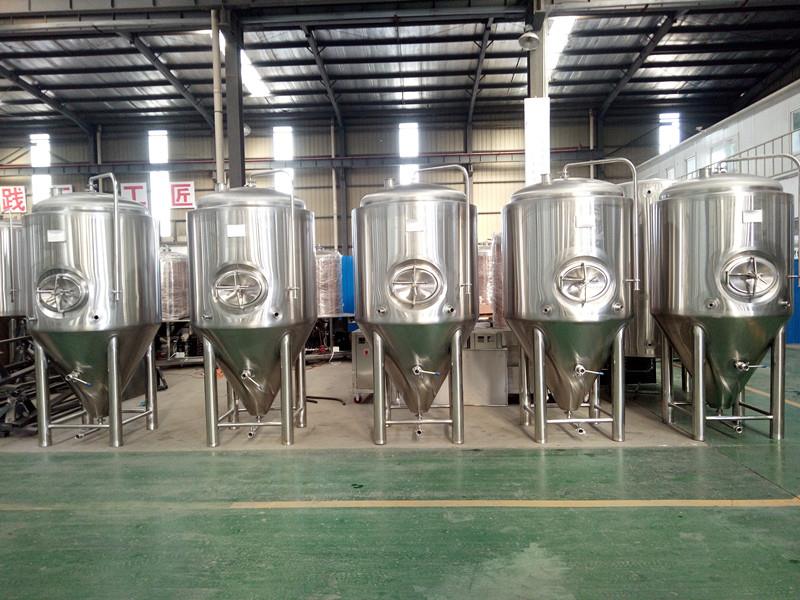

Jacket conical beer fermenter has been sold around the world in the past few years in many countries. Due to the excellent quality and good reputation, we have opened the market in many countries, our side shadowless conical beer fermenter have export to USA, Germany, Uzbekistan, Romania, Brazil, Ecuador, South Africa and other countries, and our customers also give us a high rating and recognition. If you need, you can go to local brewery to visit.
-Thanks to Shendong company giving so beautiful beer brewery equipment to us. Thanks to all the stuffs' assistance. Thanks to the engineer Mr liu coming to install the brewing system. We have enjoyable party before Mr Liu leave.
------------Andre Hoogendoorn/Netherland
-We placed order after visiting Shendong's factory. It is trustworthy partner. Now complete system is on the way. We are looking forward to it. Believe we will have more cooperation
-------Phillip o'shea/Austalia
Want to know more about micro brewery side shadowless manway jacket conical beer fermenter, pls contact us.
