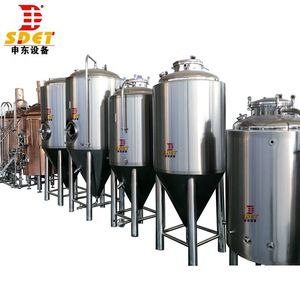

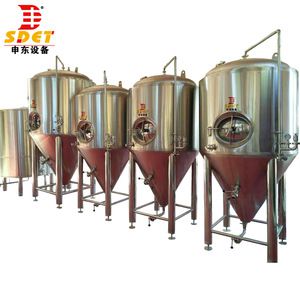

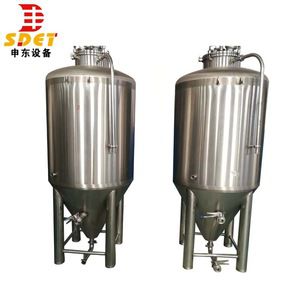

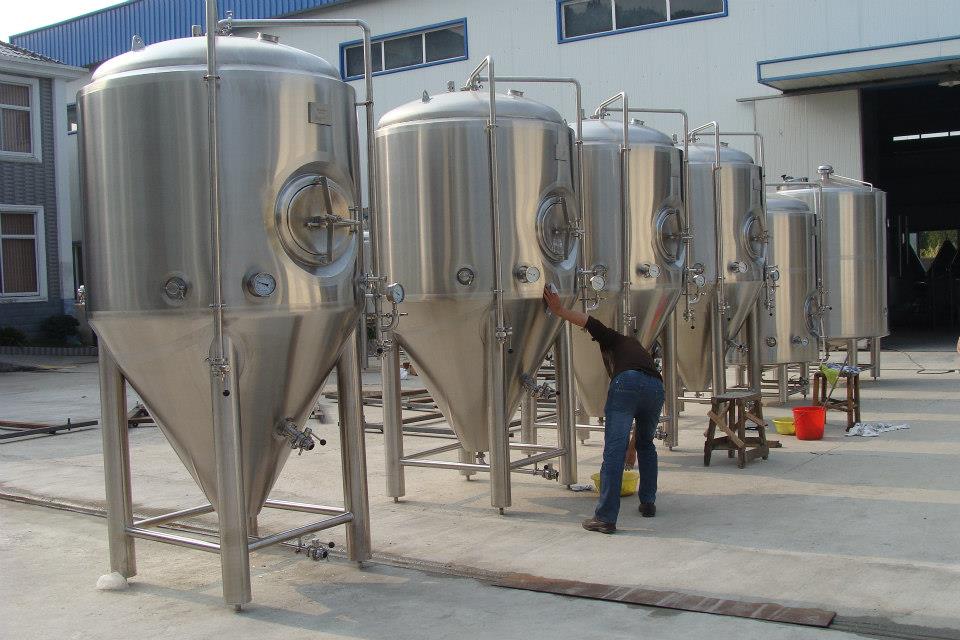

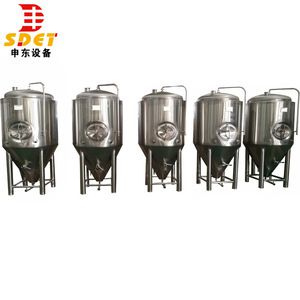

304 Stainless Steel Glycol Conical 1000l Fermentation Tank
This set conical 1000l fermentation tank use the material of SUS304/316.
This set conical 1000l fermentation tank use the channel or dimple glycol jacet.
This set conical 1000L fermentation tank manhole can be top or side manhole.
1000L Fermentation tank:
| Name | Specification |
| 1000L Fermenter |
|

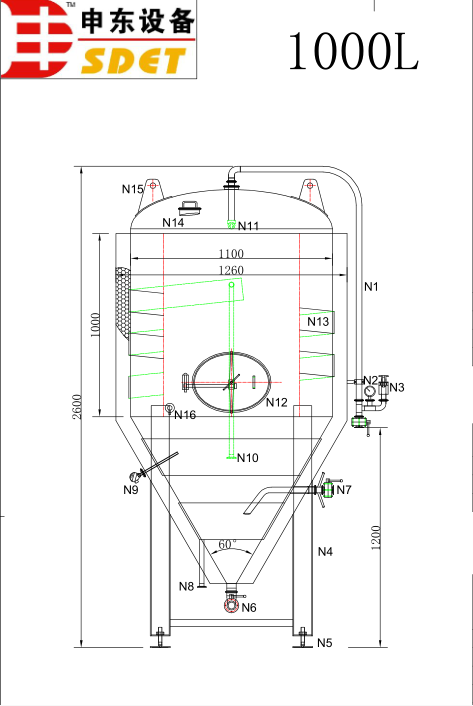

The drawing of 1000L Fermentation tank:
1000L Fermentation taank standard features:
1.Different capacities for different requirements, depend on your demands.
2.Stainless steel material 304/316
3.Inner material: stainless steel 304/316
4.Outer material: stainless steel/titanium
5.Temperature sensor(RTD)
6.Flange&dish head(single/double head)
7.Polyurethane 80~100mm

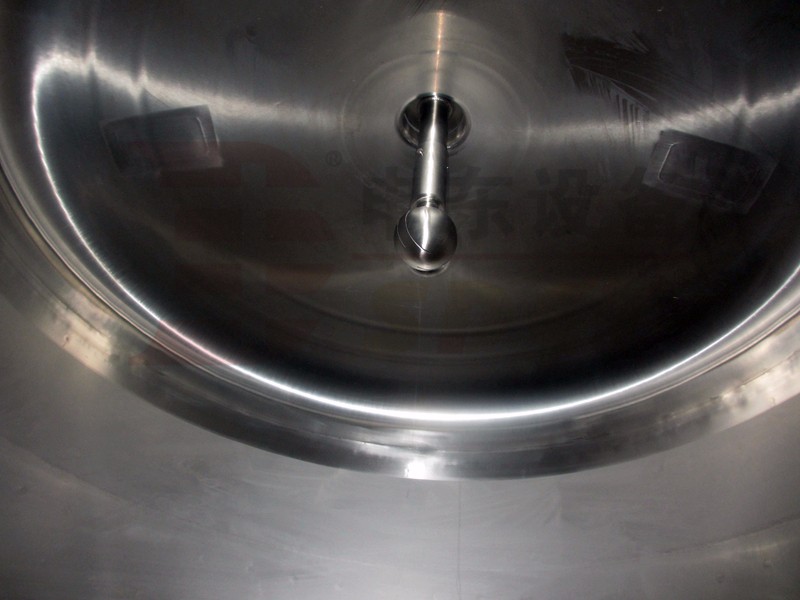

8.Rotary cleaning ball,360degree,no dead corner
9.With racking arm and agitator,sight glass manhole, with Siemens VFD for them
10.With SUS304 Plate heat exchange, two phase or one phase(according to needs)
11.Cold water tank available&optional
12. Sieve plate, laser cutting T-wires, plate gap:0.7- 0.8mm; Material is SUS 304
13.Beer brewing equipment outer thickness: 2.0~3.0mm
14.Beer brewing equipment inner thickness:3.0mm~4.0mm
15.We will provide turnkey project service, the design and others will be customized.

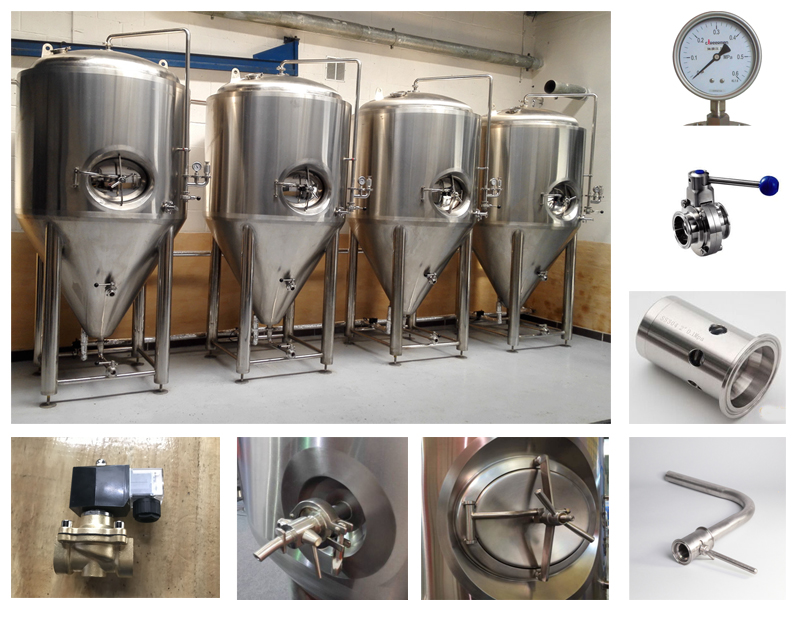

Fermentation system
Top manhole or side manhole. Top manhole have better cooling effect of the tanks; Side manhole is much easily to let person enter.

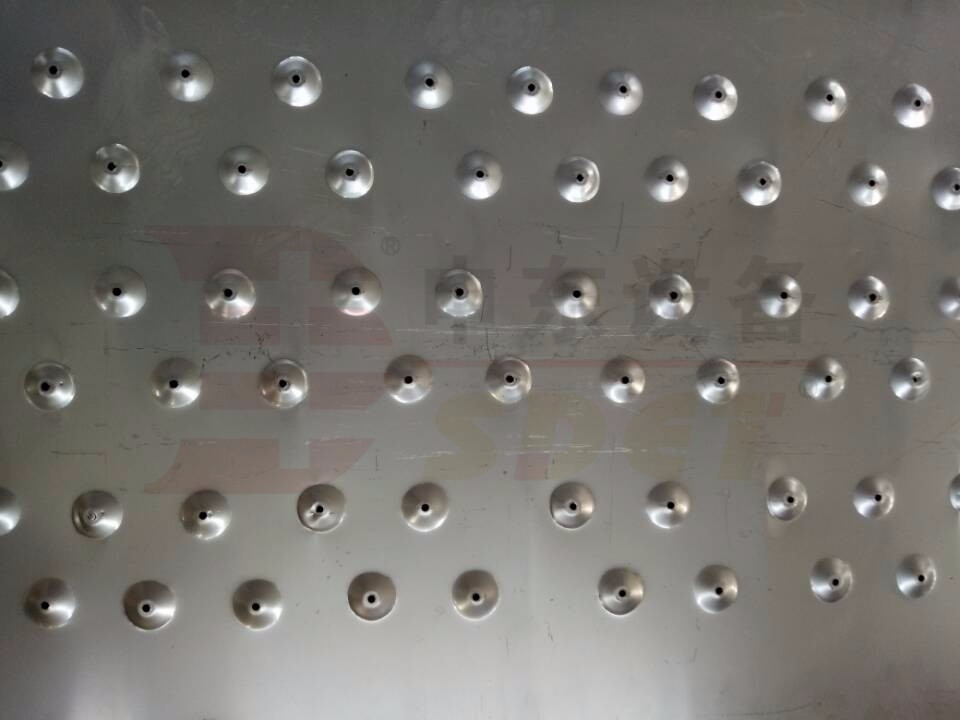

The location of mahole is design according to your needs. Glycol jacket: dimple or glycol jacket.
Cooling media: glycol water or alcohol water. Design pressure 0.3MPa,Working pressure 0.2Mpa
Stringent jacket leakage test by pressured gas

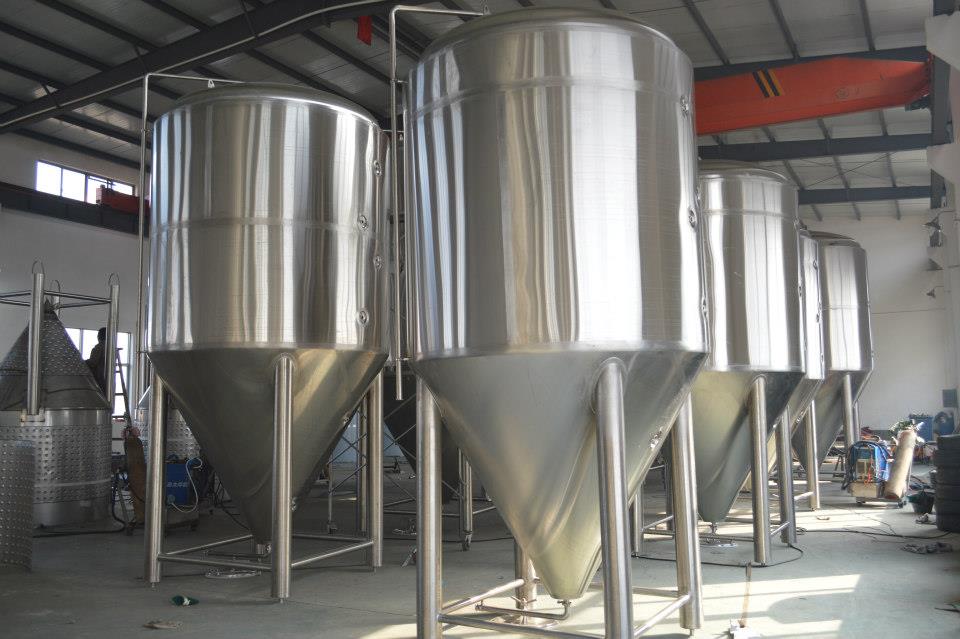

Cone bottom:60°cone bottom or according to your needs.
Dry hops port on the top of tanks with butterfly valve and hopper(This can remove if the hops enter from other parts, let it make better beer.
Full sanitary sample valve, no seal ring, no pollution.
The numbers of fermentation tank is according to the beer brewing equipment daily output beer.
CIP system:
It include Disinfection tank, Alkali tank,CIP pump. It used to clean fermentation system and other parts.
The motor of the pump is ABB, it is imported from Switzerland.
This system is used to clean the whole beer brewing equipment.

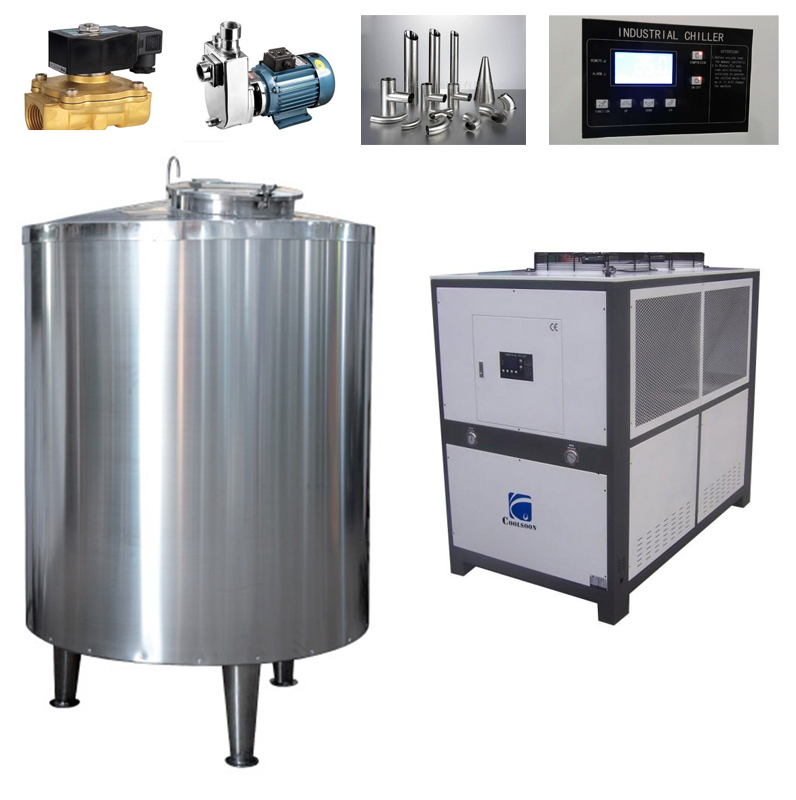

Glycol cooling system:
It used to cooling the fermenter and water to keep the beer fresh.
This part play important roles in the whole set beer brewing equipment.
Our chiller use high quality Australia Coolsoon brand. The important advantage of the chiller we provide for the clients as follows:
a. safety refinements: Compressor overheating protection, Overcurrent protection, High and low pressure protection, Over-temperature protection,
Flow protection,Phase sequence/phase protection, Exhaust overheating protection.b.Word famous chiller, quality is excellent. If there is something wrong in future,
it is easy to find spare part.
c.Compressor: Danfoss, Denmark;
d.Electrical components: Schneider, Germany;
e.Stainless steel water pump: CNP, Taiwan;
f.Evaporator: Coolsoon, Australia;g.Condenser: Coolsoon, Australia;
g.Pressure controller: JIUNAI
h.LCD temperature controller: Coolsoon, Australia;
i.Expansion valve: ALCO, USA;
j.Dry filter: ALCO, USA;
k.Antifreeze switch: SAGLNOMLYA, Japan;
This high qulaity chiller will make sure cooling the 1000L fermetation tank well.

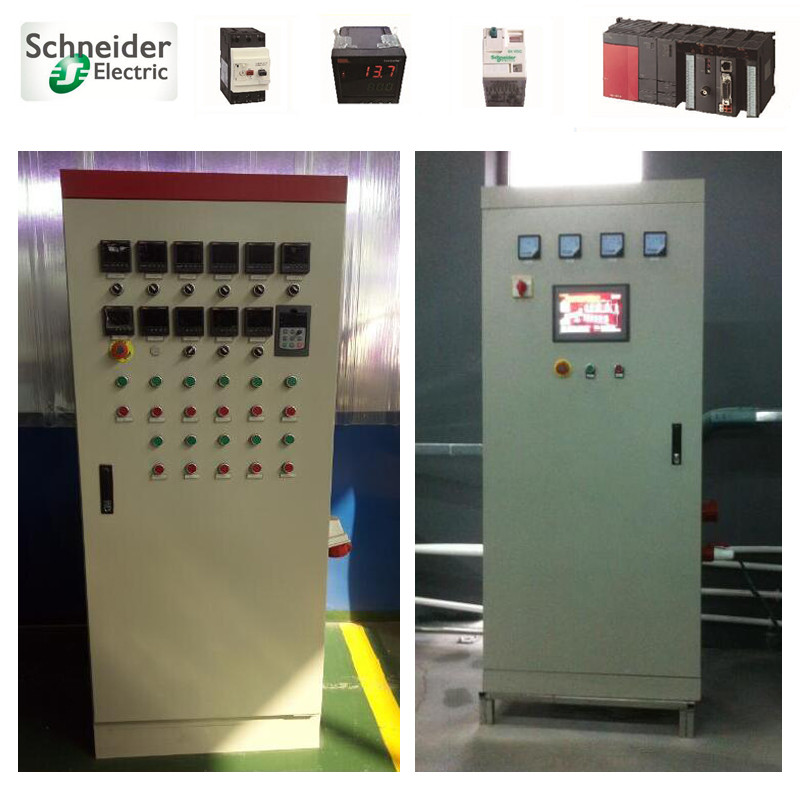

Control system:
Application:Used for controlling all fermenters/serving tanks,CIP, mashing system and cooling system.
Type:It can be make PLC or Instrument type.
Assembling style: floor type/wall hanging
Electric parts: world wide brand CE certificated
It have VFD to control the racking arm and wort pump
All the fermenters /Ice water tank’s temperature will be controlled on the cabinet automatically.
All the systems are the necessary parts to cooperate together make the beer brewing equipment let the brewers operate easily and keep long tem using.
Also have some auxiliary systems: Such as keg filler and keg washer, bottiling line, water treatment sytem and other system, these parts are choosen by the brewers.
Shandong shendong Brewing Equipment Technology Co.,Ltd is a professional supplier and service provider of fermentation tank.We can provide turnkey project hotel brewery equipment according to your needs.Shandong shendong Equipment Technology Co.,Ltd t is a modern enterprise in combination of designing, manufacturing and selling on restaurant,hotel using beer brewing equipment to make fresh beer. Jinan manufacture high quality beer brewing equipment.
Our company is one of the biggest manufactures for small and medium beer brewing equipment.
At present we have export to US, Germany, Poland, Portugal, Romania,Greece,South Aferica and other countries.We can provide standard and customized beer brewery equipment.
Quality is like our life, we understand it is very import for you either,we will try our best to make our brewery equipment for the clients.

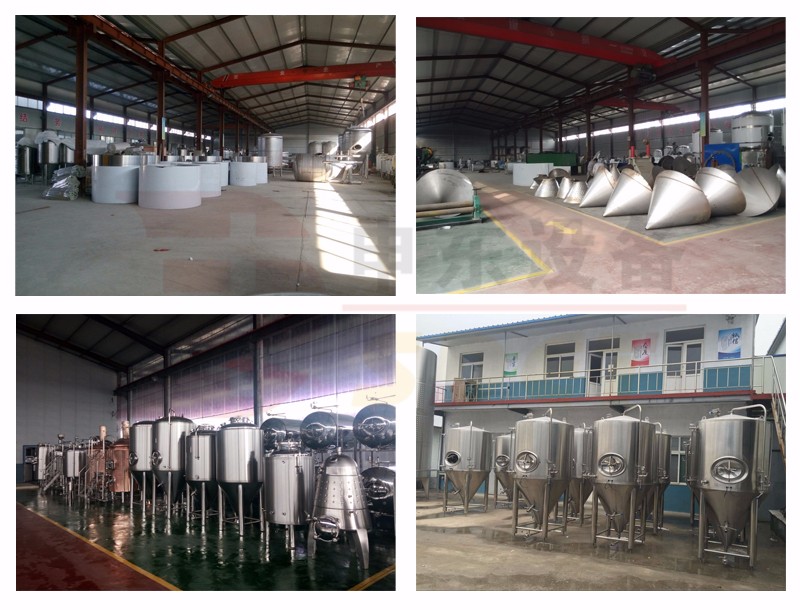

Friends, welcome you come to visit our factory have a comprehensive visiting and see our own make beer brewing equipment, try our fresh beer.
Shandong shendong Brewing Equipment has CE, PED,ISO,SGS certification and many patent of invention. We exported the fermentation tank to US, Germany, Poland, Portugal, Romania,Greece,South Aferica and other countries.We try our best to make the highest quality for our clients.
We will make strict quality control before packing by professional checkers and engineers before shipping. They will test the pressure of fermenters,
test the brewhouse and other brewing equipment system. All what we do is make sure the high quality craft brewery, as we know quality is the first important for our clients.
The whole set beer brewing equipmentwill be put in the FCL, less set equipment will be put in the LCL. You can choose sea or railway transport according to your needs.
All the packing will be firm to protect the fermentation tank.
1.Q: How quickly after payment you could delivery the 1000L fermentation tank?
A:The delivery time will be within 20-30wordking days, it depends on the numbers of the tank.
2.Q:What's the service you can provide?
A:Provide beer production technology and brewing formula,beer brewing equipment design, installation and debugging, personnel training service;Providing CADand 3D layout drawing.
3.Q:What's the 1000L fermentation tank warranty time?
A:Provide 5 years complete warrantee for beer brewing tanks body and life-time maintenance service;All of the accessories and auxuliaries facilities are guaranteed for one year
4.Q:How to check the quality before delivery?
A: We have our professional engineers to check the 1000L fermentation tank quality before delivery, also we welcome you come to check the quality or let the third-party check the beer brewing equipment qualiy before the fermentation tank delivery.
