20bbl fermentor for beer brewing system

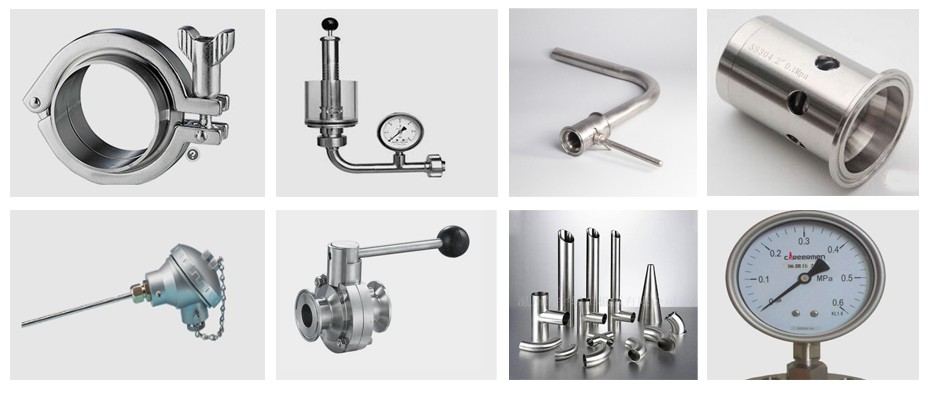

20bbl fermentor for beer brewing system have stainless steel fittings materials are all adopt SUS304/316, applicable beer equipment to ensure the safety of food grade.

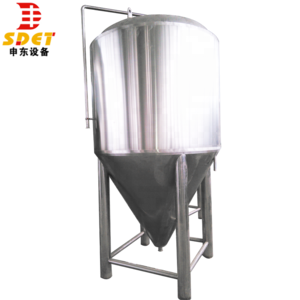

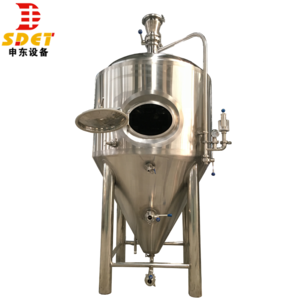

Fermenter for beer brewing system:
| Name | Specification |
| Beer Fermenter |
|

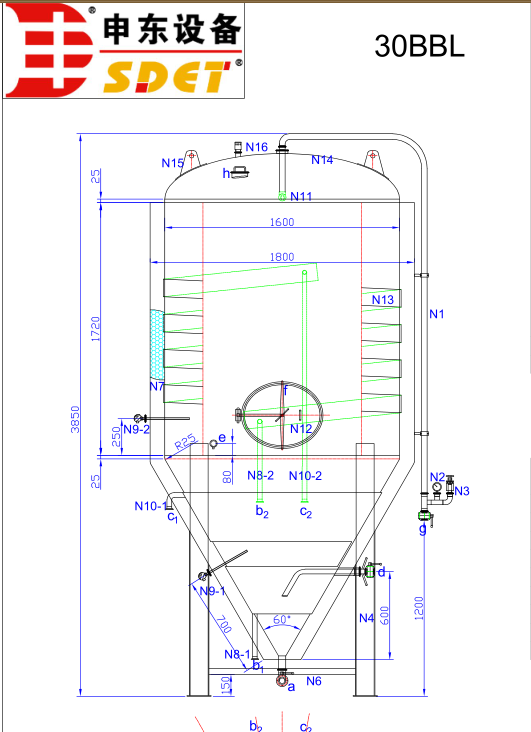

The drawing of beer fermenter for reference:
Beer Fermentation tank standard features:
1.Different capacities for different requirements, depend on your demands.
2.Stainless steel material 304/316
3.Inner material: stainless steel 304/316
4.Outer material: stainless steel/titanium
5.Temperature sensor(RTD)
6.Flange&dish head(single/double head)
7.Polyurethane 80~100mm
8.Rotary cleaning ball,360degree,no dead corner
9.With racking arm and agitator,sight glass manhole, with Siemens VFD for them
10.With SUS304 Plate heat exchange, two phase or one phase(according to needs)

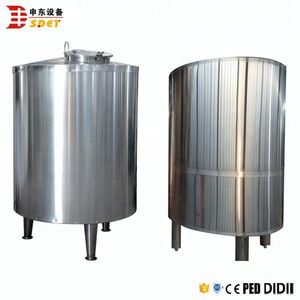

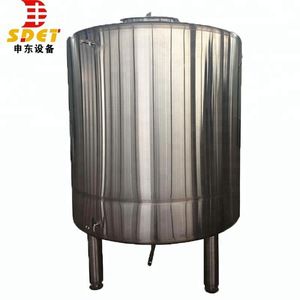

11.Cold water tank available&optional
12. Sieve plate, laser cutting T-wires, plate gap:0.7- 0.8mm; Material is SUS 304
13.Beer brewing equipment outer thickness: 2.0~3.0mm
14.Beer brewing equipment inner thickness:3.0mm~4.0mm
15.We will provide turnkey project service, the design and others will be customized.

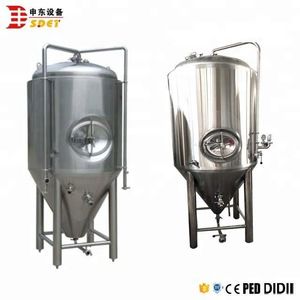

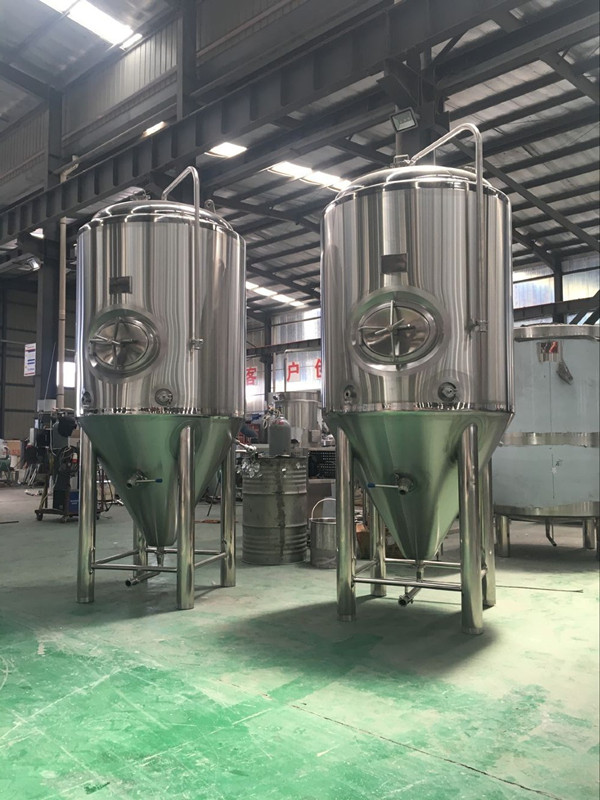

Fermentation system
Top manhole or side manhole. Top manhole have better cooling effect of the tanks; Side manhole is much easily to let person enter.

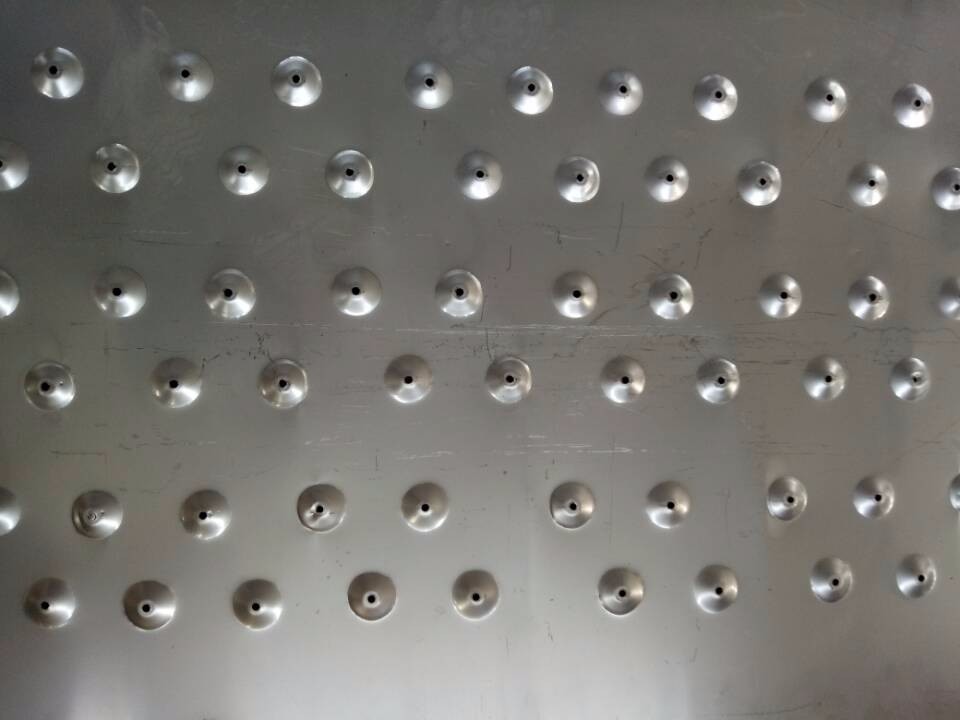

The location of mahole is design according to your needs. Glycol jacket: dimple or glycol jacket.
Cooling media: glycol water or alcohol water. Design pressure 0.3MPa,Working pressure 0.2Mpa
Stringent jacket leakage test by pressured gas
Cone bottom:60°cone bottom or according to your needs.
Dry hops port on the top of tanks with butterfly valve and hopper(This can remove if the hops enter from other parts, let it make better beer.
Full sanitary sample valve, no seal ring, no pollution.
The numbers of fermentation tank is according to the 20barrel fermenter daily output beer.

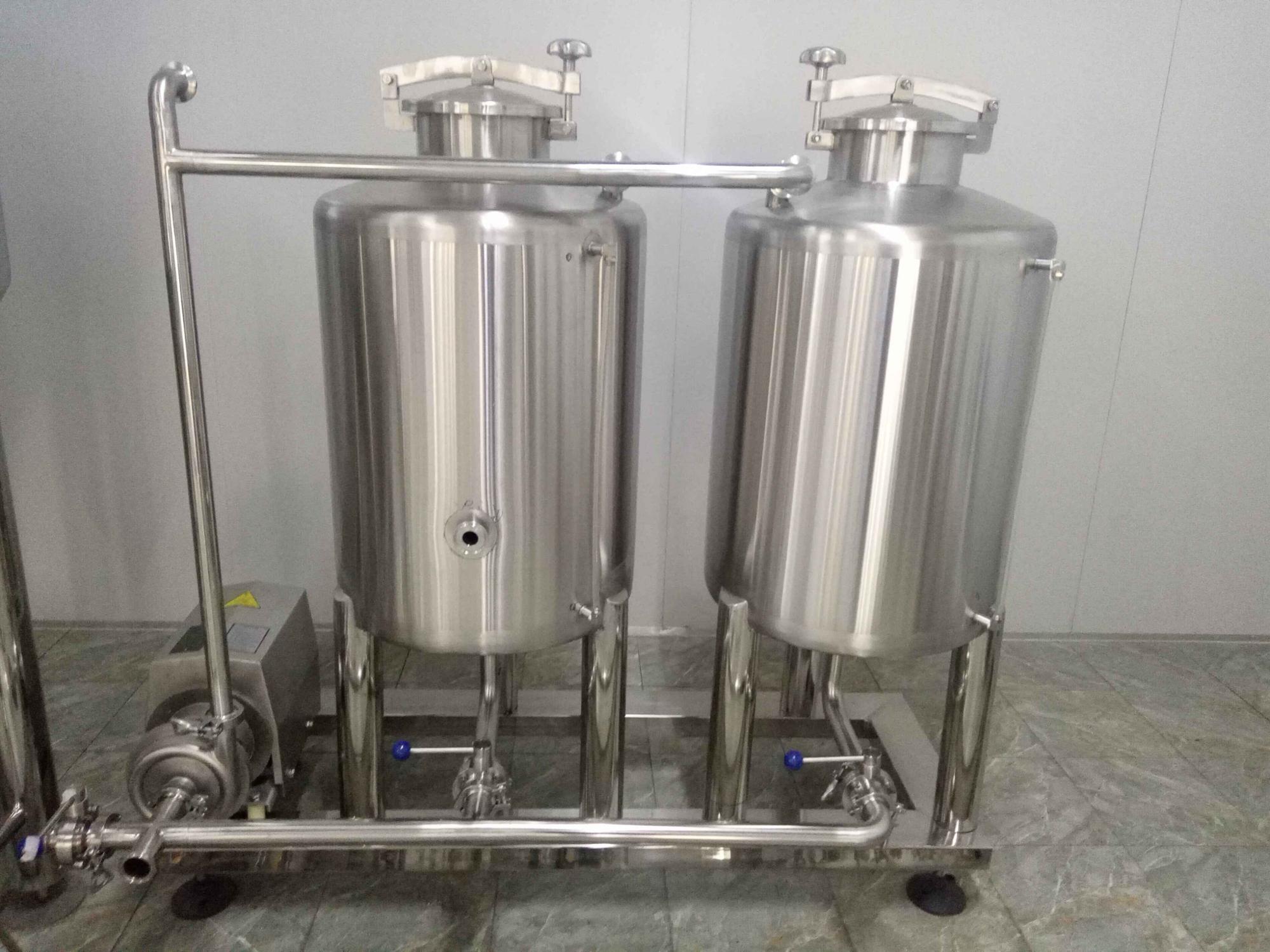

CIP system:
It include Disinfection tank, Alkali tank,CIP pump. It used to clean fermentation system and other parts.
The motor of the pump is ABB, it is imported from Switzerland.
This system is used to clean the whole beer brewery equipment.

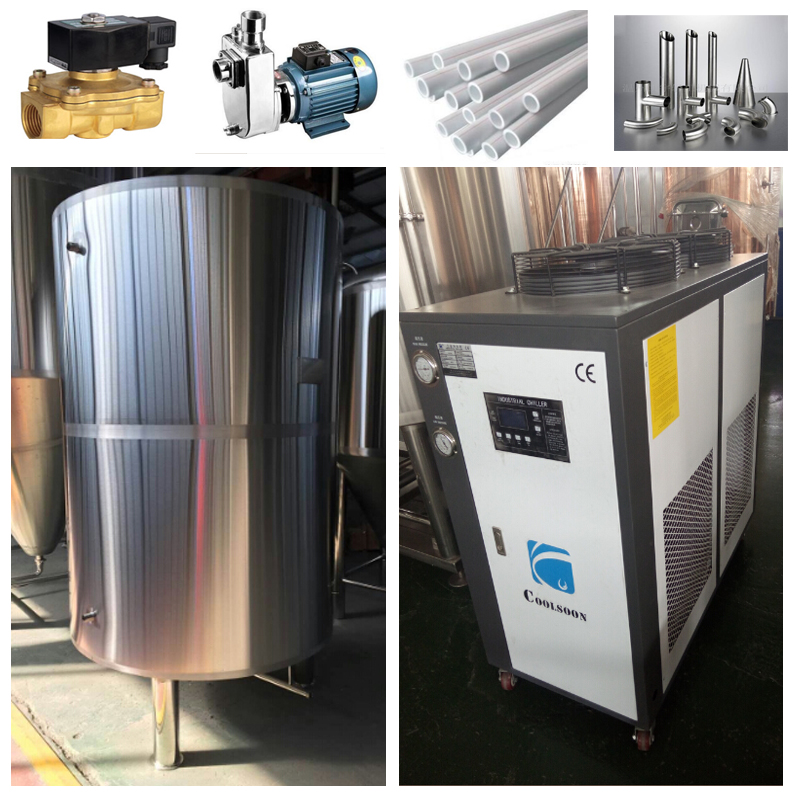

Glycol cooling system:
It used to cooling the fermenter and water to keep the beer fresh.
This part play important roles in the whole set brewery equipment.
Our chiller use high quality Australia Coolsoon brand. The important advantage of the chiller we provide for the clients as follows:
a. safety refinements: Compressor overheating protection, Overcurrent protection, High and low pressure protection, Over-temperature protection,
Flow protection,Phase sequence/phase protection, Exhaust overheating protection.b.Word famous chiller, quality is excellent. If there is something wrong in future,
it is easy to find spare part.
This high qulaity chiller will make sure cooling the 20BBL Fermenter well.

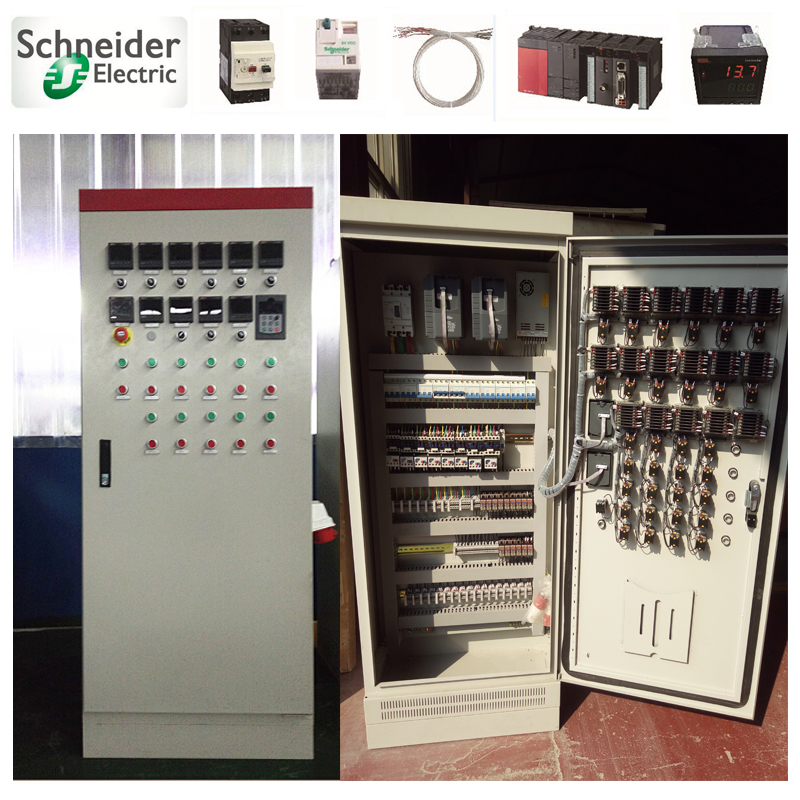

Control system:
Application:Used for controlling all fermenters/serving tanks,CIP, mashing system and cooling system.
Type:It can be make PLC or Instrument type.
Assembling style: floor type/wall hanging
Electric parts: world wide brand CE certificated
It have VFD to control the racking arm and wort pump
All the fermenters /Ice water tank’s temperature will be controlled on the cabinet automatically.
All the systems are the necessary parts to cooperate together make the beer brewery equipment let the brewers operate easily and keep long tem using.
Also have some auxiliary systems: Such as keg filler and keg washer, bottiling line, water treatment sytem and other system, these parts are choosen by the brewers.
Shandong Shendong Equipment Technology Co., Ltd. is one professional beer brewing equipment manufacturer in China. We specialize in personally manufacturing small, medium and big sized brewery plants. We also manufacture all types and sizes of fermenting and storage tanks. Our breweries can be designed according to the specific wishes of our customers. We also can offer you a wide variety of technical solutions. We can provide beer to make by fermentation of the equipments of having, can train to make wine teacher.
We have exported lots of beer brewery equipment to European and other countries, All the equipment produced by our company are adopted in SUS 304/316, and have passed CE, ISO, and PED test. We can show you our qualification and certification, to ensure provide the best quality equipment for you.
Trade Term: EXW, FOB, CIF, CFR
Supplying Ability: 35 working days after deposit

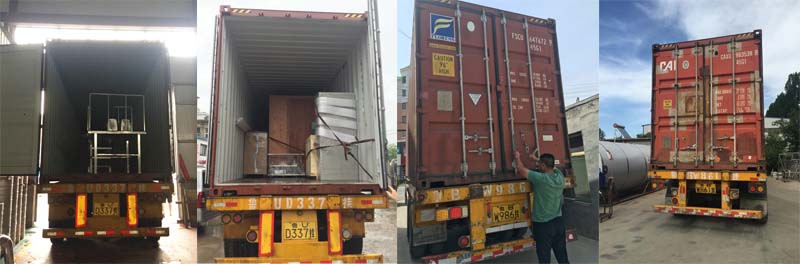

1. Packages suitable for delivery, basically by plastic film, wooden case or steel frame if necessary.
2. By bulk carrier or independent containers, the size and quantity rely on the configurations and capacity.
Q: What size building do I need?
For a brewpub a lot depends on what your yearly volume is and how many different types of beer you want to offer. The minimum surface starts at about 20m2. There are also some estimate area requests in our different brewery system in specification above.
For microbreweries the main factor is yearly volume. For small microbreweries a floor space of 300m2 is often more than sufficient.
For details on your project, we can give you exact dimensions and requirements.
