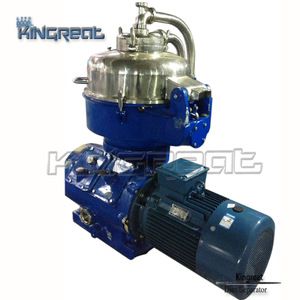

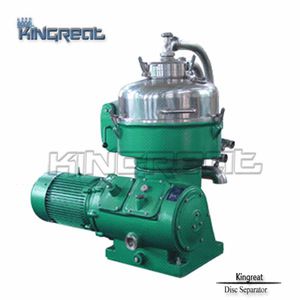

Low Consumption Effective Dewatering Starch Separator
Starch,including wheat starch,corn starch,cassava starch,potato starch,for example ,wheat starch needs the disc separators to help the process to separate starch A,starch B and gluten whatever use traditional Martines or 3phase tricanter process..as corn starch as said,it needs disc separator to exact it into the requested Baumé degree,Peony disc separators have various kinds of models to work in such starch separation and extraction stage.
Plant starch has been used as a source of raw material for high-quality starch. Today, consumption of fresh water and energy play a more important role in starch applications.
1. wheat starch
2. Corn starch
3. Sweet potato starch
4. Cassava starch
5. Potato starch
6. Bleaching earth
7. Recovering pulp
Model | PDSS-W10000 | PDSS-W20-30 |
Capacity (L/h) | 8000-10000 | 20000-30000 |
Motor power (KW) | 30 | 30 |
Discharging type | Nozzle continually discharging | Nozzle continuous |
Output pressure of clear liquid (MPa) | 0.05-0.2 | ≤0.2 |
Net weigh (KG) | 1100 | 2150 |
Overall dimension L(mm) × W(mm) × H(mm) | 1370 × 1015 × 1550 | 1720x1520x1760 |
