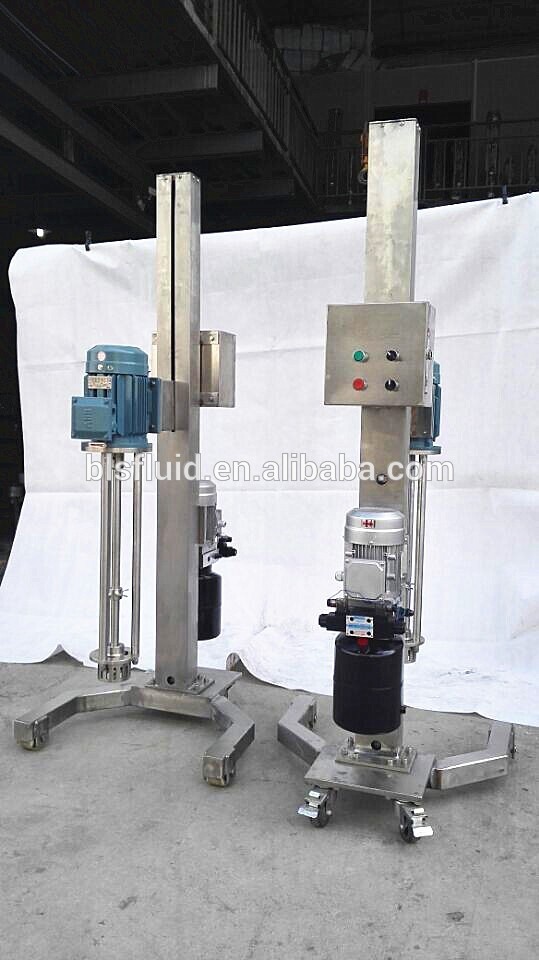

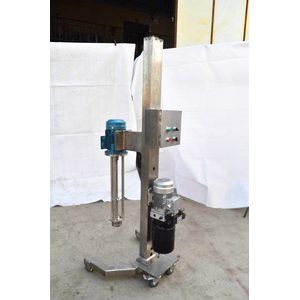

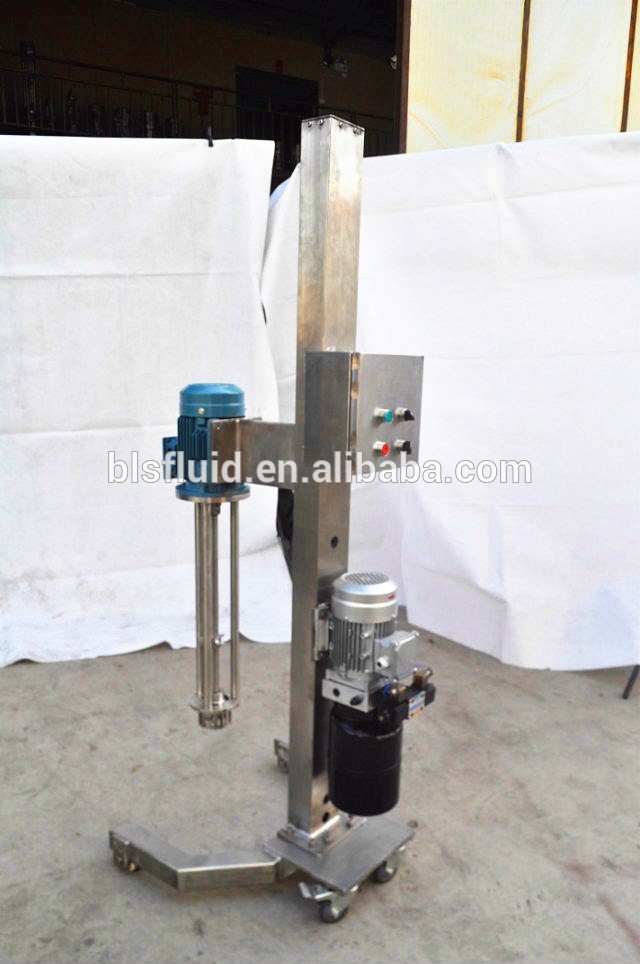

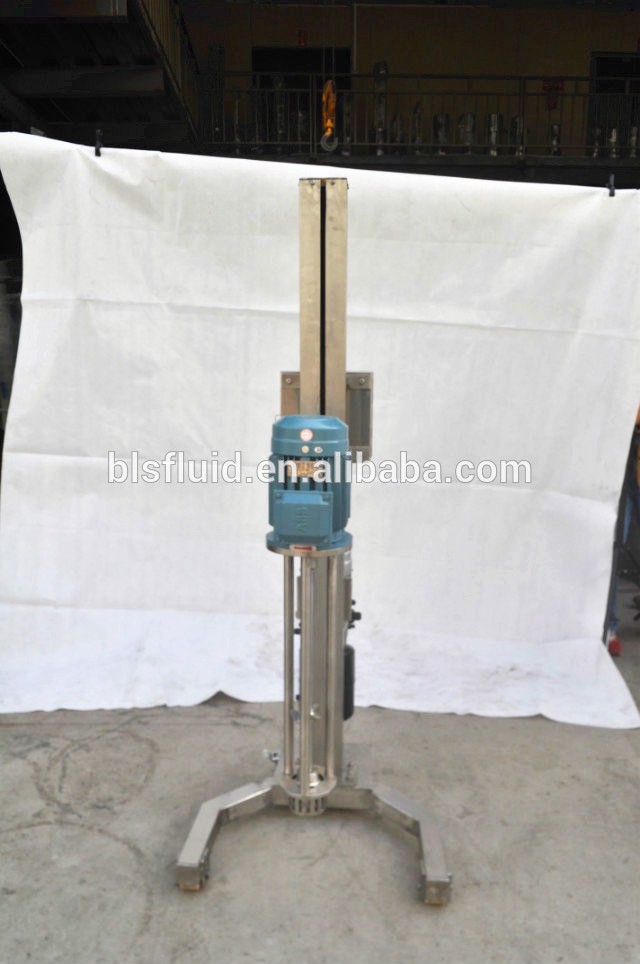

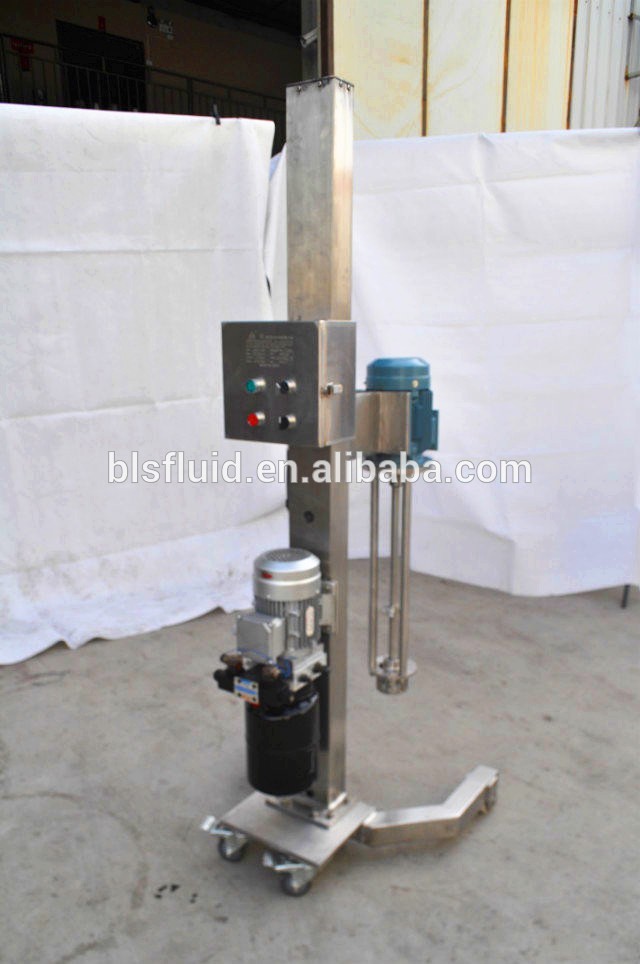

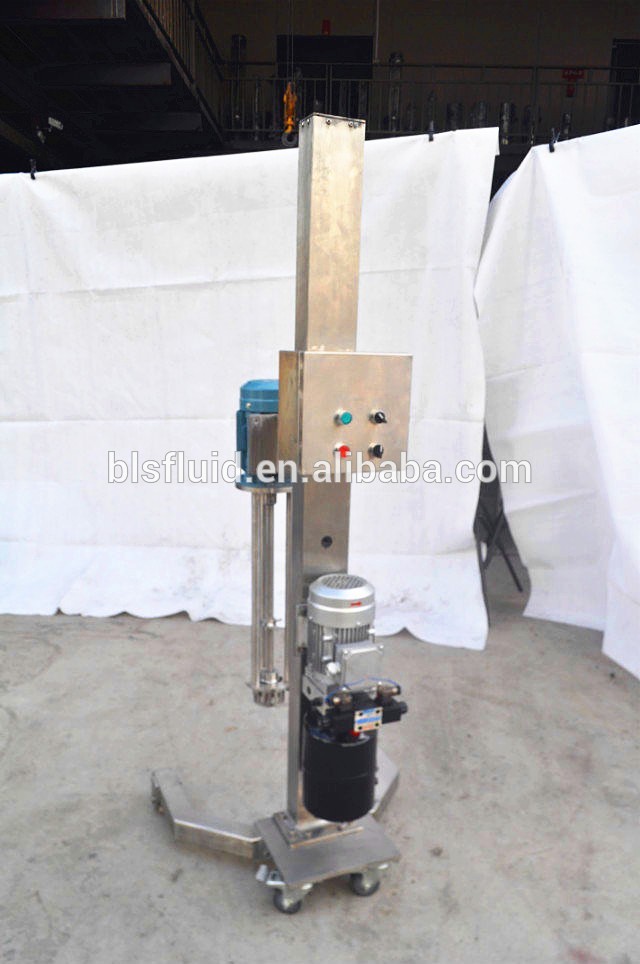

7.5KW Batch high shear homoginizer with stand lifter

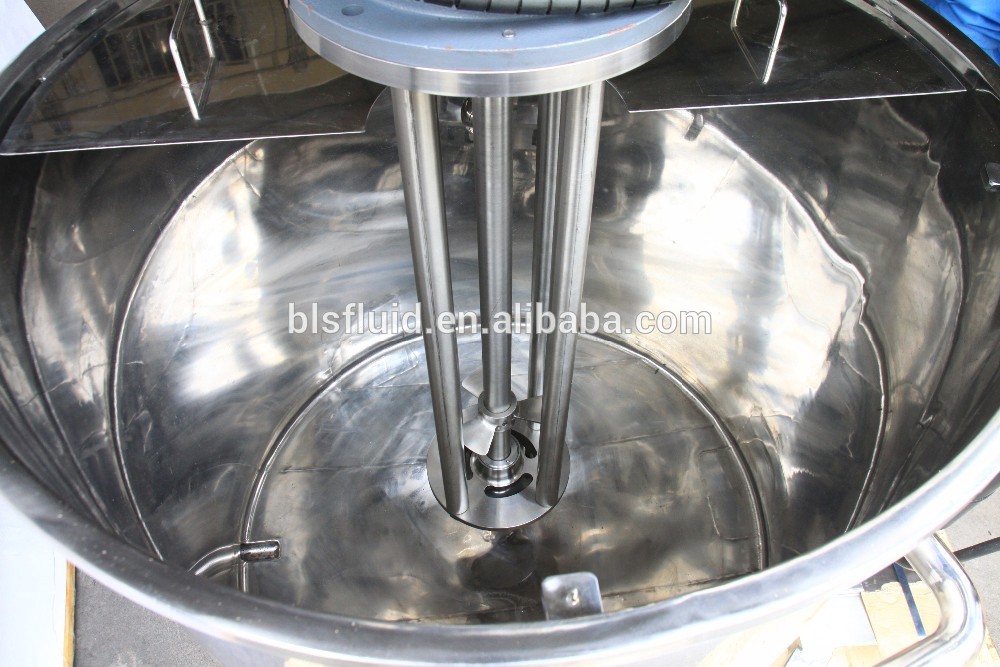

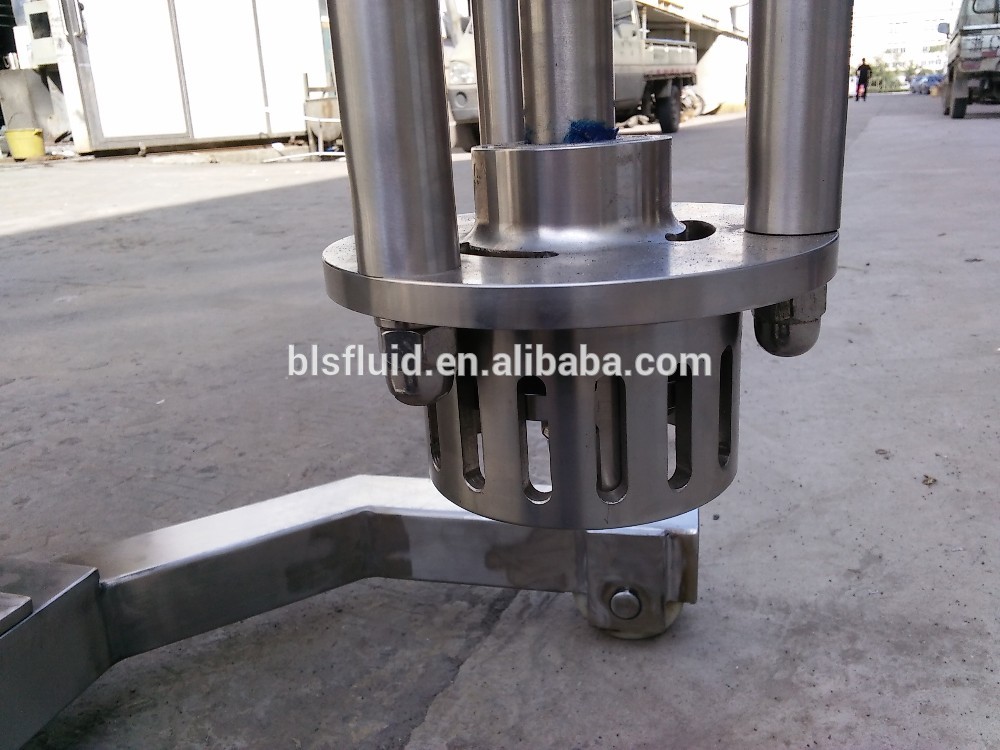

It is a kind of vertical installation of emulsification equipment. Stator design for claw type coupling structure, material from the host upper and lower suction at the same time, and around the centrifugal throw, Shear homogeneous efficiency multiplied, to avoid the problem of kettle inside the upper material is easy to produce blind Angle.
Characteristics
1. Simple overall structure, small size, light weight.
2. Humanized structure design and easy to operate.
3. Low noise and smooth operation.
Applicable range
1. Suitable for all kinds of large and small reaction kettle, uniform, fine on the common container, emulsification.
2. Small capacity of emulsion can be used for mobile lifting.
3. Widely applied in food, beverage, chemical, biochemical, petrochemical, pigments, dyes, paints, pharmaceuticals and other industries.
| Model | Power | Speed | Length | Capacity |
| (kw) | (rpm) | (mm) | (L/H) | |
| BRH-80 | 1.1 | 2800 | 350 | 10~40 |
| BRH-90 | 1.5 | 2800 | 350 | 10~50 |
| BRH-100 | 2.2 | 2800 | 650 | 50~100 |
| BRH-120 | 3 | 2800 | 750 | 100~200 |
| BRH-120A | 4 | 2800 | 750 | 100~300 |
| BRH-140 | 5.5 | 2800 | 900 | 200~600 |
| BRH-140A | 7.5 | 2800 | 900 | 200~800 |
| BRH-160 | 11 | 2800 | 1050 | 500~1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600~2000 |
| BRH-200 | 22 | 1400 | 1200 | 800~2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000~3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500~5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000~8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000~10000 |
Zhejiang L＆B Fluid Equipment co., Ltd
a modern enterprise which combine the ability of design, development, manufacturing, engineering, installation, technical services, has special technology to design and exploit by CAD software and computer and is a outstanding leader among valve fields.
We have advanced CNC lathes imported from Japan.We can manufacture the valves and fitting according to ISO, DIN, IDF, SMS, 3A, while we can produce the products per as the requirement from the clients(non-standard).
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
| Please contact our After-sales service department in time within 30days after you received the cargo. | |
| Tel: 86-577-86821328 Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
| Process | Please provide the copy of Sales Contract and describe the problems appeared. |
| Problems confrimation: | |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
| Serious problem: | |
| a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
| b | Have a negotiation of the compensation and sign agreements |
| c | Our After-Sales Department will perform the duties as the agreements |
