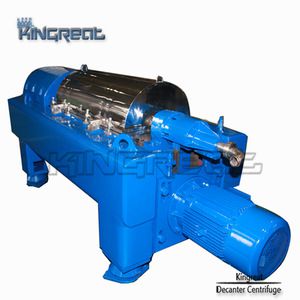

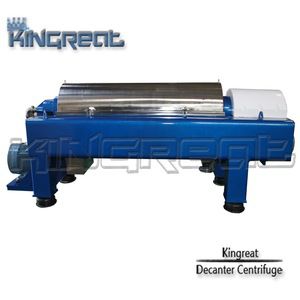

Decanters with slow rotation speed are normally based on horizontal separation technology. Decanters ensure optimum separation efficiency in the case of suspensions with a very high proportion of solids. They are also used for the extraction of constituents from liquids and for concentrating, dewatering and classifying solids.

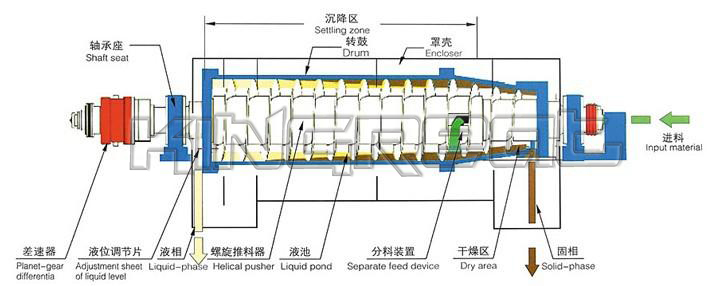

Decanter design
Type: 2-phase separation
Material: high quality stainless steel for all wet parts
Bearing: SKF brand. A special selection and arrangement of bearings provides for long life and exceptional reliability
Wear protection: welded hard facing or spray coating, ceramic technology
APPLICATION
Food: Fruit and Vegetable juices, Starch, Protein, Molasses, Stillage
Oils and Fats: Fish oil, Gelatine
Environmental protection/Recycling: Drilling mud, Industrial wastewater, Municipal wastewater
Minerals: Graphite, Kaolin, Bentonite
| Model | Diameter (mm) | Speed (rpm) | G-force | Capacity (m3/h) | Motor power (kw) | Weight (kg) | Overall dimenstion (L*W*H) (mm) |
| PNX-409 | 250 | 5500 | 3493 | 0.2~2 | 15/4 | 1020 | 2500*650*760 |
| PNX-414 | 355 | 4000 | 3175 | 1~10 | 18.5/7.5 | 2035 | 2765*920*1060 |
| PNX-416 | 355 | 4000 | 3175 | 1~15 | 18.5/7.5 | 2122 | 3065*920*1060 |
| PNX-418 | 355 | 4000 | 3175 | 1~25 | 22/7.5 | 2222 | 3365*920*1060 |
| PDC-1655 | 420 | 3000 | 2113 | 10~30 | 55/15 | 4600 | 4080*1100*1420 |
| PDC-17-4 | 420 | 3600 | 3042 | 3~15 | 30/7.5 | 5165 | 3331*990*1066 |
| PDC-18-4.4 | 450 | 3300 | 2739 | 10~20 | 37/11 | 2739 | 4000*1120*1239 |
| PDC-20 | 500 | 3200 | 2860 | 5~45 | 55/11 | 4400 | 4489*1160*1350 |
| PDC-21 | 540 | 2800 | 2366 | 15~50 | 45/15 | 5290 | 4587*1285*1368 |
| PDC-24 | 620 | 3200 | 3555 | 15~60 | Hydraulic, 90 | 8000 | 4650*2010*1200 |
| PDC-28HH | 720 | 2200 | 1975 | 15~80 | 110/37 | 9393 | 4800*1350*1500 |
Nanjing Kingreat Machinery Co., Ltd was established in 1958. Covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.
We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
1. 12 months guarantee period from machine arriving date.
2. Abundant spare parts in stock are available to provide.
3. Our technicians could be dispatched for overseas service.
4. 7*24 hours technical consultation.
5. Your workers could get trained both in our factory and yours.
6. Routine tracing till the machine work properly will be done timely.
7. We will remind you to do the normal maintenance.
8. Your suggestions or any comments & reflection would be treated in priority.
9. Marketing team will visit you during our visit in your country if you require.
