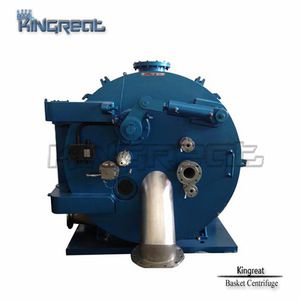

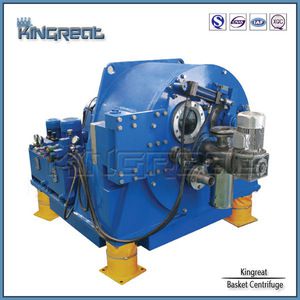

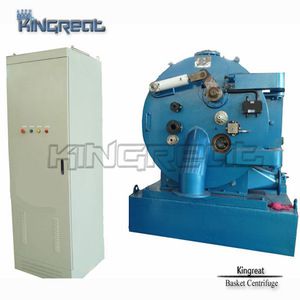

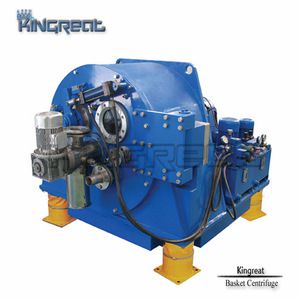

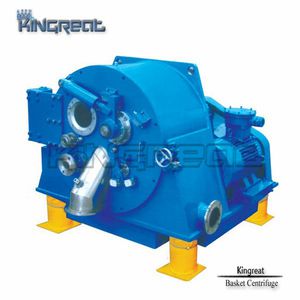

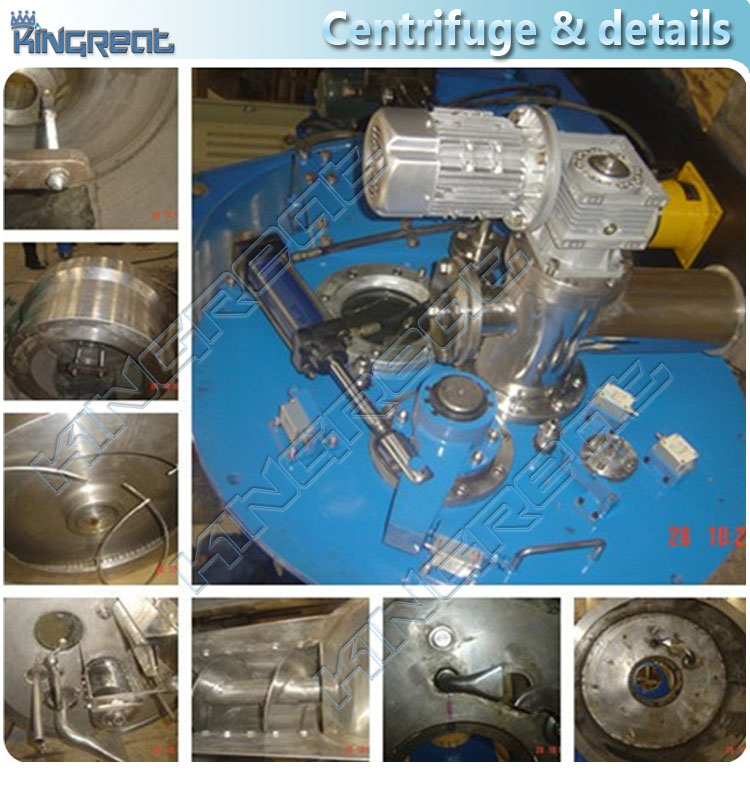

Model PPC Peeler Centrifuge Automatic Dewatering Starch Separator

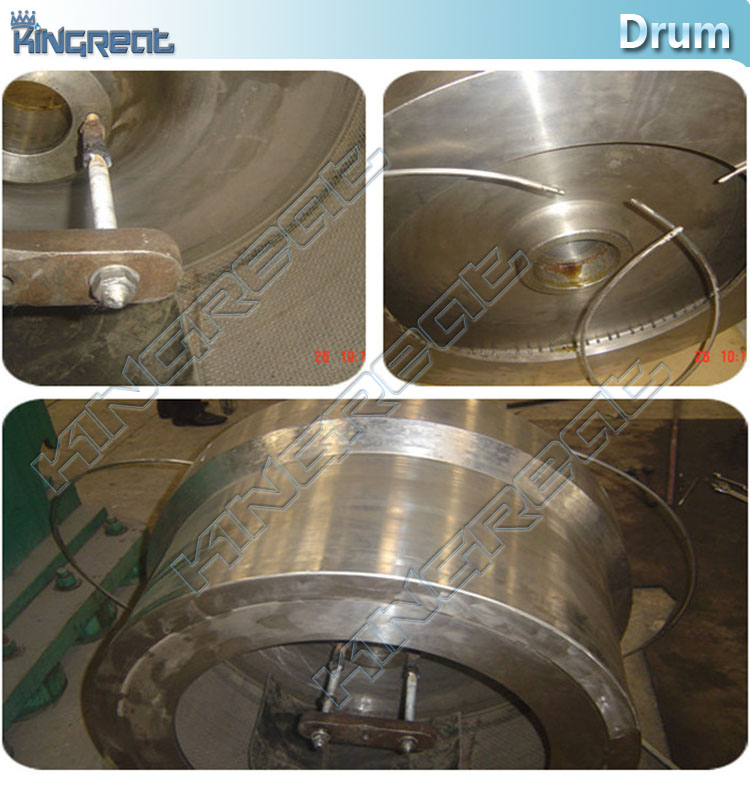

When the drum driven the motor runs at full speed, the feed valve automatically opens up and the suspension liquid goes through the feed pipe into the drum, where the liquid phase passes through the filter gauze and the screen openings on the drum and is kicked off by the centrifugal force and flows out of the tangential discharging outlet, while the solid phase is retained inside the drum. When the set time is reached, the feeding stops. After a given period of time of separation and dehydration, the washing valve acts and the cleaning liquid passes through the washing pipe into the drum to wash the filter cake. Upon the completion of washing, further separation is conducted till the required degree of dryness of the cake is reached. Then discharging starts: the scraper holder rotates enabling the scraper to cut into the cake layer and the cake is scraped off and discharged from the material hopper.
Model | Drum | G-force | Power (kw) | Weight (kg) | |||
Diameter (mm) | Volume (L) | Capacity (kg) | Speed (r/min) | ||||
PPC-135 | 800 | 95 | 135 | 1600 | 1150 | 30 | 5000 |
PPCS-135 | 800 | 95 | 135 | 1600 | 1150 | 37 | 5500 |
PPC-135-GMP | 800 | 95 | 135 | 1600 | 1150 | 37 | 6500 |
PPC-312 | 1000 | 208 | 312 | 1350 | 1020 | 45 | 6500 |
PPCS-312 | 1000 | 208 | 312 | 1350 | 1020 | 55 | 7000 |
PPC-288 | 1200 | 230 | 288 | 1200 | 968 | 45 | 8000 |
PPC-375 | 1250 | 250 | 375 | 1200 | 1008 | 45 | 9000 |
PPCS-555 | 1250 | 370 | 555 | 1200 | 1008 | 75 | 12000 |
PPC-960 | 1600 | 650 | 960 | 850 | 650 | 75 | 13500 |
PPCS-960 | 1600 | 650 | 960 | 850 | 650 | 90 | 15000 |
