Product Application
Elang belt driving screw air compressor is mainly used in general industry such as oil &gas,shipyard,coating,blow molding,laser cutting,furniture,plastics,rubber,color sorter machine,painting etc.
| Item Name | air compressor,air dryer,air tank,fine filter/OEM |

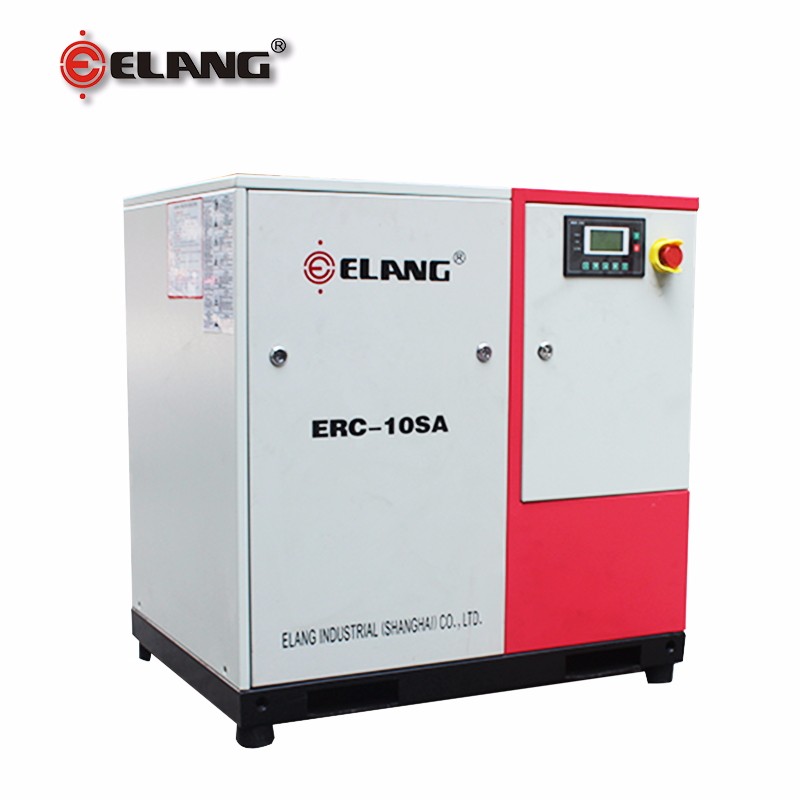

| Air Compressor Series | ERC10SA,ERC15SA,ERC20SA,ERC25SA,ERC30SA |
| Air Delivery | 1.1m3/min-3.8m3/min, 24.7cfm-134.2cfm |
| Minimum Order Quantity (MOQ) | 1set |

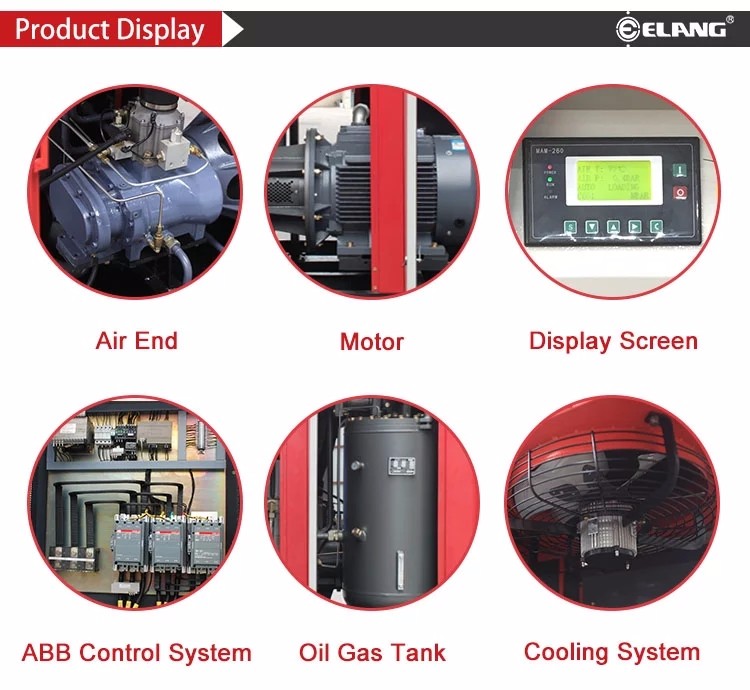

| | 1.You can choose ABB intelligent control. 2.PLC touch screen,0-100% stepless adjustment air inlet valve. 3.ELANG/Aerzen/GHH air end. 4.high efficiency motor for IP54/IP55 and insulution class F,ABB/simens motor for choose. |
| Certification | ISO9001 CE TUV UL SGS ASME |
| Quality Guarantee Period | 1year |
| Voltage | 110V - 660V 50Hz/60Hz 3ph,Support one machine for two voltages |
| Delivery Time | Shipped in 25 days after payment |
| Our service | 1.No matter when or where,24 hours service for you 2.We have agents in many countries.If you need , we can provide you with technical support. |
Highly-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into and involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise. Since no wearing parts are used for the double-screw compressor air end, it can operate for up to 40000-80000 hours between failure if well maintained.
Main Features
1.Large displacement:
Displacement 10% higher than ordinary piston compressor.
2. Energy-saving:
Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
3. Easy to operate:
24 hours unattended all day work, free load automatically start, full load automatically shut down.
4. Strong stability:
Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
Technical Data:

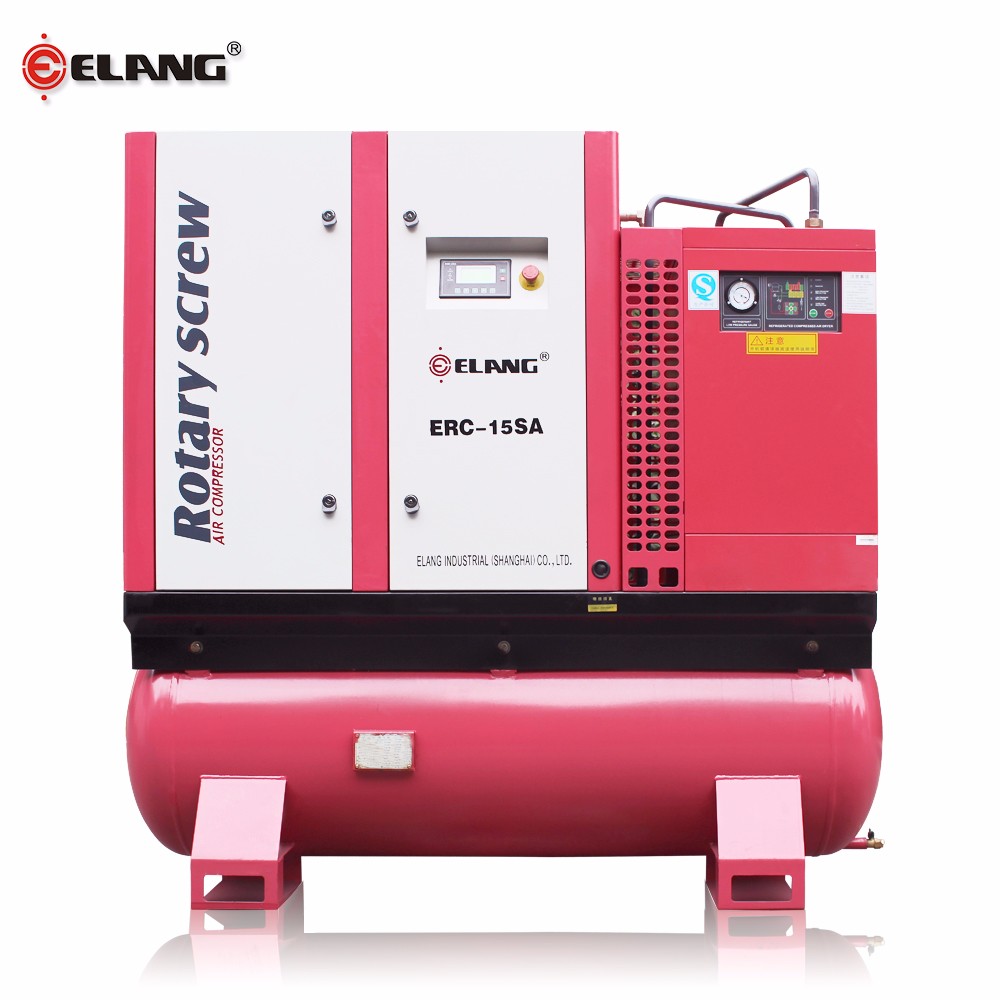

| Model | ERC-15SA | ||||
| Working Pressure | psig | 100 | 116 | 145 | 181 |
| bar | 7 | 8 | 10 | 12.5 | |
| Air Delivery | cfm | 63.6 | 58.3 | 53 | 45.9 |
| m3/min | 1.8 | 1.65 | 1.5 | 1.3 | |
| Motor Power | kw/hp | 11/15 | |||
| Motor Efficiency Class | Ultraefficient/IE3/IE2 as per your required | ||||
| Motor Protection Class | IP23/IP54/IP55 or as per your required | ||||
| Type of Driving | Belt Driven | ||||
| Type of Cooling | Air Cooling/Water cooling | ||||
| | L | 1955 | |||
| W | 800 | ||||
| H | 1800 | ||||
| Weight | kg | 785 | |||
| Caliber | 1" | ||||
| Volume of Receiver | m3 | 0.5 | |||
| Model of Drier | ELH-15A | ||||
| Treatment Capacity | m3/min | 2.4 | |||
| Model of Precision Filter | END024 | ||||
| Certification | CE/ISO9001:2015/TUV/UL/SGS/ASME | ||||
| Voltage | 380V/3PH/50HZ/60HZ 220V/3PH/50HZ/60HZ 440V/3PH/50HZ/60HZ 415V/3PH/50HZ/60HZ Dual voltage is also ok | ||||
| Exhaust Oil Volum | <3ppm | ||||
| Noise | db | 72±5 test according the national standard GB/T4980-2003 | |||
| Outlet Air Humidity | ℃ | ambient temperature+15℃ | |||
| Cooling Air Volume | m3/min | 50 | |||
| Cooling Water Volume | L/min | 14.5 |

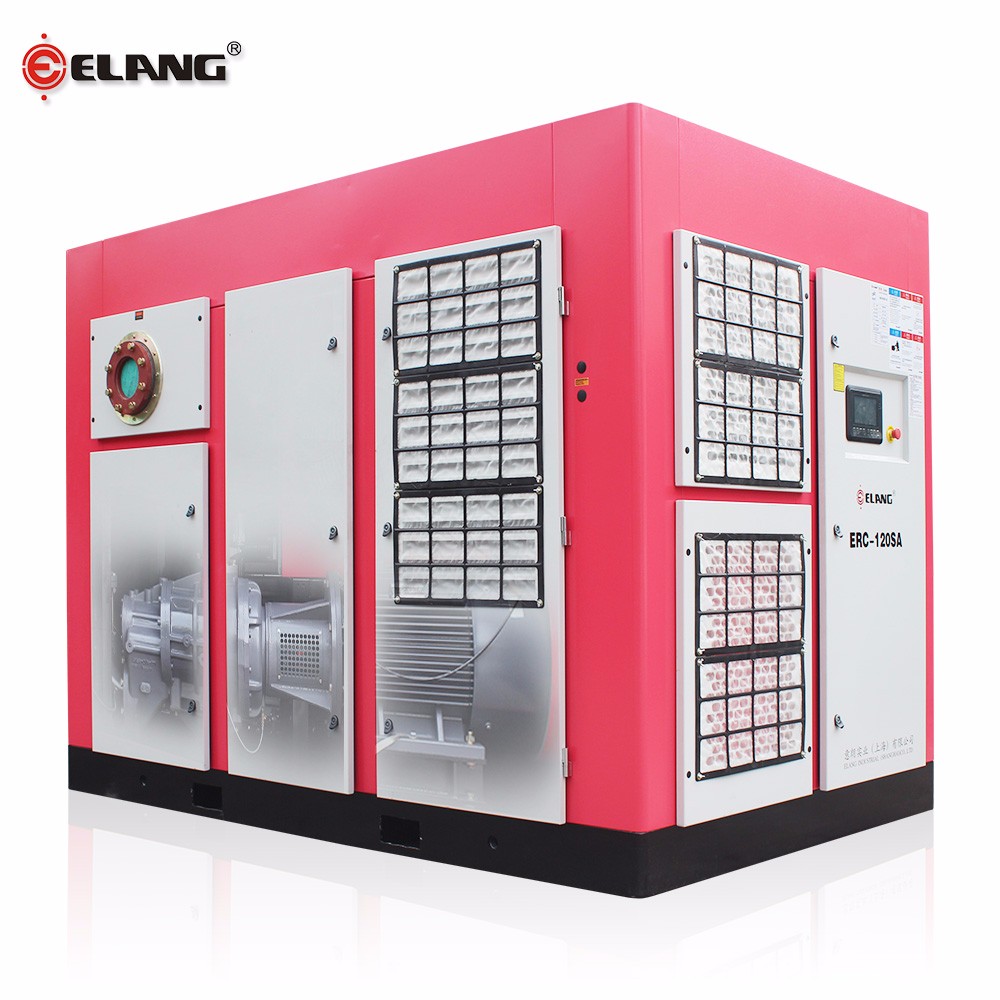

VSD air compressor
100% Response Rate

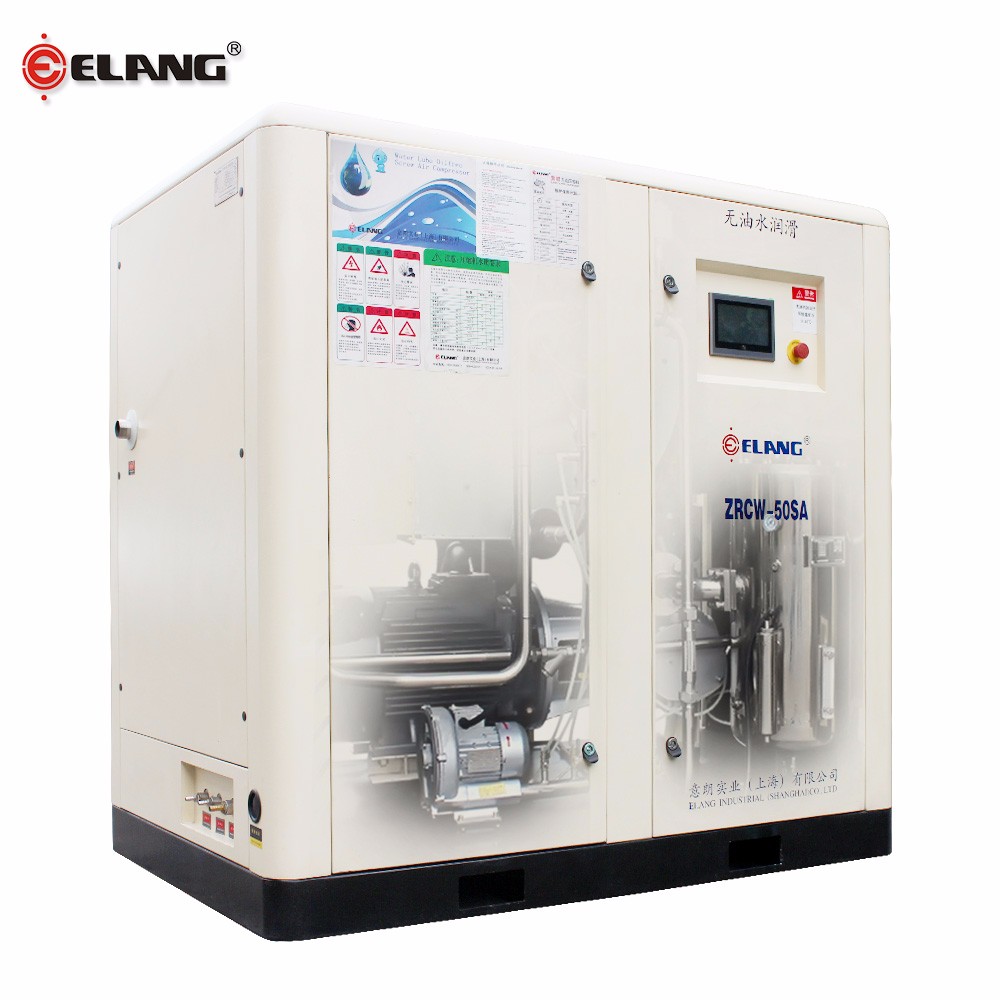

Oil free air compressor
100% Response Rate
Low pressure air compressor
100% Response Rate
Hot Products
Direct driven compressor Diesel air compressor Two-stage air compressor Belt Driven compressor

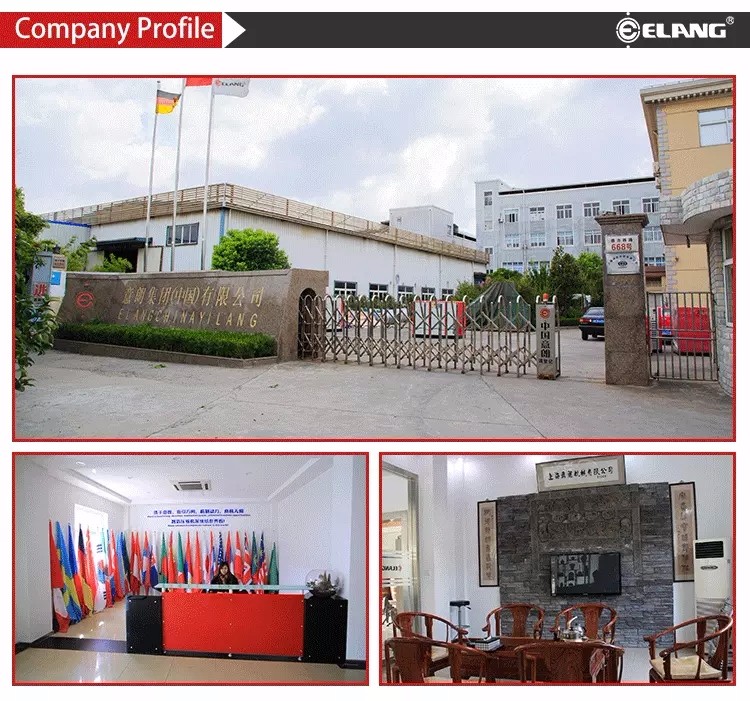

ELANG group is located in Nanxiang Industrial Development Zone, Jiading District, Shanghai, which is the hightech enterprises in Shanghai and China's quality service integrity AAAclass corporation. As one of the world's largest air compressor system suppliers, ELANG currently develops all the Rotary Screw Air Compressors.
