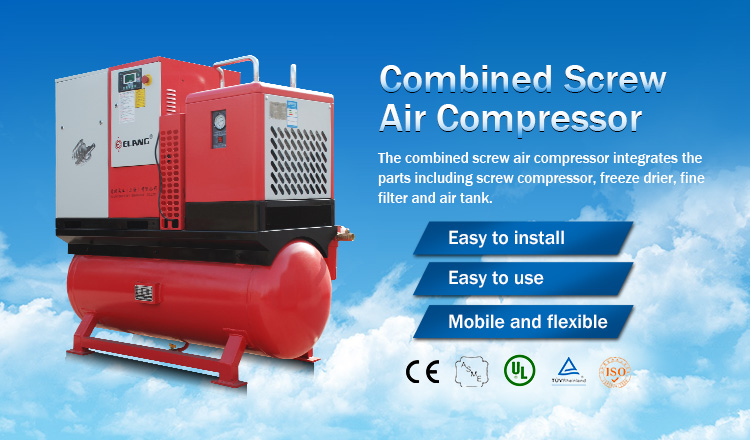

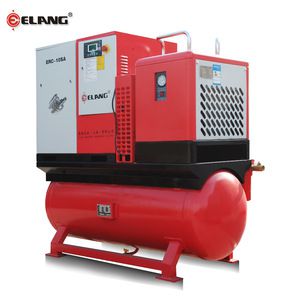

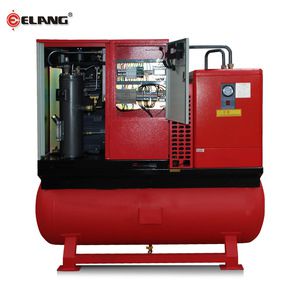

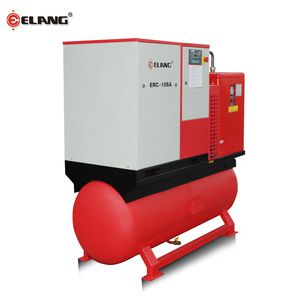

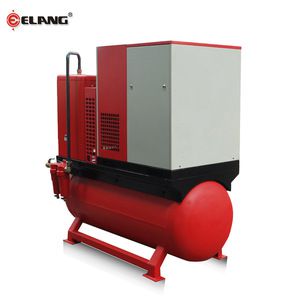

ELANG 10HP Combined Screw Air Compressor
Working Pressure: 7 - 12.5bar (100 - 181psi)
Air Delivery: 0.7 - 1.1m3/min
Motor Power: 7.5kw/10hp
Type of Driving: Belt Driven
Type of Cooling:
Air Cooling/Water Cooling
Dimension: 850*640*880mm
Weight: 350kg
Output pipe Diameter: 3/4"
There are more parameters below.
| Item Name | air compressor,air dryer,air tank,fine filter/OEM |
| Air Compressor Series | ERC10SA,ERC15SA,ERC20SA,ERC25SA,ERC30SA |
| Air Delivery | 1.1m3/min-3.8m3/min, 24.7cfm-134.2cfm |
| Minimum Order Quantity (MOQ) | 1set |
| Material Details | 1.You can choose ABB intelligent control. 2.PLC touch screen,0-100% stepless adjustment air inlet valve. 3.ELANG/Aerzen/GHH air end. 4.high efficiency motor for IP54/IP55 and insulution class F,ABB/simens motor for choose. |
| Certification | ISO9001 CE TUV UL SGS ASME |
| Quality Guarantee Period | 1year |
| Voltage | 110V - 660V 50Hz/60Hz 3ph,Support one machine for two voltages |
| Delivery Time | Shipped in 25 days after payment |
| Our service | 1.No matter when or where,24 hours service for you 2.We have agents in many countries.If you need , we can provide you with technical support. |
Advantages
- Large displacement: Displacement 10% higher than ordinary piston compressor.
- Energy-saving: Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
- Easy to operate: 24 hours unattended all day work, free load automatically start, full load automatically shut down.
- Strong stability:Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.
| Model | Working Pressure | Air Delivery | Motor Power | Air tank | Air dryer | Air filter | Type of Driving | Type of Cooling | Dimension(mm) | Weight (kg) | Output pipe Diameter | ||||
| psig | bar | cfm | m3/min | kw/hp | m3 | Nm3/min | Nm3/min | L | W | H | |||||

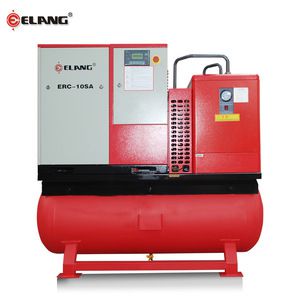

| ERC-10SA | 100 | 7 | 38.8 | 1.1 | 7.5/10 | 0.3 | 1.2 | 1.2 | Belt Driven | Air Cooling / Water Cooling | 850 | 640 | 880 | 350 | 3/4" |
| 116 | 8 | 35.3 | 1 | ||||||||||||
| 145 | 10 | 30.0 | 0.85 | ||||||||||||
| 181 | 12.5 | 24.7 | 0.7 | ||||||||||||

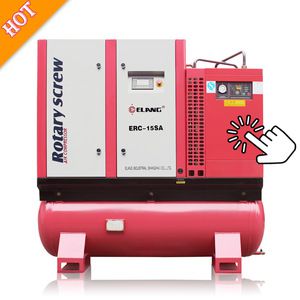

| ERC-15SA | 100 | 7 | 63.6 | 1.8 | 11/15 | 0.5 | 2.4 | 2.4 | 1150 | 750 | 1180 | 450 | 1" | ||
| 116 | 8 | 58.3 | 1.65 | ||||||||||||
| 145 | 10 | 53.0 | 1.5 | ||||||||||||
| 181 | 12.5 | 45.9 | 1.3 | ||||||||||||
| ERC-20SA | 100 | 7 | 84.7 | 2.4 | 15/20 | 0.5 | 2.6 | 2.6 | 1150 | 750 | 1180 | 460 | 1" | ||
| 116 | 8 | 77.7 | 2.2 | ||||||||||||
| 145 | 10 | 74.2 | 2.1 | ||||||||||||
| 181 | 12.5 | 63.6 | 1.8 | ||||||||||||
| ERC-25SA | 100 | 7 | 109.5 | 3.1 | 18.5/25 | 0.5 | 3.8 | 3.8 | 1200 | 880 | 1450 | 620 | 1" | ||
| 116 | 8 | 102.4 | 2.9 | ||||||||||||
| 145 | 10 | 95.3 | 2.7 | ||||||||||||
| 181 | 12.5 | 81.2 | 2.3 | ||||||||||||
| ERC-30SA | 100 | 7 | 134.2 | 3.8 | 22/30 | 0.5 | 3.8 | 3.8 | 1200 | 880 | 1450 | 640 | 1" | ||
| 116 | 8 | 127.1 | 3.6 | ||||||||||||
| 145 | 10 | 113.0 | 3.2 | ||||||||||||
| 181 | 12.5 | 88.3 | 2.5 | ||||||||||||
| Motor Efficiency Class: Ultraefficient/IE3/IE2 as per your required Motor Protection Class: IP23/IP54/IP55 or as per your required Certification: CE/ISO9001/TUV/UL/SGS/ASME Voltage: 380V/3PH/50HZ/60HZ, 220V/3PH/50HZ/60HZ, 400V/3PH/50HZ/60HZ, 440V/3PH/50HZ/60HZ, 415V/3PH/50HZ/60HZ, 230V/3PH/50HZ/60HZ, dual voltage is also ok |
ELANG group is located in Nanxiang Industrial Development Zone, Jiading District, Shanghai, which is
the hightech enterprises in Shanghai and China's quality service integrity AAAclass corporation. As one
of the world's largest air compressor system suppliers, ELANG currently develops all the Rotary Screw
Air Compressors.
German standard, Made in ELANG. As the industry's leading technology enterprise, ELANG has always
being focused on the talent cultivation and quality pursuit. We have a good batch of talent team with solid
foundation of air dynamics and always active in mechanical application and technology R&D, that make
ELANG achieved unparalleled advantages in the technology R&D and product innovation and
customized etc.
Behind such a huge system, it is ELANG people constant persist. Choose ELANG, without worry for
fifty years. ELANG give 10 years quality guaranty concept for its sold products, 24-hour after-sales
service, full-way after-salestracking and lifelong maintenance.
Q1: Why customer choose us?
A: ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history, we are specialized in Rotary Screw Air Compressor. Germany Standard and 10years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Shanghai,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your air compressor warranty?
A: One year for the whole machine and two years for screw air end, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
