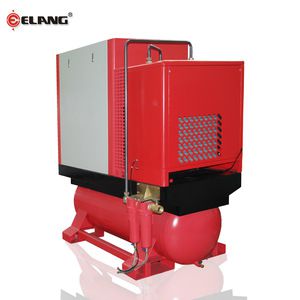

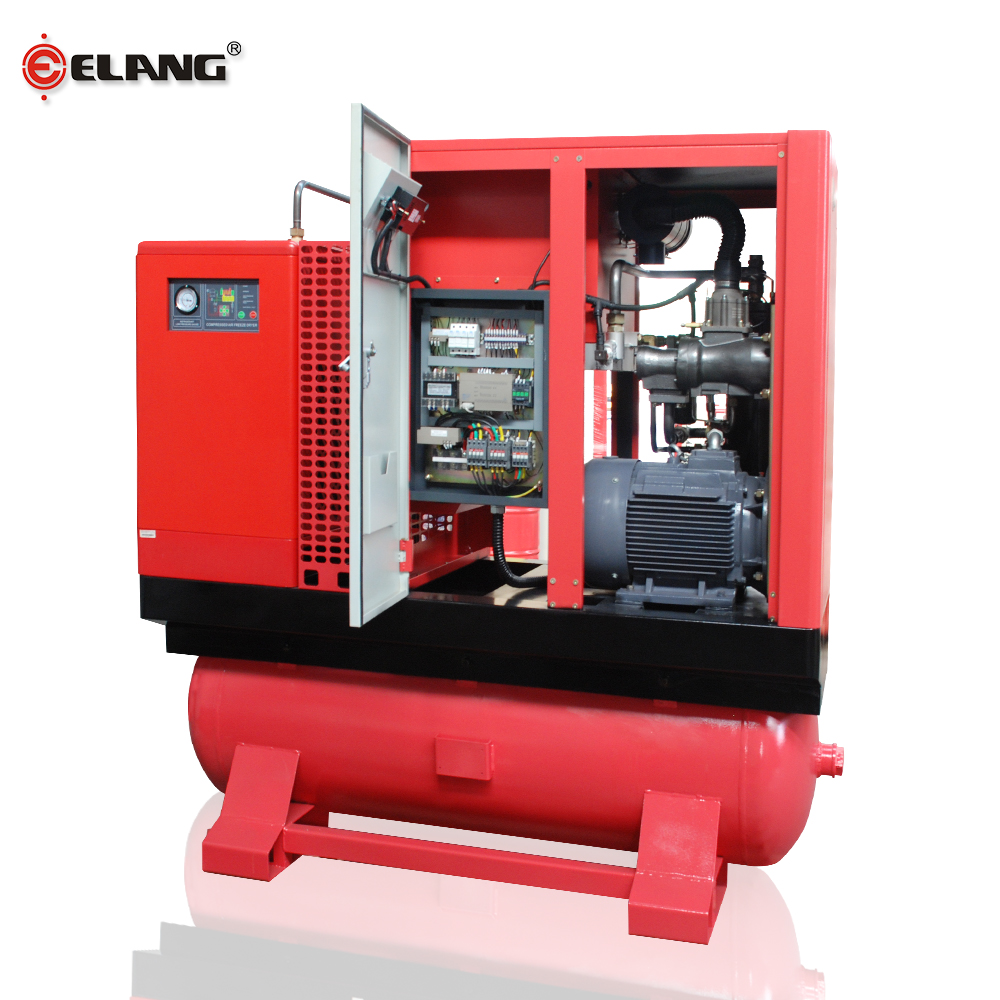

200L 100 Psi rotary screw Air Compressor Of Air Tank
Highly-quality shaft coupling elastic body can buffer and compensate for the imbalanced moment of operation. The elastomer is designed into and involute cambered surface, which effectively avoids stress concentration and improve the buffering effect of the elastomer to increase its bearing capacity. In addition, the high-quality materials ensure excellent durability for the elastomer and can better absorb the vibration arising from the rotation to remove noise. Since no wearing parts are used for the double-screw compressor air end, it can operate for up to 40000-80000 hours between failure if well maintained.
Technical Data:
| Model | ERC-30SA | ||||
Working Pressure | psig | 100 | 116 | 145 | 181 |
| bar | 7 | 8 | 10 | 12.5 | |
| Air Delivery | cfm | 134.2 | 127.1 | 113 | 88.3 |
| m3/min | 3.8 | 3.6 | 3.2 | 2.5 | |
| Motor Power | kw/hp | 22/30 | |||
Motor Efficiency Class | Ultraefficient/IE3/IE2 as per your required | ||||
Motor Protection Class | IP23/IP54/IP55 or as per your required | ||||
| Type of Driving | Belt Driven | ||||
| Type of Cooling | Air Cooling/Water cooling | ||||
| Dimension(mm) | L | 1960 | |||
| W | 1070 | ||||
| H | 2012 | ||||
| Weight | kg | 930 | |||
Caliber | 11/2" | ||||
Volume of Receiver | m3 | 0.5 | |||
Model of Drier | ELH-30A | ||||
Treatment Capacity | m3/min | 3.8 | |||
Model of Precision Filter | END035 | ||||
| Certification | CE/ISO9001:2015/TUV/UL/SGS/ASME | ||||
| Voltage | 380V/3PH/50HZ/60HZ 220V/3PH/50HZ/60HZ 440V/3PH/50HZ/60HZ 415V/3PH/50HZ/60HZ Dual voltage is also ok | ||||
Exhaust Oil Volum | <3ppm | ||||
| Noise | db | test according the national standard GB/T4980-2003 | |||
| Outlet Air Humidity | ℃ | ambient temperature+15℃ | |||
| Cooling Air Volume | m3/min | 110 | |||
| Cooling Water Volume | L/min | 14.5 |
1.Large displacement:
Displacement 10% higher than ordinary piston compressor.
2. Energy-saving:
Compared with piston air compressor, this series of models for the new national standard two energy efficiency products, excellent energy saving.
3. Easy to operate:
24 hours unattended all day work, free load automatically start, full load automatically shut down.
4. Strong stability:
Under long time working, displacement and pressure stable, no crash phenomenon, low failure rate.

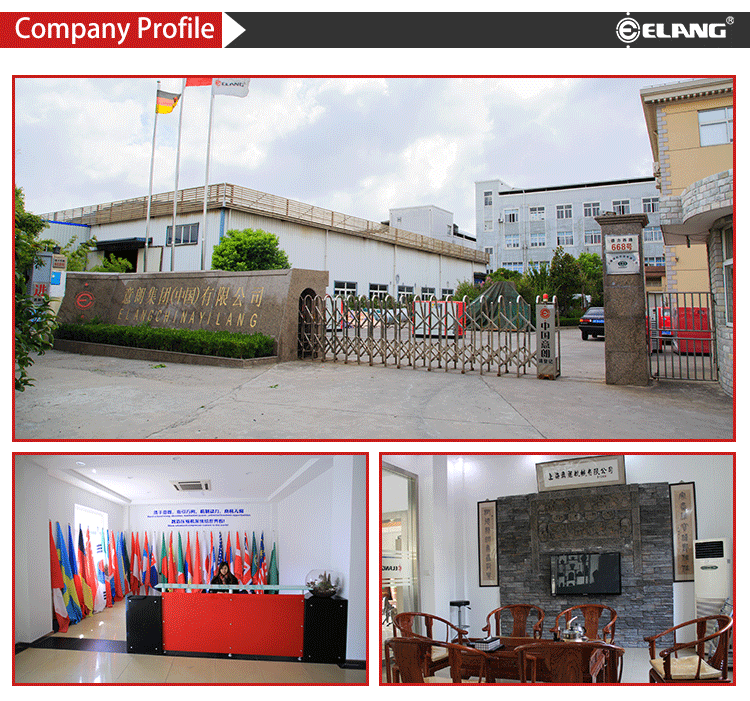

ELANG group is located in Nanxiang Industrial Development Zone, Jiading District, Shanghai, which is
the hightech enterprises in Shanghai and China's quality service integrity AAAclass corporation. As one
of the world's largest air compressor system suppliers, ELANG currently develops all the Rotary Screw
Air Compressors.
German standard, Made in ELANG. As the industry's leading technology enterprise, ELANG has always
being focused on the talent cultivation and quality pursuit. We have a good batch of talent team with solid
foundation of air dynamics and always active in mechanical application and technology R&D, that make
ELANG achieved unparalleled advantages in the technology R&D and product innovation and
customized etc.
Behind such a huge system, it is ELANG people constant persist. Choose ELANG, without worry for
fifty years. ELANG give 10 years quality guaranty concept for its sold products, 24-hour after-sales
service, full-way after-salestracking and lifelong maintenance.
1.Why customer choose us?
ELANG INDUSTRIAL (SHANGHAI) CO., LTD., with 18 years old history,we are specialized in
Rotary Screw Air Compressor.
Germany Standard and 10 years exporting experience help us won more than 50 loyal foreign
agents. We warmly welcome your small trial order for quality or market test.
2.Are you a manufacturer or trading company?

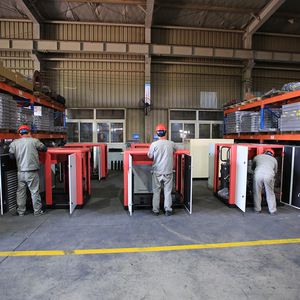

We are professional manufacturer with big modern factory in Shanghai,China.
Both OEM & ODM service can be accepted.
3.What’s your delivery time?
Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
4.How long is your air compressor warranty?
One year for the whole machine and two years for screw air end, except consumable spare
parts.
5.How long could your air compressor be used?
Generally, more than 10 years.
6. What's payment term?
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc.
Also we could accept USD, RMB, Euro and other currency.
7.How about your customer service?
24 hours on-line service available. 48hours problem solved promise.

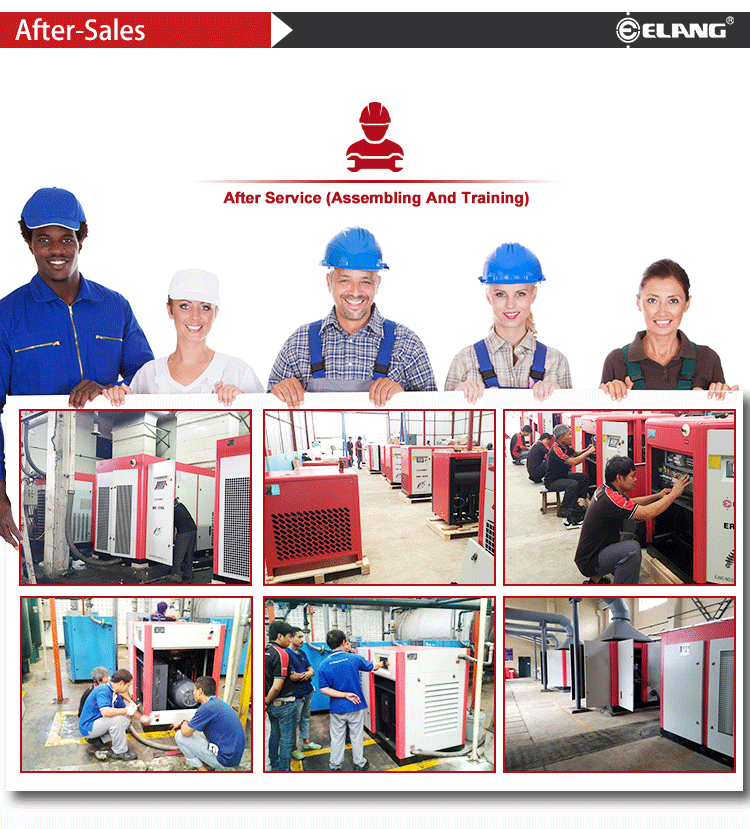

8.How about your after-sales service?
1. Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service available.
