Peeler centrifuge is a kind of centrifuge which could work continuously, intermittently and with filtering function. With both automatically and manually during feeding, separating, washing, dewatering, discharging and filtering in a whole process under high speed running, and a short time circulation, large capacity processing, low moisture filter cake and clean washing.

GK series peeler centrifuge was widely applied in chemical, foodstuff, light industries, pharmaceutical, and starch industries etc, especially for suspension liquid with large, medium and small size particles, such as sulphuric ammonia, carbonic ammonia, PVC, and modified starch etc.

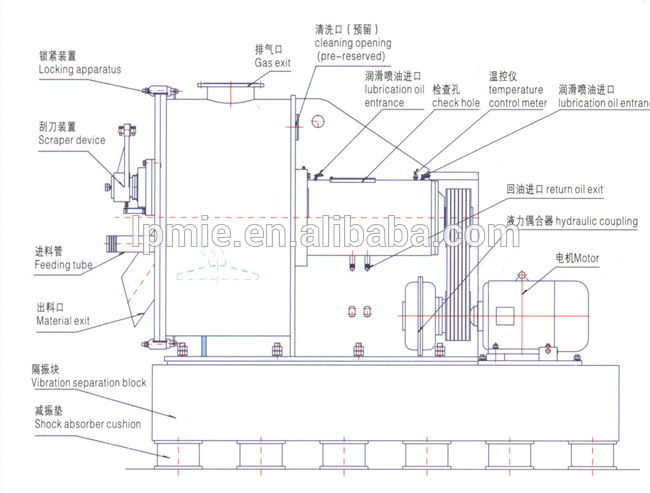

Structure drawing of Scraper Automatic Discharge Peeler Centrifuge (side view)

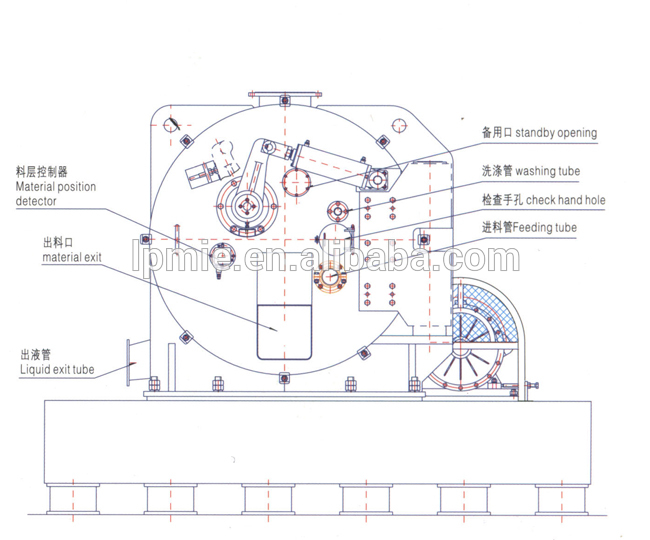

 Structure drawing of Scraper Automatic Discharge Peeler Centrifuge (front view)

1.      It has applied PLC program control. (PLC & touch screen are both optional parts). Programmable setting, automatic operation without operator attention, computerized, convenient operation and repairs.

2.      Electric-hydraulic automatic control.

3.      Independent electric control panel can control remotely.

4.      Safety protection: rotation rate detection, vibration protection (optional part), protection when opening the lid (optional part), and optional overload and overheat protection for the motor, dual control with both mechanical and electrical for scraper.

5.      Welded machine case, strong and rationally design structure.

6.      Leak-proof structure with silicone rubber or fluoroelastomers seals.

7.      Independent hydraulic system can be installed separately, convenient to repair.

8.      Hydraulic coupling for transmission of power (for the model above GK1250), smooth startup well protects the motor not to damage from overload, and simplifies the routine maintenance.

9.      The components directly contact the separating material is made from stainless steel, highly improves the anti-corrosion performance and meets the hygiene standards.

10.  Horizontal siphon centrifuges applies siphon improving the production efficiency by more than 50% compared to GK series (same bowl diameter), however, can make lower moisture solids cakes.

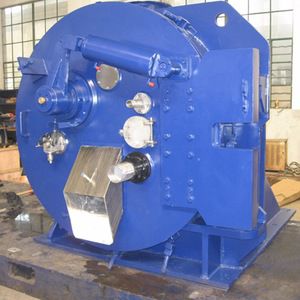

Scraper Automatic Discharge Peeler Centrifuge (front view)

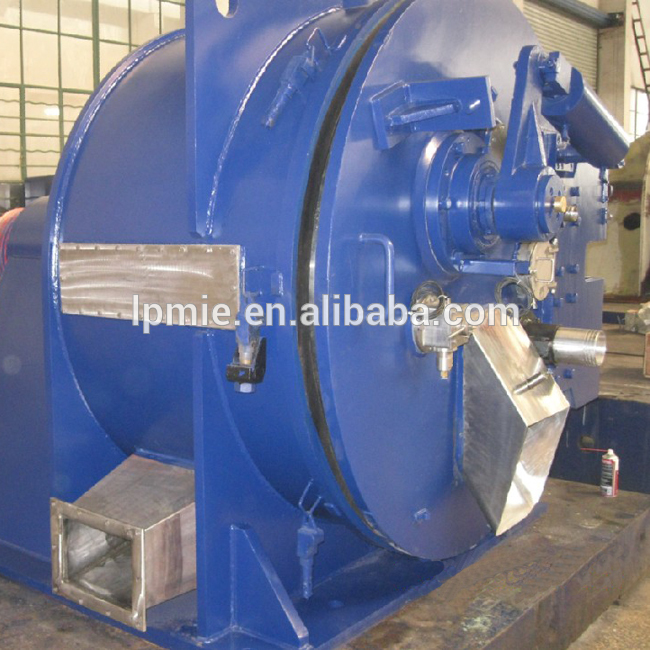

Structure drawing of Scraper Automatic Discharge Peeler Centrifuge ( frontside view)

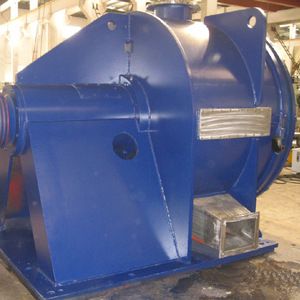

Structure drawing of Scraper Automatic Discharge Peeler Centrifuge (back side view)

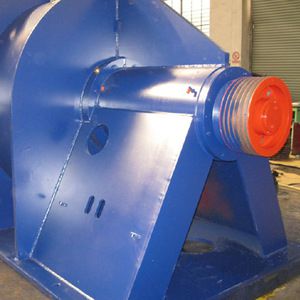

Structure drawing of Scraper Automatic Discharge Peeler Centrifuge (back view)

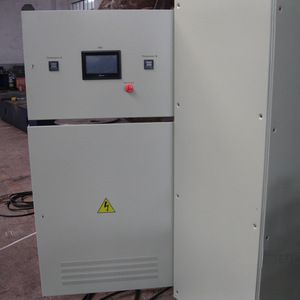

Structure drawing of Scraper Automatic Discharge Peeler Centrifuge (electric control cabinet)

You may interested in other type of centrifuge, please visiting the following website and pictures:

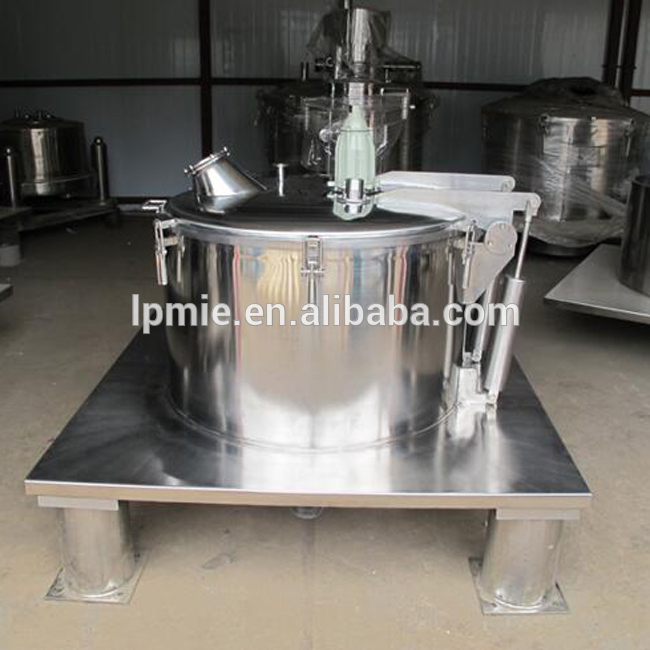

          Top Manual Discharge Centrifuge                                               Tubular Centrifuge

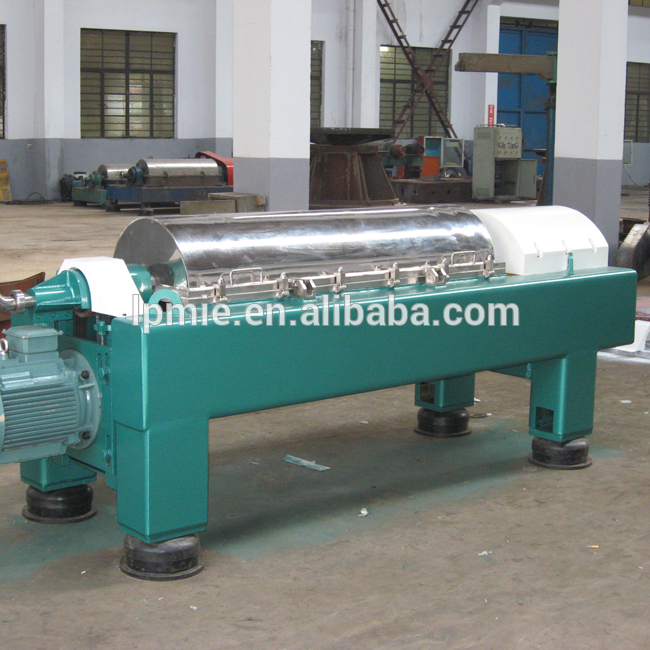

                            Decanter Centrifuge                                                        Disc Centrifuge

                Top Discharge Centrifuge                                              Marine Oil Separator

Liaoyang Pharma Machinery Co.,Ltd is a grouping enterprise which contributes to production and sale of pharmaceutical,chemical and packaging machinery, the group consists of several subbranches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA,Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the producs are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine,teabag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.

 Packing:

Whole machine and every parts wrapped by plastic film for dusting-proof.

Packed in export standard wooden case with pallet, conducive to forklift handling.

Shipping:

Shipping method: by sea, by air, by international express company.

Delivery time: 30-45 days after order confirm.

Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
