Vegetable or virgin coconut oil disc centrifuge separator for food processing
Vegetable or virgin coconut oil disc centrifuge separator for food processing
Main features :

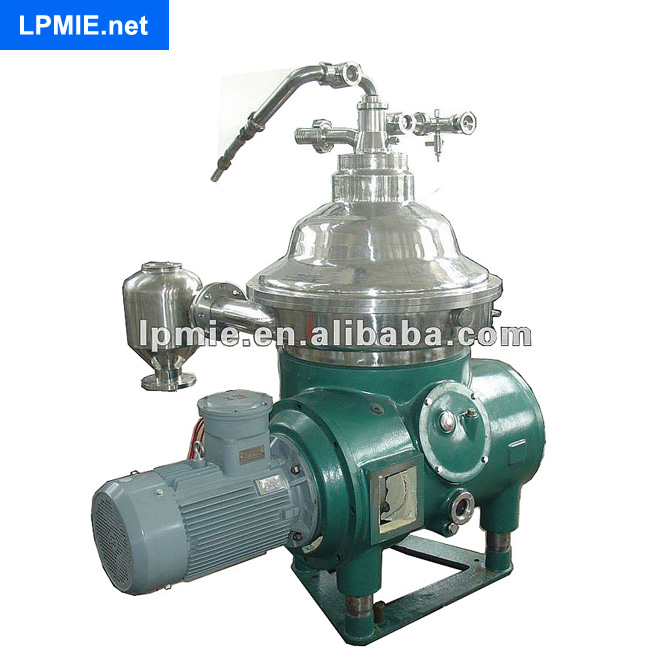

Vegetable or virgin coconut oil disc centrifuge separator for food processing
GFHY Series Oil Separator is mainly working for many kinds of oil separating, especially for liquid-liquid-solid separation. All the processing could be working continuously discharge automatically. Matched with Ex Electric control cabinet, most of the electric component are flameproof parts, SIEMENS touch screen and transducer keep the separator starting from low speed, reach the maximum working speed gradually, protect the EX-motor working for long time. Bowl part material consult with Alfa Laval bowl material, main core part all used 00Cr18Ni5Mo, other parts use SUS304, good performance and easy for maintenance, this machine is in accordance with pharmaceutical and food manufacture standard .
vegetal or animal oil Disc centrifuge separator for food processing
Structure and principle:
Vegetable or virgin coconut oil disc centrifuge separator for food processing
The bowl rotates at a high speed round the main axis, driven by a motor through hydraulic coupling and screw gear pair. Stock liquid flows from the upper feeding pipe into the bowl's bottom and then will be separated through holes of disc seat. by the action of centrifugal force field, heavy liquid flows along the inner wall of discs to the inner wall of the bowl, after up flowing along them, it will be discharged by the heavy liquid pump, the light liquid will be done by the light liquid pump, which flows along the inner wall of discs into centre pipe and then up to high liquid outlet. the larger solid phase particles left will sedimentation on the bowl's wall and then will be discharged, controlled by the sliding bowl, out of the sediment outlet.
item Model Type | GFHY200 | GFHY 300 | |
Bowl Part | Diameter(mm) | 270 | 380 |
Speed(r/min) | 7000 | 7580 | |
Separating Factor | 8358 | 9529 | |
Working Capacity (m3/h) | 0.3~0.7 | 0.8~1.5 | |
Motor’s power (kw) | 4.0Kw 380V 50HZ 3 Phase EX. | 7.5Kw 380V 50HZ 3 Phase EX. | |
Dimension (mm) | 950 x950x1250 | 1450x1400x1500 | |
weight (kg) | 550 | 810 |
Vegetable or virgin coconut oil disc centrifuge separator for food processing
vegetal or an
imal oil Disc centrifuge separator for food processing
Packing:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Why choose us?
11 years gold supplier of Alibaba.
20 years experience of machinery.
Trade assurance member of Alibaba.
How long can we get the goods?
For standard machine, we usually delivery in two weeks.
Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
100% Payment before shipment or as negotiated terms with clients.
