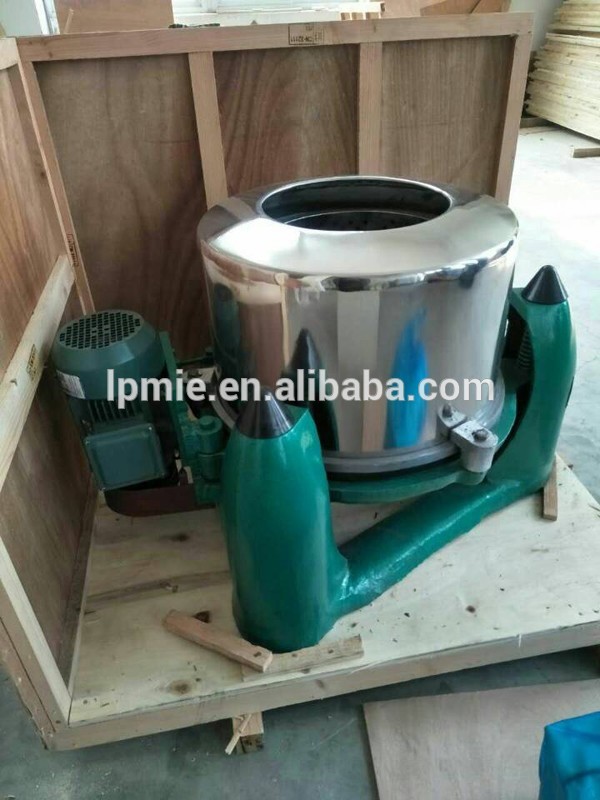

Application:
The three foot type upper unloading centrifuge for separation suspension with solid particles larger than 0.01 mm, solid particles can be granular, crystalline or fibrous morphology, but also for the goods (such as yarn, textile etc.) dehydration. Widely used in chemical, pharmaceutical, food, light industry and other industries. For example: gypsum, thiamine, Glauber's salt, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dyes, plastics, soap, oil, salt, monosodium glutamate, resin, food additives, starch sugar, vitamins, antibiotics, herbicide, insecticide, copper and zinc aluminum powder, dehydrated.
Main structure:
1. Drum parts: the centrifuge drum is made by welding, dynamic balance correction.
2. Drive unit:
l Independent bearing seat structure, easy to assemble and disassemble, convenient for maintenance;
l The utility model bearing shaft seat, high machining accuracy, good strength;
l Bearing supporting length is large, bearing performance is good;
l Spindle multiple sealing ring structure, sealing effect is good.
Detection means and methods:
l Drum "X" ray detection;
l The drum overall dynamic balance correction;
l Quenching and tempering treatment of main shaft and magnetic particle flaw detection;
l The vibration frame and bearing stress;
l Host temperature rise, speed, noise, vibration testing, etc.
Parameters:
Model | SS450 | Rotary speed | 1900rpm |
Drum diameter | 450mm | Separation factor | 907w3r/g |
Working capacity | 17L | Motor power | 1.5kw |
Material limit weight | 21kg | Machine dimension | 980X730X650mm |
Packaging:
Whole machine and every parts wrapped by plastic film for dusting-proof.
Packed in export standard wooden case with pallet, conducive to forklift handling.
Shipping:
Shipping method: by sea, by air, by international express company.
Delivery time: 30-45 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to all over the world, can arrange shippment to destination port and to door for customer. We also accept forwarder agent of customer.
Liaoyang Pharma Machinery Co., Ltd (LPMIE) is a grouping enterprise which contributes to production and sale of pharmaceutical, chemical and packaging machinery, the group consists of several sub branches, pharmaceutical machinery factory, packaging machinery factory and plastic machinery factory, Clean-room Factory and 2 offices, her products are popular in the whole nation, furthermore exported over 70 countries and regions in the world, such as: USA, Japan, Sweden, France, Spain, Canada, Australia, Thailand, Vietnam and Indian etc, the products are beyond 800 kinds, includes Blender, tablet press, capsule filler, dryer, blister packing machine, tea bag packing machine, centrifuge, Glass-lined Reactor clean-room equipment and instruments etc. she also provided the whole set of pharmaceutical, chemical and packaging line for the customers from UAE, Romania, Nigeria, Georgia, Pakistan and Ethiopia.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Why choose us?
11 years golden supplier of Alibaba.
20 years experience of machinery.
Trade assurance member of Alibaba.
How long can we get the goods?
For standard machine, we usually delivery in two weeks.
Customized machine delivery in 30-60 days.
How should I do if meet some trouble while using?
We supply 24 hours online service.
What is your terms of payment?
100% Payment before shipment or as negotiated terms with clients.
